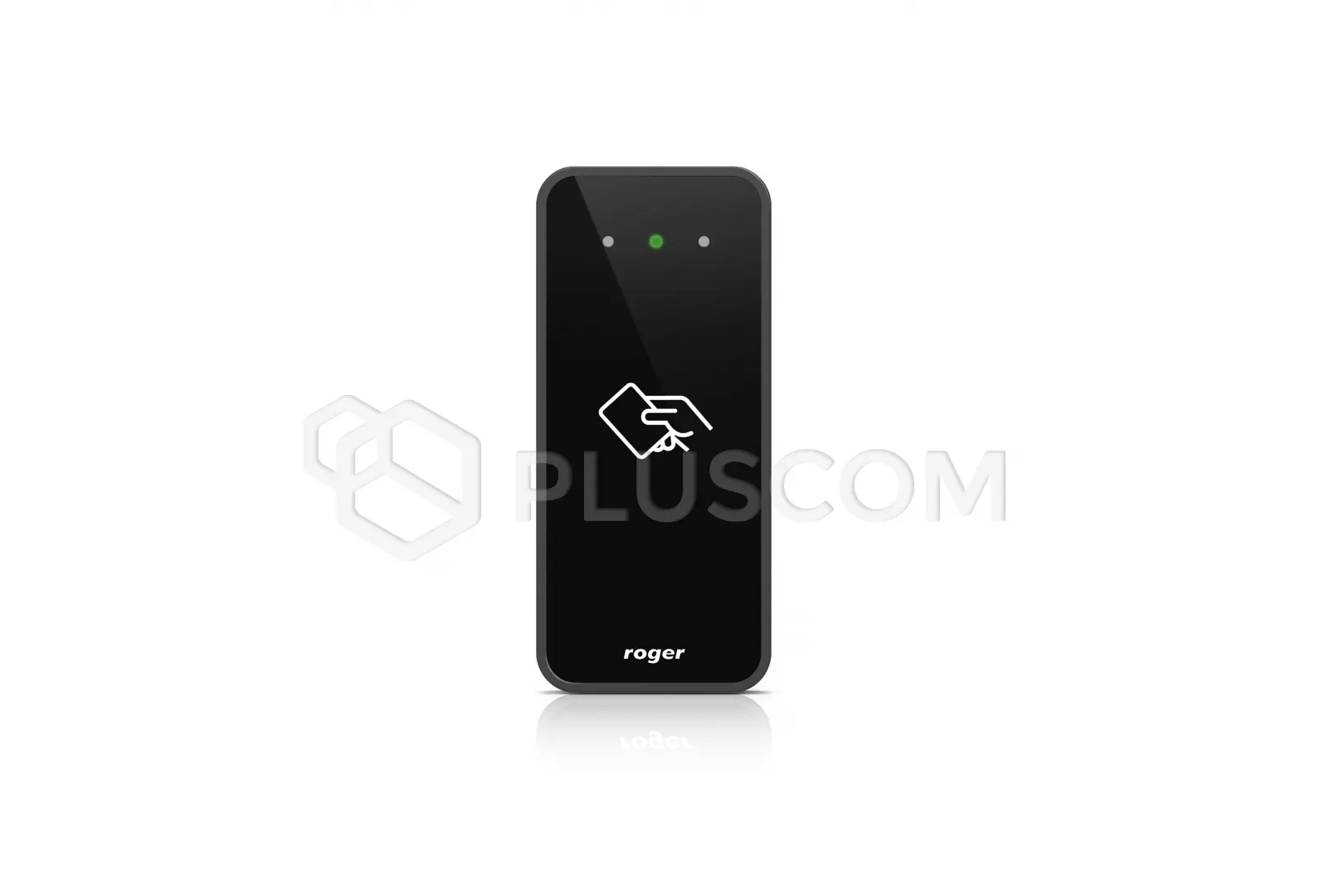

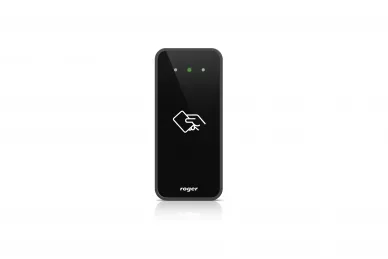

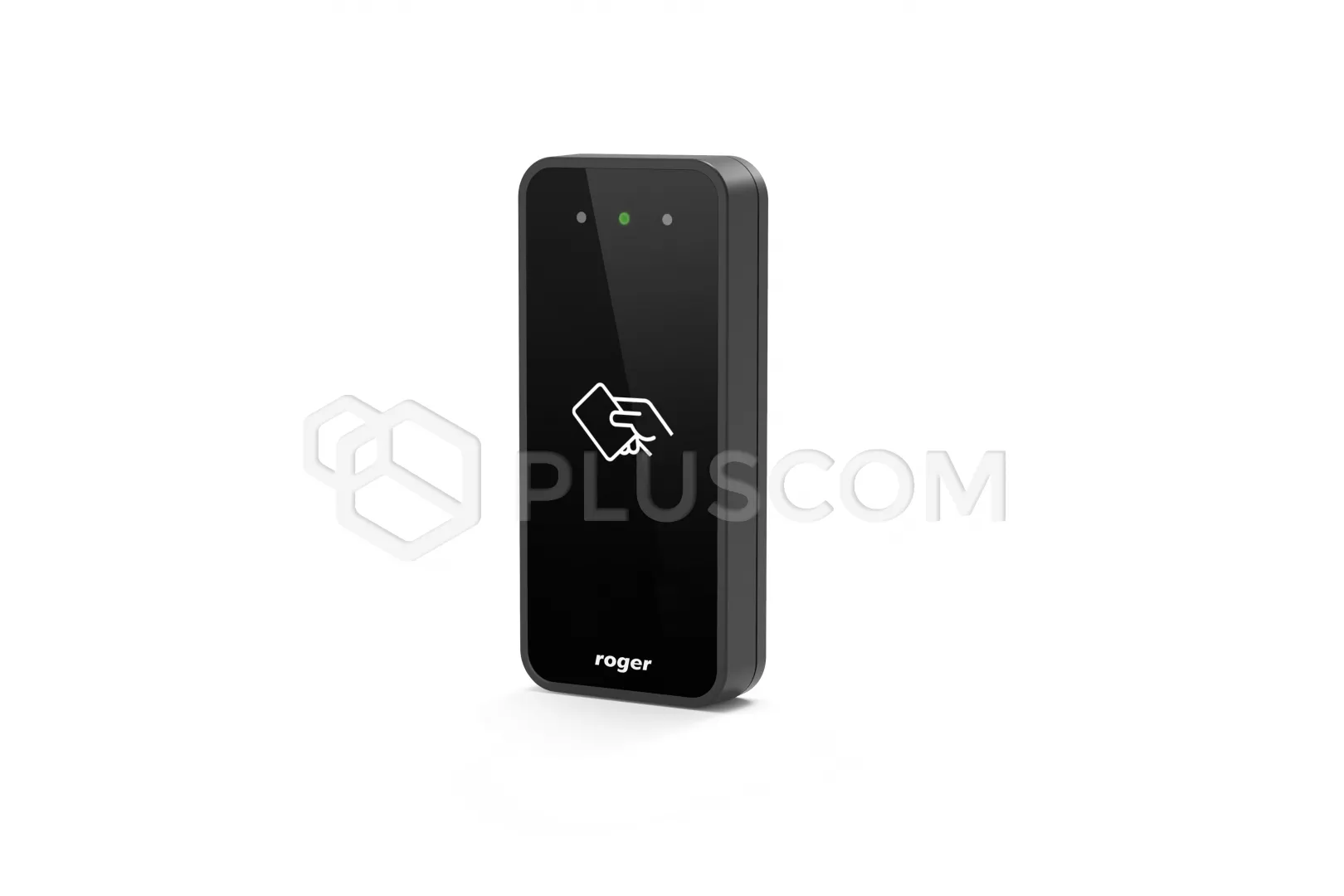

ROGER MCT80M Access Terminal Mifare

117,82 EUR including 23.00% VAT
Product code: #22260
Manufacturer: Roger
  • 13.56 MHz MIFARE Ultralight/Classic cards reader
  • Identification with proximity cards
  • 3 LEDs
  • Reading range up to 7cm
  • QUADRUS series product line
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MC16-HRC-4 Hotel Room Access Controller Roger MC16-BAC-64 Building Automation Controller Roger MC16-HRC-1 Hotel Room Access Controller Roger MC16-BAC-32 Building Automation Controller Roger MC16-PAC-4 Physical Access Controller Roger MC16-BAC-16 Building Automation Controller Roger MC16-PAC-3 Physical Access Controller Roger MFKF-3 MIFARE 4K Proximity Key Fob Roger MC16-PAC-2 Physical Access Controller Roger MFKF-2 MIFARE 1K Proximity Key Fob

Roge MCT80M Access Terminal


The MCT80M is an access terminal dedicated to RACS 5 system. The device enables identification of users by 13.56 MHz MIFARE Ultralight/Classic MCT80M is connected to access controller through RS485 interface. Terminal can be installed in outdoor locations without any additional protection measures. Due to its relatively small size, the device can be also used as a locker/cabinet reader.

The terminal requires power supply voltage in range of 11-15VDC. It can be supplied from MCX2D/MCX4D expander of MC16-PAC-KIT, from MC16 access controller (e.g. TML output) or from dedicated power supply unit.

The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115. The bus topology can be freely arranged as star, tree or any combination of them except for loop

Characteristics:
  • RACS 5 system access terminal
  • 13.56 MHz MIFARE Ultralight/Classic proximity cards
  • 3 LED indicators
  • Buzzer
  • RS485 interface
  • Tamper protection
  • Outdoor environment
  • Connection cable

ROGER MCT80M Access Terminal Mifare

ROGER MCT80M Access Terminal Mifare


TECHNICAL PARAMETERS
  • supply voltage:
    • nominal 12VDC
    • min./max. range 10-15VDC
  • average current consumption: 60mA
  • identification methods: 13.56MHz MIFARE Ultralight, Classic
  • reading range: up to 7 cm for MIFARE
  • distance: 1200m maximal cable length for RS485 bus between controller and terminal
  • environment class: IV
  • IP65
  • working temperature: -25°C ~ +60°C
  • dimensions: 100x45x16mm
  • weight: 100g
