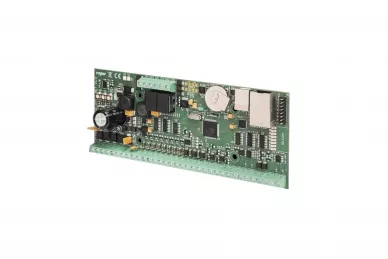

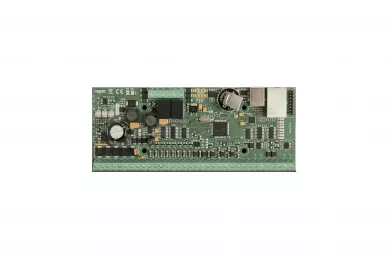

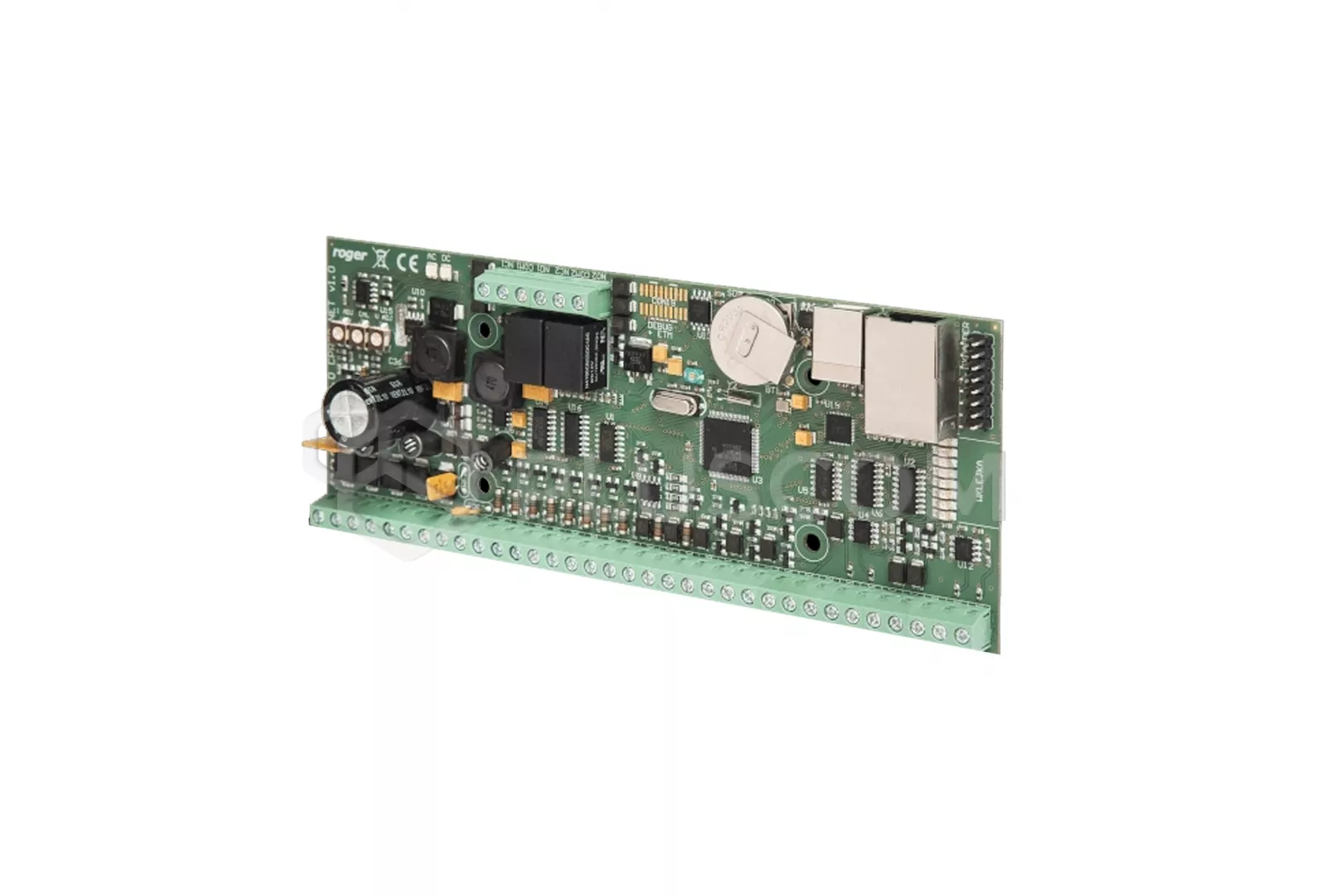

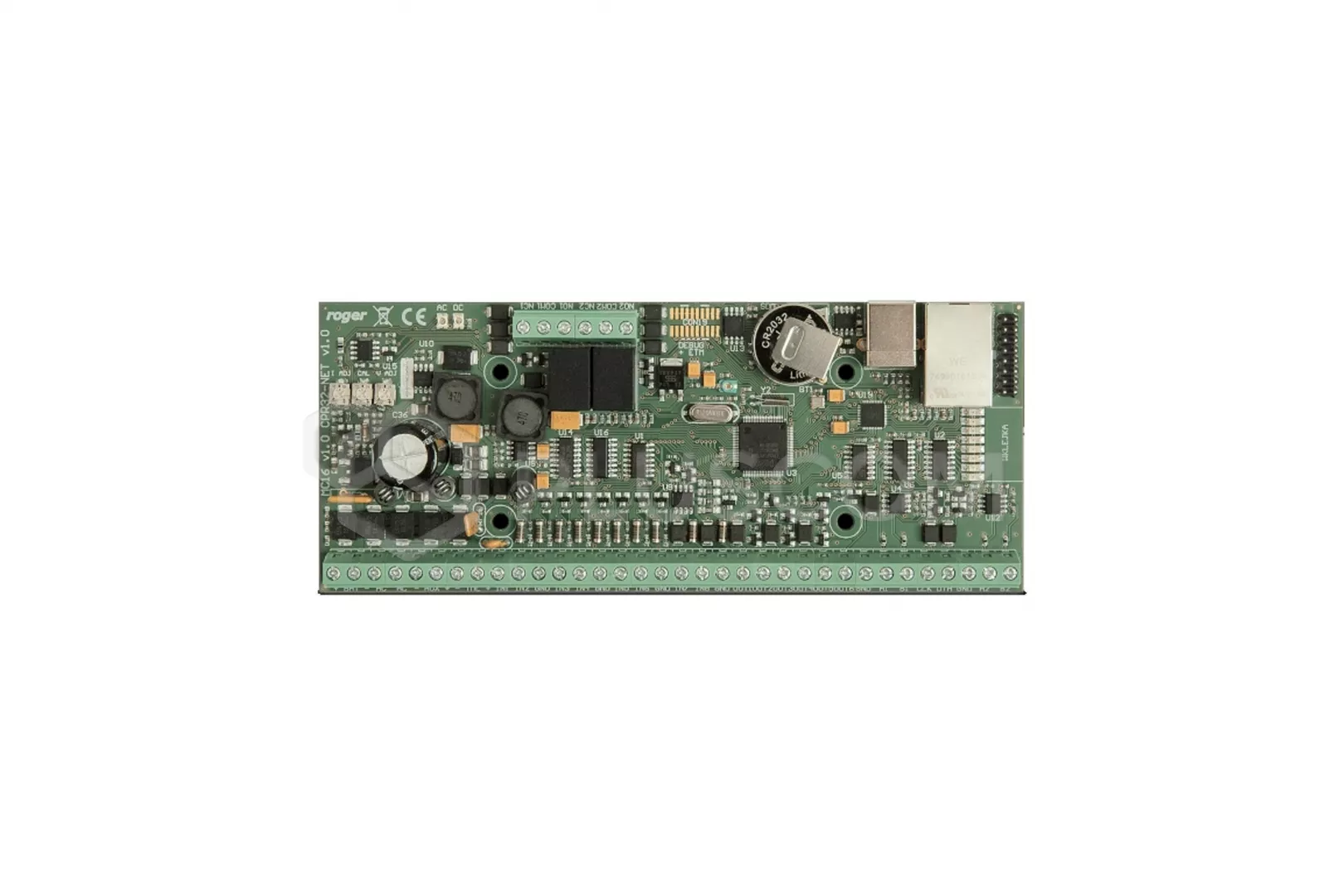

Roger MC16-AZC-1 Advanced parking controller

Roger MC16-AZC-1 Advanced parking controller, license for 1 passage

The MC16-AZC-1 Advanced Access Zone Controller is a variation standard MC16-PAC-ST access controller (RACS 5 system), in which one of access zones may be subject to additional, advanced control mechanisms access:

• limit on the number of entries to the zone - determines the number of entries after reaching, whose controller blocks the right to further access to the zone
• limit on the number of days with access to the zone - specifies the number of days, in within which the controller can grant access to the zone, but these days are not must be consecutive
• limit on the number of days of no entry to the zone - determines the number consecutive days during which the user did not enter zone a once reached, the access right will be automatically blocked
• group presence limits in the zone - enable control presence in the zone, taking into account division into groups

All limit functions are defined individually for each system user. Current values limits can be read at any time and corrected by the system operator.

Characteristics:

• Passages: 1
• Identification point: 2
• Access terminals: 4
• Access zones: 2
• Alarm zones: 2
• Power supplies: 2
• Local commands: 2
• Input lines: 8
• Output lines: 8
• Function keys: 4
• Identifiers: 8192
• Transitions to identification point: 1

The RACS 5 system enables the recognition of registration numbers, which in combined with the group attendance limits function, it allows for comprehensive, integrated with the entire access control and parking management system.

The MC16-AZC-1 controller is hardware compatible with other controllers in the family MC16 controllers and can support up to 16 transitions, at only one of the zones can be discussed previously advanced access control functions.
