Satel INT-RX-S 433MHz keyfobs receiver

Satel INT-RX-S 433 MHz keyfob support expander

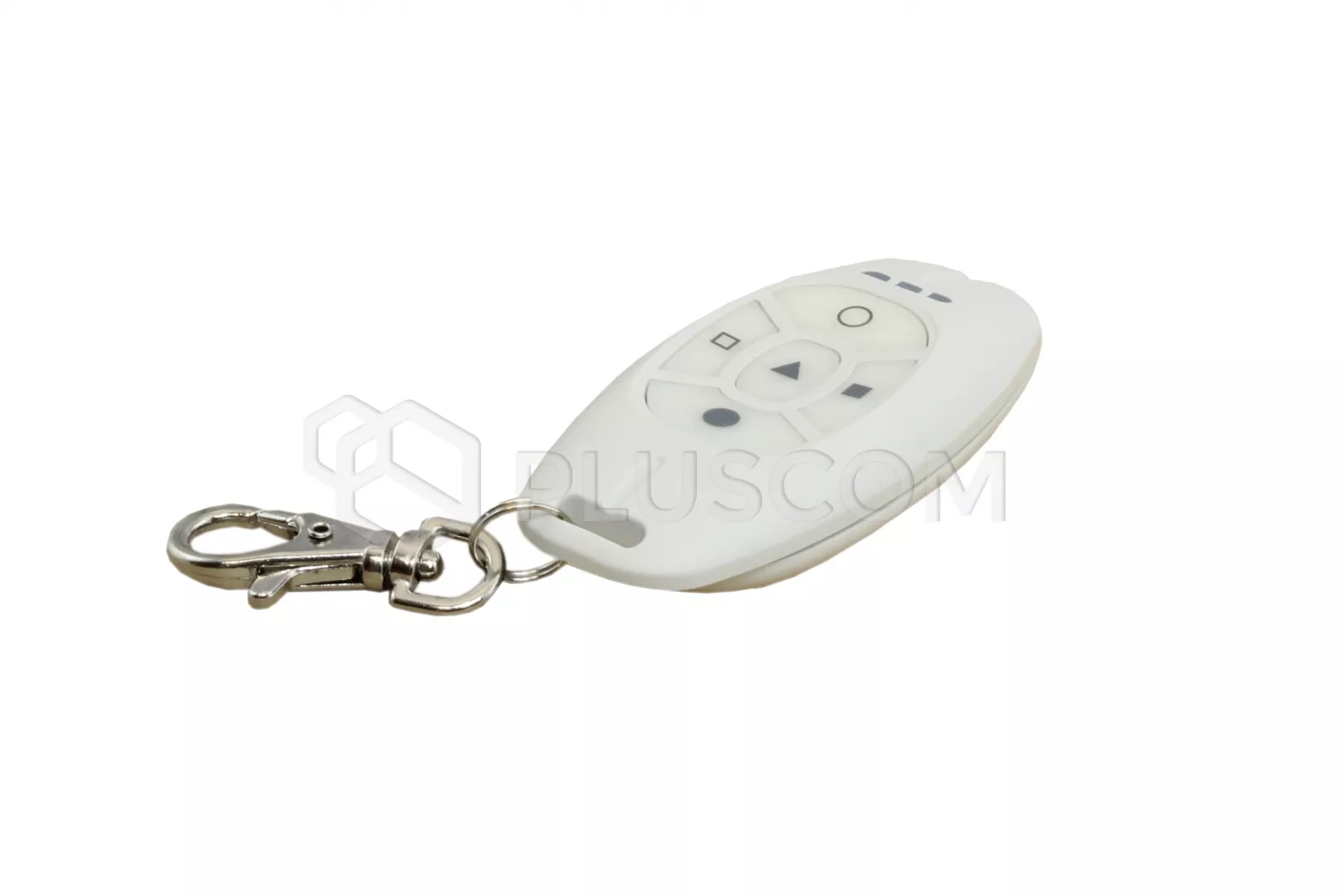

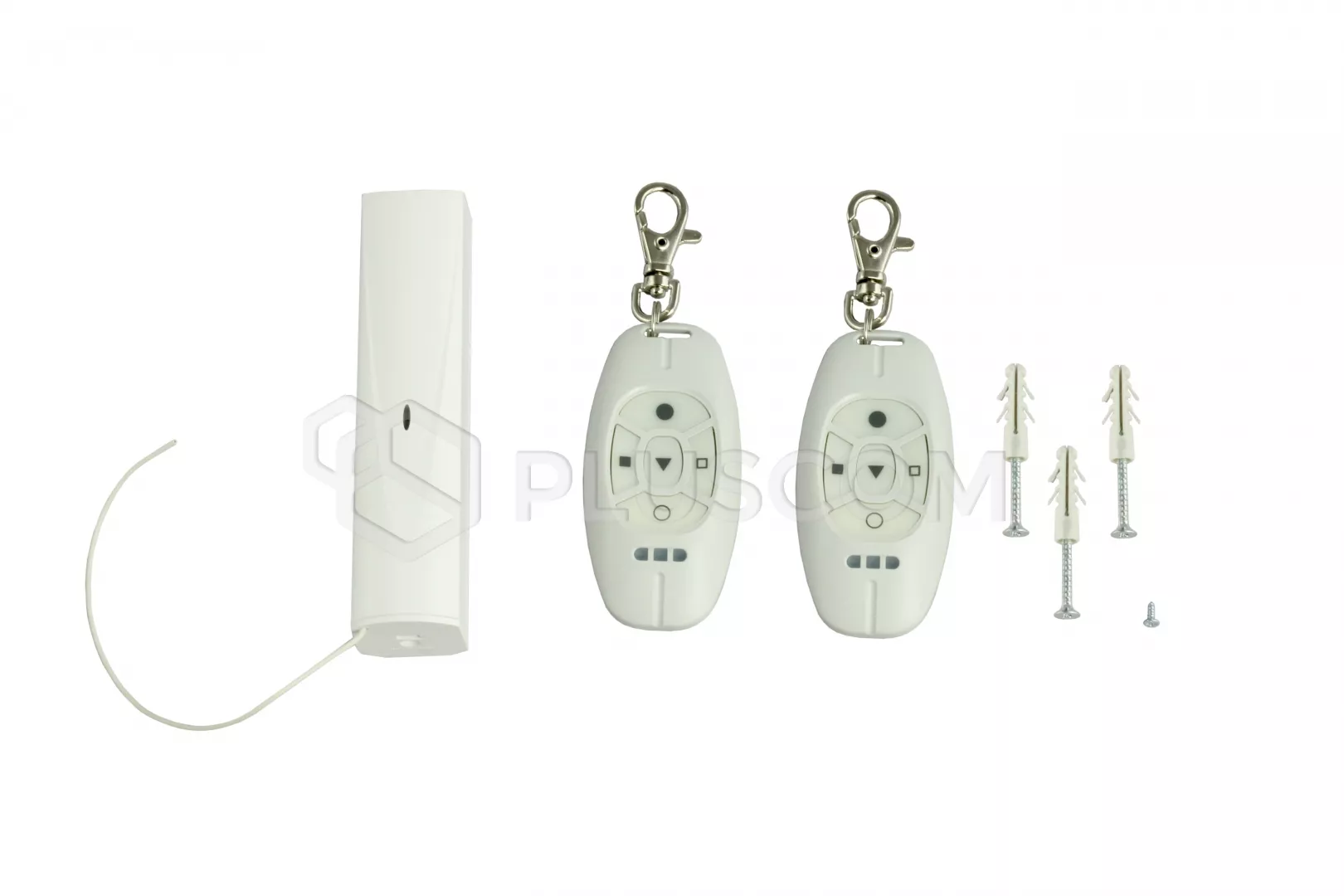

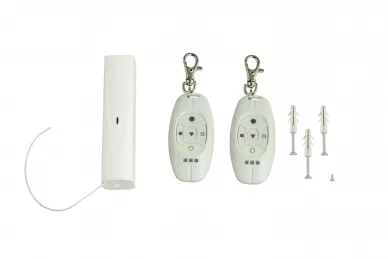

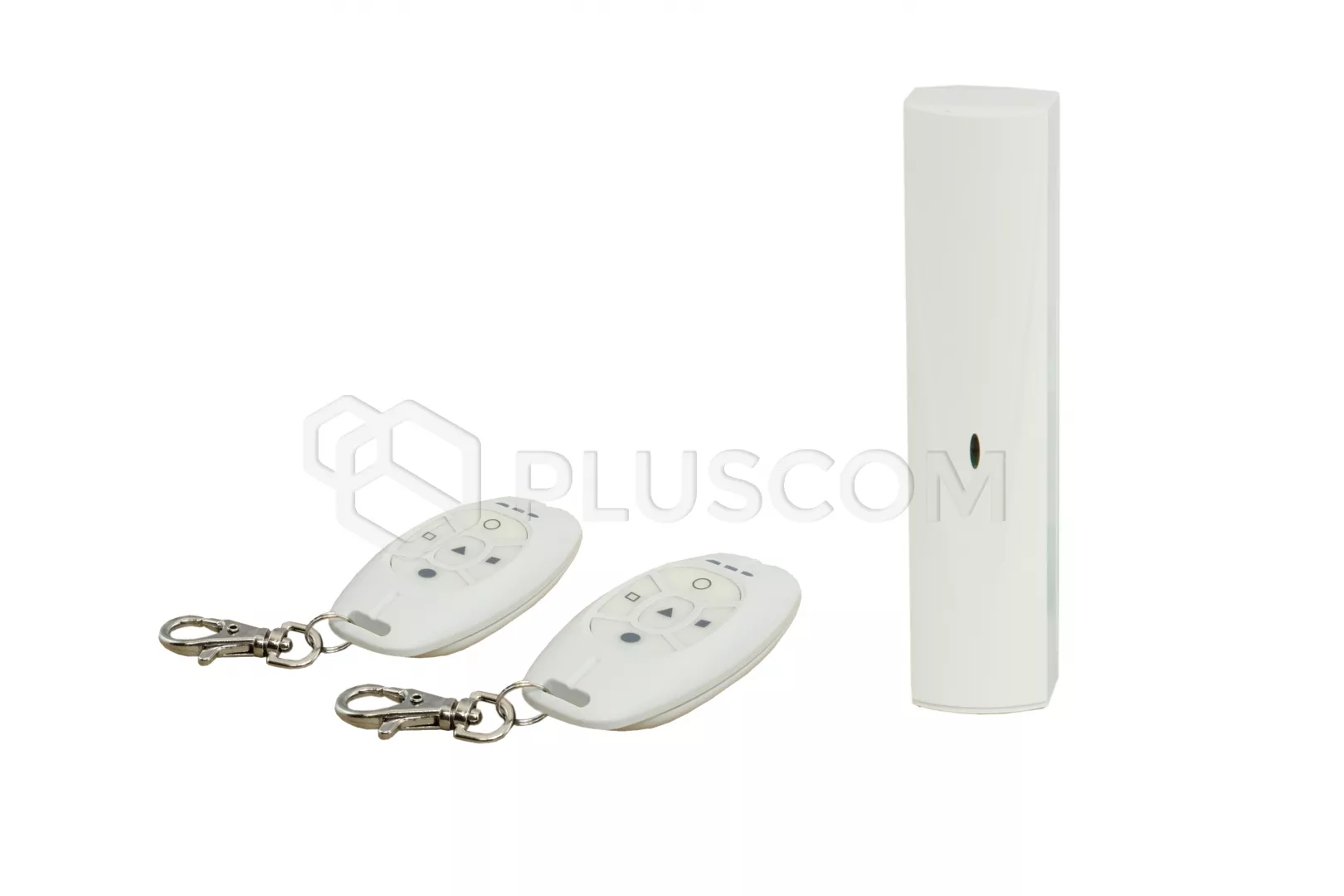

KIT INCLUDES INT RX S module 2 MPT-350 remotes

Satel INT-RX-S 433MHz keyfobs receiver

The INT-RX-S module enables the use of radio key fobs 433MHz for controlling the INTEGRA and VERSA control panels.

These keyfobs can be used not only for arming and disarming, but also to summon help in the event of an emergency or to control additional ones devices.

Compared to the use of a standard radio controller, the use of a module INT-RX-S enables full identification of the user using the key fob.

Properties

• Support for up to 248 433 MHz keyfobs manufactured by SATEL (number supported key fobs depends on the control panel).
• Transmissions from remote controls secured with a dynamically changing code KeeLoq.
• The ability to run up to 6 functions using the remote control.
• Upgradable expander firmware.
• Tamper contact reacting to opening the housing and tearing it off the substrate.

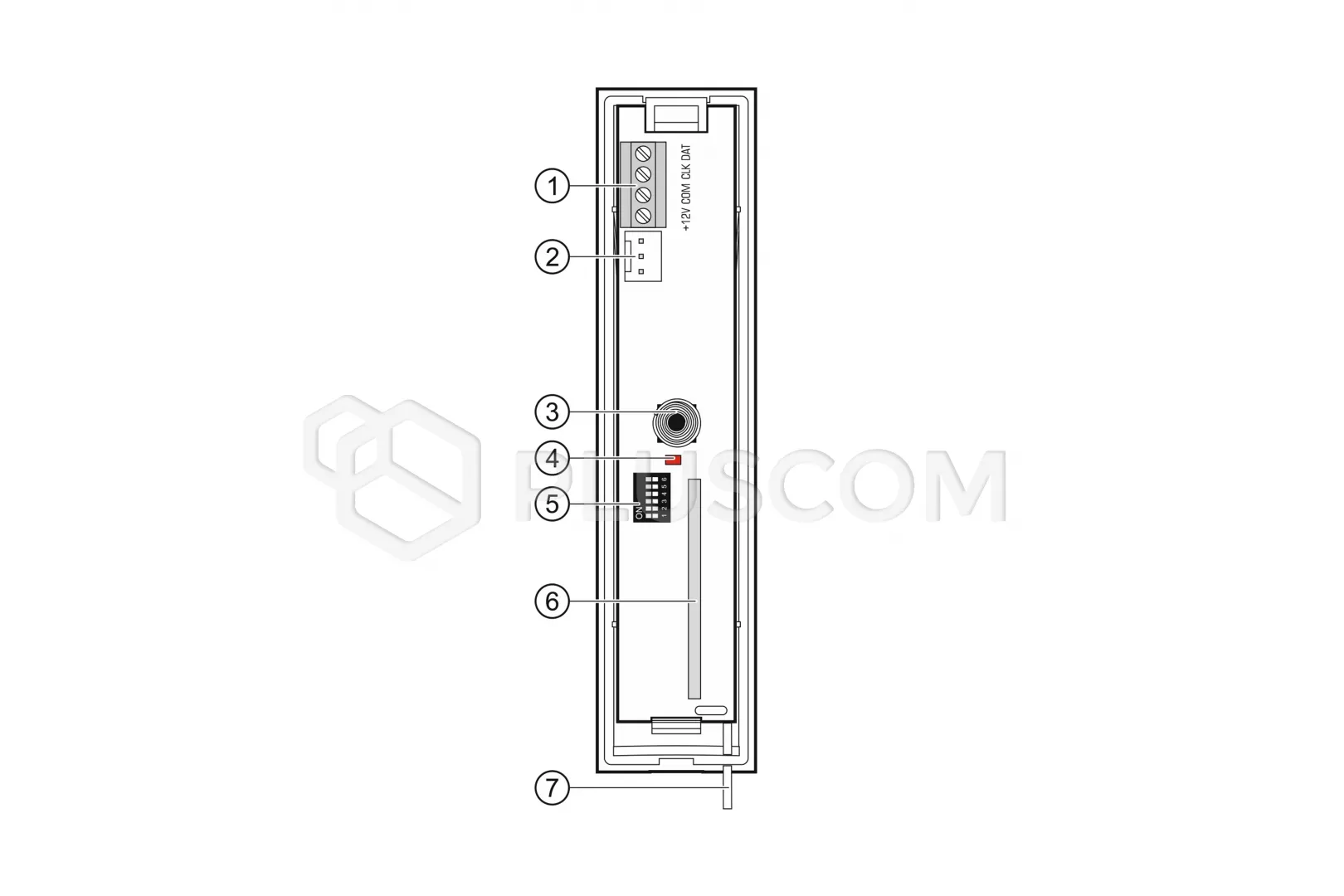

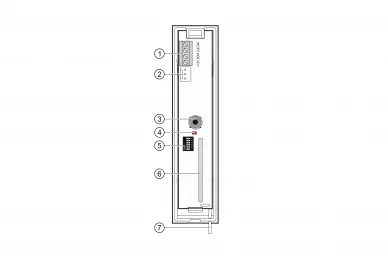

PŁYTKA ELEKTRONIKI terminals: +12V - power input COM - weight CLK - clock DAT - data RS-232 port (TTL standard) tamper contact LED indicating communication with the control panel: the LED is blinking – data exchange with the control panel LED is on – no communication with the control panel a set of DIP-switches high sensitivity superheterodyne receiver resistant to signals disruptive antenna

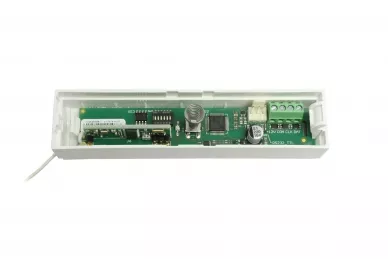

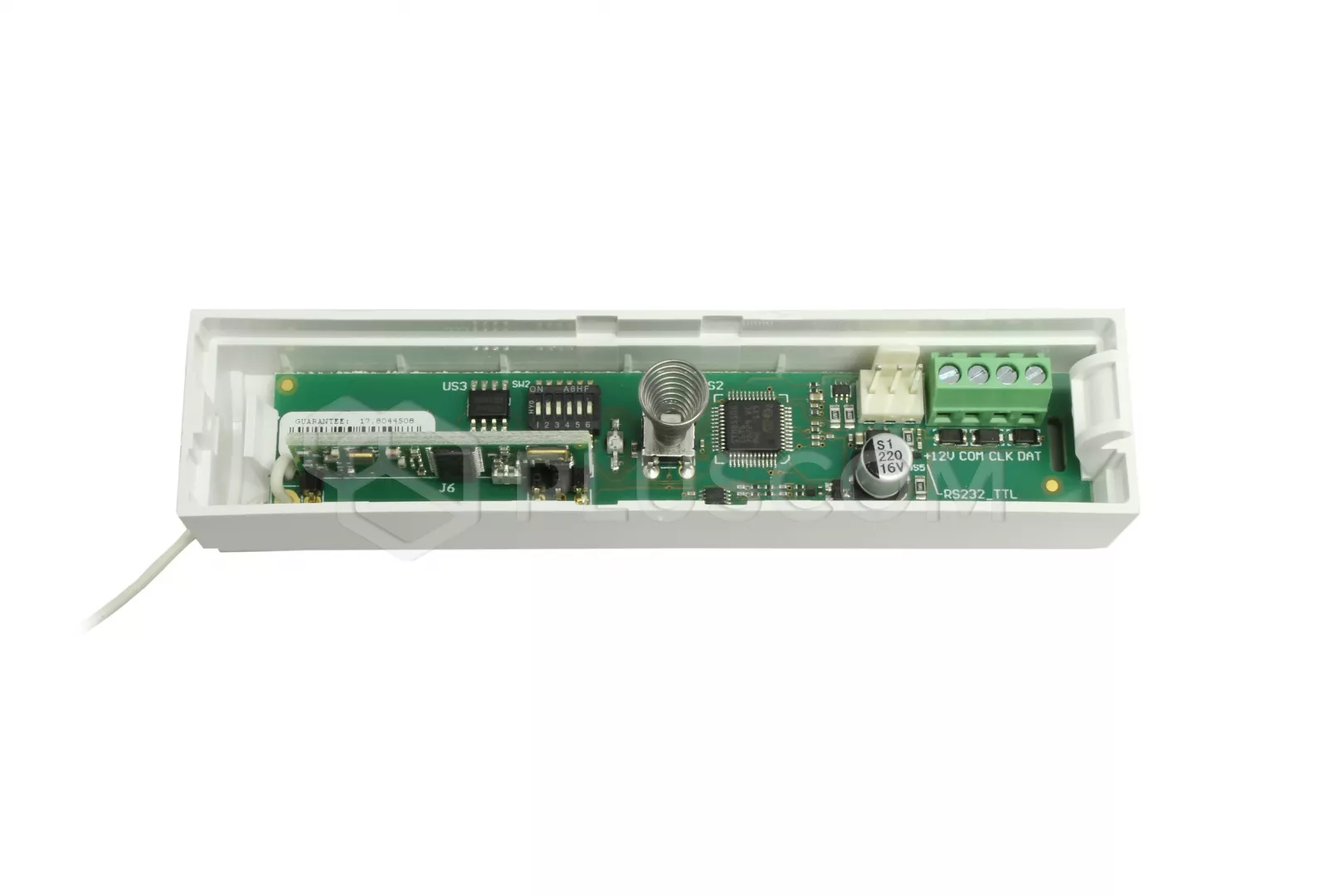

Electronics board:

• Number of supported remote controls: 248
• Power supply voltage: 12V DC
• Standby current consumption: 24mA
• Maximum current consumption: 29mA
• Remote control operating frequency band: 433.05 ÷ 434.79 MHz
• Cooperation with: P-2, P-4, T-1, T-2, T-4, MPT-300, MPT-350, MPB-300
• Operating temperature range: -10 °C...+55 °C
• Housing dimensions: 24 x 110 x 27mm
• Weight: 30g
