Satel PERFECTA-IP 32 Control panel

Satel PERFECTA-IP 32 Control panel

The PERFECTA family control panels are designed to protect small and medium–sized premises, such as apartments, detached houses, segments of terraced houses, offices, small businesses, etc. They provide protection to the requirements of EN 50131 Grade 2.

The alarm system can also be controlled remotely using the PERFECTA CONTROL mobile application and keyfobs working in the 433 MHz frequency band (with the INT-RX-S module connected).

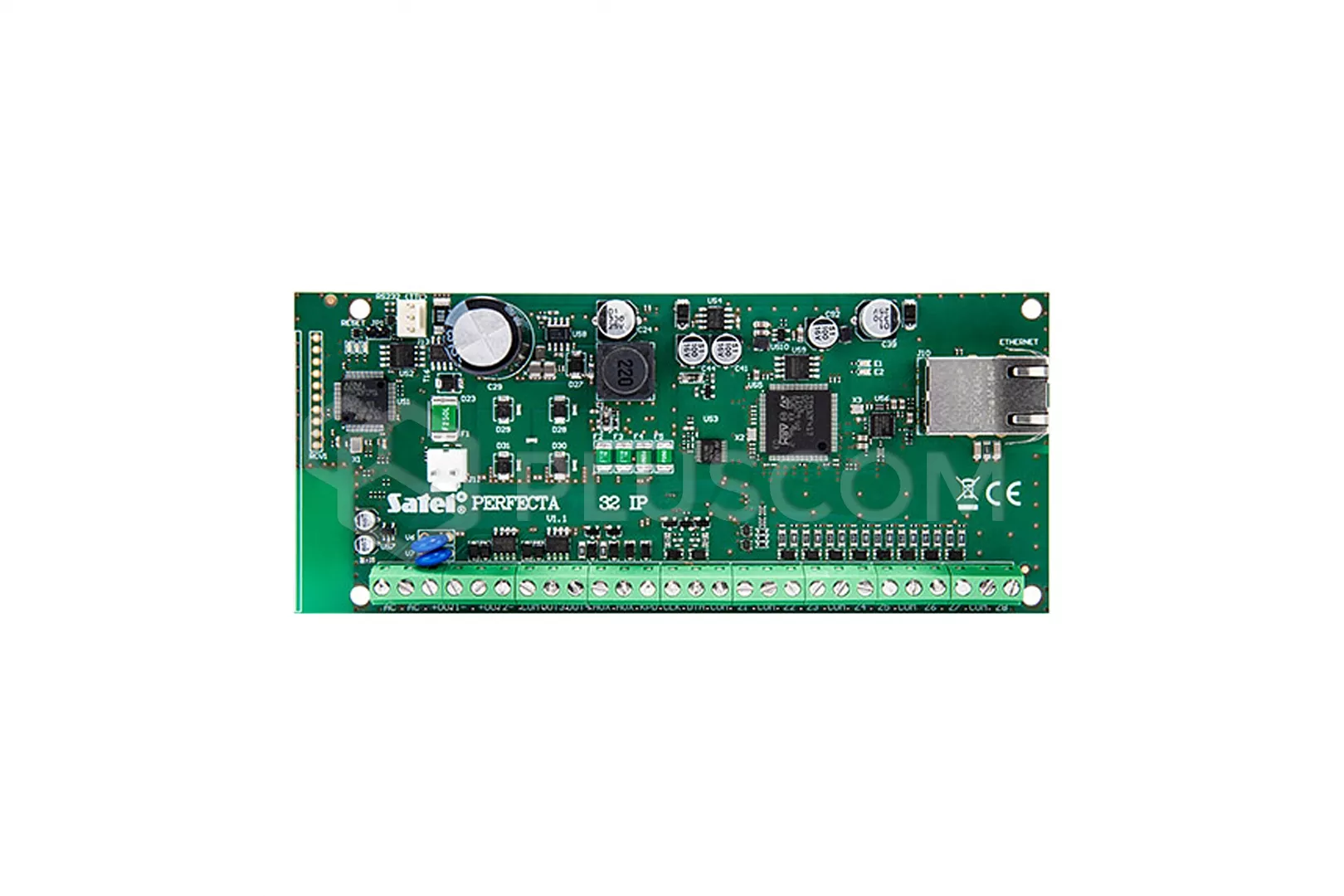

An Ethernet communicator is used in the PERFECTA-IP 32 model. It enables using a mobile application with PUSH notification capability, remote system configuration from the PERFECTA Soft program, and event reporting (e.g. to a security agency monitoring station). The control panel electronics board is provided with 8 hardwired zones and 4 hardwired outputs. Their number can be increased by connecting the INT-E zone expansion modules and INT-O or INT-ORS output expansion modules. This makes expansion of the system possible by adding more detectors, sirens or actuators (to control the garage door, roller shutters/blinds, garden sprinklers).

FEATURES:

• compliance with EN 50131 Grade 2
• from 8 to 32 programmable hardwired zones:
• • configuration options: NO, NC, EOL, 2EOL/NO, 2EOL/NC
  • support for roller shutter and vibration detectors
• from 4 to 12 programmable hardwired outputs
• 2 power outputs on the mainboard - built-in Ethernet module
• system division into 2 partitions:
• • 3 arming modes in each partition
  • option to assign a zone to two partitions
  • user-controlled or timer- controlled
• communication bus for connecting keypads (PRF-LCD), expansion modules (INT-E, INT-O, INT-ORS, INT-RX-S)
• system control using:
• • PRF-LCD keypads (up to 4)
  • PERFECTA CONTROL mobile application
  • keyfobs operating in the 433 MHz band (up to 15) – connection of INT-RX-S module required
  • firmware updates available
• 15 user codes and 1 service code
• editable names (of users, partitions, zones, outputs and modules) for easy control and supervision of the system
• 8 timers with exceptions setting capability
• memory of 3584 events
• automatic diagnostics of the system main components
• built-in switch-mode power supply:
• • over-current protection
  • battery deep discharge protection
  • battery charging current control
• programming control panel settings:
• • locally ‒ keypad or computer with PERFECTA Soft program installed, connected to the control panel RS-232 (TTL) port
  • remotely ‒ computer with PERFECTA Soft program installed, connecting to the control panel via Ethernet
