Satel PERFECTA 16 LTE Alarm Control Panel with GSM/LTE Communicator,
IPX-SMA Adapter, ANT-LTEO Antenna
The PERFECTA 16 LTE control panel allows you to create a wired or wireless
system. It features simple configuration and easy and intuitive operation using
keypads. Alarm system functions can also be remotely controlled using the
PERFECTA CONTROL mobile app and keyfobs.
The PERFECTA 16 LTE control panel uses an LTE module that works on 2G and 4G
mobile networks. It enables integration with a mobile app that supports push
messages, remote system configuration using the PERFECTA Soft software, event
monitoring (e.g., to a security agency's monitoring station), voice
notification, SMS control, and audio verification (listening to sounds from the
protected facility). It supports two nano-SIM cards, ensuring continuous
communication: if the first operator's network connection is lost, the
second card is automatically selected.

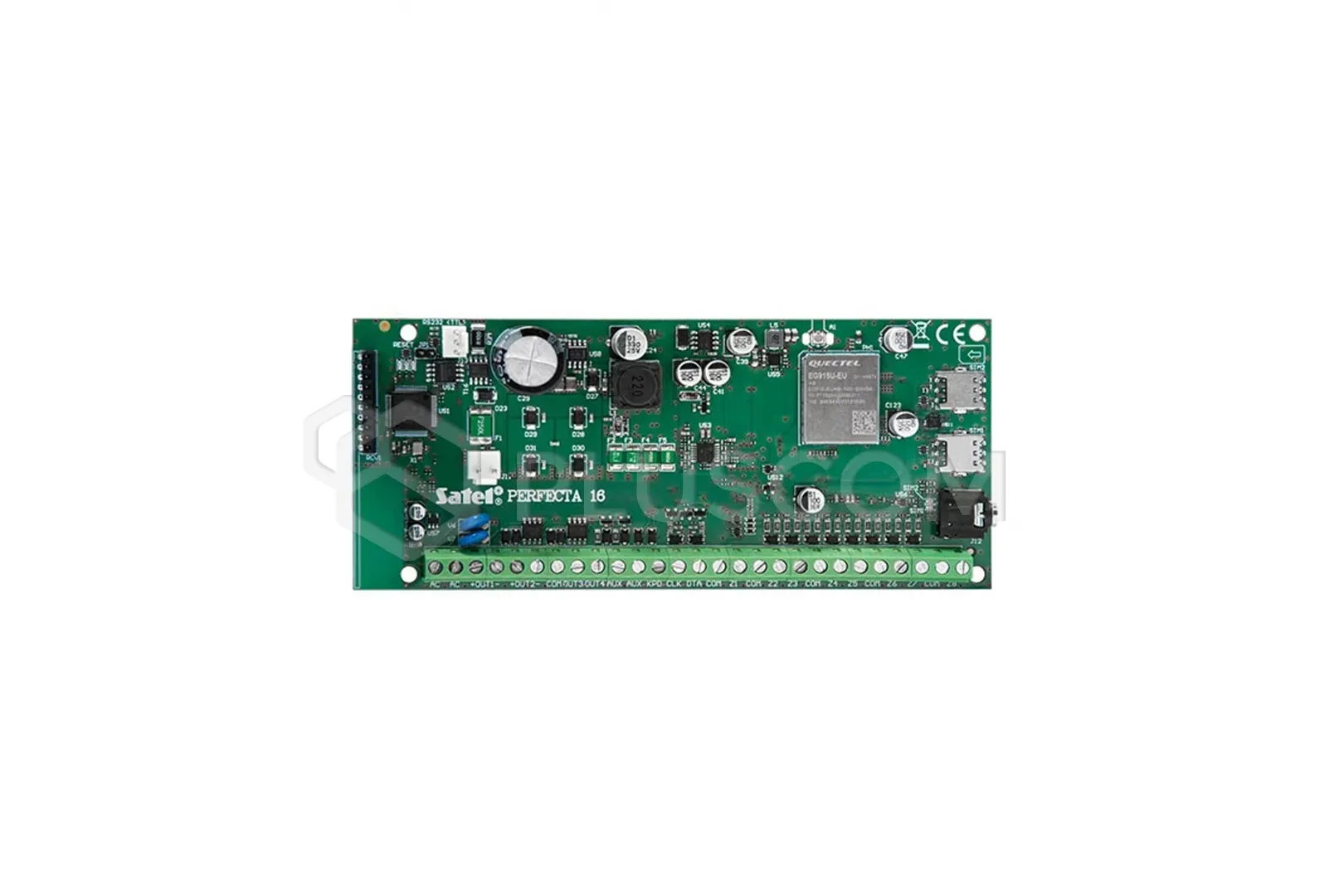

The control panel's electronics board is equipped with 8 wired
inputs and 4 wired outputs. These can be expanded by connecting
expansion modules: INT-E input expanders and INT-O or INT-ORS output expanders.
This allows the system to be expanded by adding more sensors, sirens, and even
actuators (for controlling garage doors, roller shutters, and garden
sprinklers).
FEATURES:
- EN 50131 Grade 2 compliant
- 8 to 16 programmable wired inputs:
-
- Configuration options: NO, NC, EOL, 2EOL/NO, 2EOL/NC
- Supports roller shutter and vibration sensors
- 4 to 12 programmable wired outputs
- Additional 4 outputs dedicated to MICRA system wireless sirens
(MSP-300)
- 2 power outputs on the mainboard
- Built-in modules:
-
- 2G/4G cellular communicator with 2 nano-SIM slots (SMS, monitoring to
the station, app) Mobile, push notifications)
- Voice (playback of voice messages for telephone notifications)
- Acoustic alarm verification (listening to sounds)
- System division into 2 zones:
-
- 3 monitoring modes in each zone
- Ability to assign an input to two zones
- Control by the user or using timers
- Communications bus for connecting keypads (PRF-LCD), expansion modules
(INT-E, INT-O, INT-ORS), and a 433 MHz keyfob expander (INT-RX-S**)
- Communications connector for connecting PERFECTA-RF - a module of the
MICRA wireless system
- System control via:
-
- PRF-LCD keypads (up to 4)
- PERFECTA CONTROL mobile app
- Remote controls
- Compatibility with PRF-LCD-WRL wireless keypads (up to 2) - in the MICRA
system
- Firmware update capability
- Passwords:
-
- 15 user passwords
- 1 service password
- Name editing (users, zones, inputs, outputs, and modules) for easier
system control and supervision
- Timers - 8 timers with the ability to set exceptions
- 3584 event memory
- Automatic diagnostics of basic system components
- Built-in switching power supply:
-
- Overload protection
- Battery discharge protection
- Battery charging current adjustment
- Control panel settings programming:
-
- Locally – keypad, computer with PERFECTA Soft installed, connected to
the control panel's RS‑232 (TTL) port.
- Remotely – computer with PERFECTA Soft installed, connecting to the
control panel via cellular data transmission.
The control panel allows you to divide the facility into two zones, with a
choice of three arming modes (day, night, and full). Each zone can be assigned
to one or both monitored areas.
The system can be configured in two ways: from a computer with PERFECTA Soft
installed (locally via an RS-232 (TTL) port, or remotely via data transmission
over a cellular network) or using a keypad.
TECHNICAL DATA:
- Output voltage range: 10.5 V…14 V DC
- Supply voltage (±15%): 18 V AC, 50-60 Hz
- Power supply output current: 2 A
- Standby current consumption: 190 mA
- Maximum current consumption: 490 mA
- Maximum number of programmable outputs: 16
- Programmable wired inputs: 8
- Programmable wired outputs: 4
- Power supply outputs: 2
- Communication buses: 1
- Keypads: up to 4
- Voice Messages: 16
- Users: 15
- Zones: 2
- Timers: 8
- Telephone Numbers for Notification: 8
- Event Memory: 3584
- Low-Current Programmable Outputs: 25 mA / 12 V DC
- High-Current Programmable Outputs: 1000 mA / 12 V DC
- AUX Output: 500 mA / 12 V DC
- Battery Standby Current Consumption: 130 mA
- Battery Failure Voltage (±10%): 11 V
- Battery Cut-Off Voltage (±10%): 10.5 V
- Maximum battery current consumption: 430 mA
- Battery charging current: 500 mA
- Power supply output voltage: 12 V DC ±15%
- KPD output: 500 mA / 12 V DC
- Recommended transformer: 40 VA
- Protection class according to EN 50131: Grade 2
- Operating temperature range: -10…+55°C
- Maximum humidity: 93±3%
- Environmental class according to EN50130-5: II
- Weight: 110 g
- Electronics board dimensions: 160 x 68 mm
