Satel PERFECTA 64 M SET-A Kit with the PERFECTA 64 M alarm control panel, complete with an ANT-LTE-I antenna and an OPU-4 P housing (without a transformer)
KIT INCLUDES
|
Satel PERFECTA 64 M SET-A Set
|
The PERFECTA 64 M control panel allows you to create a wired or wireless system. It features simple configuration and easy and intuitive operation using keypads. Alarm system functions can also be remotely controlled using the PERFECTA CONTROL mobile app and keyfobs.
The PERFECTA 64 M control panel uses an LTE module that works on 2G and 4G mobile networks. It enables integration with a mobile app that supports push messages, remote system configuration using the PERFECTA Soft software, event monitoring (e.g., to a security agency's monitoring station), voice notification, SMS control, and audio verification (listening to sounds from the protected facility). It supports two nano-SIM cards, ensuring continuous communication: if the first operator's network is down, the second card is automatically selected.

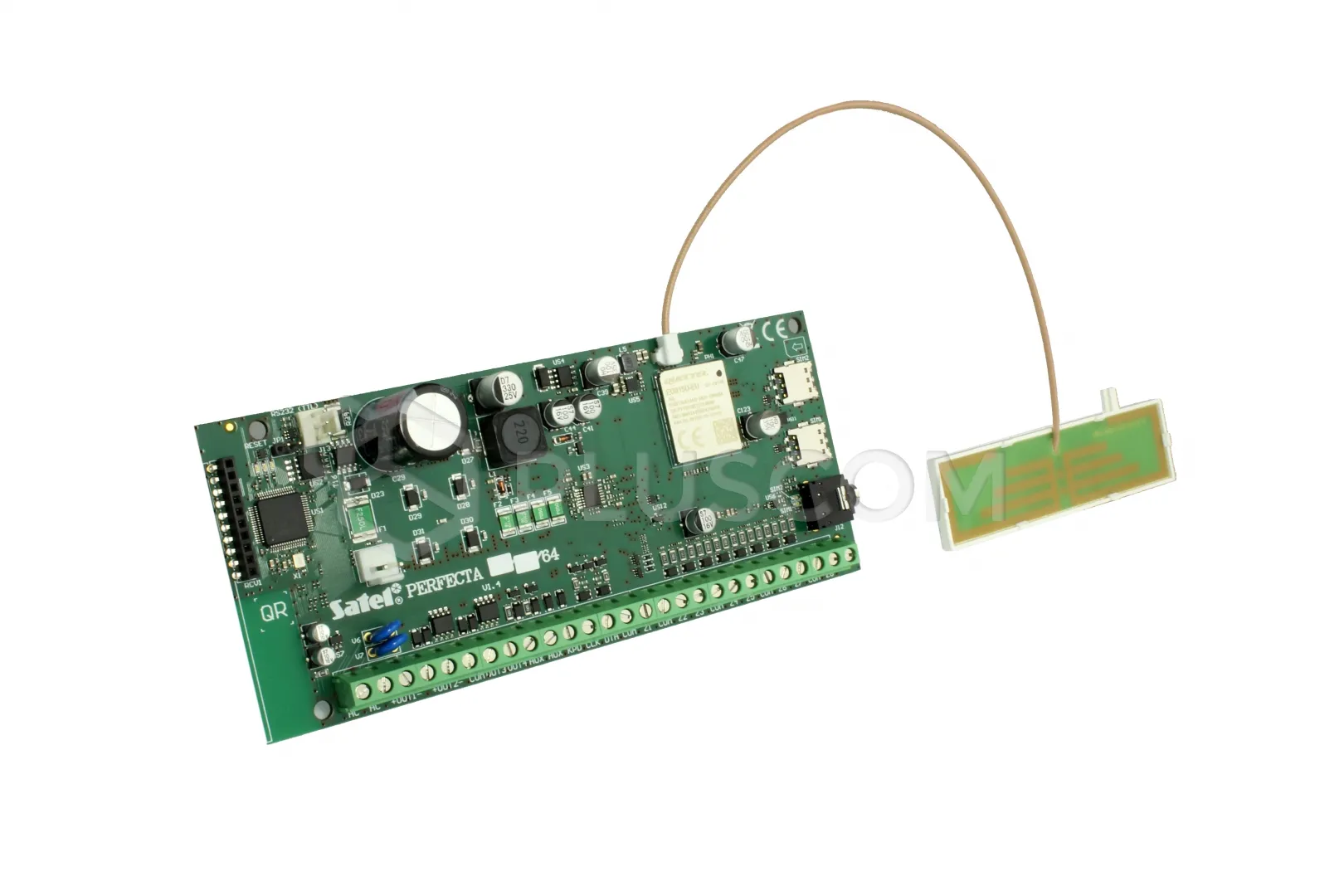

The control panel's electronics board is equipped with 8 wired inputs and 4 outputs. Their number can be increased by connecting expansion modules: INT-E input expanders and INT-O or INT-ORS output expanders. This allows the system to be expanded by adding more sensors, sirens, and even actuators (for controlling garage doors, roller shutters, and garden sprinklers).
FEATURES:
- EN 50131 Grade 2 compliant
- dividing the system into 4 zones:
-
- 3 surveillance modes per zone
- possibility of assigning an input to 1~4 zones
- user or timer control
- 8 programmable hardwired zones on the control panel board:
-
- configuration selection: NO, NC, EOL, 2EOL/NO, 2EOL/NC
- possibility to operate roller shutter and shock detectors
- up to 64 programmable inputs
- 4 programmable hardwired outputs on the control panel board:
-
- 2 high-current (supply) outputs
- 2 low-current OC type outputs
- up to 64 programmable outputs (including 4 outputs dedicated to operation
of MICRA system sirens)
- built-in modules:
-
- 2G/4G cellular communicator with 2 nano-SIM slots (SMS, monitoring to
the station, mobile application, PUSH notifications)
- voice (playing voice messages for notification purposes
telephone)
- acoustic alarm verification (listening to sounds)
- Communication bus to connect:
-
- INT-TSH2, INT-TSG2, INT-KSG2R, PRF-LCD keypads
- INT-E, INT-O, INT-ORS expansion modules
- ABAX 2 wireless system controllers: ACU-220 or ACU-280
- the INT-RX-S keyfob support expander
- INT-CR zone control modules
- communication connector for connecting - wireless system module MICRA
PERFECTA-RF
- maximum number of supported wireless devices:
-
- ABAX 2 system: up to 4 keypads / up to 48 detectors, sirens or other
devices
- MICRA system: up to 4 keypads / up to 64 detectors / up to 4
beacons
- cooperation with wireless keypads:
-
- PRF-LCD-A2 - in the ABAX 2 system
- PRF-LCD-WRL - in the MICRA system
- control the system with:
-
- manipulators
- PERFECTA CONTROL mobile application
- remote controls
- proximity cards and tags
- possibility to update software (firmware) locally or remote
- passwords:
-
- 62 user passwords
- 1 service password
- editing of names (of users, partitions, zones, outputs and modules) makes
it easier system control and supervision
- 8 timers with the possibility of setting exceptions
- 8 thermostats
- memory for 3584 events
- automatic diagnostics of basic system components
- built-in switching power supply:
-
- overload protection
- protection against total battery discharge
- adjustment of battery charging current
- programming control panel settings:
-
- locally - keypad or computer with the program installed PERFECTA
Soft, connected to the RS 232 (TTL) port of the control panel
- remotely - a computer with the PERFECTA Soft program installed,
connecting with the PBX using data transmission in the mobile
network
The control panel allows the facility to be divided into 4 zones, with a
choice of three standby modes (day, night, full). Each zone can be assigned to
one or both monitored areas.
The system can be configured in two ways: from a computer with the PERFECTA
Soft program installed (locally – connection via the RS-232 (TTL) port,
remotely – via data transmission over a cellular network) and using a keypad.
The kit is equipped with an ANT-LTE-I antenna for
communication modules, dedicated to devices operating in LTE, UMTS/HSPA+,
GSM/GPRS/EDGE technologies.
It is designed to work with control panels and modules equipped with cellular
communicators.

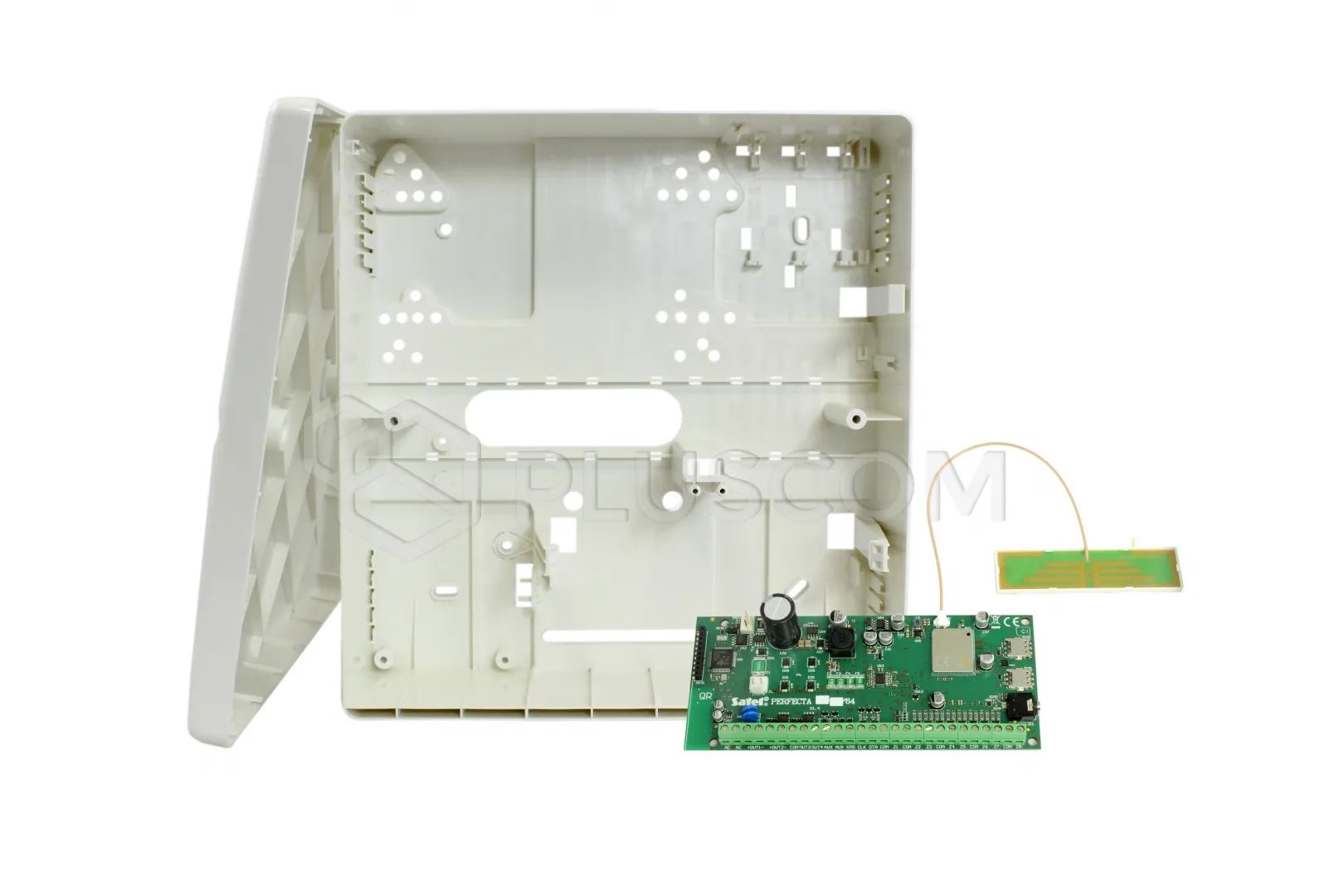

The entire unit is housed in a universal OPU-4P housing for
devices and modules. The housing is designed for surface mounting and can be
installed indoors.
It has a holder for the GSM antenna and two tamper contacts that respond to
opening the cover and removal from the mounting surface.
The housing provides space for mounting:
- 230V/18V AC transformer with a power of 40VA
- 230V/20V AC transformer with a power of 60VA
- 12V 7Ah battery
The set does not include a transformer.
