Satel PERFECTA 16 LTE SET-A Kit with PERFECTA 16 LTE alarm control panel
complete with ANT-LTE-I antenna and OPU-4 P housing (without transformer)
SET INCLUDES
|
Satel PERFECTA 16 LTE SET-A Set
|
The PERFECTA 16 LTE control panel allows you to create a wired or
wireless system. It features simple configuration and easy and intuitive
operation using keypads. Alarm system functions can also be remotely controlled
using the PERFECTA CONTROL mobile app and keyfobs.
The PERFECTA 16 LTE control panel uses an LTE module that works on 2G and 4G
mobile networks. It enables integration with a mobile app that supports push
messages, remote system configuration using the PERFECTA Soft software, event
monitoring (e.g., to a security agency's monitoring station), voice
notification, SMS control, and audio verification (listening to sounds from the
protected facility). It supports two nano-SIM cards, ensuring continuous
communication: if the first operator's network connection is lost, the
second card is automatically selected.

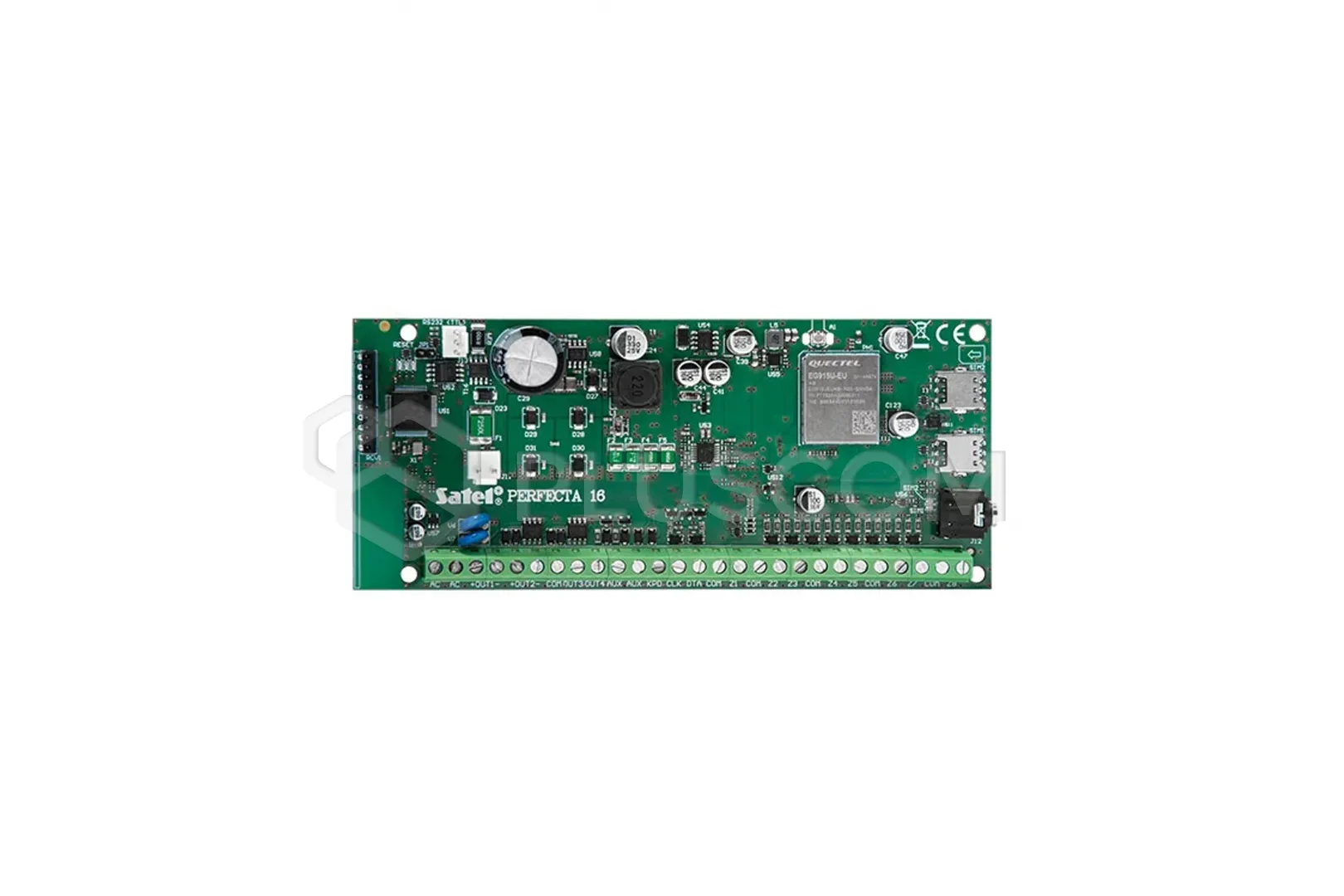

The control panel's electronics board is equipped with 8 wired
inputs and 4 wired outputs. These can be expanded by connecting
expansion modules: INT-E input expanders and INT-O or INT-ORS output expanders.
This allows the system to be expanded by adding more sensors, sirens, and even
actuators (for controlling garage doors, roller shutters, and garden
sprinklers).
FEATURES:
- EN 50131 Grade 2 compliant
- 8 to 16 programmable wired inputs:
-
- Configuration options: NO, NC, EOL, 2EOL/NO, 2EOL/NC
- Supports roller shutter and vibration sensors
- 4 to 12 programmable wired outputs
- Additional 4 outputs dedicated to MICRA system wireless sirens
(MSP-300)
- 2 power outputs on the mainboard
- Built-in modules:
-
- 2G/4G cellular communicator with 2 nano-SIM slots (SMS, monitoring to
the station, app) Mobile, push notifications)
- Voice (playback of voice messages for telephone notifications)
- Acoustic alarm verification (listening to sounds)
- System division into 2 zones:
-
- 3 monitoring modes in each zone
- Ability to assign an input to two zones
- Control by the user or using timers
- Communications bus for connecting keypads (PRF-LCD), expansion modules
(INT-E, INT-O, INT-ORS), and a 433 MHz keyfob expander (INT-RX-S)
- Communications connector for connecting PERFECTA-RF - a module of the
MICRA wireless system
- System control via:
-
- PRF-LCD keypads (up to 4)
- PERFECTA CONTROL mobile app
- Remote controls
- Compatibility with PRF-LCD-WRL wireless keypads (up to 2) - in the MICRA
system
- Firmware update capability
- Passwords:
-
- 15 user passwords
- 1 service password
- Name editing (users, zones, inputs, outputs, and modules) for easier
system control and supervision
- Timers - 8 timers with the ability to set exceptions
- 3584 event memory
- Automatic diagnostics of basic system components
- Built-in switching power supply:
-
- Overload protection
- Battery discharge protection
- Battery charging current adjustment
- Control panel settings programming:
-
- Locally – keypad, computer with PERFECTA Soft installed, connected to
the control panel's RS‑232 (TTL) port.
- Remotely – computer with PERFECTA Soft installed, connecting to the
control panel via cellular data transmission.
The control panel allows you to divide the facility into two zones, with a
choice of three arming modes (day, night, and full). Each zone can be assigned
to one or both monitored areas.
The system can be configured in two ways: from a computer with PERFECTA Soft
installed (locally via an RS-232 (TTL) port, or remotely via data transmission
over a cellular network) or using a keypad.

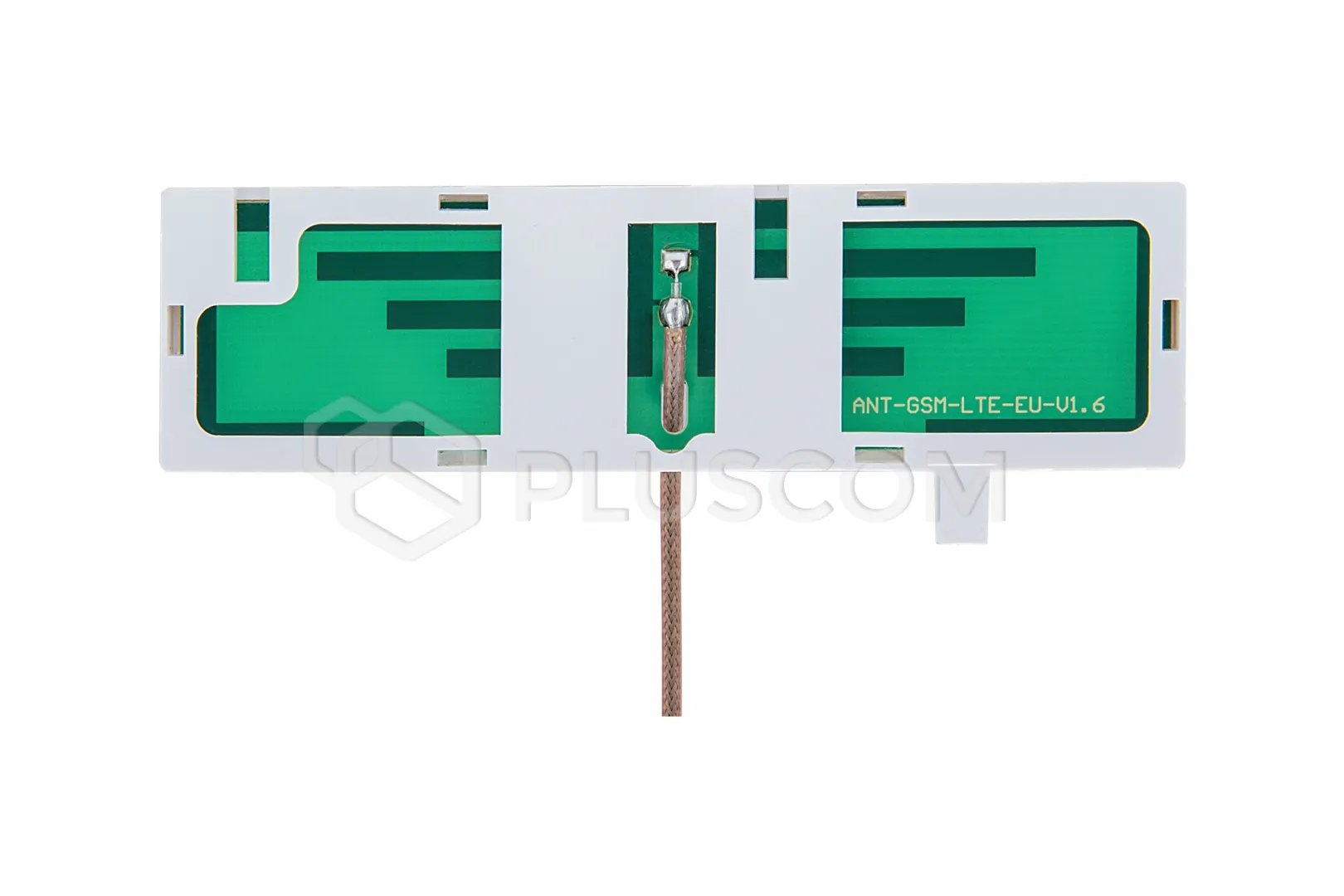

The kit is equipped with an ANT-LTE-I antenna for
communication modules, designed for devices operating in LTE, UMTS/HSPA+, and
GSM/GPRS/EDGE technologies. It is designed to work with control panels and
modules equipped with cellular communicators.

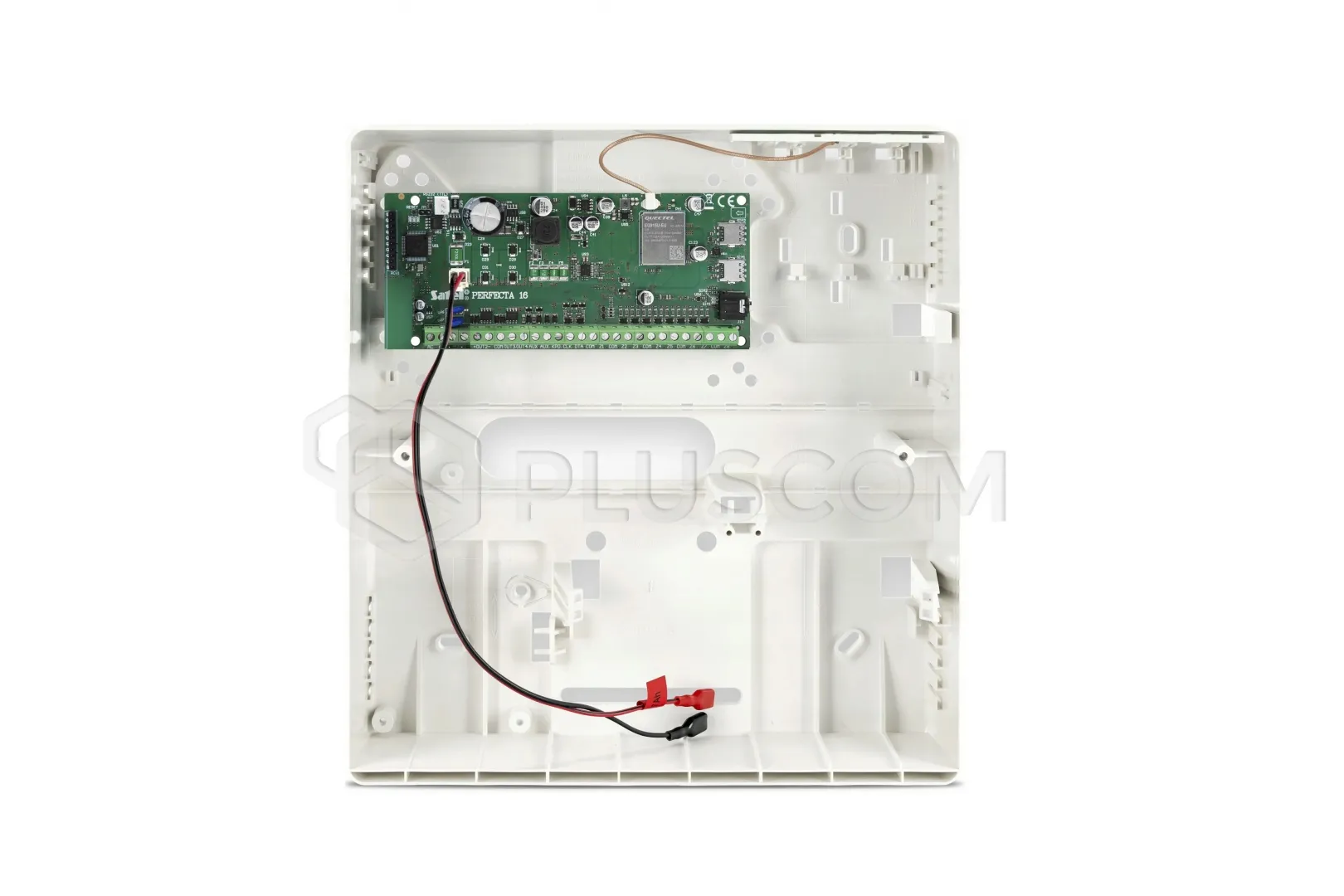

The entire system is housed in a universal OPU-4P housin for
devices and modules. The housing is designed for surface mounting and can be
installed indoors.
It has a holder for the GSM antenna and has two tamper contacts that respond to
opening the cover and removal from the mounting surface.
The housing provides space for mounting:
- 230V/18V AC transformer with a power of 40VA
- 230V/20V AC transformer with a power of 60VA
- 12V 7Ah battery
The set does not include a transformer.
