Satel PERFECTA-IP 64 M Alarm control panel with ETH communication module

Satel PERFECTA -IP 64 M Alarm Control Panel with ETH Communication Module

The PERFECTA-IP 64 M control panel allows you to create a wired or wireless installation – you can connect one of the ABAX 2 system controllers (ACU-220 or ACU-280 operating in the 868 MHz frequency band) or the PERFECTA-RF, i.e., the MICRA wireless system module (433 MHz frequency band). Alternatively, you can connect the INT-RX-S key fob control module to the control panel. The PERFECTA-IP 64 M control panel uses an Ethernet module. It enables integration with a mobile app supporting PUSH messages, remote system configuration using the PERFECTA Soft software, and event monitoring (e.g., to a security agency monitoring station).

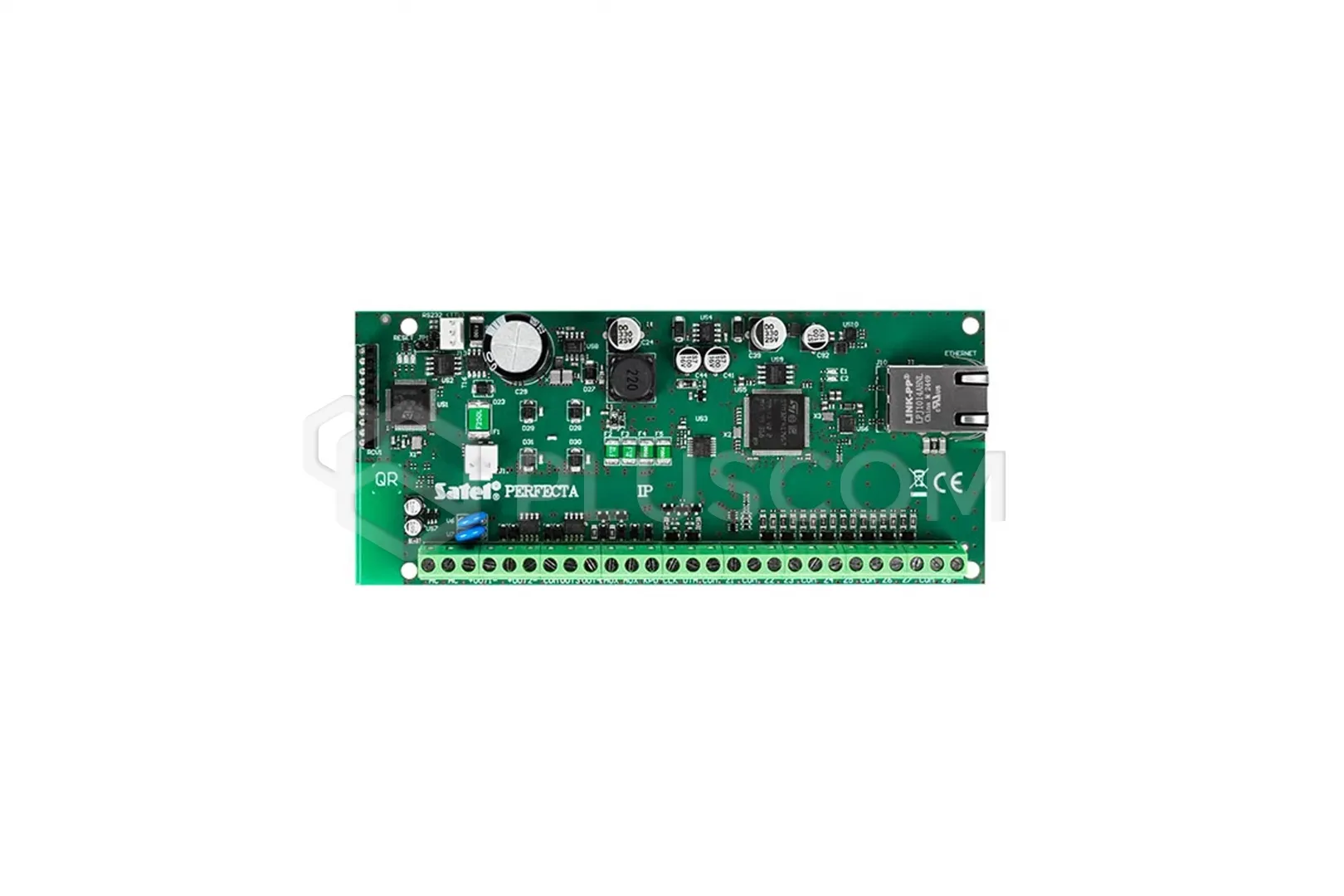

The control panel's electronics board is equipped with 8 wired inputs and 4 wired outputs. Their number can be increased by connecting expansion modules: INT-E input expanders and INT-O or INT-ORS output expanders. This allows the system to be expanded by adding more sensors, sirens, and even actuators (for controlling garage doors, roller shutters, and garden sprinklers). The INT-CR zone control module can also be connected to the control panel. This module allows proximity cards and key fobs to be used to control selected system functions. The system, based on the PERFECTA-IP 64 M control panel, can be divided into four zones, with a choice of three arming modes (day, night, and full). The zones can be independent of each other or contain common areas (specified inputs).

FEATURES:

• Compliance with EN 50131 Grade 2
• System divided into 4 zones:
• • 3 monitoring modes in each zone
  • Ability to assign inputs to 1~4 zones
  • User or timer control
• 8 programmable wired inputs on the control panel board:
• • Configuration selection: NO, NC, EOL, 2EOL/NO, 2EOL/NC
  • Support for roller shutter and shock sensors
• Up to 64 programmable inputs
• Support for "IP inputs" - receiving HTTP notifications sent by IP cameras or other IoT devices
• 4 programmable wired outputs on the board Control panel:
• • 2 high-current (power) outputs
  • 2 low-current OC outputs
• Up to 64 programmable outputs (including 4 dedicated outputs for MICRA system sirens)
• Built-in modules:
• • Ethernet (monitoring to the station, mobile app, PUSH notifications)
• Communications bus for connecting:
• • INT-TSH210, INT-TSH2R, INT-TSG2R, INT-KSG2R, PRF-LCD keypads
  • INT-E, INT-O, INT-ORS expansion modules
  • ABAX 2 wireless system controllers: ACU-220 or ACU-280*
  • INT-RX-S keyfob expansion module
  • INT-CR zone control modules
• Communications connector for connecting the MICRA PERFECTA-RF* wireless system module
• Maximum number of supported wireless devices:
• • ABAX 2 system: up to 2 keypads / up to 48 detectors, sirens, or other devices
  • MICRA system: up to 2 keypads / up to 64 detectors / up to 4 sirens
• Compatibility with wireless keypads:
• • PRF-LCD-A2 - in the ABAX 2 system
  • PRF-LCD-WRL - in the MICRA system
• System control via:
• • Keypads
  • PERFECTA CONTROL mobile app
  • Remote controls
  • Proximity cards and key fobs – types: 125 kHz EM Marin or 13.56 MHz MIFARE (depending on the reader/keypad used in the system)
• Firmware updates available locally or remotely
• Passwords:
• • 62 user passwords
  • 1 service password
• Name editing (users, zones, inputs, outputs, and modules) facilitates system control and monitoring
• 8 timers with the option of setting exceptions
• 8 thermostats
• 3584 event memory
• Automatic diagnostics of basic system components
• Built-in switching power supply:
• • Overload protection
  • Battery discharge protection
  • Battery charging current adjustment
• Control panel settings programming:
• • Locally — keypad or computer with PERFECTA Soft installed, connected to the control panel's RS 232 (TTL) port
  • Remotely — computer with PERFECTA Soft installed, connecting to the control panel via Ethernet
