PERFECTA 64 M Alarm control panel with GSM/LTE communicator
The control panel is intended for alarm installations in small buildings,
flats, small houses, commercial premises, summer houses. Alarm system based on
the PERFECTA 64 M control panel, it is distinguished by simple and intuitive
configuration manipulator-operated, including models with touch screens. The
functions of the alarm system can also be controlled remotely using PERFECTA
CONTROL application for mobile devices and remote controls.
The control panel provides protection in accordance with the requirements of
Grade 2 EN 50131.

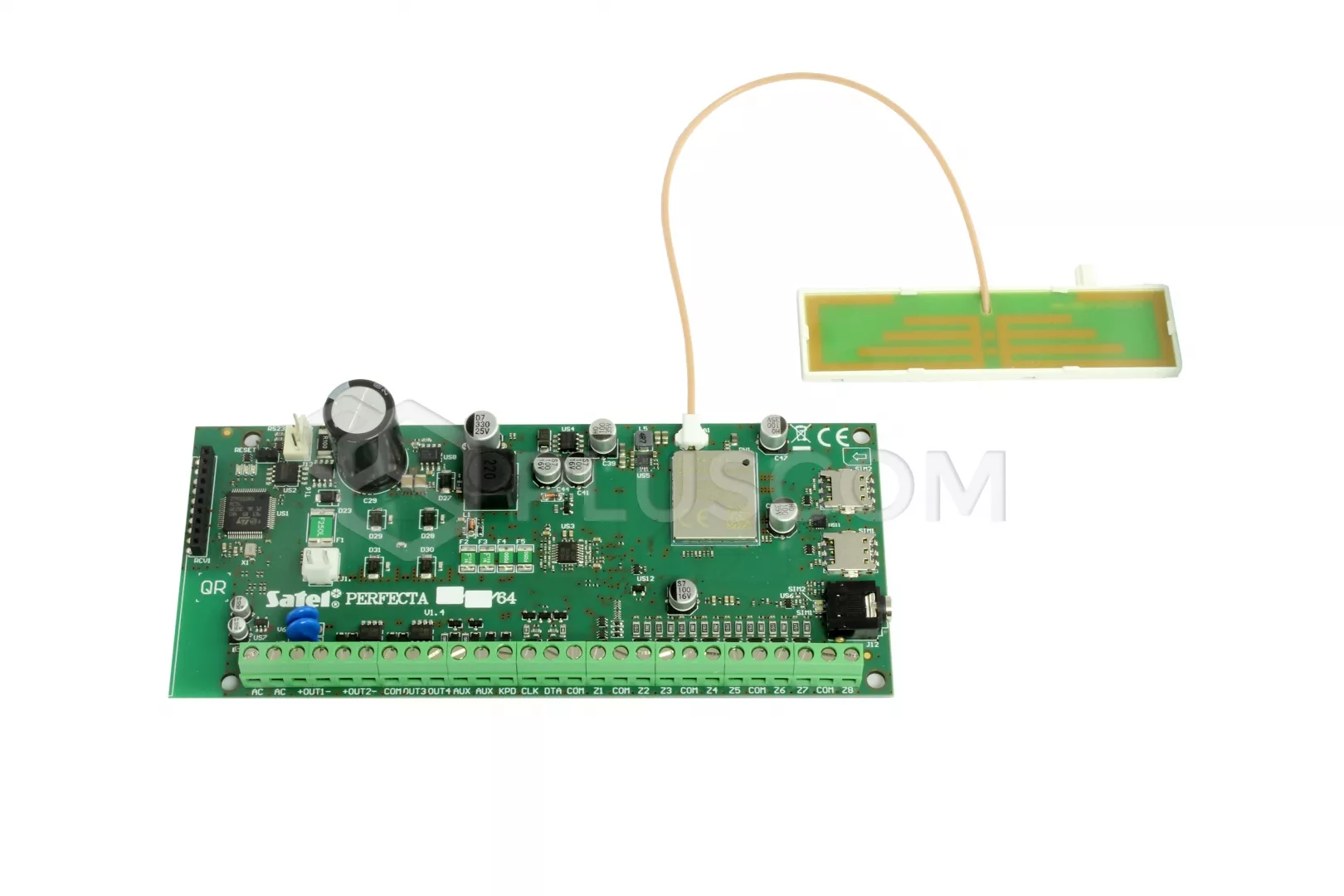

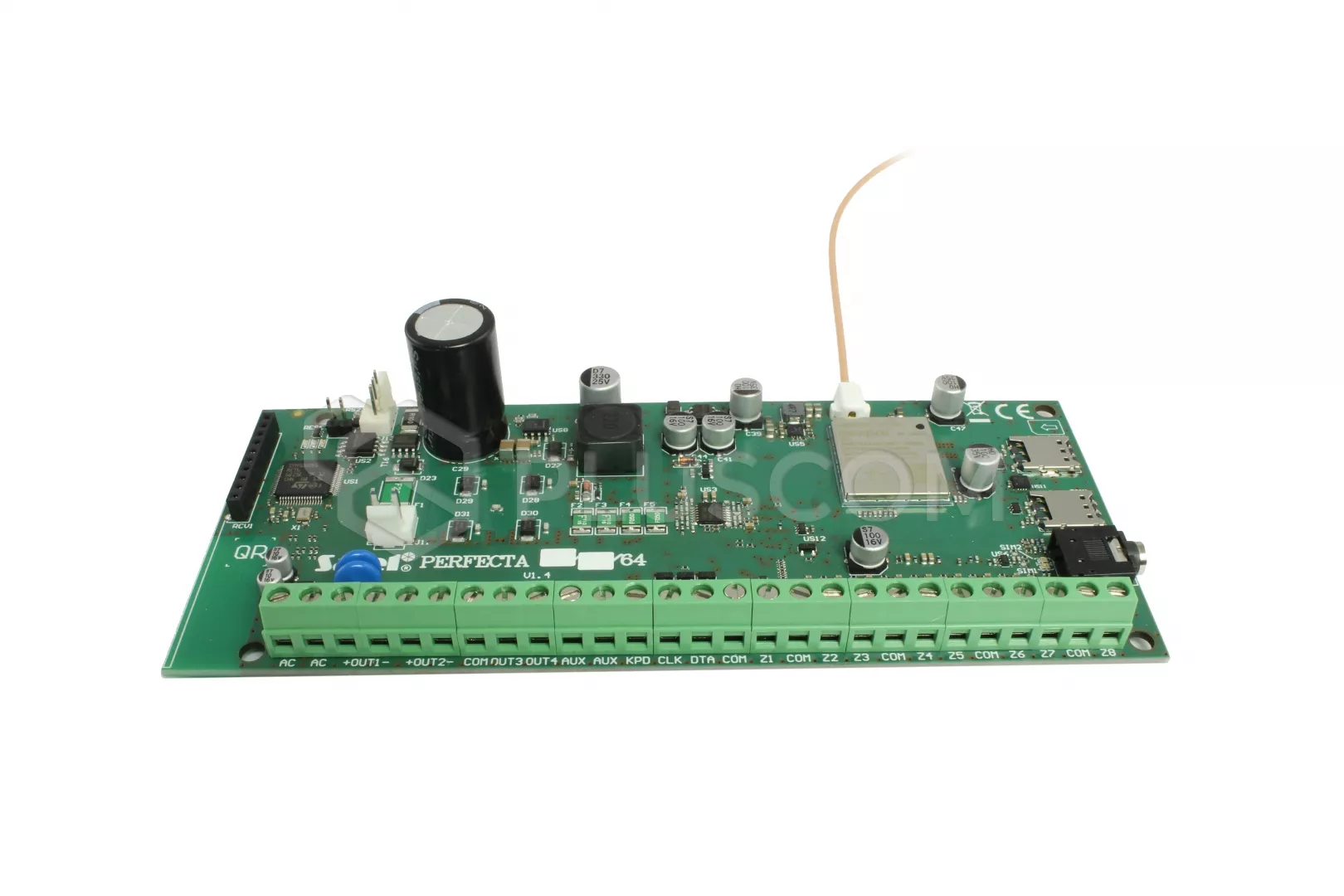

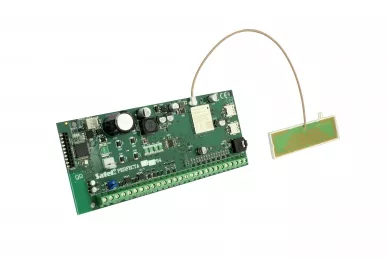

The control panel electronics board is equipped with 8 wired zones and 4 wired
outputs. Their number can be increased by connecting expansion modules:
expanders INT-E inputs and INT-O or INT-ORS outputs. This allows you to expand
the system, adding more detectors, sirens and even actuators (up to control of
the garage door, blinds, garden sprinklers). You can go to the headquarters
also connect the INT–CR zone control module. Thanks to him to control Proximity
cards and tags can be used with selected system functions. System based on the
PERFECTA 64 M control panel, can be divided into four zones, with a choice
three standby modes (day, night, full). Zones can be apart independent or
contain common parts (indicated entrances).
The PERFECTA 64 M exchange uses an LTE module that works in telephony networks
2G and 4G mobile. It enables cooperation with a mobile application with support
PUSH messages, remote system configuration using the PERFECTA Soft program,
event monitoring (e.g. to the monitoring station of a security agency),
messaging voice, SMS control and audio verification (listening to sounds from
protected object). Supports two nano-SIM cards for continuity communication:
when there is no connection with the first operator's network,
automatically second card is selected.
PARAMETERS AND FUNCTIONS
- EN 50131 Grade 2 compliant
- dividing the system into 4 zones:
-
- 3 surveillance modes per zone
- possibility of assigning an input to 1~4 zones
- user or timer control
- 8 programmable hardwired zones on the control panel board:
-
- configuration selection: NO, NC, EOL, 2EOL/NO, 2EOL/NC
- possibility to operate roller shutter and shock detectors
- up to 64 programmable inputs
- 4 programmable hardwired outputs on the control panel board:
-
- 2 high-current (supply) outputs
- 2 low-current OC type outputs
- up to 64 programmable outputs (including 4 outputs dedicated to operation
of MICRA system sirens)
- built-in modules:
-
- 2G/4G cellular communicator with 2 nano-SIM slots (SMS, monitoring to
the station, mobile application, PUSH notifications)
- voice (playing voice messages for notification purposes
telephone)
- acoustic alarm verification (listening to sounds)
- Communication bus to connect:
-
- INT-TSH2, INT-TSG2, INT-KSG2R, PRF-LCD keypads
- INT-E, INT-O, INT-ORS expansion modules
- ABAX 2 wireless system controllers: ACU-220 or ACU-280
- the INT-RX-S keyfob support expander
- INT-CR zone control modules
- communication connector for connecting - wireless system module MICRA
PERFECTA-RF
- maximum number of supported wireless devices:
-
- ABAX 2 system: up to 4 keypads / up to 48 detectors, sirens or other
devices
- MICRA system: up to 4 keypads / up to 64 detectors / up to 4
beacons
- cooperation with wireless keypads:
-
- PRF-LCD-A2 - in the ABAX 2 system
- PRF-LCD-WRL - in the MICRA system
- control the system with:
-
- manipulators
- PERFECTA CONTROL mobile application
- remote controls
- proximity cards and tags
- possibility to update software (firmware) locally or remote
- passwords:
-
- 62 user passwords
- 1 service password
- editing of names (of users, partitions, zones, outputs and modules) makes
it easier system control and supervision
- 8 timers with the possibility of setting exceptions
- 8 thermostats
- memory for 3584 events
- automatic diagnostics of basic system components
- built-in switching power supply:
-
- overload protection
- protection against total battery discharge
- adjustment of battery charging current
- programming control panel settings:
-
- locally - keypad or computer with the program installed PERFECTA
Soft, connected to the RS 232 (TTL) port of the control panel
- remotely - a computer with the PERFECTA Soft program installed,
connecting with the PBX using data transmission in the mobile
network
Support of LTE/EDGE/GPRS data transmission is dependent on mobile
network capabilities
The PERFECTA 64 M control panel allows you to create a wired or wireless – one
of the ABAX 2 system controllers can be connected to it (ACU-220 or ACU-280
operating in the 868 MHz frequency band) or PERFECTA–RF, i.e. the module of the
MICRA wireless system (frequency band 433 MHz). Alternatively, the INT–RX–S
keyfob support module can be connected to the control panel.
