Satel PERFECTA 32 LTE SET-A Kit with the PERFECTA 32 LTE alarm control
panel complete with an ANT-LTE-I antenna and an OPU-4 P housing (without a
transformer)
SET INCLUDES
|
Satel PERFECTA 16 LTE SET-A Set
|
The PERFECTA 32 LTE control panel allows you to create an installation
Wired or wireless. It features simple configuration and easy and intuitive
operation using keypads. Alarm system functions can also be remotely controlled
using the PERFECTA CONTROL mobile app and keyfobs.
The PERFECTA 32 LTE control panel uses an LTE module that works on 2G and 4G
mobile networks. It enables interoperability with a mobile app supporting push
messages, remote system configuration using the PERFECTA Soft software, event
monitoring (e.g., to a security agency's monitoring station), voice
notification, SMS control, and audio verification (listening to sounds from the
protected facility). It supports two nano-SIM cards, ensuring continuous
communication: if the first operator's network is down, the second card is
automatically selected.

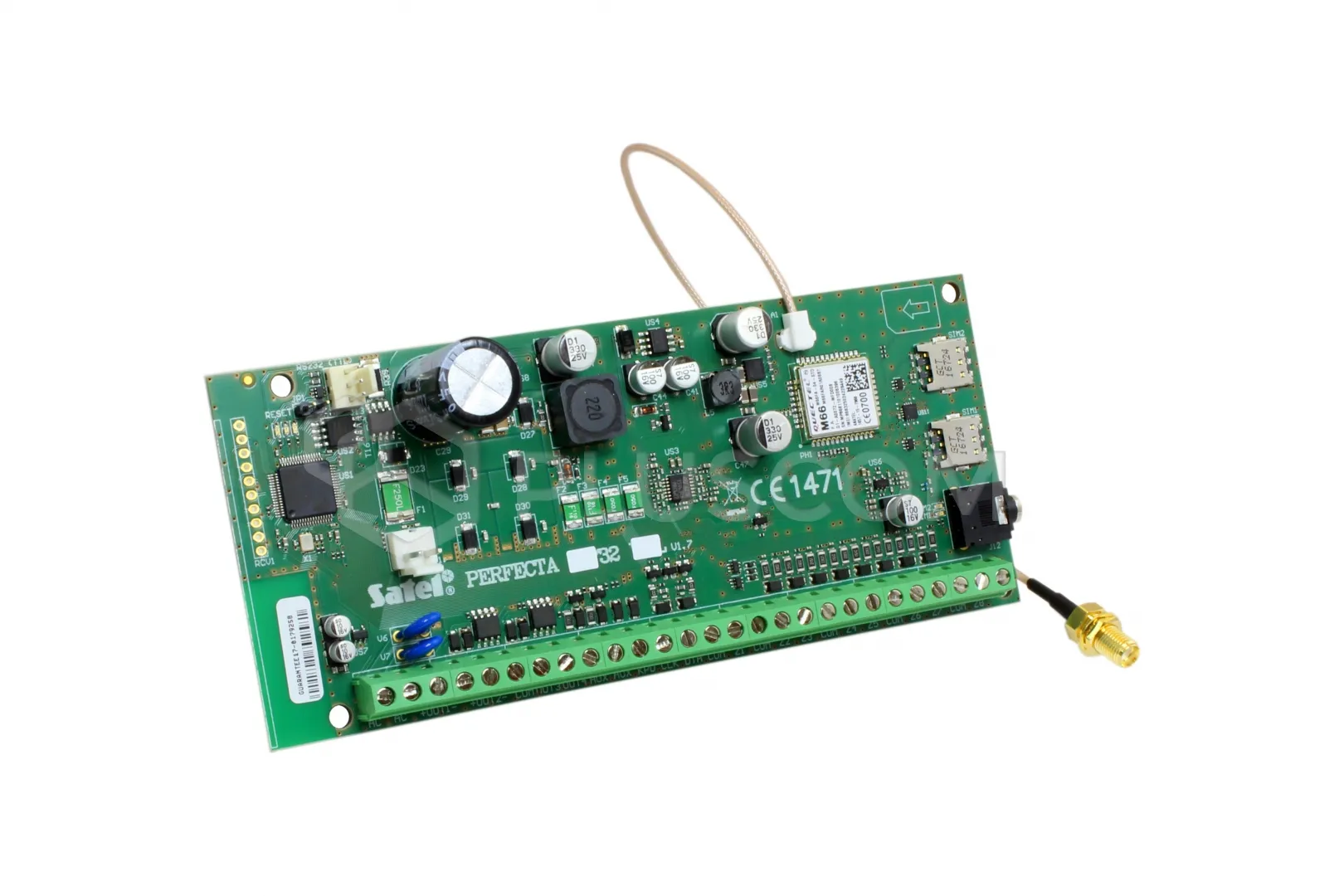

The control panel's electronics board is equipped with 8 wired
inputs and 4 outputs. Their number can be increased by connecting
expansion modules: INT-E input expanders and INT-O or INT-ORS output expanders.
This allows the system to be expanded by adding more sensors, sirens, and even
actuators (for controlling garage doors, roller shutters, and garden
sprinklers).
FEATURES:
- EN 50131 Grade 2 compliant
- 8 to 32 programmable wired inputs:
-
- Configuration options: NO, NC, EOL, 2EOL/NO, 2EOL/NC
- Supports roller shutter and vibration sensors
- 4 to 12 programmable wired outputs
- 4 additional outputs dedicated to MICRA system wireless sirens
(MSP-300)
- 2 power supply outputs on the mainboard
- Built-in modules:
-
- 2G/4G cellular communicator with 2 nano-SIM slots (SMS, monitoring to
the station, mobile app, push notifications)
- Voice (plays voice messages for telephone notifications)
- Acoustic alarm verification (listening to sounds)
- System division into 2 zones:
-
- 3 monitoring modes in each zone
- Possibility to assign an input to two zones
- Control by the user or using timers
- Communications bus for connecting keypads (PRF-LCD), expansion modules
(INT-E, INT-O, INT-ORS), and 433 MHz remote control expander (INT-RX-S)
- System control via:
- Style="list-style: none; display: inline">
- PRF-LCD keypads (up to 4)
- PERFECTA CONTROL mobile app
- Remote controls operating in the 433 MHz band (up to 15) – requires
cooperation with the INT-RX-S module
- Firmware update capability
- Passwords:
- Style="list-style: none; display: inline">
- 15 user passwords
- 1 service password
- Name editing (users, zones, inputs, outputs, and modules) facilitating
system control and supervision.
- Timers - 8 timers with the ability to set exceptions.
- 3584 event memory.
- Automatic diagnostics of basic system components.
- Built-in switching power supply:
-
- Overload protection.
- Battery discharge protection.
- Battery charging current adjustment.
- Control panel settings programming.
-
- Local – keypad, computer with PERFECTA Soft installed, connected to
the RS‑232 (TTL) port. control panel
- remotely – a computer with the PERFECTA Soft program installed,
connecting to the control panel using data transmission over a cellular
network.
The control panel allows the facility to be divided into two zones, with a
choice of three standby modes (day, night, full). Each zone can be assigned to
one or both monitored areas.
The system can be configured in two ways: from a computer with the PERFECTA
Soft program installed (locally – connection via the RS-232 (TTL) port,
remotely – via data transmission over a cellular network) and using a keypad.
The kit is equipped with an ANT-LTE-I antenna for
communication modules, dedicated to devices operating in LTE, UMTS/HSPA+,
GSM/GPRS/EDGE technologies.
It is designed to work with control panels and modules equipped with cellular
communicators.

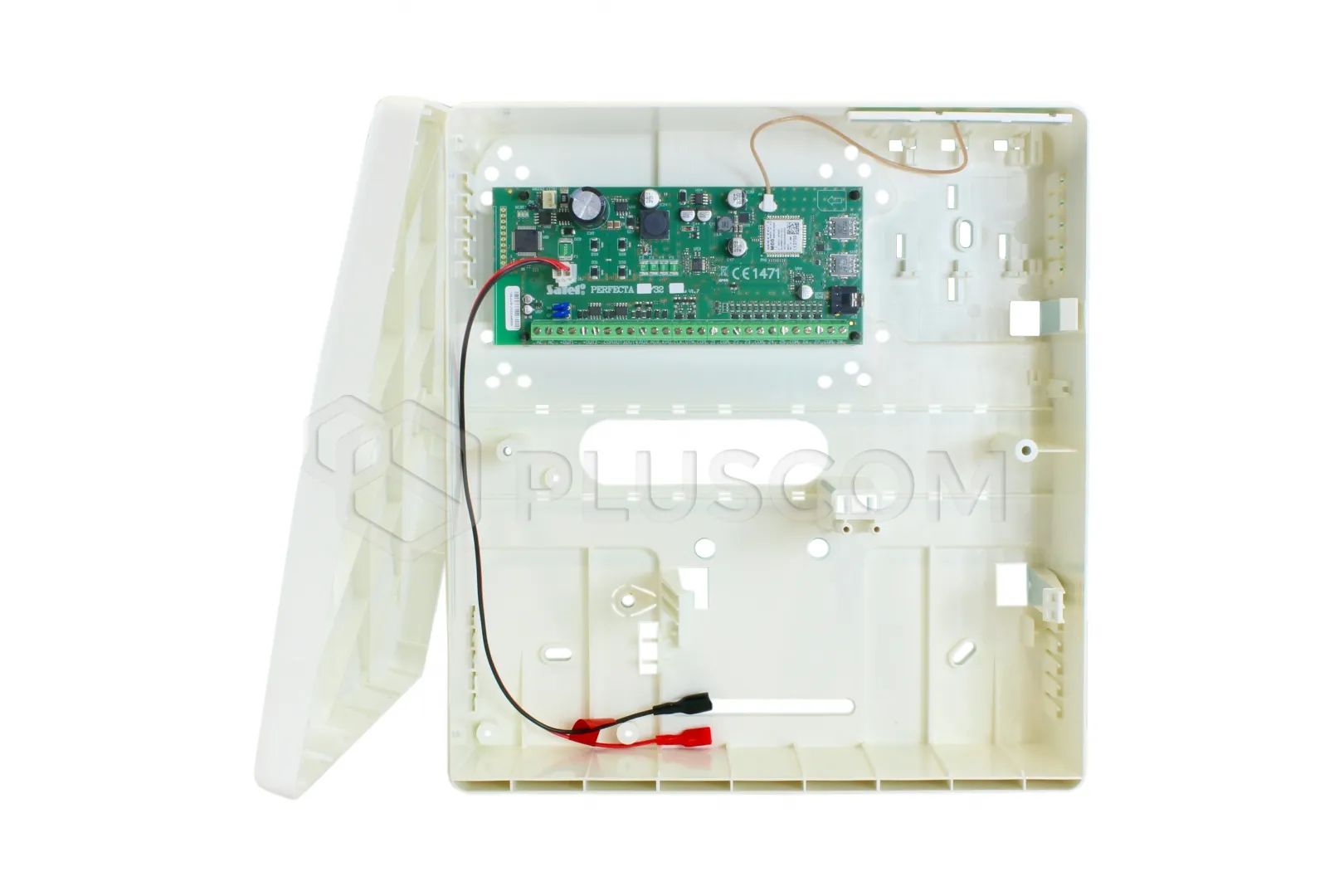

The entire unit is housed in a universal OPU-4P housing for
devices and modules. The housing is designed for surface mounting and can be
installed indoors.
It has a holder for the GSM antenna and two tamper contacts that respond to
opening the cover and removal from the mounting surface.
The housing provides space for mounting:
- 230V/18V AC transformer with a power of 40VA
- 230V/20V AC transformer with a power of 60VA
- 12V 7Ah battery
The set does not include a transformer.
