Roger Technology H93/RX22A/I 2-channel radio receiver

82,51 EUR including 23.00% VAT
Product code: #33200
Manufacturer: Roger Technology
  • Number of supported remotes: 500 (permanent code)
  • Number of channels: 2
  • Power supply: 5V DC
  • Molex connector
  • Radio Path: Roger
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology F70/IPU36/BOX/SL Control unit Roger Technology B70/2ML/BOX Control unit for 2 24 V DC motors Roger Technology F70/IPU36/BOX/P Control unit Roger Technology B70/2ML Control unit for 2 24 V DC motors Roger Technology F70/IPU36/BOX Control unit Roger Technology B70/1DCHP Control unit with 1 brushless motor 36 V DC Roger Technology B70/1DC Control unit with 1 brushless motor 24 V DC Roger Technology H70/200AC/BOX Control unit for 2 230V AC motors Roger Technology H70/200AC Control unit for 2 230V DC motors Roger Technology H70/104AC Control unit for 1 230 V AC motor

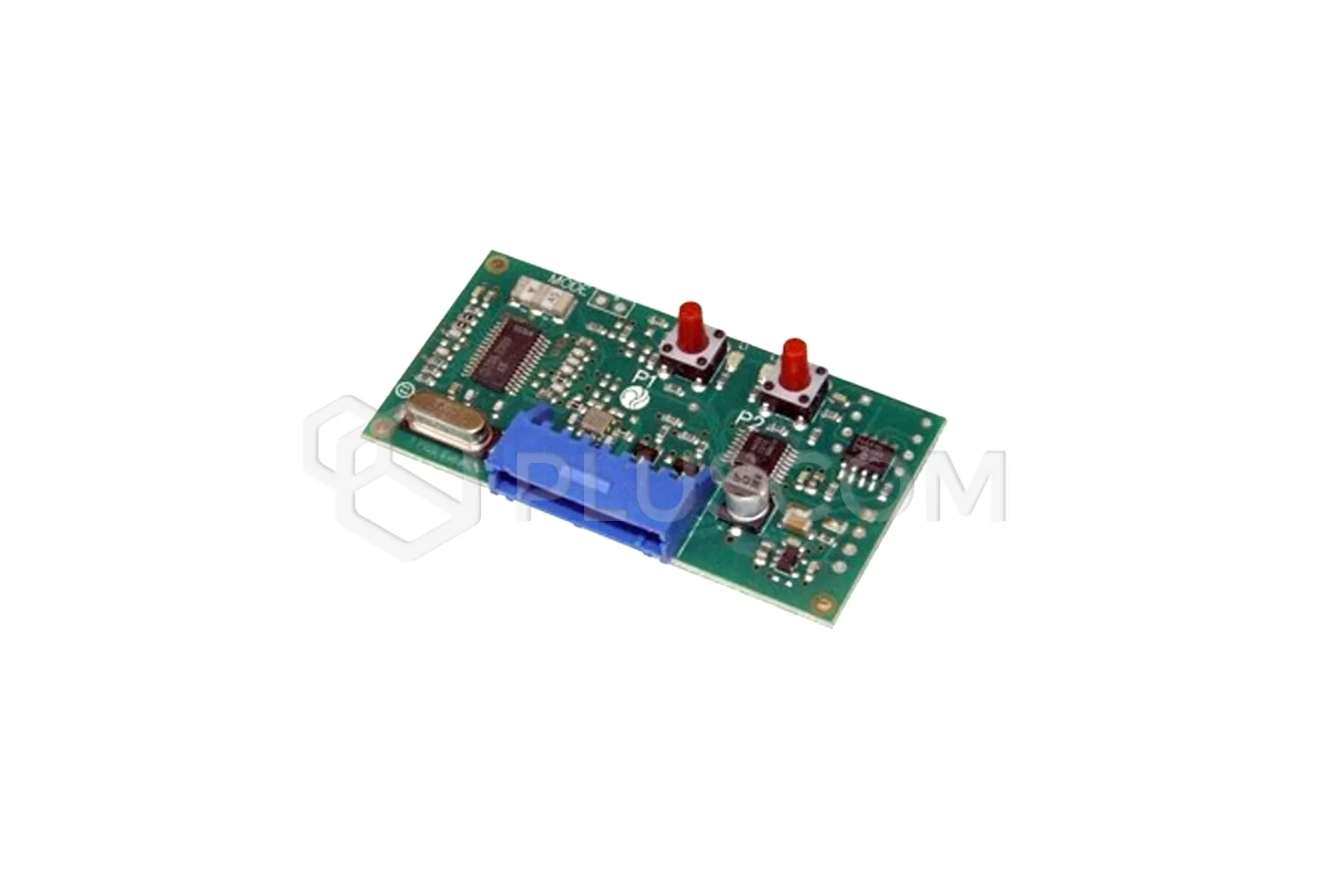

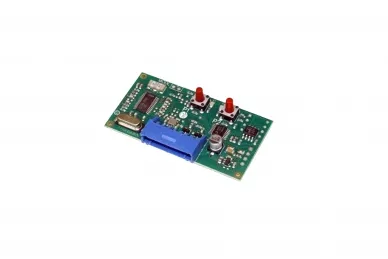

Roger Technology H93/RX22A/I 2-channel radio receiver


A plug-in 2-channel radio receiver with a fixed code of 433.92 MHz for H70, B70, EDGE, CTRL and F70 series control units. It has a memory for 500 fixed code remote controls.

TECHNICAL DATA:

  • Power supply: 5V DC
  • Current consumption: 15 mA
  • Number of channels: 2
  • Code type: fixed
  • Modulation: AM/ASK
  • Frequency: 433.92 MHz
  • Output type: transistor
  • Memory: 500 remote controls
  • Sensitivity: -107 dBm
  • Resistance: 50 Ohm
  • Operating temperature: -10°C +55°C
  • Dimensions: 60 x 32 x 12 mm
  • Weight: 0.03 kg
