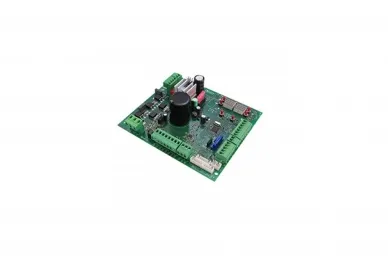

Roger Technology CTRL Control Unit

280,66 EUR including 23.00% VAT
Product code: #33171
Manufacturer: Roger Technology
  • For BIONIK 4, 4HP, 6, 8 barriers
  • Number of motors: 1 motor 36V DC
  • Possibility to set the master/slave function
  • Obstacle detection sensitivity adjustment
  • Automatic motion programming
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SET BIONIK6F/7B Set with BIONIK6 with 7m arm Roger Technology SET BIONIK6F Set with BIONIK6 with 6 m arm Roger Technology SET BIONIK4F/3B Set with BIONIK4 with 3 m arm Roger Technology SET BIONIK4/F Set with BIONIK4 with 4 m arm Roger Technology SET BIONIK8F Set with BIONIK8 with 8m arm

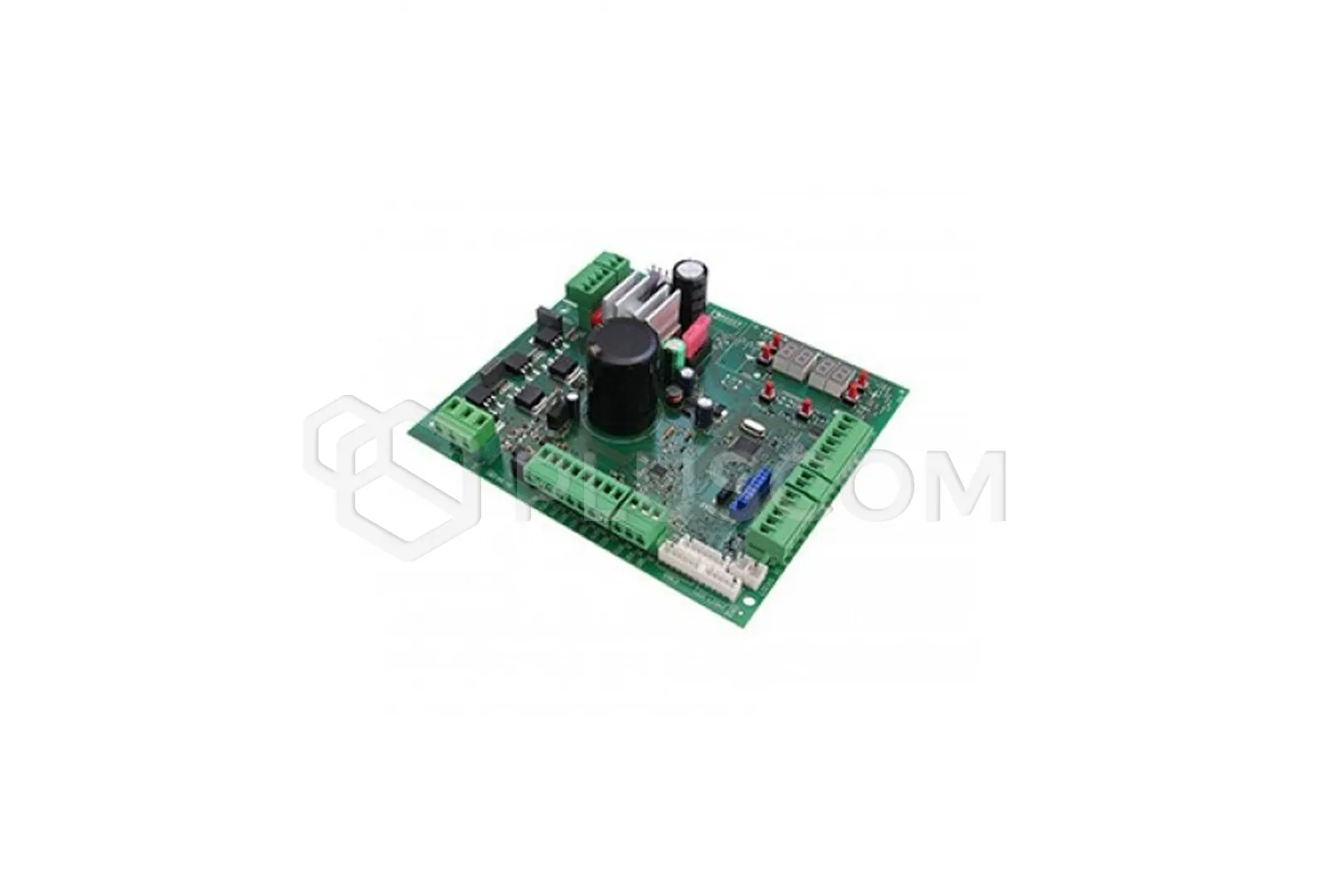

Roger Technology CTRL Control unit for BIONIK barriers: 4, 4HP, 6, 8


CTRL control unit with 1 36V DC motor, for BIONIK automatic barriers 4, 4HP, 6, 8 with very wide control possibilities.

FEATURES AND FUNCTIONS:

  • BRUSHLESS 36V motor control
  • Reliability and ease of installation
  • Full control over the speed of operation
  • Comfortable, removable terminal blocks guarantee greater comfort when making electrical connections
  • Master/slave function setting option
  • Battery connection option
  • Many security functions
  • Automatic movement programming
  • Obstacle detection sensitivity adjustment
  • Acceleration adjustment (SOFT-START)
  • Opening speed adjustment
  • Closing speed adjustment
  • Slowing down adjustment
  • Braking adjustment (SOFT-STOP)
  • Function - Automatic closing
  • Adjusting the automatic closing time
  • Function - Timer
  • Programming the safety output
  • Function - Fail Safe test (Photocell test)
  • Function - Close after photocell release
  • Function - NC/8K2 safety edge
  • Function - Emergency stop
  • Function - Residential complex
  • Function - Dead Man (Totmann)
  • Function - Closing guarantee
  • Function - Additional lighting
  • Thermal protection
  • Battery management
  • Information on using the system
  • Security before modifying parameters
  • Restore factory settings

TECHNICAL DATA:

  • Rated supply voltage: 230 V AC ± 10% 50 Hz
  • Max. power consumption: 240 W
  • Max. power consumption during start-up: -
  • Fuses used:
    • F1 = 10A (ATO257) accessory power supply circuit protection
    • F2 = 4A (ATO257) motor power supply circuit protection
    • F3 = 3A (ATO257) transformer primary winding protection
    • F4 = T1A (5x20 mm) transformer primary winding protection
  • Number of supported drives: 1
  • Motor power supply: 36V AC
  • Supported motor type: brushless, sinusoidal (ROGER BRUSHLESS)
  • Motor control type: field-oriented (FOC - FIELD ORIENTED CONTROL), sensorless (SENSORLESS)
  • Max. rated motor power: -
  • Max. motor power consumption: 220W
  • Max. warning light power: 5W (24V DC), 12W (24V DC) / arm lighting
  • Warning light flashing frequency: -
  • Max. additional lighting power: -
  • Max. gate status indicator light power: 3W (24V DC)
  • Max. power consumed by electric lock: 10 W (12 V DC) / (pulse activation, 1.5 seconds)*, 5 W (12 V DC) / (electric lock normally powered)*
  • Max. power consumption of accessories: 10W (24V DC / 400 mA)
  • Operating temperature range: from -20°C to +55°C
  • Dimensions: 166 x 150 x 48 mm
  • Weight: 0.254 kg
