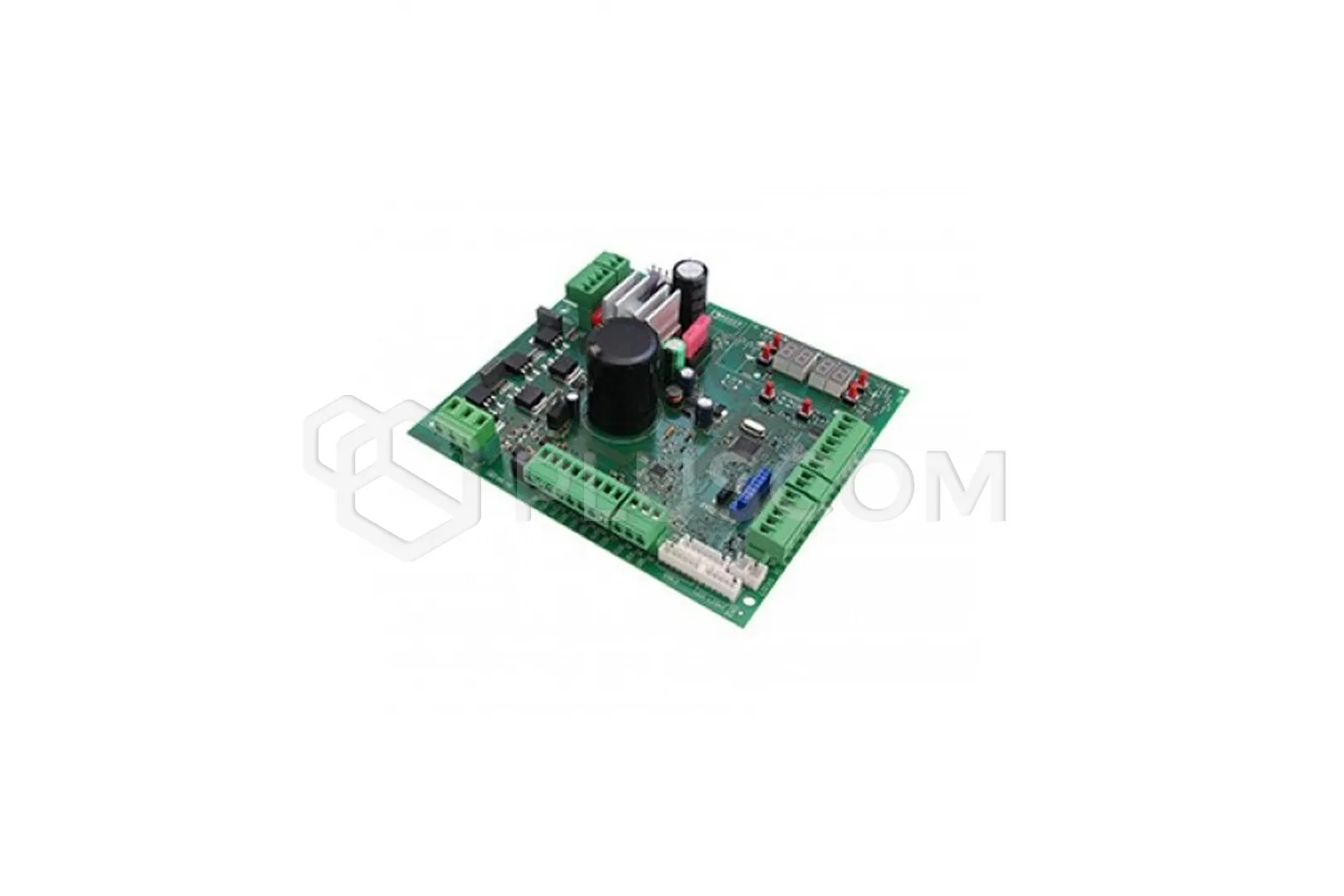

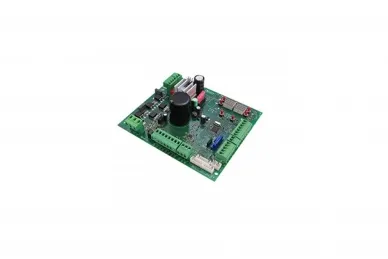

Roger Technology CTRL/P Control Unit

358,08 EUR including 23.00% VAT
Product code: #33172
Manufacturer: Roger Technology
  • For BIONIK 1PE i 1PC barriers
  • Number of motors: 1 motor 36V DC
  • Full control over the speed of work
  • Obstacle detection sensitivity adjustment
  • Automatic motion programming
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SET BIONIK1PE Set with BIONIK1PE with 3 m arm Roger Technology SET BIONIK1PC Set with BIONIK1PC with 3 m arm

Roger Technology CTRL Control unit for BIONIK barriers: 4, 4HP, 6, 8


CTRL control unit with 1 36V DC motor, for BIONIK automatic barriers 4, 4HP, 6, 8 with very wide control possibilities.

FEATURES AND FUNCTIONS:

  • BRUSHLESS 36V motor control
  • Reliability and ease of installation
  • Full control over the speed of operation
  • Comfortable, removable terminal blocks for greater comfort when making electrical connections
  • Battery connection option
  • Many security functions
  • Automatic movement programming
  • Obstacle detection sensitivity adjustment
  • Acceleration adjustment (SOFT-START)
  • Opening speed adjustment
  • Closing speed adjustment
  • Slowing down adjustment
  • Braking adjustment (SOFT-STOP)
  • Function - Automatic closing
  • Adjusting the automatic closing time
  • Function - Timer
  • Programming the safety output
  • Function - Fail Safe test (Photocell test)
  • Function - Close after photocell release
  • Function - NC/8K2 safety edge
  • Function - Emergency stop
  • Function - Residential complex
  • Function - Dead Man (Totmann)
  • Function - Closing guarantee
  • Function - Additional lighting
  • Thermal protection
  • Battery management
  • Information on the use of the system
  • Protection against parameter modification
  • Restoring settings factory

TECHNICAL DATA:

  • Rated supply voltage: 230 V AC ± 10% 50 Hz
  • Max. power consumption: 500 W
  • Fuses used:
    • F1 = 10A (ATO257) accessory power supply circuit protection
    • F2 = 4A (ATO257) motor power supply circuit protection
    • F3 = 3A (ATO257) transformer primary winding protection
    • F4 = T2A (5x20 mm) transformer primary winding protection
  • Number of supported drives: 1
  • Motor power supply: 36V AC
  • Supported motor type: brushless, sinusoidal (ROGER BRUSHLESS)
  • Motor control type: field-oriented (FOC - FIELD ORIENTED CONTROL), sensorless (SENSORLESS)
  • Max. motor power consumption: 450W
  • Max. warning light power: 5W (24V DC), 6W (24V DC) / arm lighting
  • Max. gate status indicator light power: 3W (24V DC)
  • Max. power consumed by electric lock: 10 W (12 V DC) / (pulse activation, 1.5 seconds)*, 5 W (12 V DC) / (electric lock normally powered)*
  • Max. power consumption of accessories: 10W (24V DC / 400 mA)
  • Operating temperature range: from -20°C to +55°C
  • Dimensions: 166 x 150 x 48 mm
  • Weight: 0.254 kg
