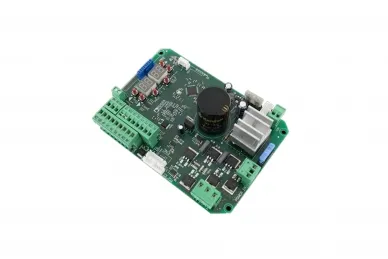

Roger Technology B70/1T Control unit

389,21 EUR including 23.00% VAT
Product code: #40591
Manufacturer: Roger Technology
  • For TW90 drives
  • Number of motors: 1 motor 24V DC
  • Gate function
  • Maximum force at the start of the maneuver
  • Braking control (SOFT-STOP)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology TW90/600/HS 36V HIGH SPEED Brushless Motor Drive Roger Technology TW90/600/HS/L KIT LIGHT Roger Technology KIT TW90/800/L KIT LIGHT Roger Technology KIT TW90/800/F KIT FULL Roger Technology TW90/600/HS/F KIT FULL Roger Technology TW90/800 24V Brushless Motor Drive Roger Technology TW90/620/HS 24V Brushless Motor Drive HIGH SPEED Roger Technology KIT TW90/800 Set

Roger Technology B70/1T Control unit


B70/1T control unit, with 1 brushless 24V DC motor, for sliding gate drives.
Dedicated to Roger Technology drives from the series: TW90.

FUNCTIONS:

  • Automatic movement programming
  • Force adjustment
  • Maximum force at start of manoeuvre
  • Obstacle detection sensitivity adjustment
  • Acceleration adjustment (SOFT-START)
  • Opening speed adjustment
  • Closing speed adjustment
  • Slowing adjustment
  • Braking adjustment (SOFT-STOP)
  • Function - Automatic closing
  • Automatic closing time adjustment
  • Function - Timer
  • Programming of safety output
  • Function - Fail Safe test (Photocell test)
  • Function - Close after photocell release
  • Function - NC/8K2 safety edge
  • Function - Emergency stop
  • Function - Partial opening (Wicket gate)
  • Partial opening adjustment
  • Function - Residential complex
  • Function - Dead Man (Totmann)
  • Function - Closing guarantee
  • Function - Additional lighting
  • Function - Gate status indication
  • Thermal protection
  • Battery management
  • Information on system use
  • Protection against parameter modification
  • Restore factory settings

TECHNICAL DATA:

  • Rated supply voltage: 230 V AC ± 10% 50 Hz
  • Max. power consumption: 180 W
  • Max. power consumption during start-up: 315W
  • Fuses used:
    • F1 = 15A (ATO257) motor power supply circuit protection
    • F2 = 2A (ATO257) accessory power supply protection
    • F3 = T1A (5x20 mm) (B70/1T/115: T2A (5x20 mm)) transformer primary protection
  • Number of supported drives 1
  • Motor power supply: 24V AC
  • Supported motor type: brushless, sinusoidal (ROGER BRUSHLESS)
  • Motor control type: field-oriented (FOC - FIELD ORIENTED CONTROL), sensorless (SENSORLESS)
  • Max. rated motor power: 120W
  • Max. motor power consumption: 290W
  • Max. warning light power: 25W (24V DC)
  • Warning light flashing frequency: 50%
  • Max. additional lighting power: 100 W (230 V AC) - 40 W (24 V AC/DC) / (potential-free contact)
  • Max. gate status indicator light power: 3 W (24V DC)
  • Max. power consumed by electric lock: 15 W (12 V DC) / (average voltage value)
  • Max. power consumption of accessories: 10 W (24 V DC / 400 mA)
  • Operating temperature range: from -20°C to +55°C
  • Dimensions: 200 x 90 x 45 mm
  • Weight: 0.23 kg
