Roger Technology B70/1THP Control Unit

435,91 EUR including 23.00% VAT
Product code: #40592
Manufacturer: Roger Technology
  • For TW110 drives
  • Number of motors: 1 motor 36V DC
  • Force adjustment
  • Maximum force at the start of the maneuver
  • Braking control (SOFT-STOP)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology TW110/2000 36V Brushless Motor Drive Roger Technology TW110/1600/HS 36V Brushless Motor Drive HIGHT SPEED Roger Technology TW110/1000/HS 36V Brushless Motor Drive HIGHT SPEED

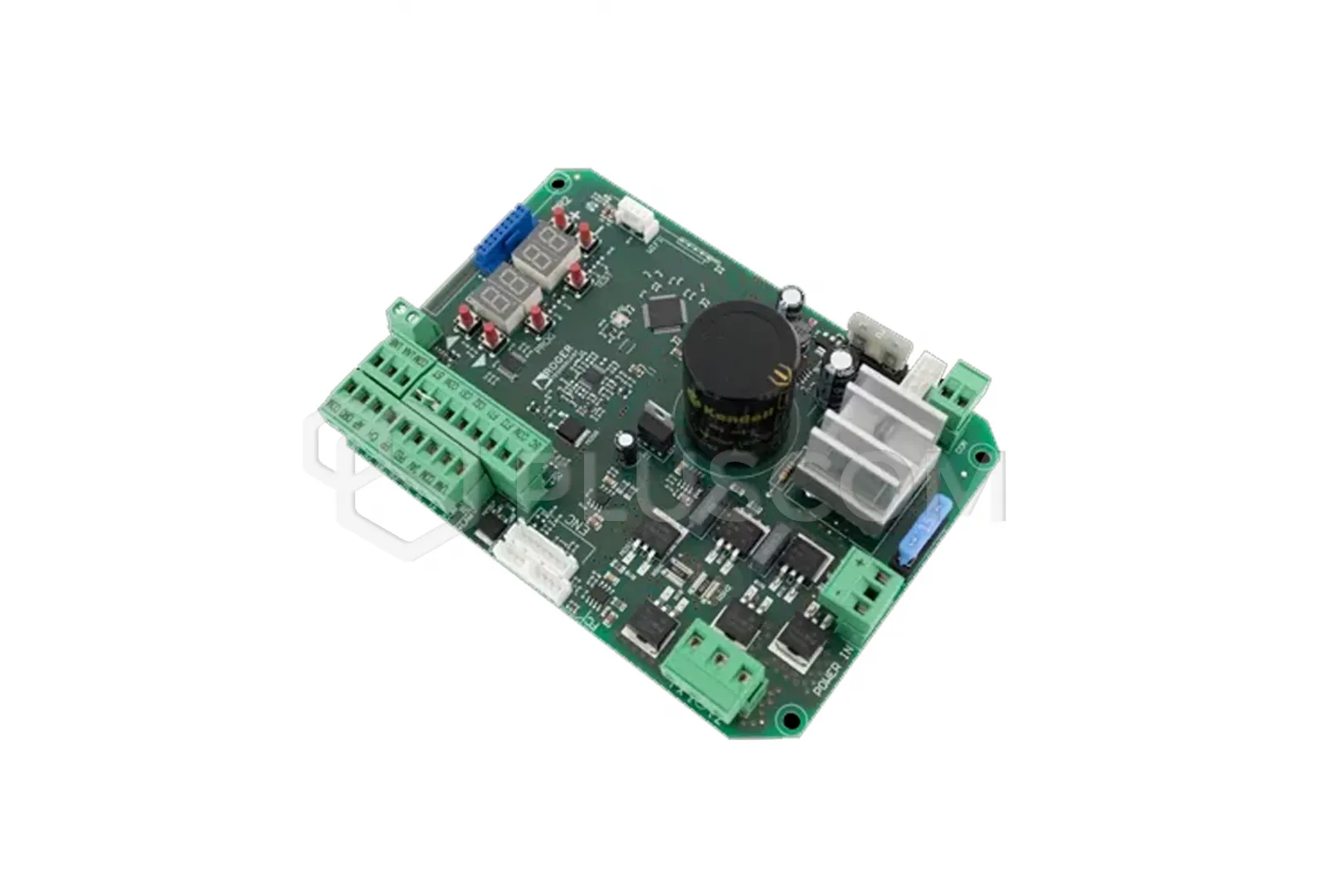

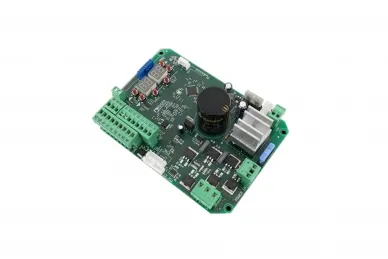

Roger Technology B70/1THP Control Unit


B70/1THP control unit, with 1 brushless 36V DC motor, for sliding gate drives.
Dedicated to Roger Technology drives from the series: TW110.

FUNCTIONS:

  • Automatic movement programming
  • Force adjustment
  • Maximum force at start of manoeuvre
  • Obstacle detection sensitivity adjustment
  • Acceleration adjustment (SOFT-START)
  • Opening speed adjustment
  • Closing speed adjustment
  • Slowing adjustment
  • Braking adjustment (SOFT-STOP)
  • Function - Automatic closing
  • Automatic closing time adjustment
  • Function - Timer
  • Programming of safety output
  • Function - Fail Safe test (Photocell test)
  • Function - Close after photocell release
  • Function - NC/8K2 safety edge
  • Function - Emergency stop
  • Function - Partial opening (Wicket gate)
  • Partial opening adjustment
  • Function - Residential complex
  • Function - Dead Man (Totmann)
  • Function - Closing guarantee
  • Function - Additional lighting
  • Function - Gate status indication
  • Thermal protection
  • Battery management
  • Information on system use
  • Protection against parameter modification
  • Restore factory settings

TECHNICAL DATA:

  • Rated supply voltage: 230 V AC ± 10% 50 Hz
  • Max. power consumption: 240 W
  • Max. power consumption during start-up: 570W
  • Fuses used:
    • F1 = 20A (ATO257) motor power supply circuit protection
    • F2 = T2A (ATO257) transformer primary protection
    • F3 = 3A (5x20 mm) accessory power supply protection
  • Number of supported drives 1
  • Motor power supply: 36V AC (via inverter with automatic protection)
  • Supported motor type: brushless, sinusoidal (ROGER BRUSHLESS)
  • Motor control type: field-oriented (FOC - FIELD ORIENTED CONTROL), sensorless (SENSORLESS)
  • Max. motor rated power: 190W
  • Max. motor power consumption: 530W
  • Max. warning light power: 25W (24V DC)
  • Warning light flashing frequency: 50%
  • Max. additional lighting power: 100 W (230 V AC) - 40 W (24 V AC/DC) / (potential-free contact)
  • Max. gate status indicator light power: 3 W (24V DC)
  • Max. power consumed by electric lock: 15 W (12 V DC) / (average voltage value)
  • Max. power consumption of accessories: 20 W (24 V DC / 750 mA)
  • Operating temperature range: from -20°C to +55°C
  • Dimensions: 380 x 145 x 130 mm
  • Weight: 0.46 kg
