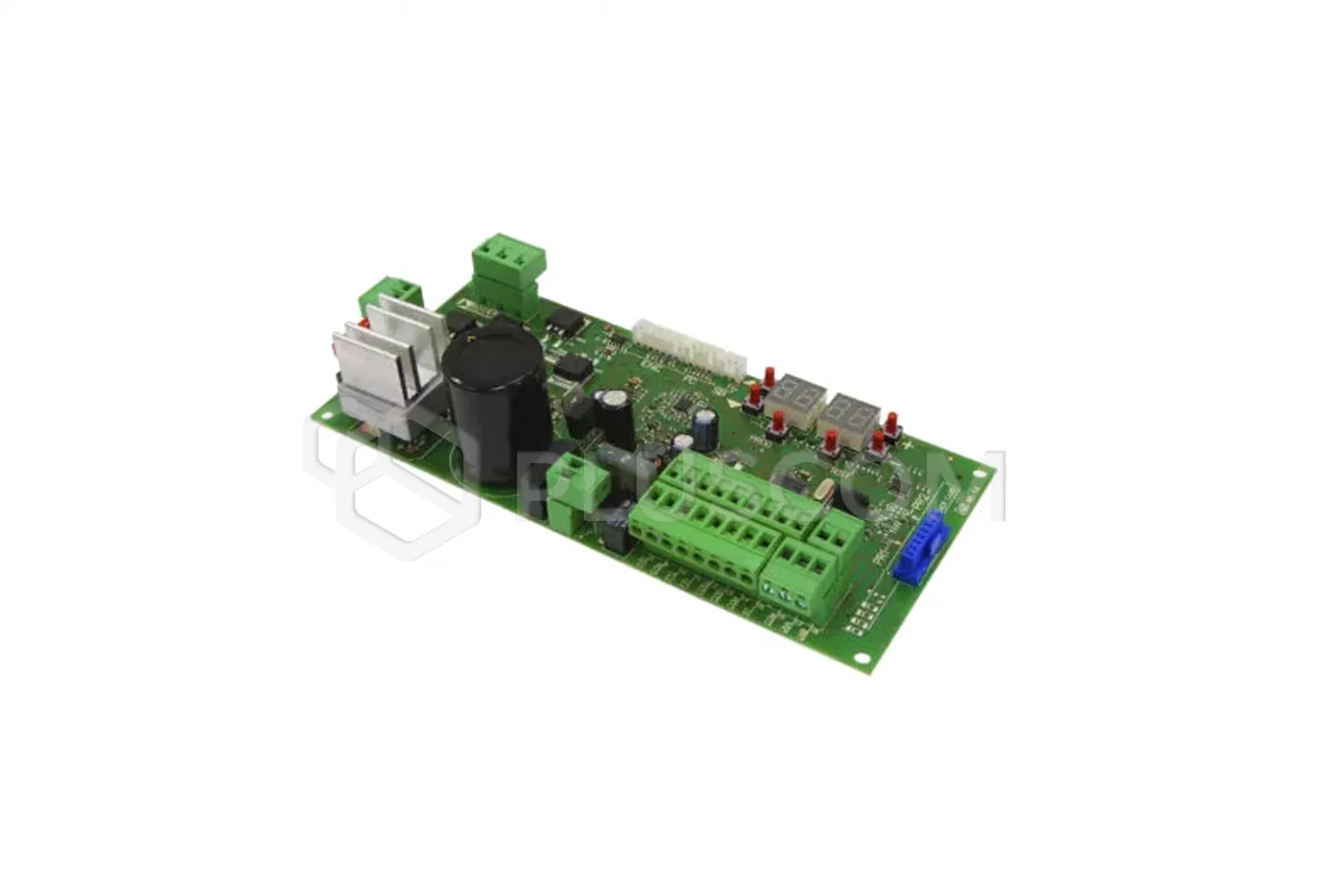

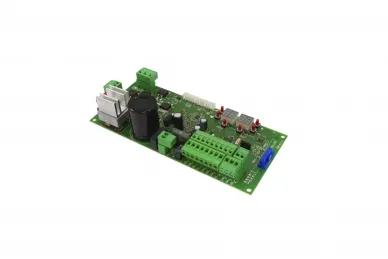

Roger Technology B70/1DCHP Control unit with 1 brushless motor 36 V DC

389,21 EUR including 23.00% VAT
Product code: #40565
Manufacturer: Roger Technology
  • For BG30 drives
  • Number of motors: 1 motor 36V DC
  • Gentle start
  • Accessory power supply: 24V DC
  • Gate function
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology BG30/2204 36V brushless motor drive Roger Technology BG30/1604 36V Brushless Motor Drive

Roger Technology B70/1DCHP Control unit with 1 brushless motor 36 V DC


Control unit B70/1DCHP with 1 BRUSHLESS 36V DC motor for sliding gate actuators.
Dedicated to Roger Technology drives from the series: BG30.

FUNCTIONS:

  • Very low energy consumption
  • Gate open indicator light
  • Automatic closing
  • Force adjustment
  • Manoeuvre time
  • Self-closing time
  • Braking/slowing down
  • Force adjustment at start and braking
  • Braking start point adjustment
  • Engine braking distance
  • Obstacle detection and pressure force adjustment
  • Soft start
  • Guaranteed closing function
  • Wicket door function
  • "Person present" function
  • Function for housing communities
  • Security settings
  • Safety in the form of stop and change of direction
  • Self-test function
  • Thermal protection of the control unit
  • Safety strip (8.2 kΩ)
  • Restore factory settings
  • Information on engine use
  • Battery management and consumption reduction

TECHNICAL DATA:

  • Mains power supply: 230V AC 50 Hz
  • Accessories power supply: 24V DC
  • Number of engines: 1 BRUSHLESS engine 36V DC
  • Warning light output: 24V DC
  • Maximum warning light power: 25 W
  • Additional lighting: 230V AC, max. 100 W | 24V AC/DC, max. 40 W
  • Maximum power of the "gate open" lamp: 3 W
  • Display: LED
  • Operating temperature: -10°C to +55°C
  • Dimensions: 200 x 90 x 45mm
  • Weight: 0.244 kg
