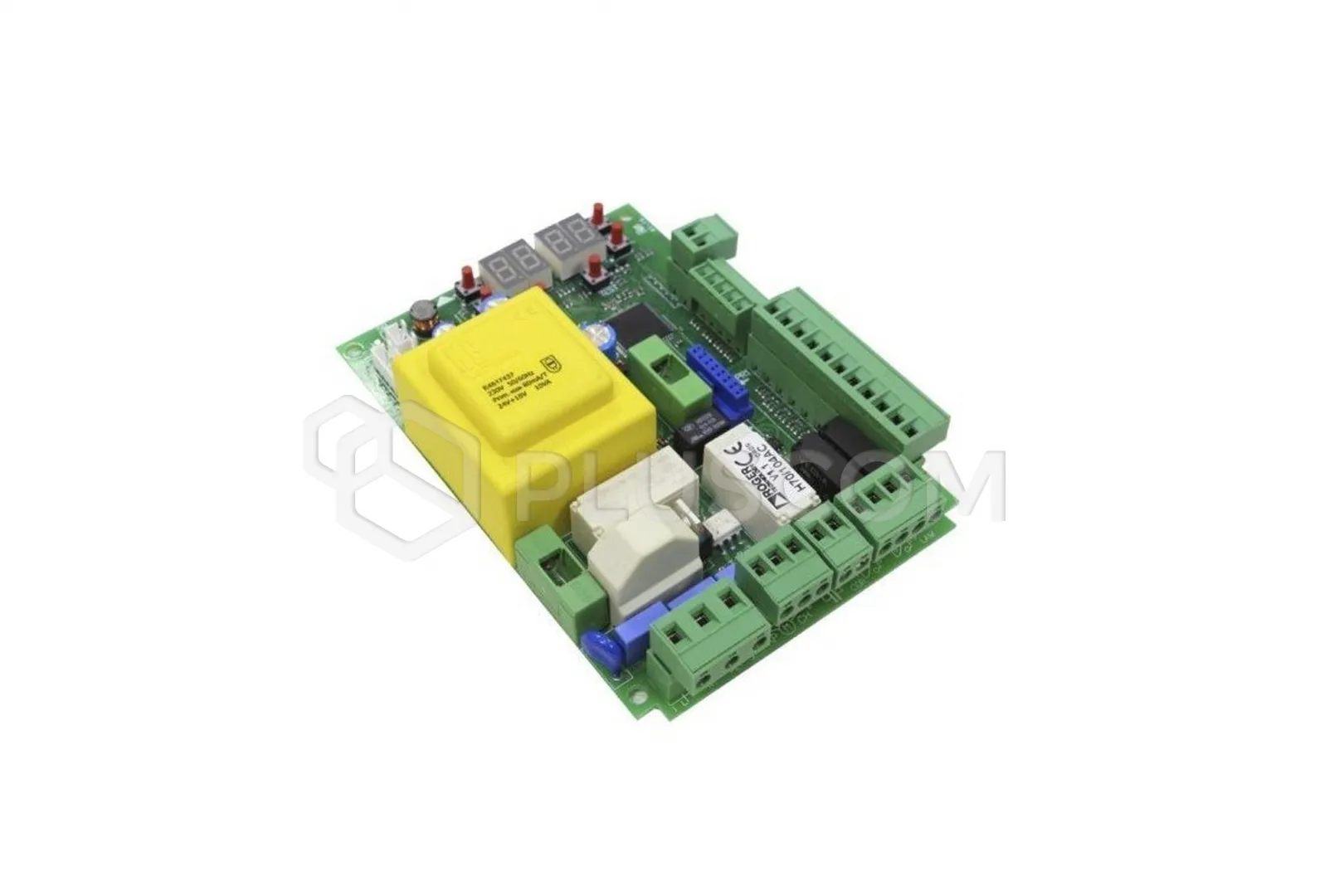

Roger Technology H70/200AC Control unit for 2 230V DC motors

298,91 EUR including 23.00% VAT
Product code: #33196
Manufacturer: Roger Technology
  • For MONOS4/220, H23, R23, R21 drives
  • Number of motors: 2 motors 230V
  • Adjusting the force when starting and braking
  • Accessory power supply: 24V DC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology MONOS4/220 Drive with 230V motor Roger Technology KIT MONOS4/220/L KIT LIGHT Roger Technology KIT MONOS4/220/F KIT FULL Roger Technology H23/282 Drive with 230V motor Roger Technology SET H23/282/L SET LIGHT Roger Technology SET R23/373/L SET LIGHT Roger Technology SET R21/353/L Set Roger Technology SET R21/353/F Set Roger Technology R23/371 Drive with 230V motor Roger Technology R21/351 Drive with 230V motor

Roger Technology H70/200AC Control unit for 2 230V DC motors


H70/200AC control unit controlling 2 230V AC motors of swing gate automations.
Dedicated to Roger Technology drives from the series: MONOS4/220, H23, R23 and R21.

FUNCTIONS:

  • Gate open indicator light
  • Automatic closing
  • Force adjustment
  • Manoeuvre time
  • Self-closing time
  • Braking/slowing down
  • Start and braking force adjustment
  • Braking start point adjustment
  • Obstacle detection and pressure force adjustment
  • Partial opening function
  • "Person present" function
  • Function for housing communities
  • Security settings
  • Safety in the form of stopping and reversing the direction of travel
  • Self-test function
  • Protection thermal control panel
  • Safety strip (8.2 kΩ)
  • Restoring factory settings
  • Information on engine use

TECHNICAL DATA:

  • Mains power supply: 230V AC 50 Hz
  • Accessories power supply: 24V DC 350-500 mA
  • Number of engines: 2 230V AC engines
  • Maximum engine power: 600 W
  • Warning light output: 230V AC
  • Maximum warning light power: 40 W
  • Additional lighting: 230V AC, max. 100 W | 24V AC/DC, max. 25 W
  • Maximum power of the "gate open" light: 2 W
  • Maximum power of the electric lock: 12V AC
  • Display: LED
  • Operating temperature: -10°C to +55°C
  • Protection class: IP 54
  • Dimensions: 228 x 307 x 118 mm
  • Weight: 2.1 kg (with housing)
