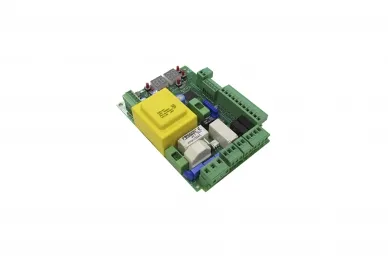

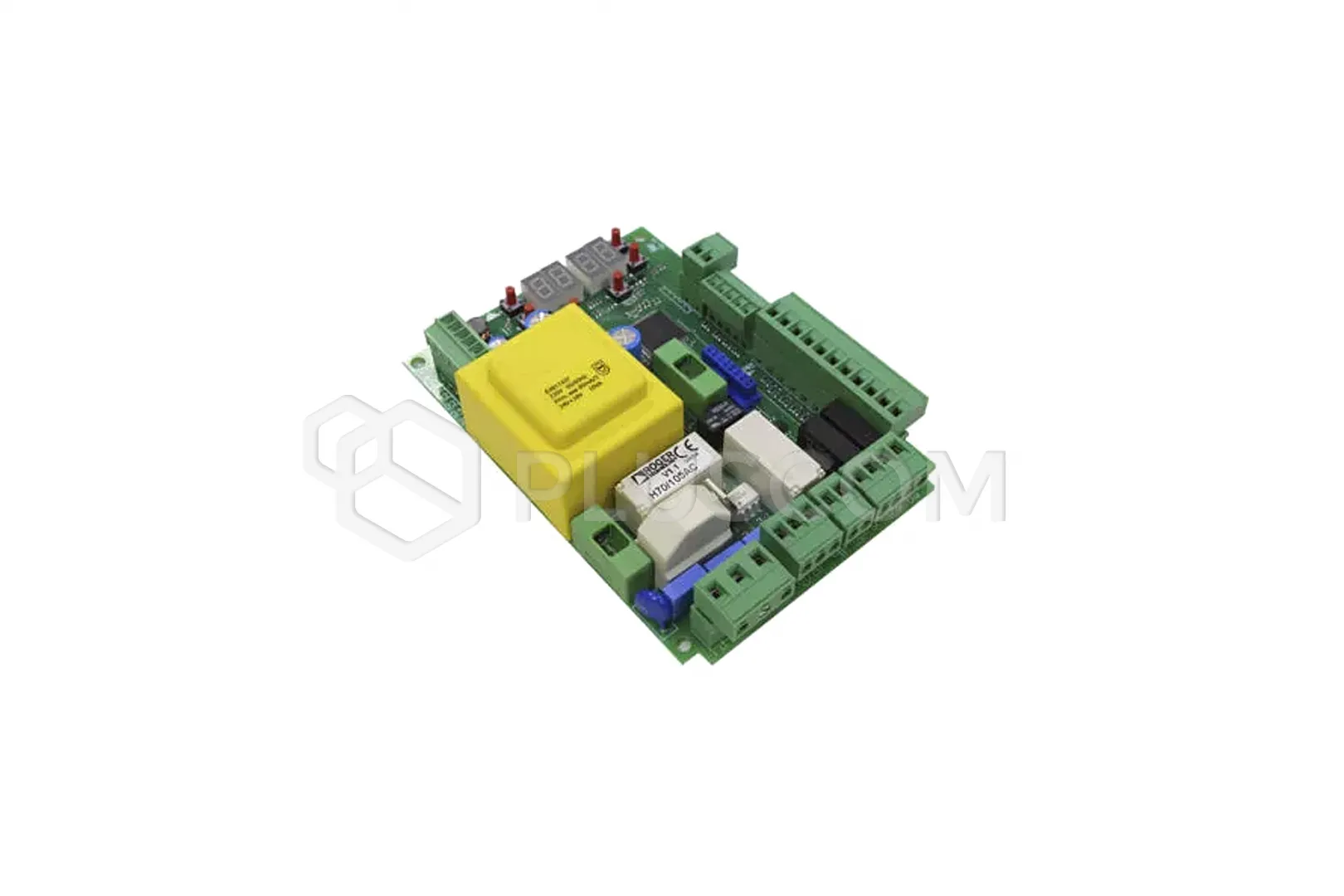

Roger Technology H70/104AC Control unit for 1 230 V AC motor

245,99 EUR including 23.00% VAT
Product code: #33195
Manufacturer: Roger Technology
  • For H30, R30, G30 drives
  • Number of motors: 1 motor 230V AC
  • Display: LED
  • Accessory power supply: 24V DC
  • Force adjustment, partial opening function
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology KIT H30/650/L KIT LIGHT Roger Technology KIT H30/650/F KIT FULL Roger Technology H30/644 Drive with 230 V motor Roger Technology G30/2204 230V Motor Drive Roger Technology G30/1804 230V Motor Drive Roger Technology R30/804 Drive with 230V motor Roger Technology R30/1204 Drive with 230V motor Roger Technology KIT R30/806/L KIT LIGHT Roger Technology KIT R30/806/F KIT FULL

Roger TechnologyH70/104AC Control unit for 1 230 V AC motor


H70/104AC control unit for 1 230 V AC motor for sliding gate automation.
Dedicated to Roger Technology drives from the series: H30, R30, G30.

FUNCTIONS:

  • Gate open indicator light
  • Automatic closing
  • Force adjustment
  • Manoeuvre time
  • Self-closing time
  • Braking/slowing down
  • Start and braking force adjustment
  • Braking start point adjustment
  • Obstacle detection and pressure force adjustment
  • Partial opening function
  • "Person present" function
  • Function for housing communities
  • Security settings
  • Safety in the form of stopping and reversing the direction of travel
  • Self-test function
  • Protection thermal control panel
  • Safety strip (8.2 kΩ)
  • Restoring factory settings
  • Information on engine use

TECHNICAL DATA:

  • Mains power supply: 230V AC 50 Hz
  • Accessories power supply: 24V DC 300 mA
  • Number of engines: 1 engine 230V AC
  • Maximum engine power: 600 W
  • Warning light output: 230V AC
  • Maximum warning light power: 40 W
  • Additional lighting: 230V AC, max. 100 W | 24V AC/DC, max. 25 W
  • Maximum power of the "gate open" light: 2 W
  • Maximum power of the electric lock: 12V AC
  • Display: LED
  • Operating temperature: -10°C to +55°C
  • Dimensions: 98 x 141 x 40 mm
  • Weight: 0.48 kg
