Roger Technology EDGE1/BOX Control unit for 2 brushless motors 36V DC

568,25 EUR including 23.00% VAT
Product code: #33178
Manufacturer: Roger Technology
  • For BE20/400, BE20/200/HS, SMARTY i BR21 drives
  • Number of motors: 2 motors 36V
  • Full control over the speed of work
  • Emergency power supply (24 V and 36 V)
  • Adjusting the automatic closing time
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SET BR21/362/L Set Roger Technology BR21/351 36V Brushless Motor Drive Roger Technology SET BR21/354/L Set Roger Technology BH23/282 24V Brushless Motor Drive Roger Technology SET BR21/354/HS/L Set Roger Technology BE20/400 36V Brushless Motor Drive Roger Technology SET BR21/354/F Set Roger Technology BE20/200/HS HIGH SPEED 36V Brushless Motor Drive Roger Technology MONOS4/220 Drive with 230V motor Roger Technology MONOS4 24V Brushless Motor Drive

Roger Technology EDGE1/BOX Control unit for 2 brushless 36V DC motors

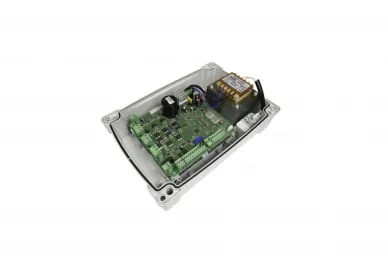

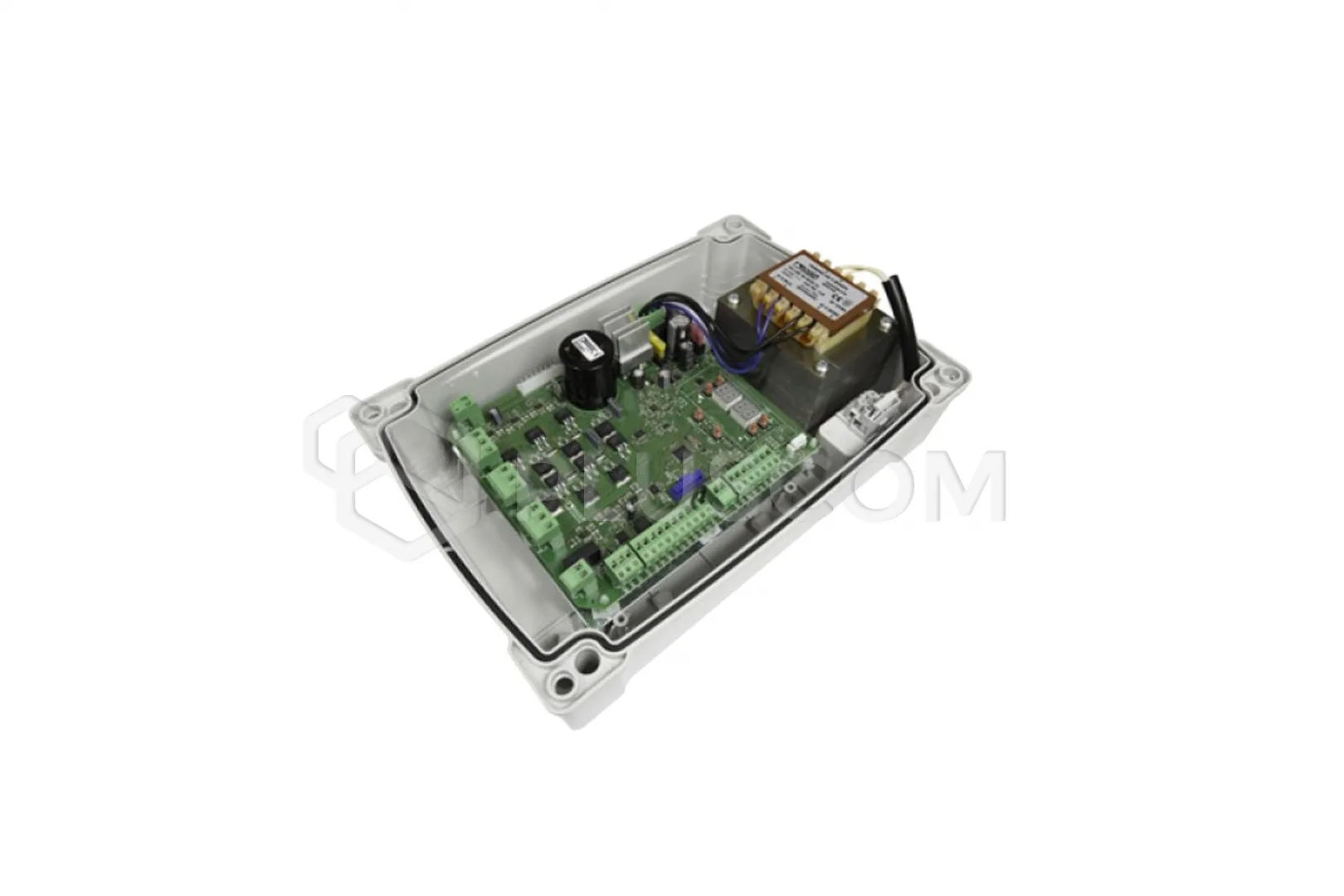

Control unit EDGE1 with housing included, controlling 2 BRUSHLESS 36V DC motors for swing gate operators.
Dedicated to Roger Technology drives from the following series: BE20/400, BE20/200/HS, SMARTY and BR21.

FEATURES AND FUNCTIONS:

  • BRUSHLESS 36V motor control
  • Reliability and ease of installation
  • Full control over operating speed
  • Emergency power supply (24 V and 36 V)
  • Many functions and safeguards
  • Control units with LED displays
  • Automatic movement programming
  • Force adjustment
  • Maximum force at start of maneuver
  • Obstacle detection sensitivity adjustment
  • Acceleration adjustment (SOFT-START)
  • Opening speed adjustment
  • Closing speed adjustment
  • Adjustment slowing down
  • Braking adjustment (SOFT-STOP)
  • Function - Automatic closing
  • Automatic closing time adjustment
  • Function - Timer
  • Programming of safety output
  • Function - Fail Safe test (Photocell test)
  • Function - Close after photocell release
  • Function - NC/8K2 safety edge
  • Function - Emergency stop
  • Function - Partial opening (Wicket gate)
  • Partial opening adjustment
  • Function - Residential complex
  • Function - Dead Man (Totmann)
  • Function - Closing guarantee
  • Function - Lighting additional
  • Function - Gate status indication
  • Thermal protection
  • Battery management
  • Information on system use
  • Protection against parameter modification
  • Restore factory settings

TECHNICAL DATA:

  • Rated supply voltage: 230 V AC ± 10% 50 Hz
  • Max. power consumption: 230 W
  • Max. power consumption during start-up: 600W
  • Fuses used:
    • F1 = 20A (ATO257) accessory power supply circuit protection
    • F2 = 4A (ATO257) motor power supply circuit protection
    • F3 = 3A (ATO257) transformer primary winding protection
    • F4 = T2A (5x20 mm) transformer primary winding protection
  • Number of supported drives: 2
  • Motor power supply: 36V AC (via inverter with automatic protection)
  • Supported motor type: brushless, sinusoidal (ROGER BRUSHLESS)
  • Motor control type: field-oriented (FOC - FIELD ORIENTED CONTROL), sensorless (SENSORLESS)
  • Max. motor rated power: 60W
  • Max. motor power consumption: 250W
  • Max. warning light power: 55W (24V DC)
  • Warning light flashing frequency: 50%
  • Max. additional lighting power: 100W (230V AC) - 40W (24V AC/DC) / (potential-free contact)
  • Max. gate status indicator light power: 3W (24V DC)
  • Max. power consumed by electric lock: 15 W (12V DC) / (average voltage value) /*
  • Max. power consumption of accessories: 20W (24V DC / 750 mA)
  • Operating temperature range: from -20°C to +55°C
  • Dimensions: 330 x 230 x 115 mm
  • Weight: 3.9 kg
Download
User manual 5.56 MB
