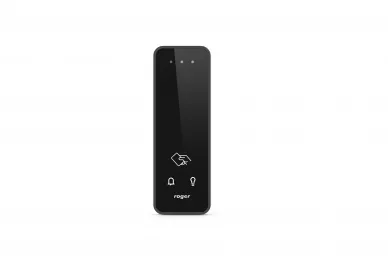

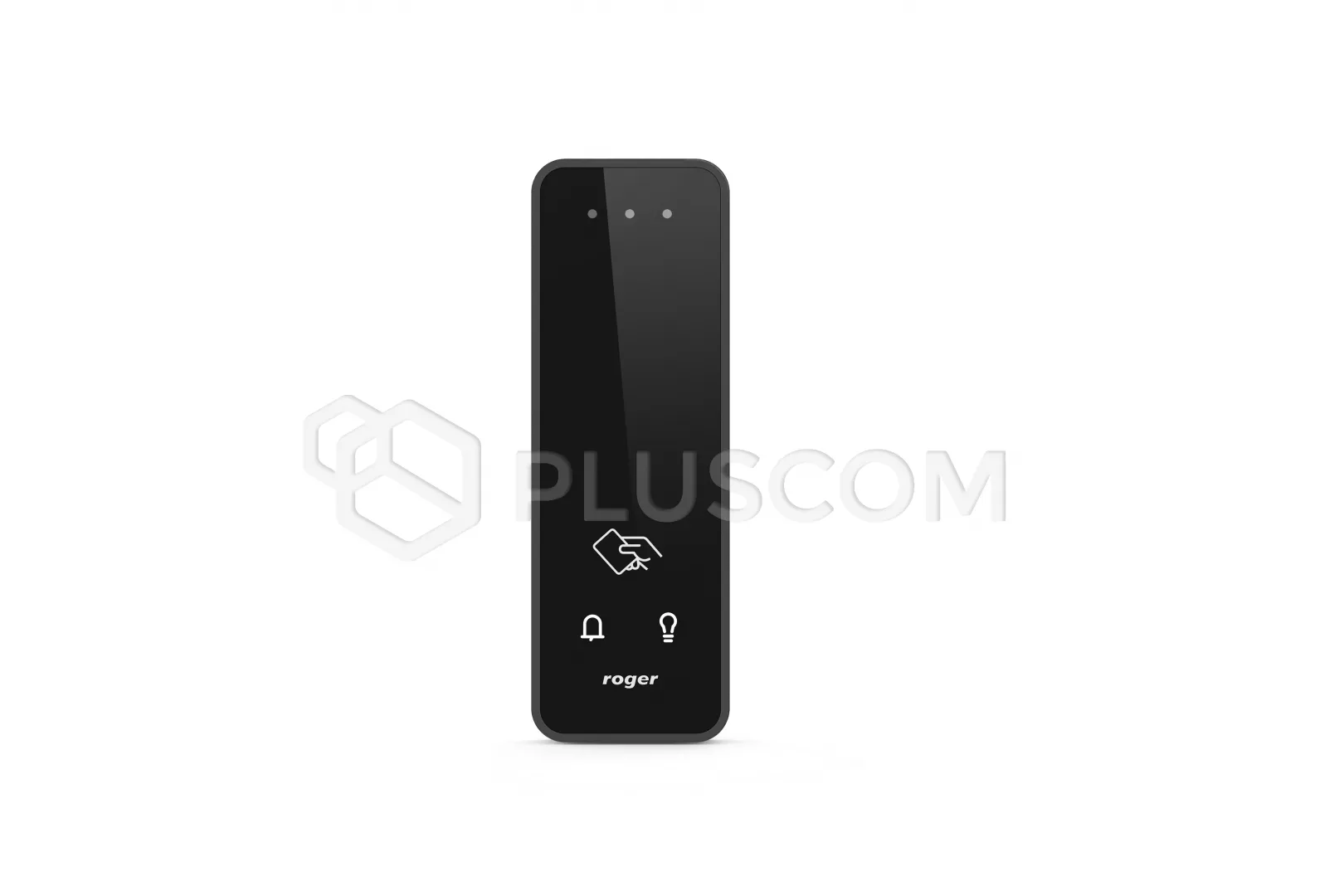

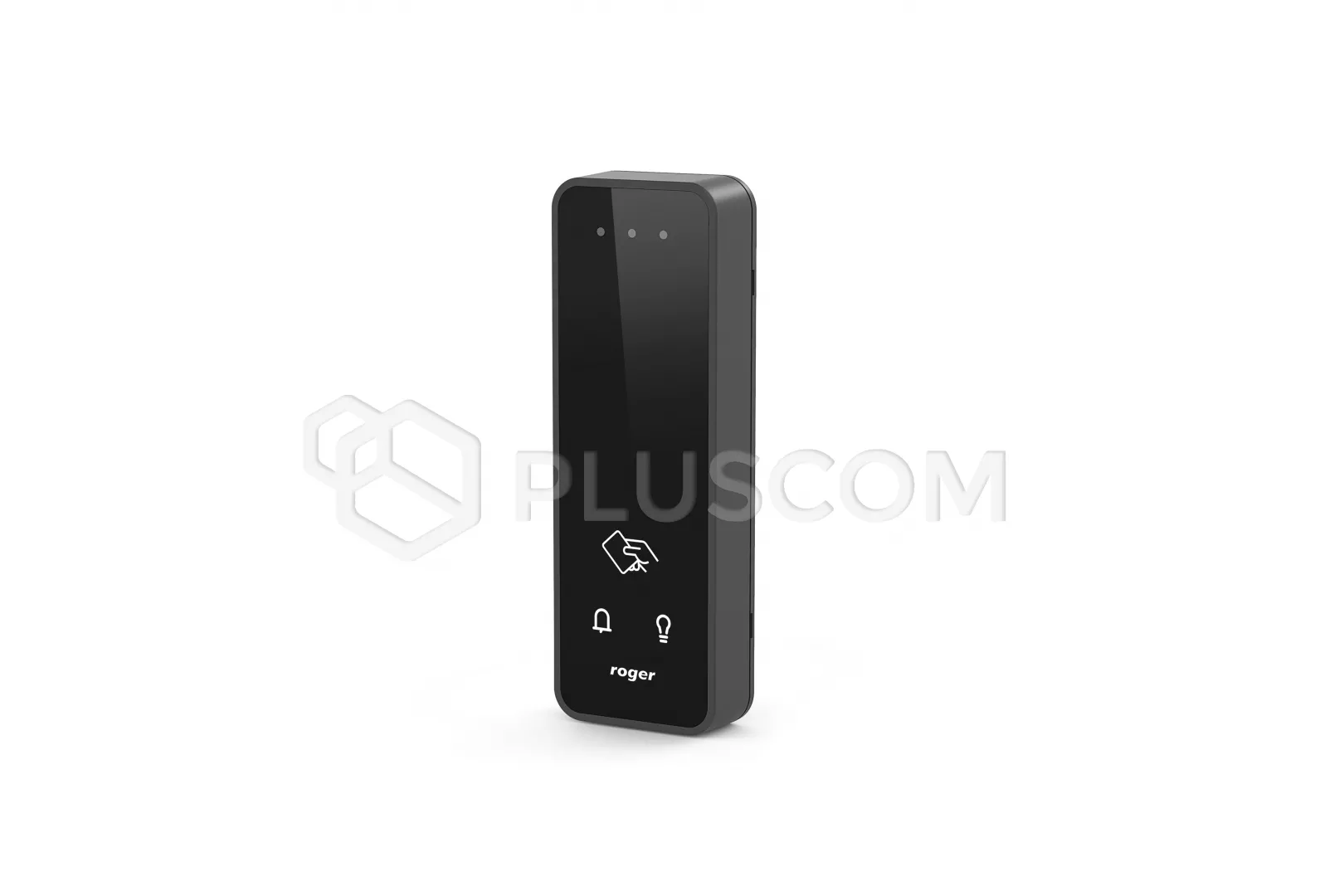

Roger MCT84M-BK Access terminal

Roger MCT84M-BK Proximity Reader MIFARE

MCT84M-BK is designed for access control systems in the RACS 5 system. Reader acts as a proximity terminal by recognizing users behind through 13.56 MHz MIFARE Ultralight / Classic proximity cards. They read both the serial number of the proximity card (CSN) and the programmable number (PCN) stored in encrypted memory sectors on the card. Programmable card number protects it against duplication, which definitely increases security using.

The terminal requires power supply voltage in range of 11-15VDC. It can be supplied from MCX2D/MCX4D expander of MC16-PAC-KIT, from MC16 access controller (e.g. TML output) or from dedicated power supply unit.

The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115.

FEATURES

• RACS 5 system access terminal
• MIFARE Ultralight, Classic card reader
• CSN, MSN, SSN card readout
• support for normal and long card reading method
• RS485 communication interface
• 2 function keys
• Tamper protection

Terminal is equipped with three LED indicators which are used to signal integral functions and they can be additionally programmed with other available functions within high level configuration (VISO).

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• average current consumption: 50mA
• proximity cards: 13,56 MHz MIFARE Ultralight/Classic
• read range: up to 7
• Distance: 1200m maximal cable length for RS485 bus between controller and reader
• environment class: II
• IP41
• working temperature: -10°C ~ +50°C
• dimensions: 130x45x22mm
• weight: approx. 100g
