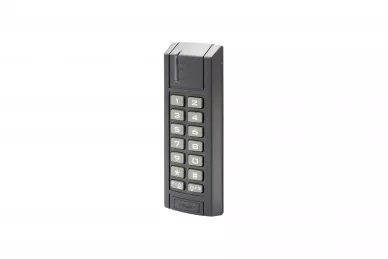

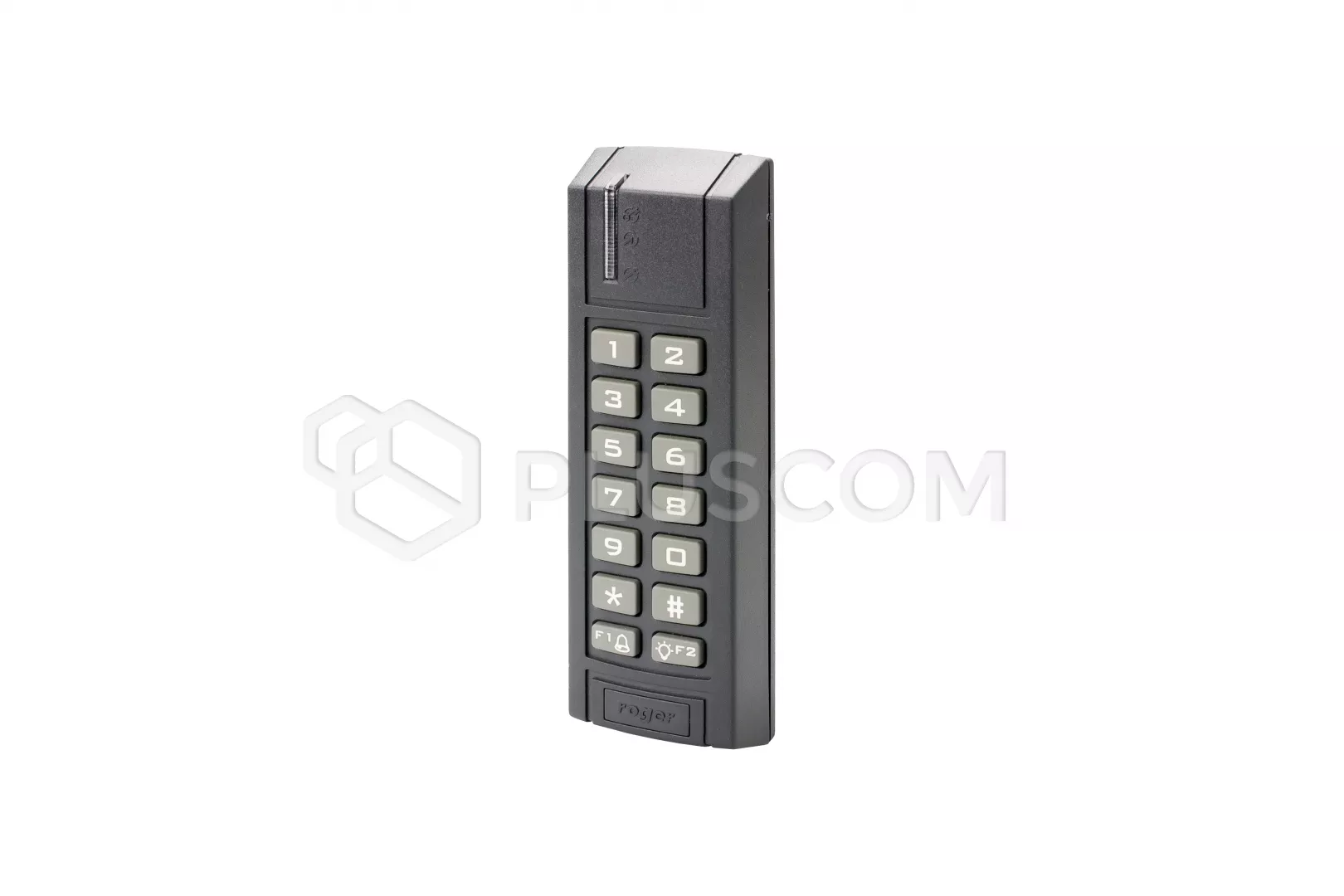

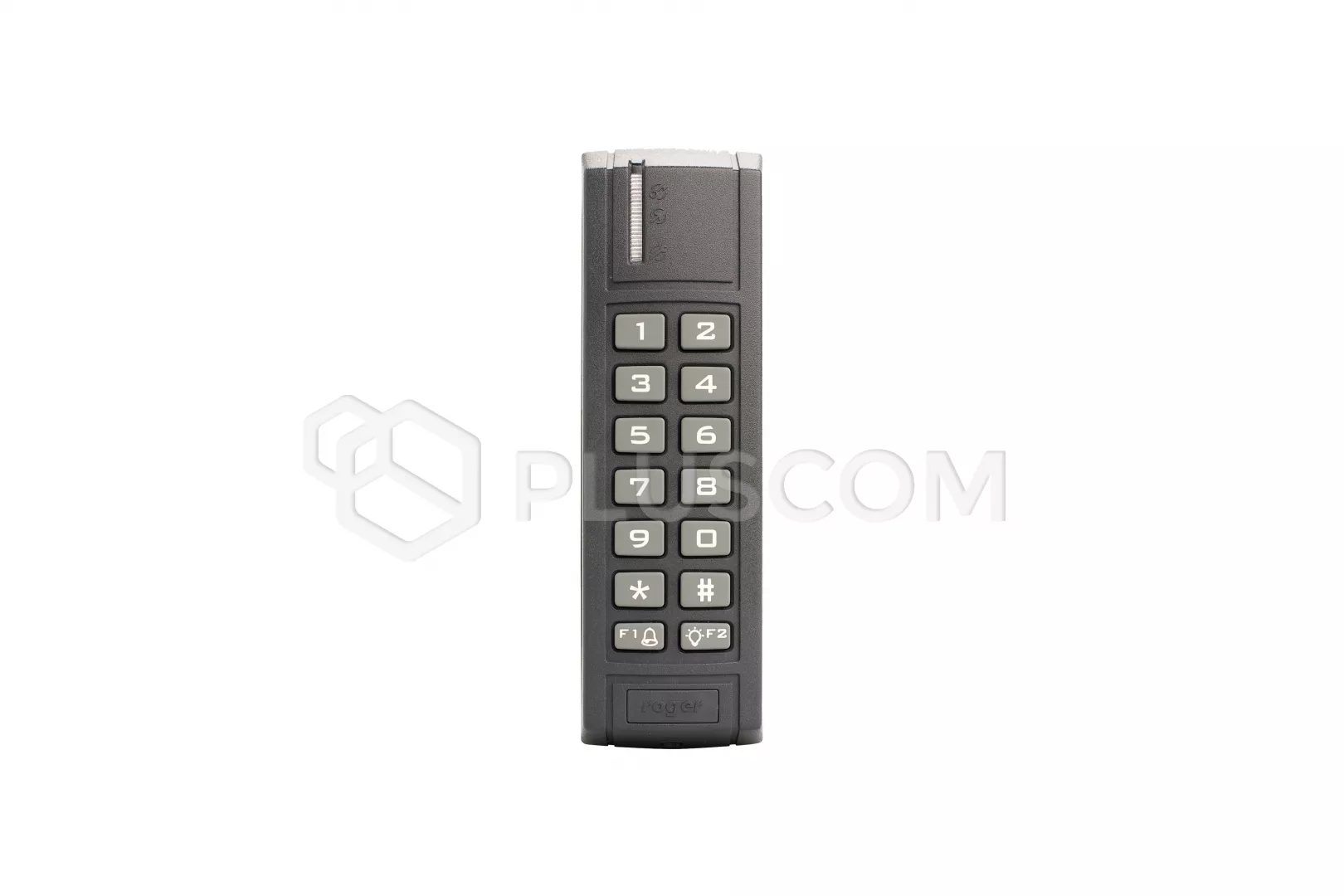

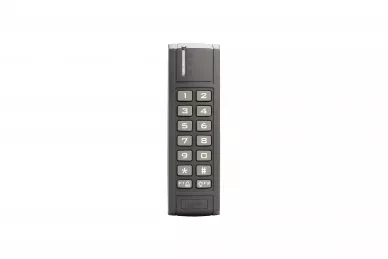

Roger MCT12M-DES-IO Proximity Reader MIFARE

197,28 EUR including 23.00% VAT
Product code: #25466
Manufacturer: Roger
  • DOMINO series product line
  • Silicone keypad with backlight + two function keys
  • Silicone keypad with backlight + two function keys
  • 13,56 MHz MIFARE Ultralight/Classic/ Plus/DESFire reader
  • Reading range: up to 7cm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger AX-1 Metal spacer Roger RUD-1 Portable USB-RS485 communication interface Roger MFKF-3 MIFARE 4K Proximity Key Fob Roger MFKF-2 MIFARE 1K Proximity Key Fob Roger MFKF-1 MIFARE Ultralight Proximity Key Fob Roger MFC-4 MIFARE DESFire EV1 2K ISO Proximity Card Roger MFC-3 MIFARE 4K ISO Proximity Card Roger MFC-2 MIFARE 1K ISO Proximity Card Roger MFC-1 MIFARE Ultralight ISO Proximity Card Roger ME-10 Metal protective enclosure for proximity readers

Roger MCT12M-DES-IO Proximity Reader


The MCT12M-DES-IO is a series of access terminals dedicated to RACS 5 system. Depending on their versions, devices enable identification of users by 13,56 MHz MIFARE Ultralight/Classic/Plus/DESFire proximity cards. MCT12 is connected to access controller through RS485 interface. Terminal can be installed in outdoor locations without any additional protection measures.

MCT12M-DES-IO is equipped with a set of input and output lines, which, in most cases, allows for complete handling of the transition without the need to use inputs and outputs located on the controller access or expansion module. The terminal provides three NO / NC input lines, two transistor outputs and one relay output.

The communication between the terminal and the access controller is provided by the RS485 bus, to which can be connected to a total of 16 devices of the RACS 5 system.
It requires a DC voltage supply in the range of 11-15V, which can be supplied from MCX2D / MCX4D expander of MC16-PAC-KIT set, access controller MC16 (TML power output) or from a separate power supply.


FEATURES
  • terminal for access to the RACS 5 system
  • silicone keyboard with backlight
  • 2 function keys
  • 3 LED indicator lights
  • built-in speaker
  • 3 parametric inputs
  • 2 transistor outputs
  • 1 relay output
  • RS485 interface
  • tamper sensor (Tamper)
  • connection cable
  • outdoor work
  • IP65
Terminal is equipped with three LED indicators which are used to signal integral functions and they can be additionally programmed with other available functions within high level configuration (VISO).
Roger MCT12M-DES-IO Proximity Reader MIFARE

Roger MCT12M-DES-IO Proximity Reader MIFARE


TECHNICAL PARAMETERS
  • supply voltage:
    • nominal 12VDC
    • min./max. range 10-15VDC
  • average current consumption: 85mA
  • proximity cards: 13,56 MHz MIFARE Ultralight/Classic
  • read range:
    • up to 10 cm for MCT66E
    • up to 7 cm for remaining readers
  • Distance: 1200m maximal cable length for RS485 bus between controller and reader
  • environment class: IV
  • IP65
  • working temperature: -25°C ~ +60°C
  • dimensions: 152.5x46x23mm
  • weight: approx. 150g
