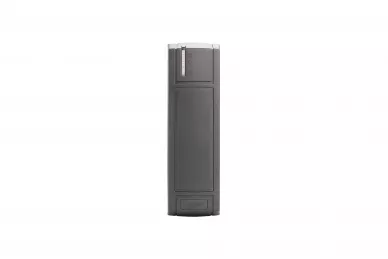

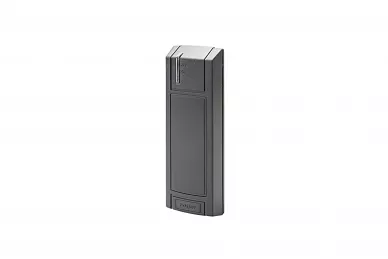

Roger MCT12M-BK-DES-IO Proximity Reader MIFARE

186,32 EUR including 23.00% VAT
Product code: #22401
Manufacturer: Roger
  • DOMINO series product line
  • Work in terminal mode
  • On-board I/Os
  • 13,56 MHz MIFARE Ultralight/Classic/ Plus/DESFire reader
  • Reading range: up to 7cm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger RUD-1 Portable USB-RS485 communication interface Roger MFKF-3 MIFARE 4K Proximity Key Fob Roger MFKF-2 MIFARE 1K Proximity Key Fob Roger MFKF-1 MIFARE Ultralight Proximity Key Fob Roger MFC-4 MIFARE DESFire EV1 2K ISO Proximity Card Roger MFC-3 MIFARE 4K ISO Proximity Card Roger MFC-2 MIFARE 1K ISO Proximity Card Roger MFC-1 MIFARE Ultralight ISO Proximity Card Roger ME-10 Metal protective enclosure for proximity readers Roger AX-1 Metal spacer

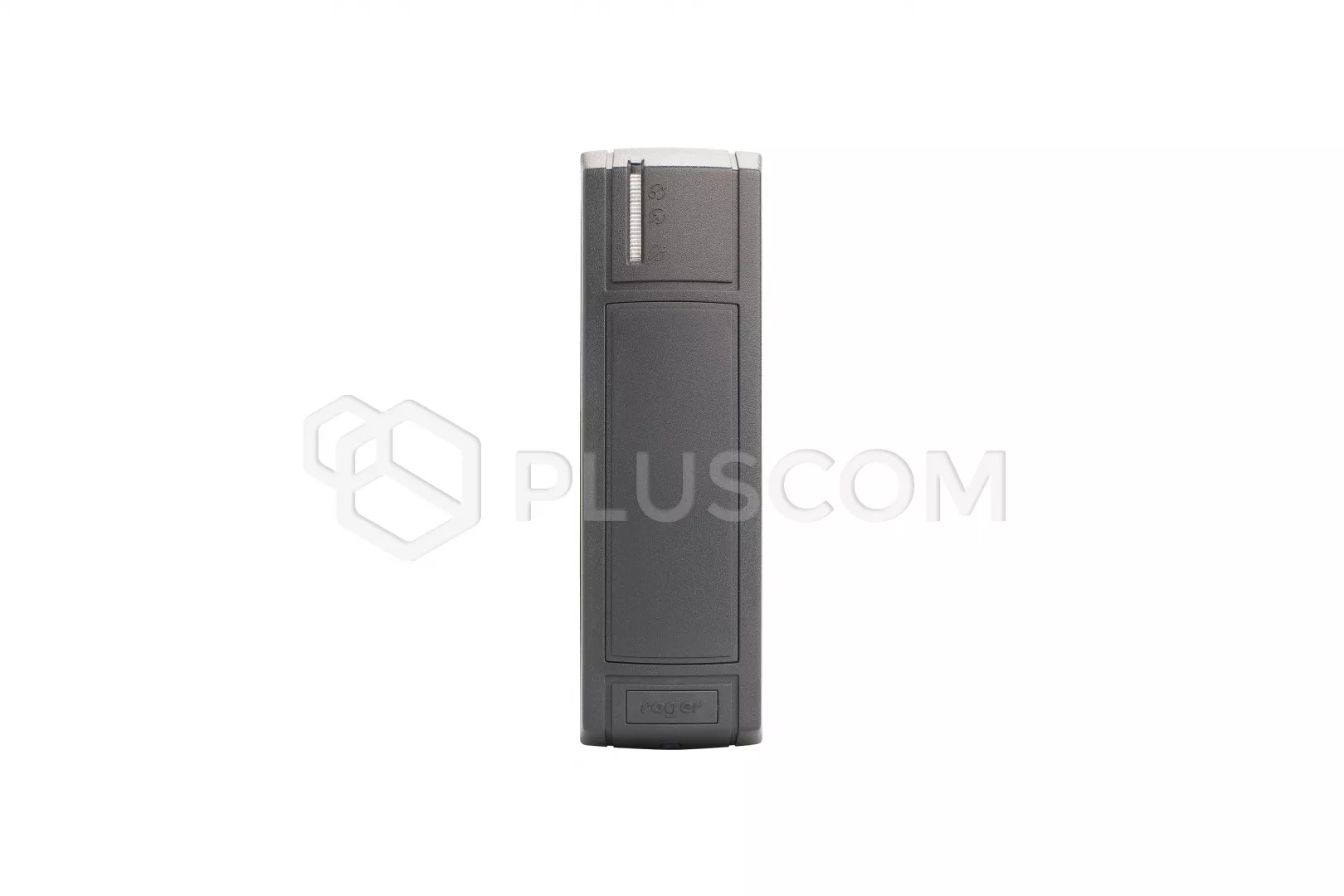

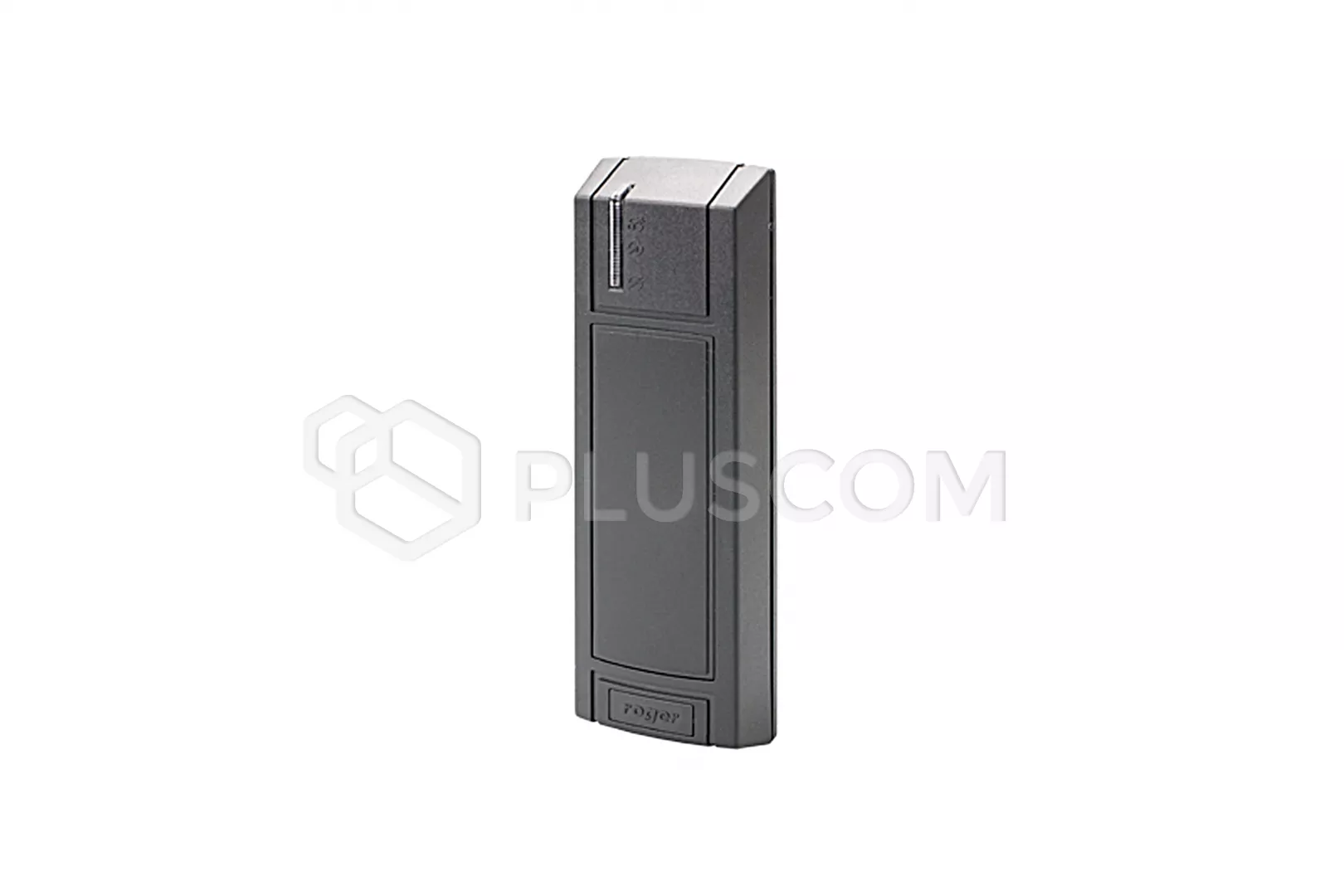

Roger MCT12M-BK-DES-IO Proximity Reader


The MCT12M-BK-DES-IO is a series of access terminals dedicated to RACS 5 system. Depending on their versions, devices enable identification of users by 13,56 MHz MIFARE Ultralight/Classic/Plus/DESFire proximity cards. MCT12 is connected to access controller through RS485 interface. Terminal can be installed in outdoor locations without any additional protection measures.

The terminal requires power supply voltage in range of 11-15VDC. It can be supplied from MCX2D/MCX4D expander of MC16-PAC-KIT, from MC16 access controller (e.g. TML output) or from dedicated power supply unit.

Terminals offer 3 general purpose inputs of NO/NC type. Input types are defined within low level configuration (RogerVDM). Input functions are assigned within high level configuration (VISO). Multiple functions can be assigned to the same input at the same time

The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115.


FEATURES
  • RACS 5 system access terminal
  • 13,56 MHz MIFARE Ultralight/Classic/Plus/DESFire proximity cards
  • 3 LEDs indicators
  • Buzzer
  • 3 NO/NC inputs
  • 2 transistor outputs
  • 1 relay output
  • RS485 interface
  • Tamper protection
  • Outdoor environment
  • Connection cable
Terminal is equipped with three LED indicators which are used to signal integral functions and they can be additionally programmed with other available functions within high level configuration (VISO).
Roger MCT12M-BK-DES-IO Proximity Reader MIFARE

Roger MCT12M-BK-DES-IO Proximity Reader MIFARE


TECHNICAL PARAMETERS
  • supply voltage:
    • nominal 12VDC
    • min./max. range 10-15VDC
  • average current consumption: 65mA
  • proximity cards: 13,56 MHz MIFARE Ultralight/Classic
  • read range:
    • up to 10 cm for MCT66E
    • up to 7 cm for remaining readers
  • Distance: 1200m maximal cable length for RS485 bus between controller and reader
  • environment class: IV
  • IP65
  • working temperature: -25°C ~ +60°C
  • dimensions: 152.5x46x23mm
  • weight: approx. 150g
