Roger PS2D Power supply 13,8 VDC/3,6 A

46,32 EUR including 22.00% VAT
Product code: #33009
Manufacturer: Roger
  • Supply 230 VAC
  • Output current: 10.8A
  • Overload protection
  • Overvoltage protection
  • Dimensions: 99x 82 x 30 mm
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MCX4D Door Expander Roger MCX2D Door Expander Roger ME-43 Metal enclosure Roger PSD4D Supply and bus distributor module Roger ME-17 Metal enclosure

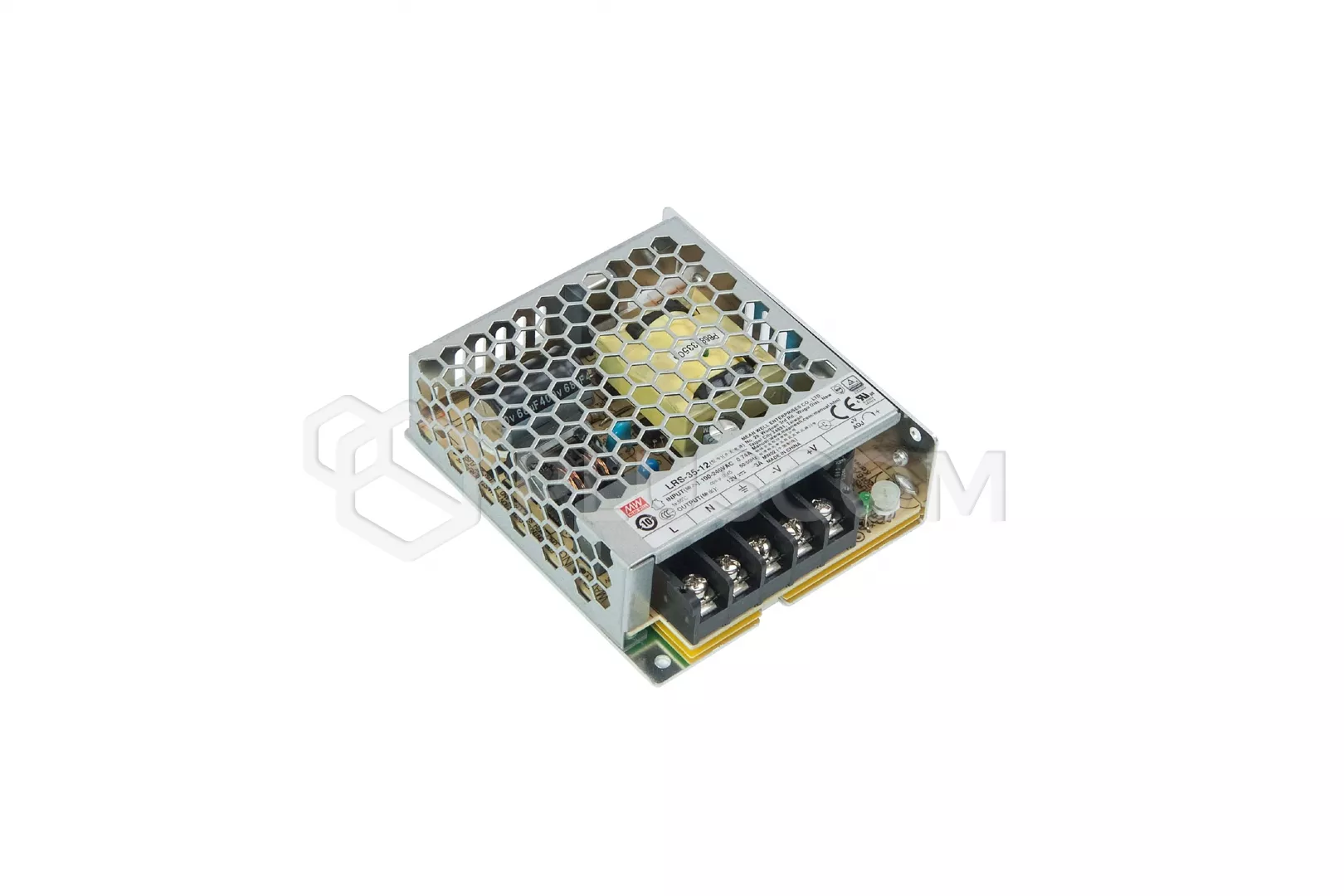

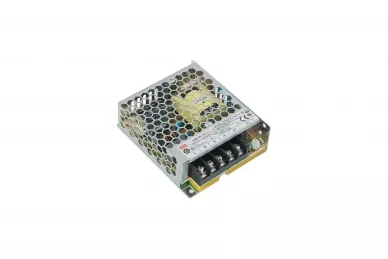

Roger PS2D Power Supply 13.8 VDC/3,6 A

The PS2D Power Supply is brand new LRS-50-12 power supply from Mean Well, in which, using the available for user of the control potentiometer, the rated voltage was increased output from 12 VDC to 13.8 VDC.

The PS2D power supply is intended for use in an access control system RACS 5 building automation. In particular, it can be used for power supply for MCX2D, MCX4D expanders and PSD4D power distributors. Possible It is also okay to use the power supply for other purposes as long as they do not infringe nominal conditions of its use.

The power supply is designed to be built into a housing and can be installed only by a qualified installer with the appropriate country's permission to connect or interfere with network installations 230 VAC and low voltage installations. ME-15, ME-16, ME-17 and ME-40 metal housings (Roger) are factory prepared for installation of the PS2D power supply.

TECHNICAL DATA:
  • Nominal output voltage: 13.8VDC
  • Nominal output current: 5.4A
  • Nominal power: 50W
  • Efficiency: 86%
  • Nominal supply voltage: 230VAC/50Hz
  • Nominal supply current at 230VAC: 1A
  • Overload protection
  • Surge protection
  • Internal dimensions: 99x 82 x 30 mm
  • Weight: 0.23kg
Download
Datasheet 0.28 MB
CE Declaration 0.11 MB
User manual 0.41 MB
