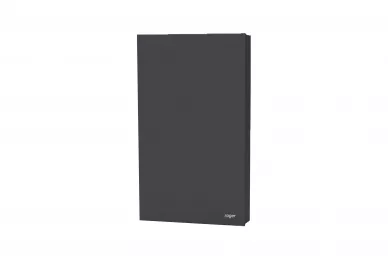

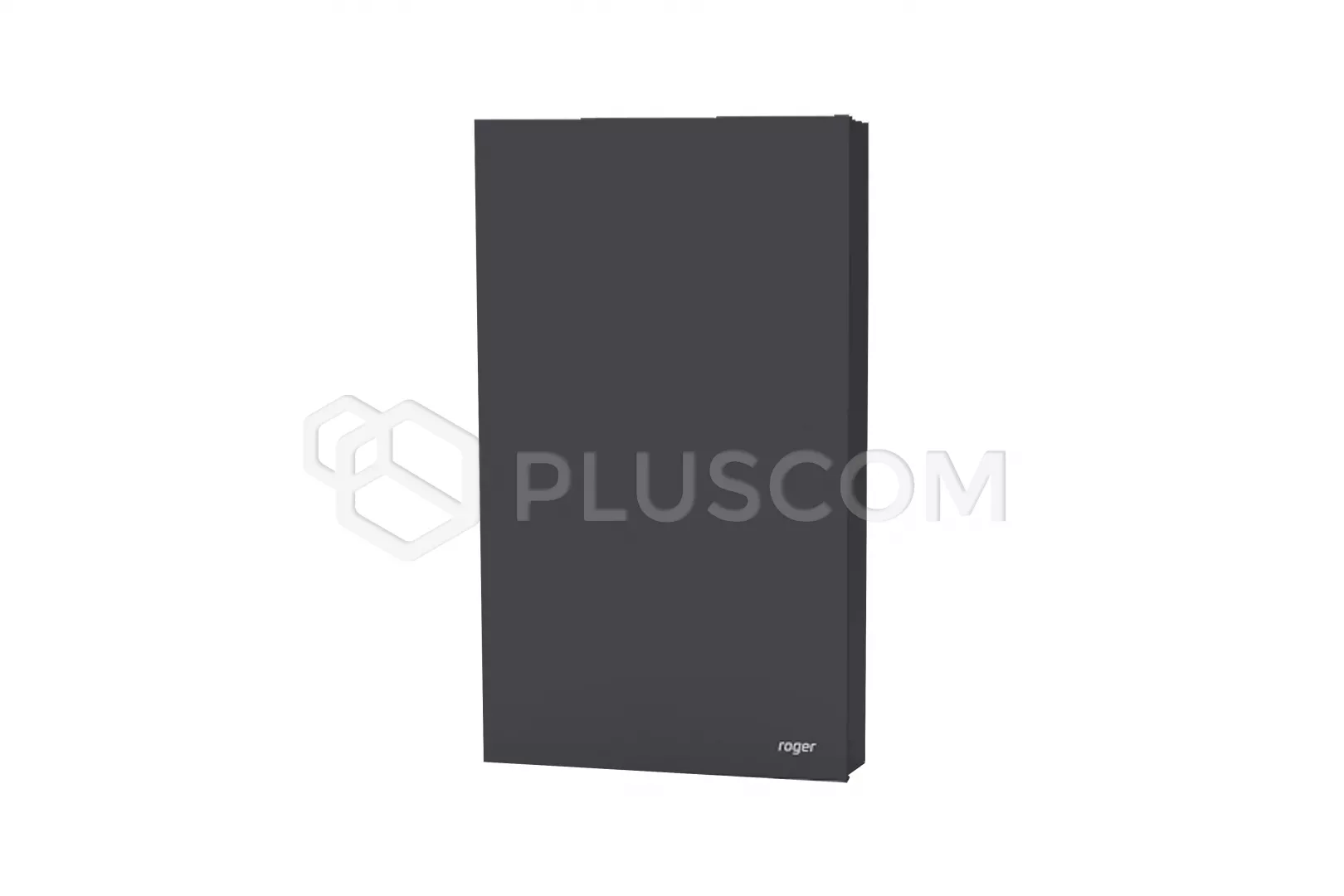

Roger ME-44-S Metal enclosure

451,48 EUR including 23.00% VAT
Product code: #32997
Manufacturer: Roger
  • For RACS 5 modules and devices
  • Place on the battery 12V/17Ah
  • 3 x DIN rail 396 mm
  • Power distribution module
  • Dimensions: 398 × 682× 100 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MCX4D Door Expander Roger MC16-HRC-4 Hotel Room Access Controller Roger MC16-PAC-EX-3 Physical Access Controller Roger MCX402-BRD Door Expander Roger MC16-HRC-1 Hotel Room Access Controller Roger MC16-PAC-EX-2 Physical Access Controller Roger MCX2D Door Expander Roger MCX16-UZ-8 Expander to Integrate Clex System Locks Roger MC16-EVC-8 Conventional Elevator Access Controller Roger MC16-PAC-EX-1 Physical Access Controller

Roger ME-44-S Metal housing for RACS system modules and devices 5

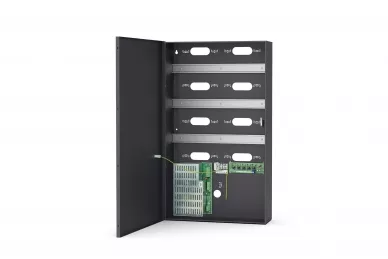

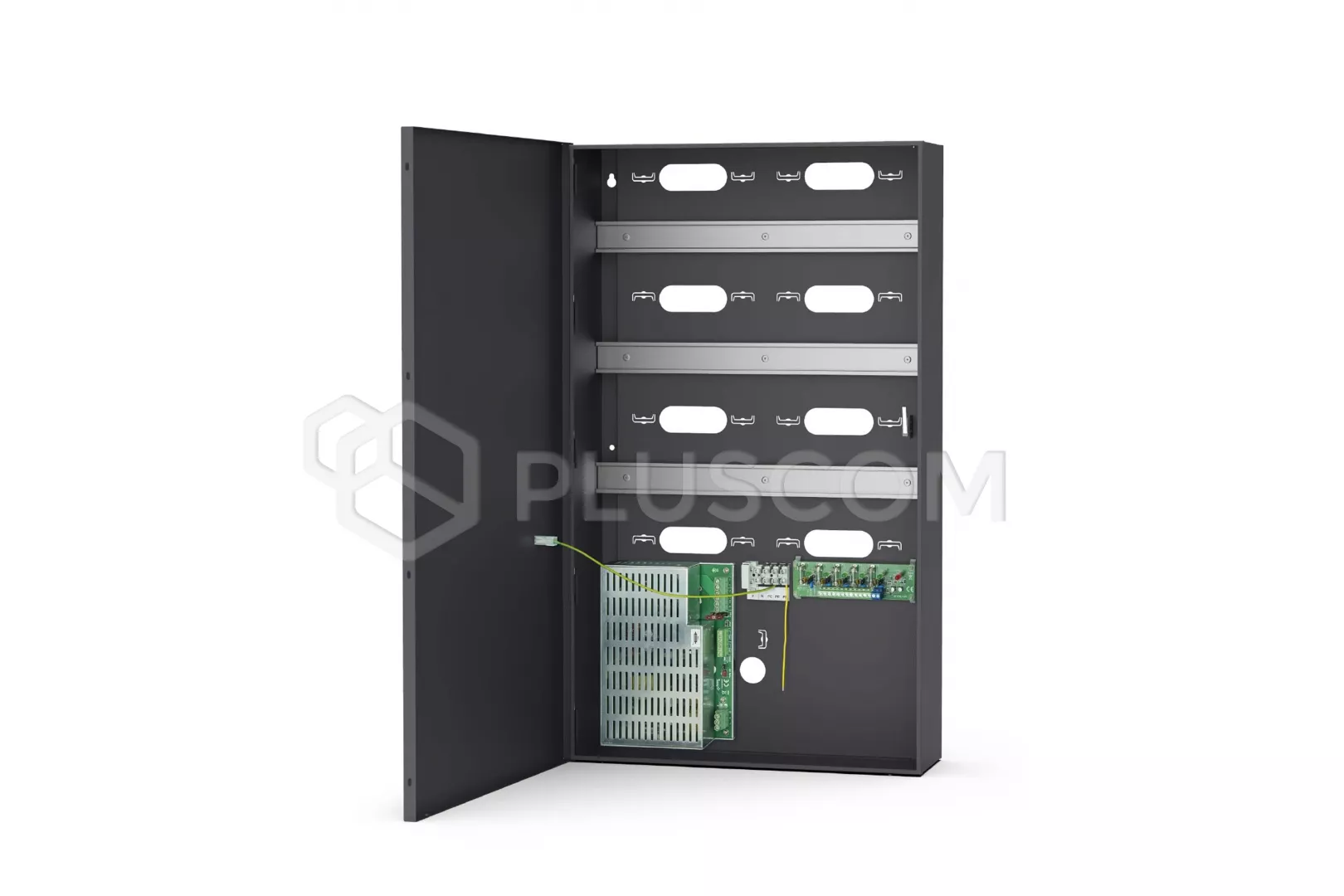

The ME-44-S enclosure is dedicated to RACS 5 modules and devices which require installation on DIN rail along with a 17Ah battery. The enclosure is equipped with 3 DIN rails, buffered power supply 13.8V/10A, tamper contact and main fuse switch. Access to the internal space of the enclosure is protected by a door fixed by screws. Optionally, the door can be equipped with a key lock. The ME-44-S is made of a metal sheet painted with an anthracite grey powder coating.

TECHNICAL DATES:
  • Nominal output voltage: 13.8VDC
  • Nominal output current: 10A
  • Nominal power: 140W
  • Buffer power supply 13.8 VDC/10A
  • Power distribution module
  • Protection: 5A/250VAC fuse switch
  • Anti-sabotage protection (Tamper): NO/NC switch; 50mA/50VDC
  • DIN rail: 3 × 396 mm
  • Material: sheet metal DC01; 0.8mm; anti-corrosion protection
  • Color: anthracite gray RAL 7016 Matt
  • Space for battery: 17Ah battery
  • Ingress protection rating: IP20
  • Internal dimensions: 398 × 682 × 100 mm
  • External dimensions: 405 x 695 x 121 mm
  • Weight: 6,5 kg
Download
Datasheet 0.22 MB
CE Declaration 0.1 MB
User manual 1.74 MB
