Roger ME-43-S Metal enclosure

258,44 EUR including 23.00% VAT
Product code: #32996
Manufacturer: Roger
  • For RACS 5 modules and devices
  • Place on the battery 12V/17Ah
  • Buffered power supply 13.8 V/4 A
  • Power distribution module
  • 2 x DIN rail 396 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MCX2D Door Expander Roger MC16-EVC-8 Conventional Elevator Access Controller Roger MCX16-UZ-8 Expander to Integrate Clex System Locks Roger MC16-PAC-EX-1 Physical Access Controller Roger MCX2-BRD I/O Expander Roger MC16-EVC-32 Conventional Elevator Access Controller Roger MCX16-UZ-4 Expander to Integrate Clex System Locks Roger MC16-AZC-4 Advanced parking controller Roger MCX16-AP-8 I/O Expander with APERIO interface Roger MC16-EVC-16 Conventional Elevator Access Controller

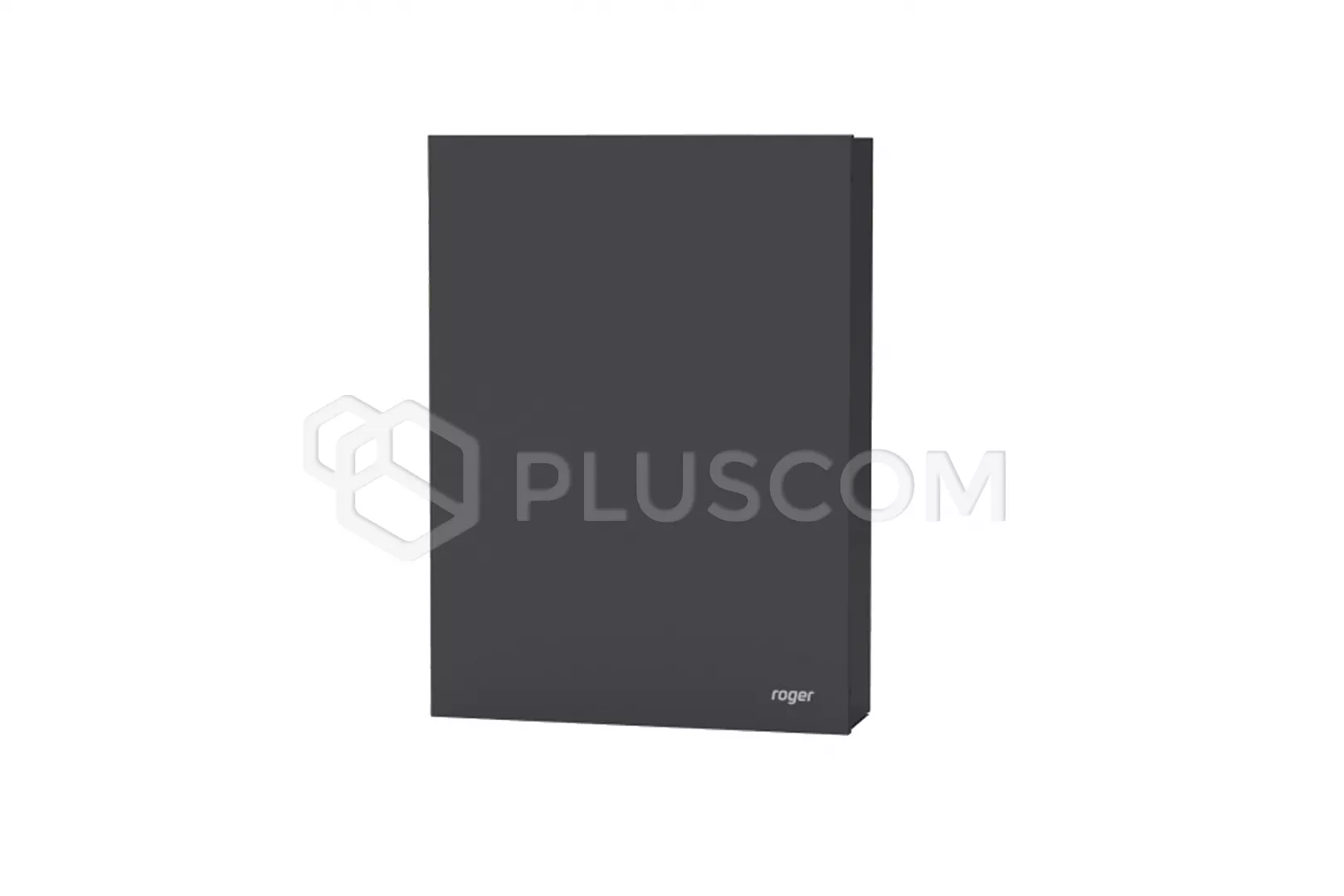

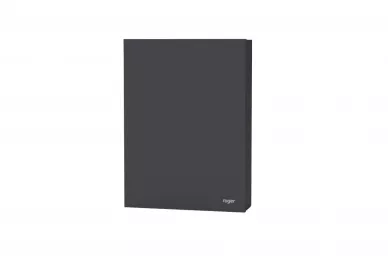

Roger ME-43-S Metal housing for RACS system modules and devices 5

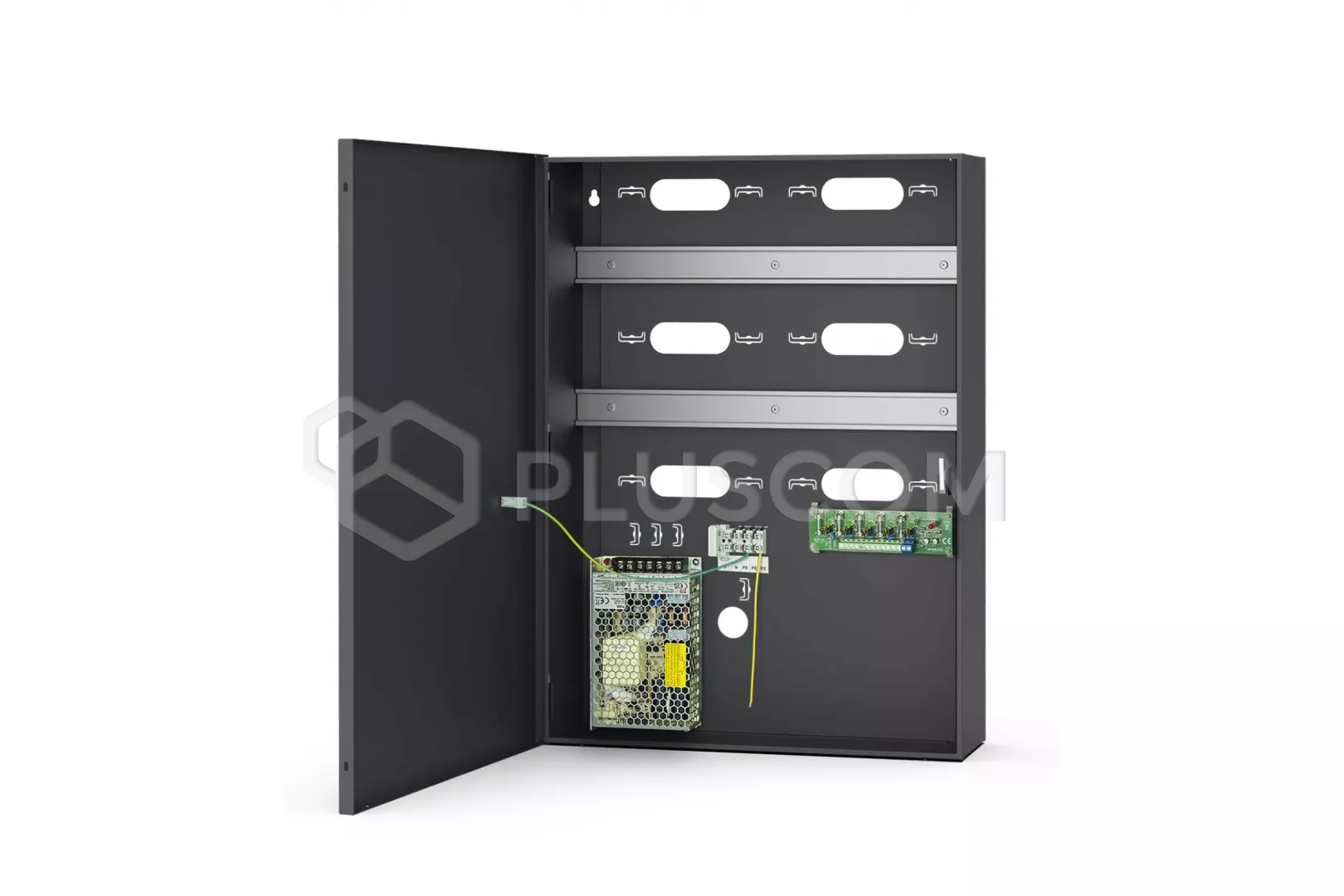

The ME-43-S housing is intended for the installation of electronic modules and system devices RACS 5 dedicated to mounting on a DIN rail and requiring a 17Ah battery. Case is equipped with two DIN rails, a 13.8V/4A buffer power supply, an anti-sabotage switch and fuse power switch. Access to the inside of the housing is protected by a door fastened with screws. Optionally, a key lock can be installed in the door. Case is made of steel sheet, powder-coated anthracite.

TECHNICAL DATES:
  • Nominal output voltage: 13.8VDC
  • Nominal output current: 4A
  • Nominal power: 55W
  • Buffer power supply 13.8 VDC/4A
  • Power distribution module
  • Protection: 5A/250VAC fuse switch
  • Anti-sabotage protection (Tamper): NO/NC switch; 50mA/50VDC
  • DIN rail: 2 × 396 mm
  • Material: sheet metal DC01; 0.8mm; anti-corrosion protection
  • Color: anthracite gray RAL 7016 Matt
  • Space for battery: 17Ah battery
  • Ingress protection rating: IP20
  • Internal dimensions: 398 × 545 × 100 mm
  • External dimensions: 405 x 552 x 121 mm
  • Weight: 5.3 kg
Download
Datasheet 0.16 MB
CE Declaration 0.1 MB
User Manual 1.75 MB
