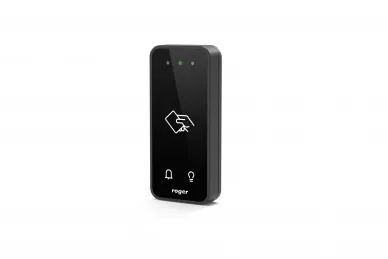

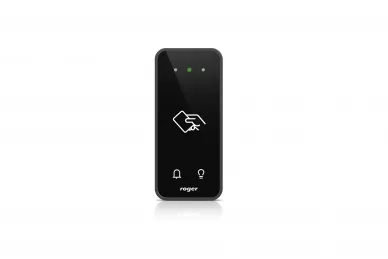

Roge MCT80M-BLE Bluetooth Access Terminal

241,13 EUR including 23.00% VAT
Product code: #22402
Manufacturer: Roger
  • 13.56 MHz MIFARE Ultralight/Classic/DESFire/PLUS cards reader
  • Mobile identification using smartphone with NFC or Bluetooth
  • Two function keys
  • Reading range up to 10m for BLE
  • QUADRUS series product line
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MFC-2 MIFARE 1K ISO Proximity Card Roger MFC-1 MIFARE Ultralight ISO Proximity Card Roger RUD-1 Portable USB-RS485 communication interface Roger MFC-4 MIFARE DESFire EV1 2K ISO Proximity Card Roger MFC-3 MIFARE 4K ISO Proximity Card

Roge MCT80M-BLE Bluetooth Access Terminal


The MCT80M-BLE is an access terminal dedicated to RACS 5 system. The device enables identification of users by 13.56 MHz MIFARE Ultralight/Classic/DESFire/PLUS proximity cards and by mobile devices equipped with NFC (Near Field Communication) or BLE (Bluetooth Low Energy) technology. MCT80M-BLE is connected to access controller through RS485 interface. Terminal can be installed in outdoor locations without any additional protection measures. Due to its relatively small size, the device can be also used as a locker/cabinet reader.
The terminal is equipped with two touch function keys. Various functions can be assigned to these keys within high level configuration (VISO).

The terminal requires power supply voltage in range of 11-15VDC. It can be supplied from MCX2D/MCX4D expander of MC16-PAC-KIT, from MC16 access controller (e.g. TML output) or from dedicated power supply unit.

The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115. The bus topology can be freely arranged as star, tree or any combination of them except for loop


Characteristics:
  • RACS 5 system access terminal
  • 13.56 MHz MIFARE Ultralight/Classic/DESFire/Plus proximity cards
  • NFC and BLE mobile device identification
  • 3 LED indicators
  • Buzzer
  • 2 function keys
  • RS485 interface
  • Tamper protection
  • Outdoor environment
  • Connection cable

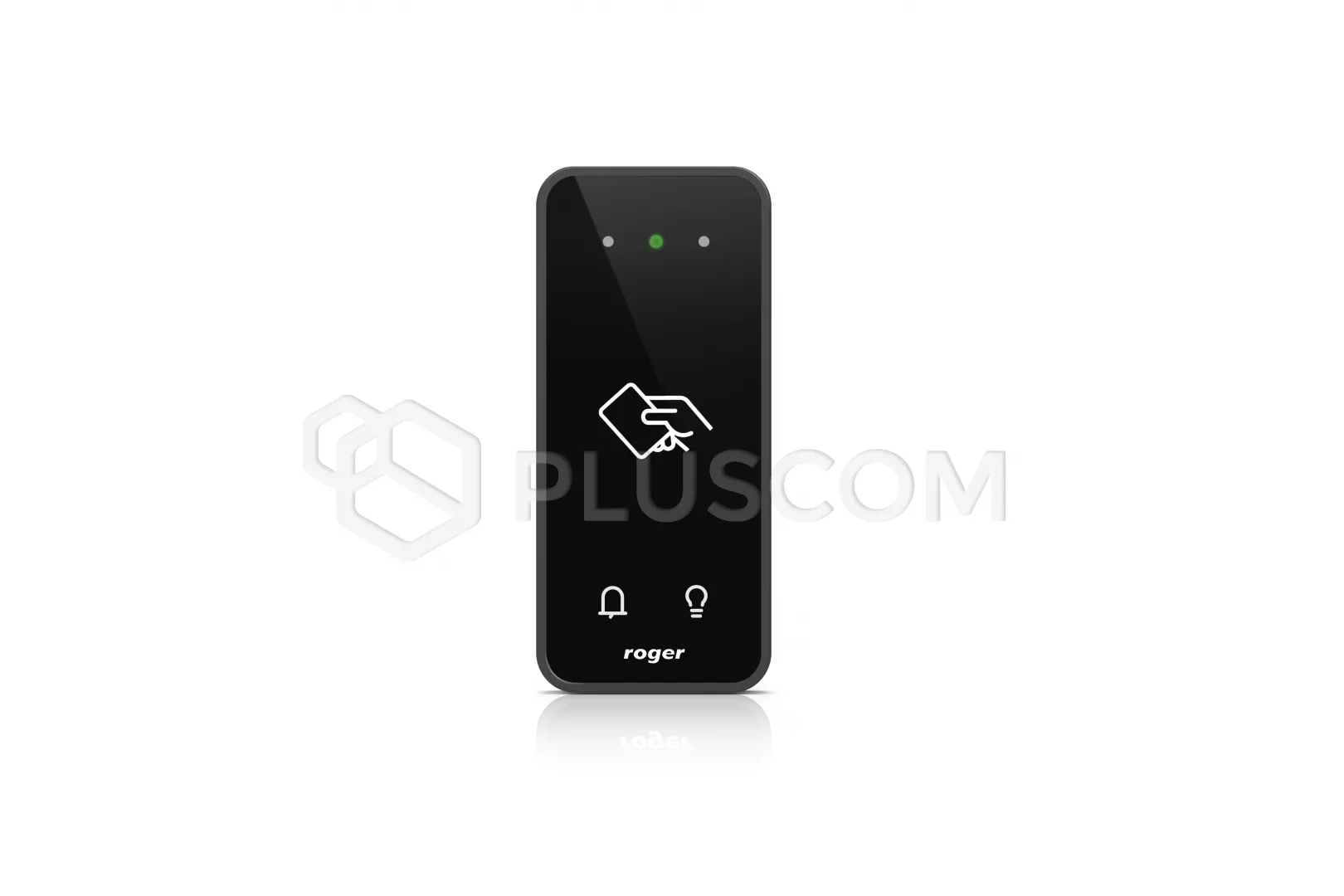

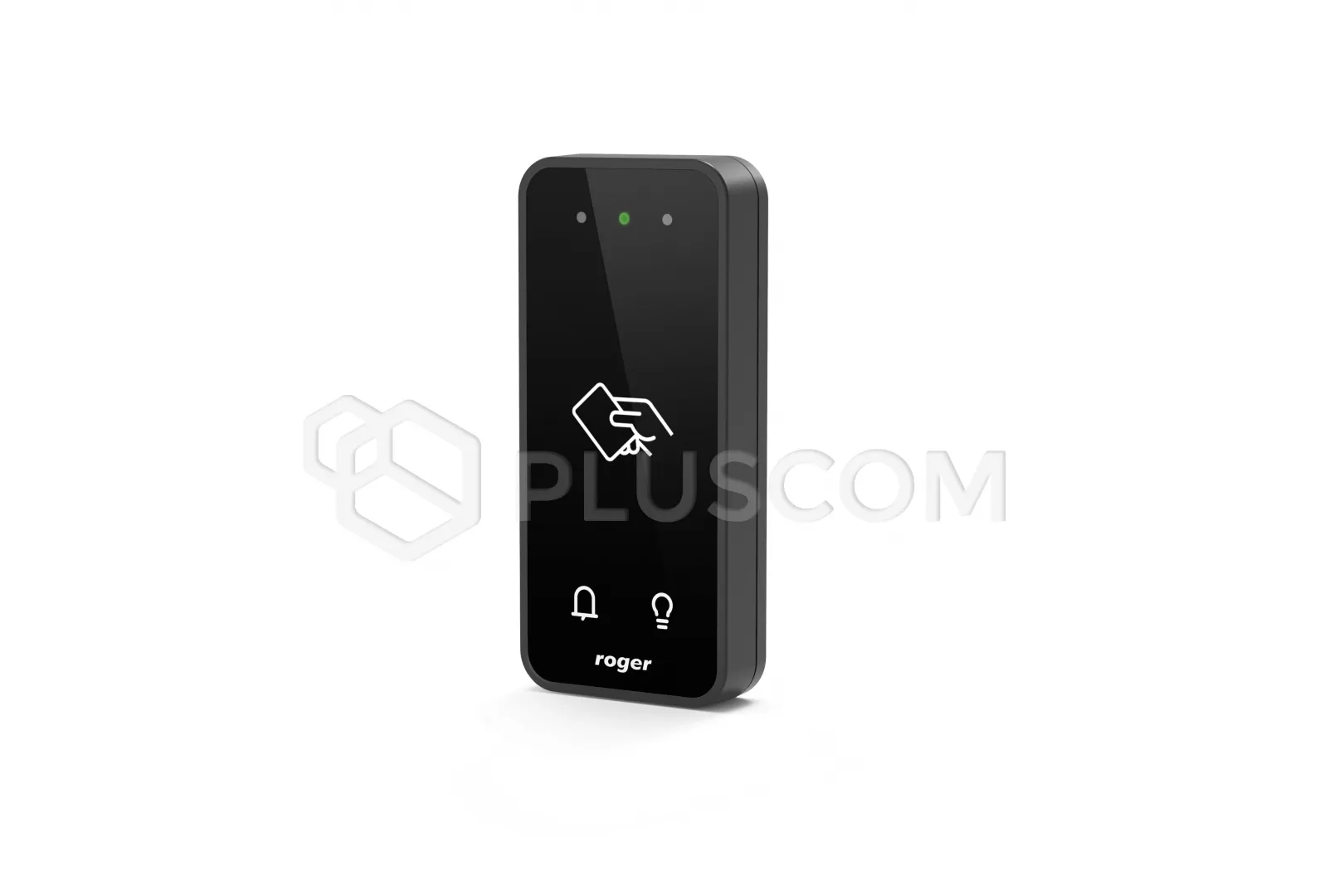

Roge MCT80M-BLE Access Terminal

Roge MCT80M-BLE Access Terminal


TECHNICAL PARAMETERS
  • supply voltage:
    • nominal 12VDC
    • min./max. range 10-15VDC
  • average current consumption: 70mA
  • identification methods:
    • 13.56MHz MIFARE Ultralight, Classic, Plus and Desfire proximity cards
    • mobile devices (Android, iOS) with NFC
    • mobile devices (Android, iOS) with Bluetooth Low Energy v4.1
  • reading range:
    • up to 7 cm for MIFARE cards and NFC
    • up to 10 m for BLE – depends on ambient conditions and particular mobile device
  • distance: 1200m maximal cable length for RS485 bus between controller and terminal
  • environment class: IV
  • IP65
  • working temperature: -25°C ~ +60°C
  • dimensions: 100x45x16mm
  • weight: 100g
