Roger ME-40 Metal enclosure

111,46 EUR including 19.00% VAT
Product code: #32993
Manufacturer: Roger
  • For RACS 5 modules and devices
  • Place on the battery 12V/17Ah
  • DIN rail 396 mm
  • Dimensions: 398 × 358 × 100 mm
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MCX4D Door Expander Roger MC16-BAC-8 Building Automation Controller Roger MC16-PAC-EX-4 Physical Access Controller Roger MCX2D Door Expander Roger MC16-BAC-64 Building Automation Controller Roger MC16-PAC-EX-3 Physical Access Controller Roger MC16-LRC-64 Locker Access Controller Roger MC16-BAC-32 Building Automation Controller Roger MC16-PAC-EX-2 Physical Access Controller Roger MC16-LRC-32 Locker Access Controller

Roger ME-40 Metal housing for RACS 5 system modules and devices

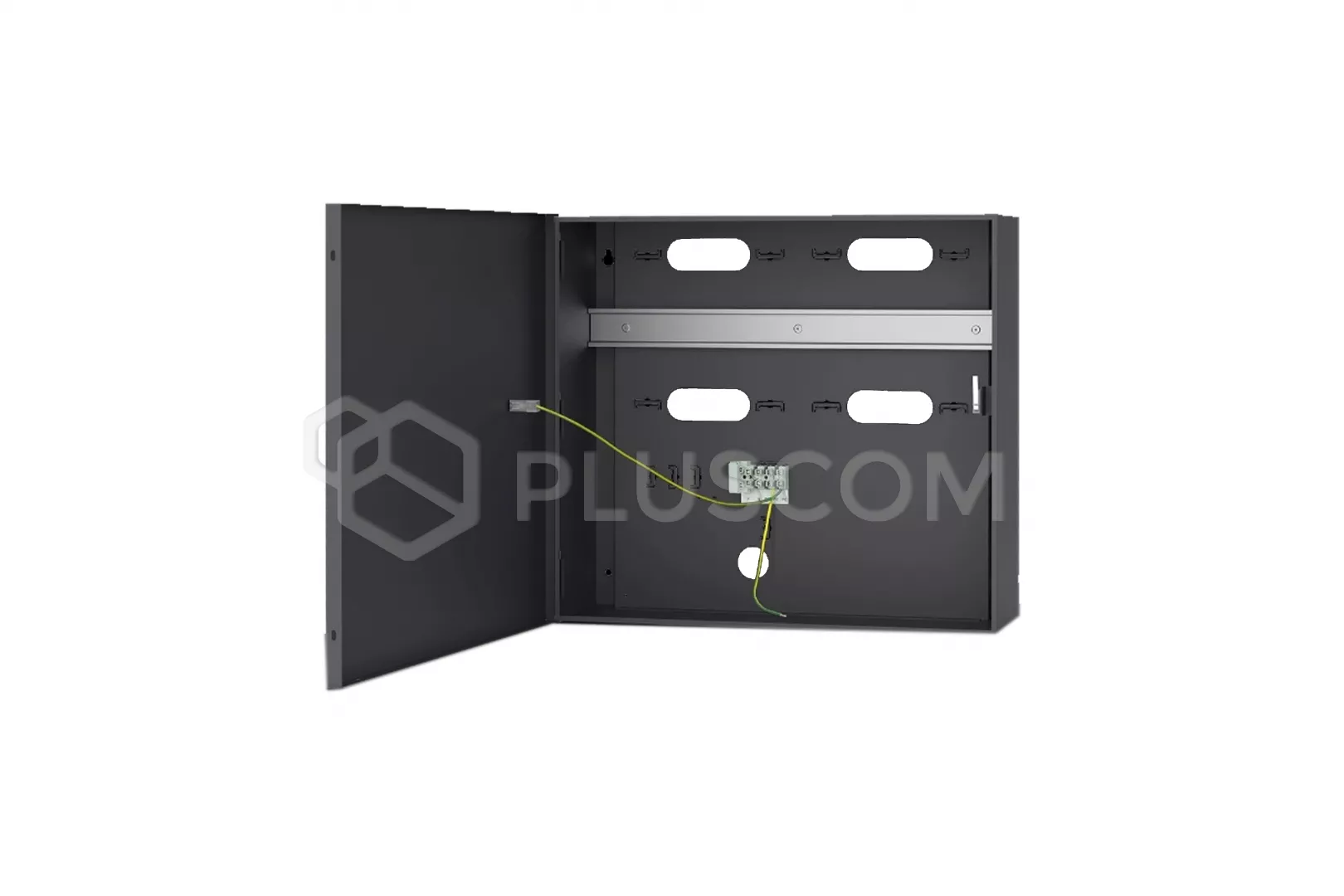

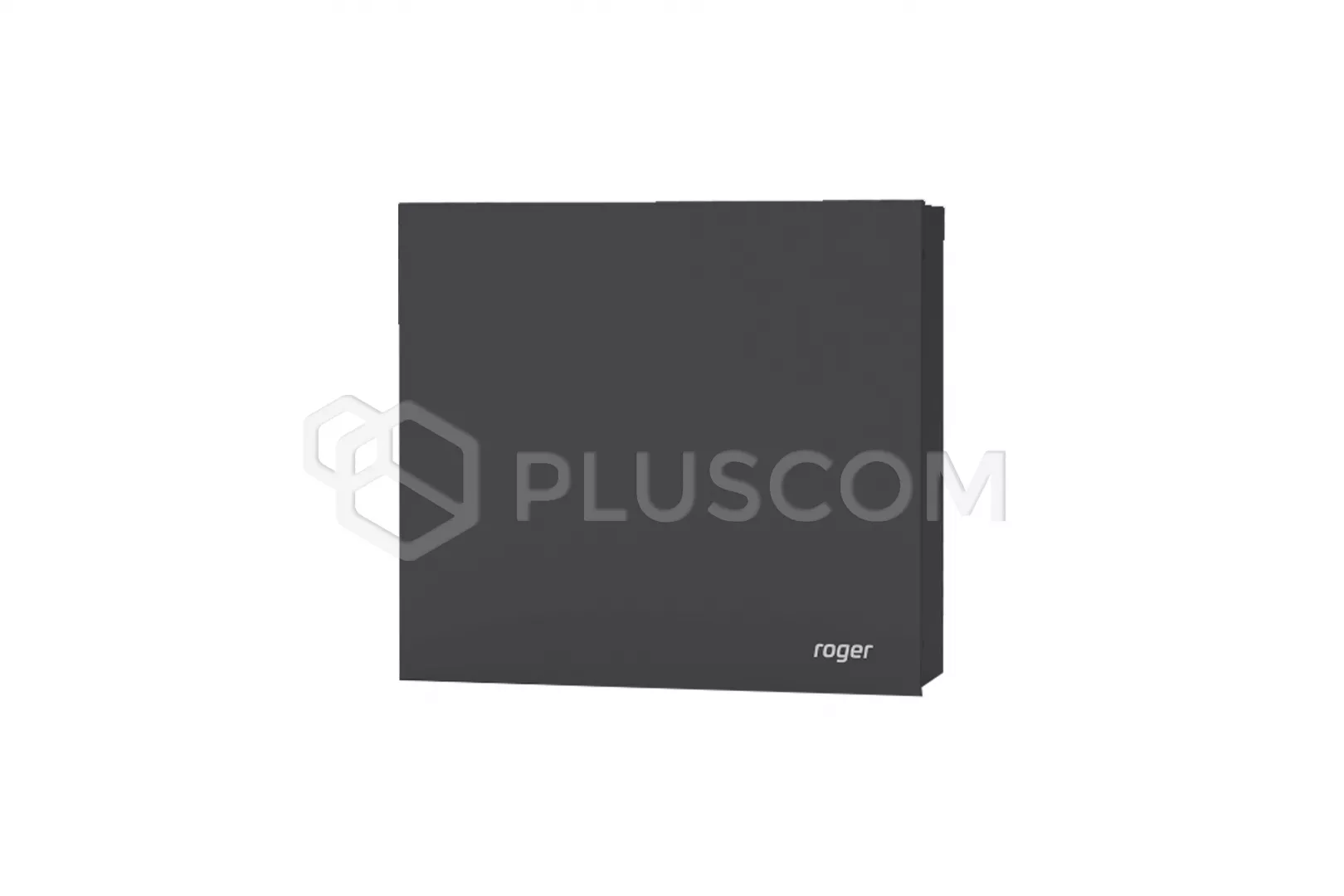

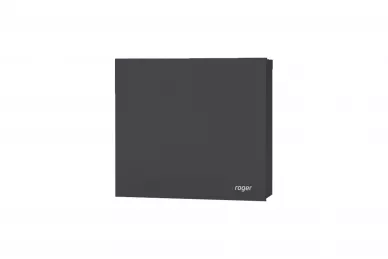

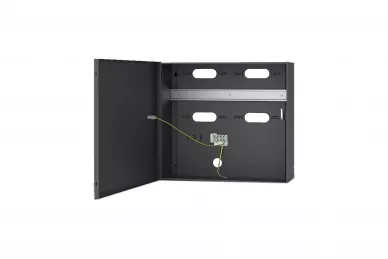

The ME-40 housing is used to install electronic modules and RACS 5 system devices mounted on a DIN rail and requiring a 17Ah battery. It is made of sheet metal steel, powder-coated anthracite and equipped with one DIN rail and connector anti-sabotage and fuse power switch. Doors fastened with screws protect against access to the inside of the housing. Optionally, in the door you can install a key lock.

TECHNICAL DATES:
  • Protection: 5A/250VAC fuse switch
  • Anti-sabotage protection (Tamper): NO/NC switch; 50mA/50VDC
  • DIN rail: 1 × 396 mm
  • Material: DC01 sheet metal; 0.8mm; corrosion protection
  • Color: anthracite gray RAL 7016 Matt
  • Battery space: 17Ah battery
  • Ingress protection rating: IP20
  • Internal dimensions: 398 × 358 × 100 mm
  • External dimensions: 405 x 365 x 121 mm
  • Weight: 3.4 kg
Download
Datasheet 0.17 MB
CE Declaration 0.1 MB
User manual 1.5 MB
