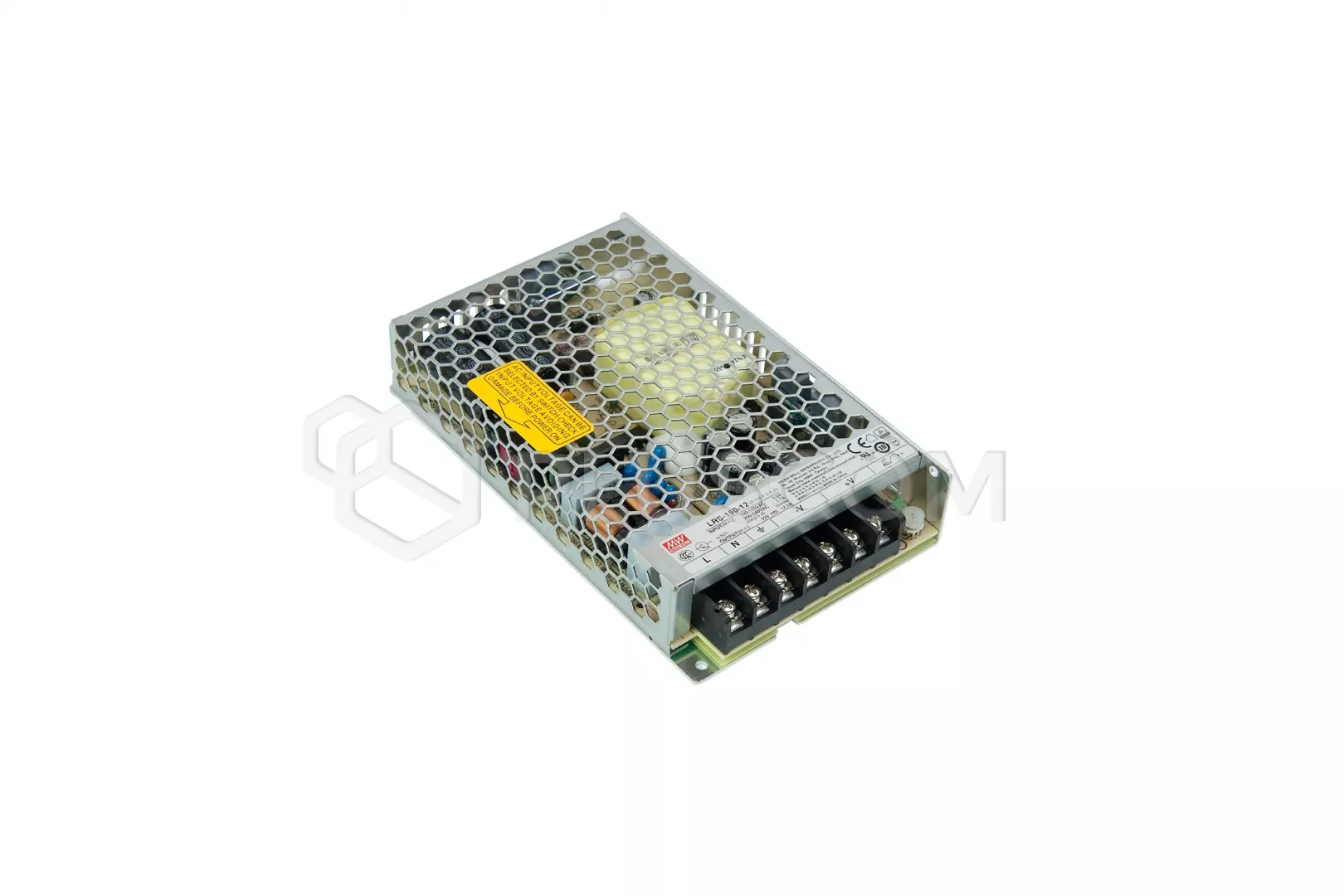

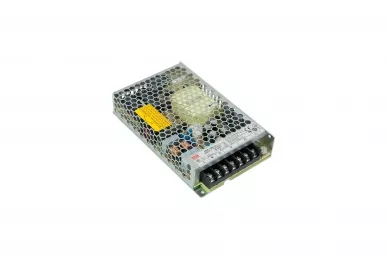

Roger PS8D Power supply 13.8 VDC/10.8 A

68,50 EUR including 23.00% VAT
Product code: #33011
Manufacturer: Roger
  • Supply 230 VAC
  • Output current: 10.8A
  • Overload protection
  • Overvoltage protection
  • Dimensions: 159.0 x 97.0 x 30.0 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger PSD4D Supply and bus distributor module Roger ME-17 Metal enclosure Roger MCX4D Door Expander Roger MCX2D Door Expander Roger ME-43 Metal enclosure

Roger PS8D Power supply 13.8 VDC/10.8 A

PS8D is LRS-150-12 (Mean Well) power supply unit with rated output voltage increased from 12 V to 13.8 V by means of original output potentiometer.

PS8D is dedicated to installation in RACS 5 system, particularly to supply MCX2D and MCX4D expanders and PSD4D power distributors but it can also be used for other applications if its nominal conditions of use are satisfied.

The PSU is dedicated to installation inside enclosure and can be installed only by qualified technician with all necessary certificates concerning connection and maintenance of 230 VAC and low voltage networks. ME-17 and ME-43 (Roger) metal enclosures are factory adapted to installation of PS8D.

TECHNICAL DATA:
  • Nominal output voltage: 13.8VDC
  • Nominal output current: 10.8A
  • Nominal power: 150W
  • Efficiency: 87.5%
  • Nominal supply voltage: 230VAC/50Hz
  • Nominal supply current at 230VAC: 1.6A
  • Overload protection
  • Surge protection
  • Internal dimensions: 159 x 97 x 30mm
  • Weight: 0.48kg
Download
Datasheet 0.34 MB
CE Declaration 0.11 MB
User manual 0.36 MB
