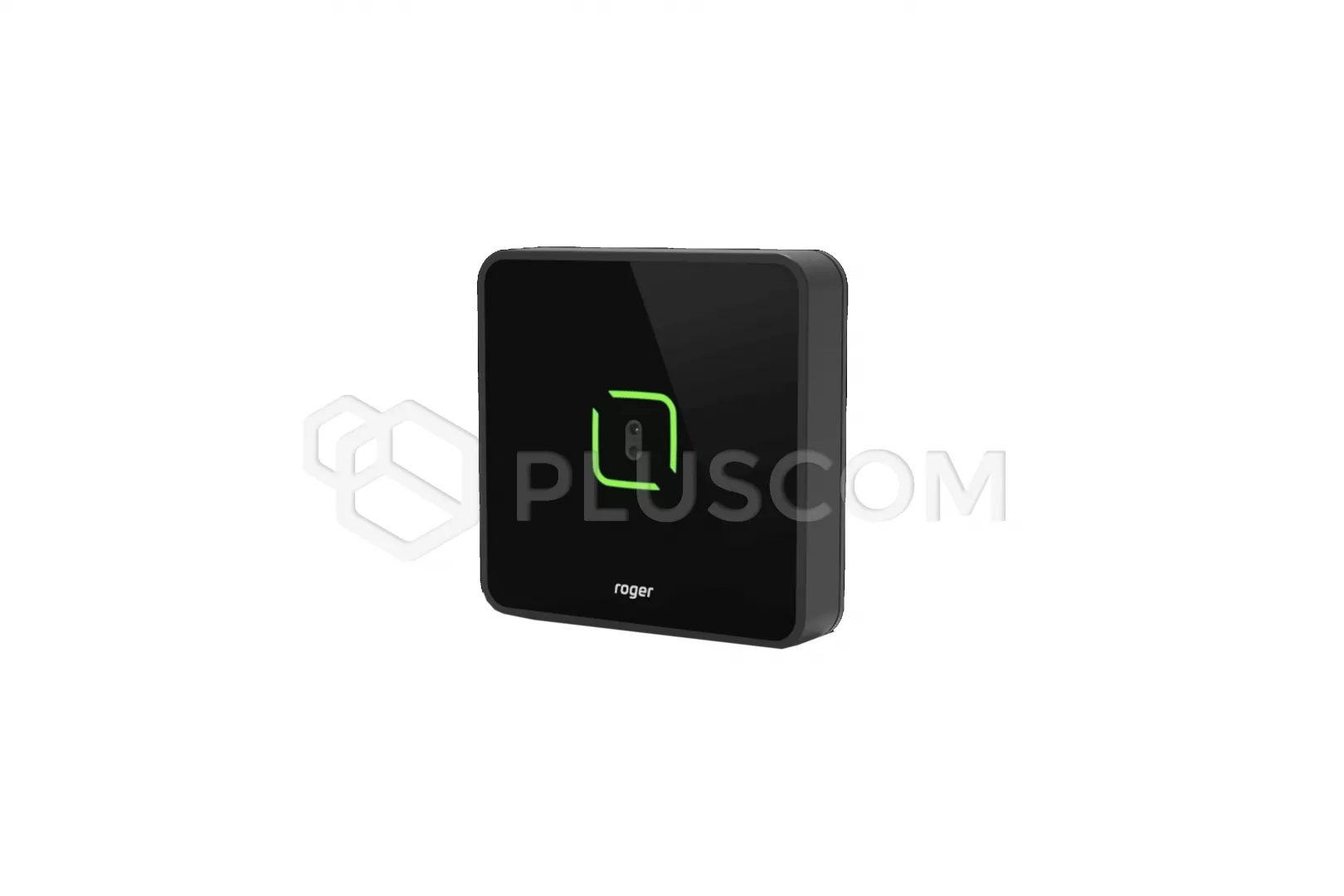

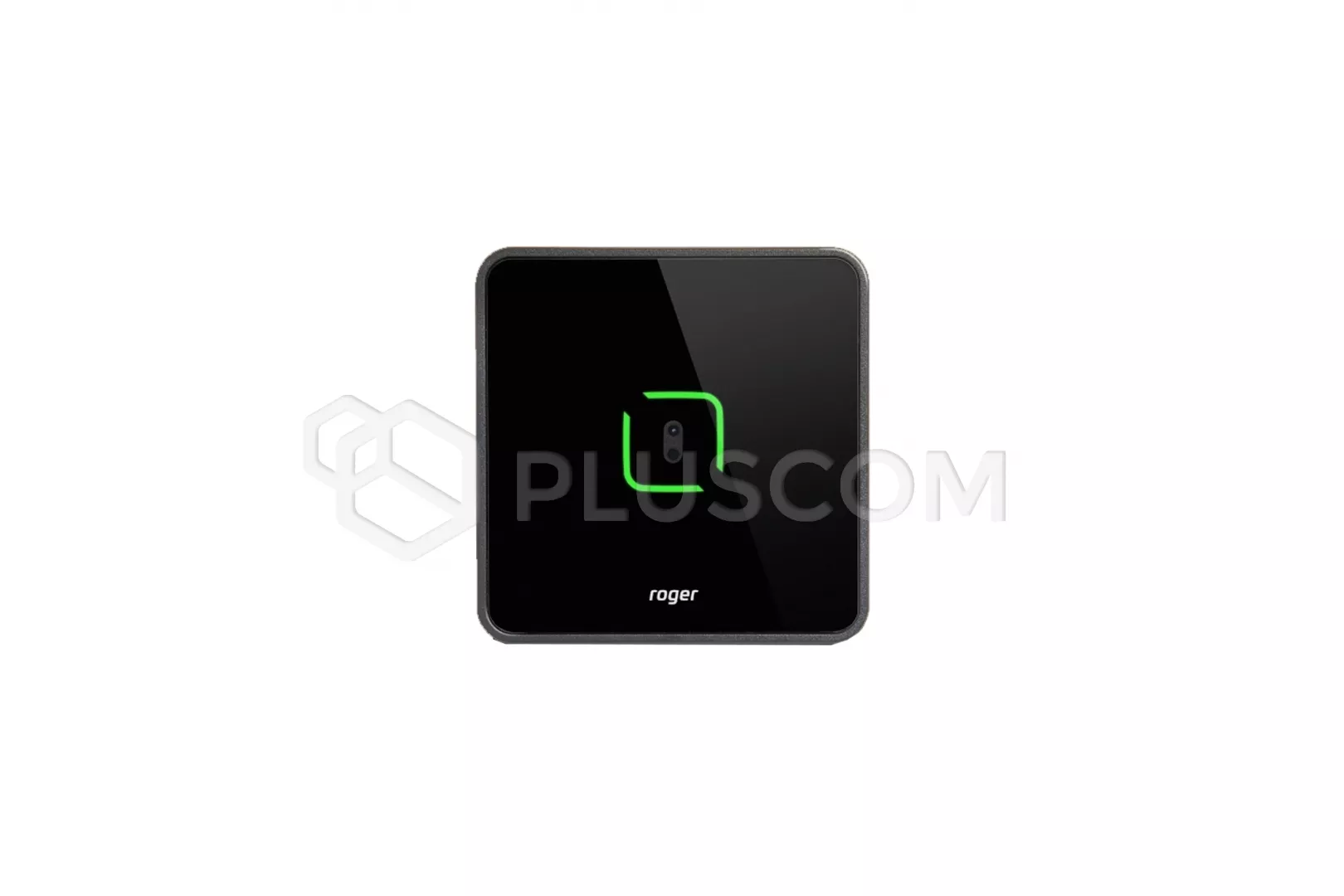

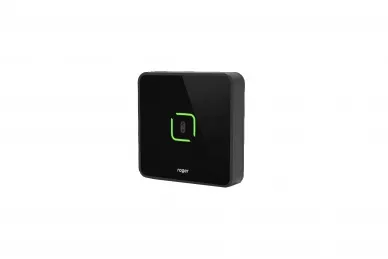

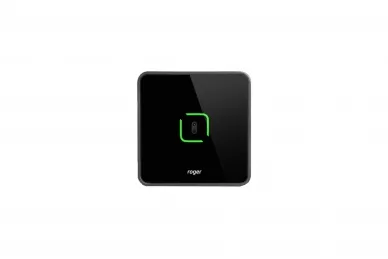

Roger CEB12 Contactless Exit Button

71,81 EUR including 23.00% VAT
Product code: #32956
Manufacturer: Roger
  • Working indoors
  • Adjustable detection distance 8-15 cm
  • Adjustable output activation time 1-5 s
  • Transistor output 12 VDC/1 A
  • QUADRUS design line

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MCT88M-IO Access Terminal Roger MCT64E-IO Proximity Reader with keypad Roger PS4D Power supply 13,8 VDC/5,4 A Roger PSD4D Supply and bus distributor module Roger MCT84M-BK Access terminal Roger MCT62E Proximity Reader Roger PS2D Power supply 13,8 VDC/3,6 A Roger PS1A-LCK Supply Module Roger MCT84M Access terminal with keypad Roger MC16-LRC-16 Locker Access Controller

Roger CEB12 Contactless Exit Button

CEB12 is a contactless exit button which, after recognizing that the hand is approaching the front panel, temporarily switches on its electrical output.
Basically, CEB12 has been designed to be used as a non-contact room exit button, and it can perform this function via a master device (e.g. access controller, intercom) or independently as standalone device. CEB12 can be powered independently from dedicated 12V DC/AC voltage source or in series with the energy receiver (electric strike), which it controls.

CHARACTERISTICS:
  • Contactless exit button
  • 12 VDC/AC power supply or from door strike circuit
  • Adjustable detection distance (approx. 7-14 cm)
  • Adjustable output activation time 1-5s
  • Transistor output 12VDC/1A
  • Overload and overvoltage protection
  • LED backlight
  • Tamper contact
  • Indoor operation only
  • Glass front panel
  • Surface mounting enclosure with dimensions 85x85x22 mm

TECHNICAL DATA:
  • Supply voltage: external 12VDC or parasitic 12VDC/AC
  • Average current consumption: 5 mA
  • Electronic output: transistor output; load capacity 1A
  • Output trigger time: 1 - 5s, programmed with a resolution of 1s
  • Environmental class (according to EN 50131-1): Class II, indoor conditions,
  • Ambient temperature: -10°C- +50°C,
  • Relative humidity: 10 to 95% (non-condensing)
  • Anti-sabotage protection: insulated NC type contact 24V/50mA; contact closed when the housing is closed and in contact with the ground
  • Protection rating: IP30
  • Dimensions: 85 x 85 x 26 mm
  • Weight: ~ 100g
