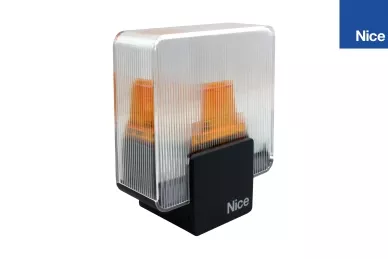

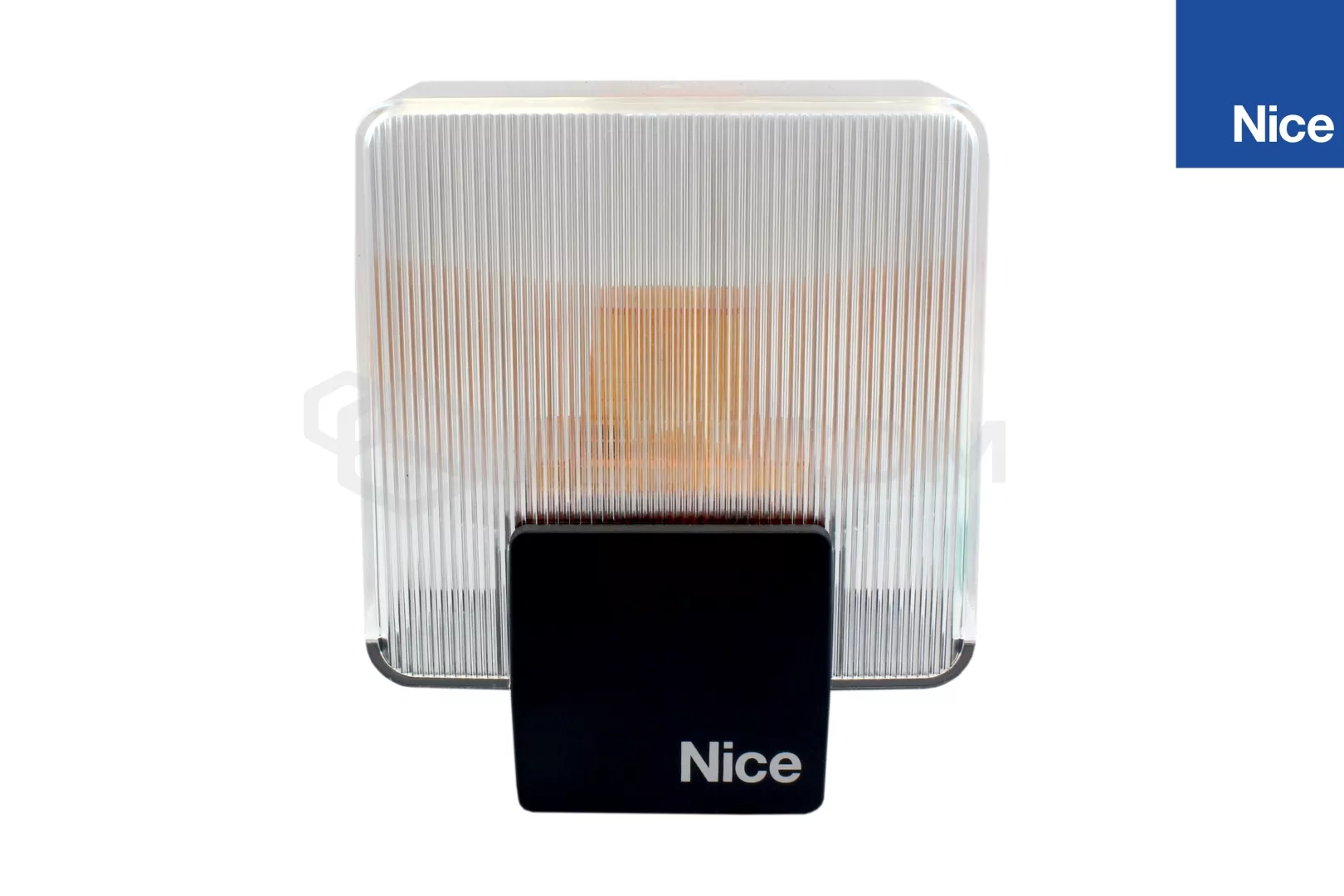

Nice ELAC LED flashing signal light 230V

Nice ELAC 230V LED signaling lamp with interrupter and integrated antenna

The Nice ELAC signal lamp is designed to work in automation systems for gates, garage doors or barriers.
It is an element that increases the safety of the use of automation. Approaching the gate thanks to the lamp we know that the actuator has started the opening cycle. The characteristic shape is the first element that allows to recognize the installed Nice automation.

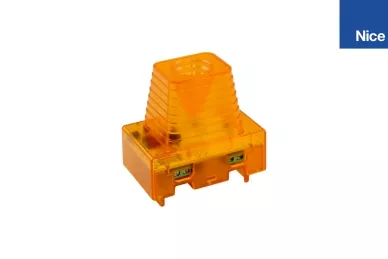

The lamp cooperates with the control panels which give 230V voltage at the output of the warning lamp. The light source is a super bright LED emitting white light. Above it has been installed an orange shade that diffuses the light. The LED is an energy-saving, reliable shock-proof light source.

The casing made of high quality materials is resistant to adverse weather conditions. The lamp can be installed in a vertical or horizontal plane. A 433,92MHz antenna has been integrated in the lamp housing using a 50 Ohm coaxial cable type RG58 which we connect to the central output of the control panel significantly increasing the range of the pilots.

Reliable LED and lampshade made of shockproof polycarbonate guarantee long and trouble-free lamp life.

SPECIFICATIONS:

• power supply: AC 90-240V
• light source: energy-saving LED
• power consumption: max 4W
• built-in 433.92MHz antenna
• built-in chopper duty cycle: 33% (5s TON, 10s TOF)
• dimensions: 132x72x155(h)mm
• degree of protection: IP44
• working temperature: -20°C...50°C


The lamp works with the following control panels:

• Nice A02, A60, A400

• actuators ROX, THOR, ROBO

• gate automation of other manufacturers with 230V signal lamp output
