Nice TOO 4500 230V actuator wing up to 4.5m/250kg

316,30 EUR including 19.00% VAT
Product code: #7729
Manufacturer: Nice
  • maximum leaf width 4.5m
  • maximum leaf weight 250kg
  • Mechanical gate lock
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice FLO2RE 2-channel remote Nice ON3EBD 3-channel remote two-way Nice ELAC LED flashing signal light 230V Photocell Nice EPM ERA Medium Nice OXIBD 4-channels receiver two-way Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal

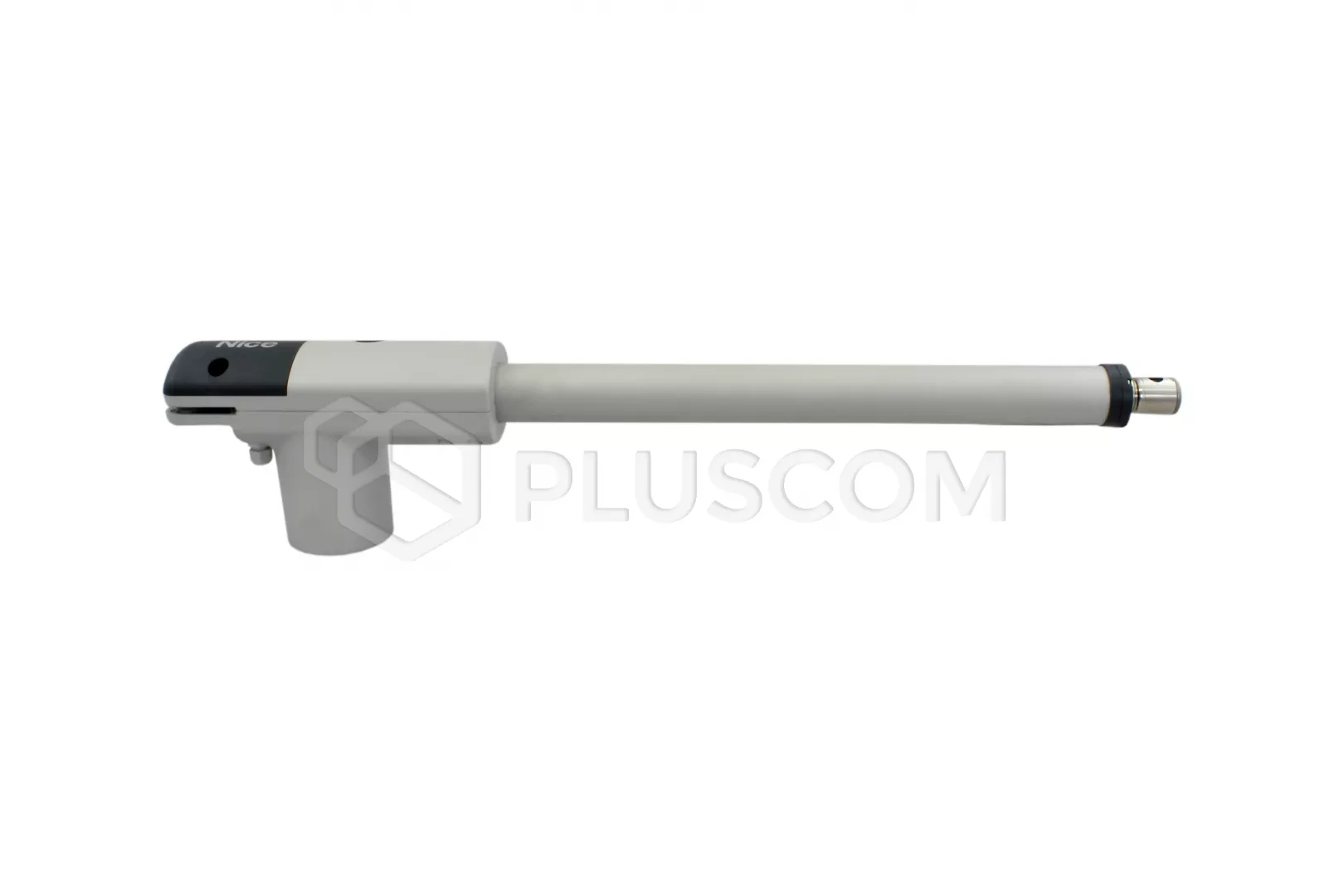

Nice TOO 4500 230V Electromechanical gear motor

TOO4500 is a self-locking actuator after finishing work, the gate is locked and can not be opened manually, thus eliminating the need for additional locks. In the event of a power outage, the emergency unlocking key is provided with a Nice triangle key lock. Turning the key 90 ° clockwise, release the lock and it is possible to open the gate manually. By turning the key counter-clockwise, we also lock the drive.

Nice TOO4500 siłownik teleskopowy do 4.5m

Nice TOO4500 siłownik teleskopowy do 4.5m

SPECIFICATIONS:
  • motor power supply: 230V
  • current load: max 1,5A
  • power consumption: 340W
  • speed: 0,016m/s
  • strength: max 2000N
  • intensity work: 24 cycles/h
  • operating temperature: -20°C...+ 50°C
  • degree of protection: IP54
  • dimensiosn: 800x100x177mm

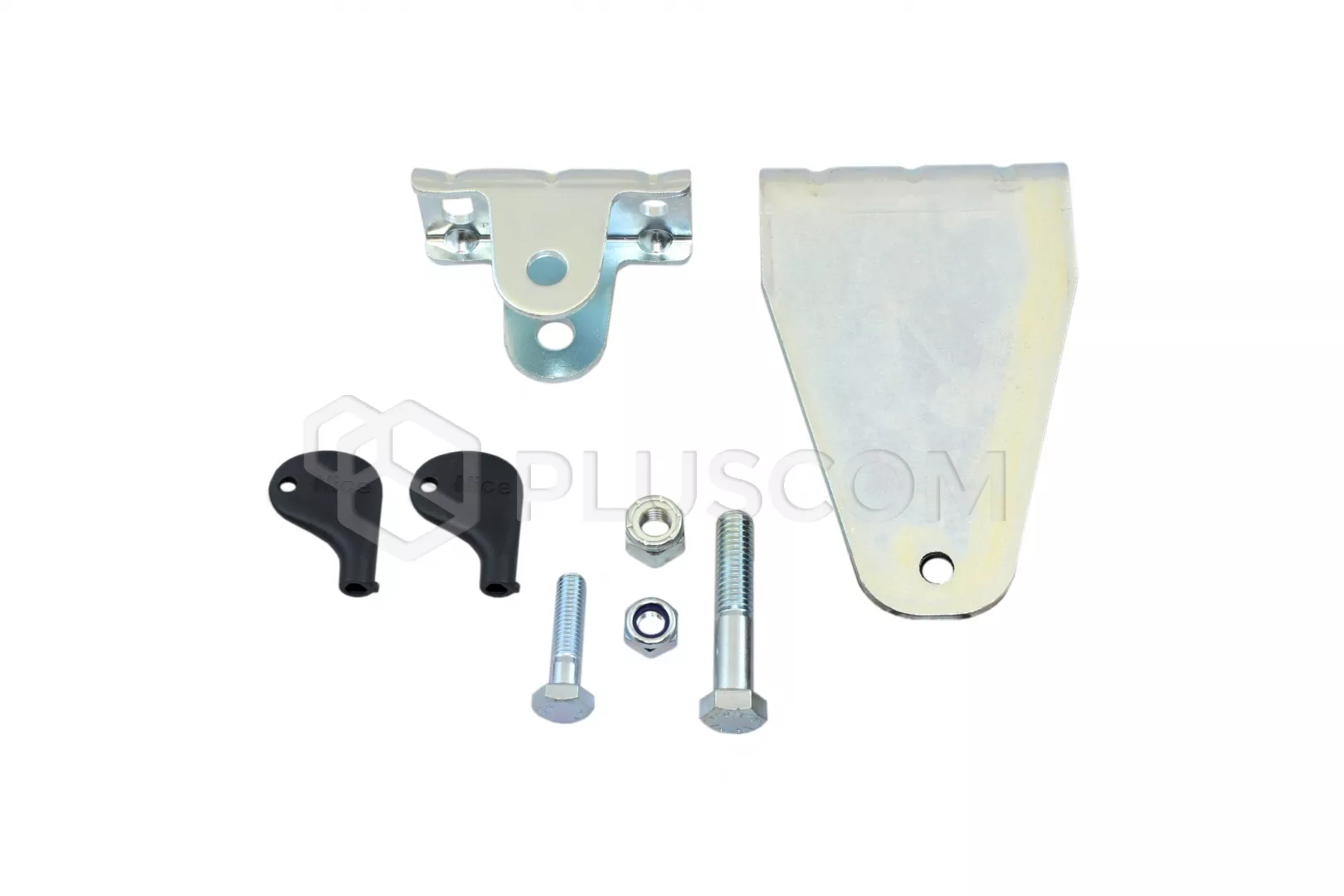

Accessories:

Accessories:

Also available in sets with the MC800 control unit:

MC800 control unit features:
  • simple programming, works with Oview programmer
  • simple programming, a friendly two-level programming method of 8 first level functions (ON-OFF) and 8 parametric functions
  • gentle start and release at closing
  • function of partial opening of the gate - wicket
  • controlling the operation of two 230V actuators
  • semi-automatic, automatic operation
  • auto programming during the first programming the control panel automatically determines and memorises the end positions of the gate
  • service of an electric lock

The item is available in the following sets:

Nice TOO4500 R10 Base set Nice TOO4500 R10 Base set
Nice TOO4500 Set Nice TOO4500 Set
Download
Instruction 1.08 MB
