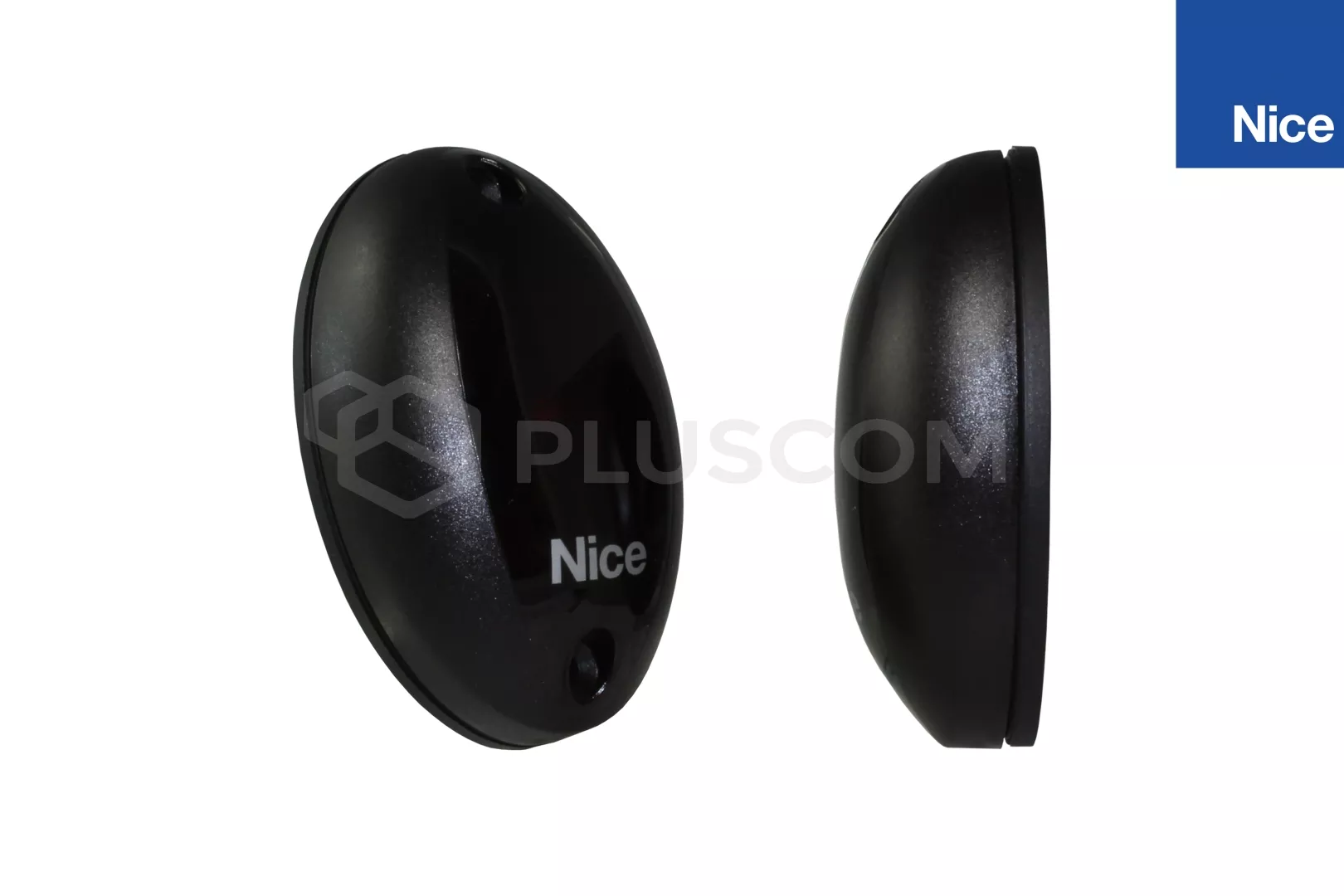

Nice BF Relay photocells up to 30m
Nice BF
photocells with relay output can be used with drives
with
classic PHOTO / STOP input. They can work with anyone
12V or 24V powered system. Housing made of high quality
polycarbonate material is resistant to unfavorable weather conditions,
protects against the ingress of dust and water (
IP44).
they can be installed outdoors and operate in a wide temperature range
-20°C...+50°C.

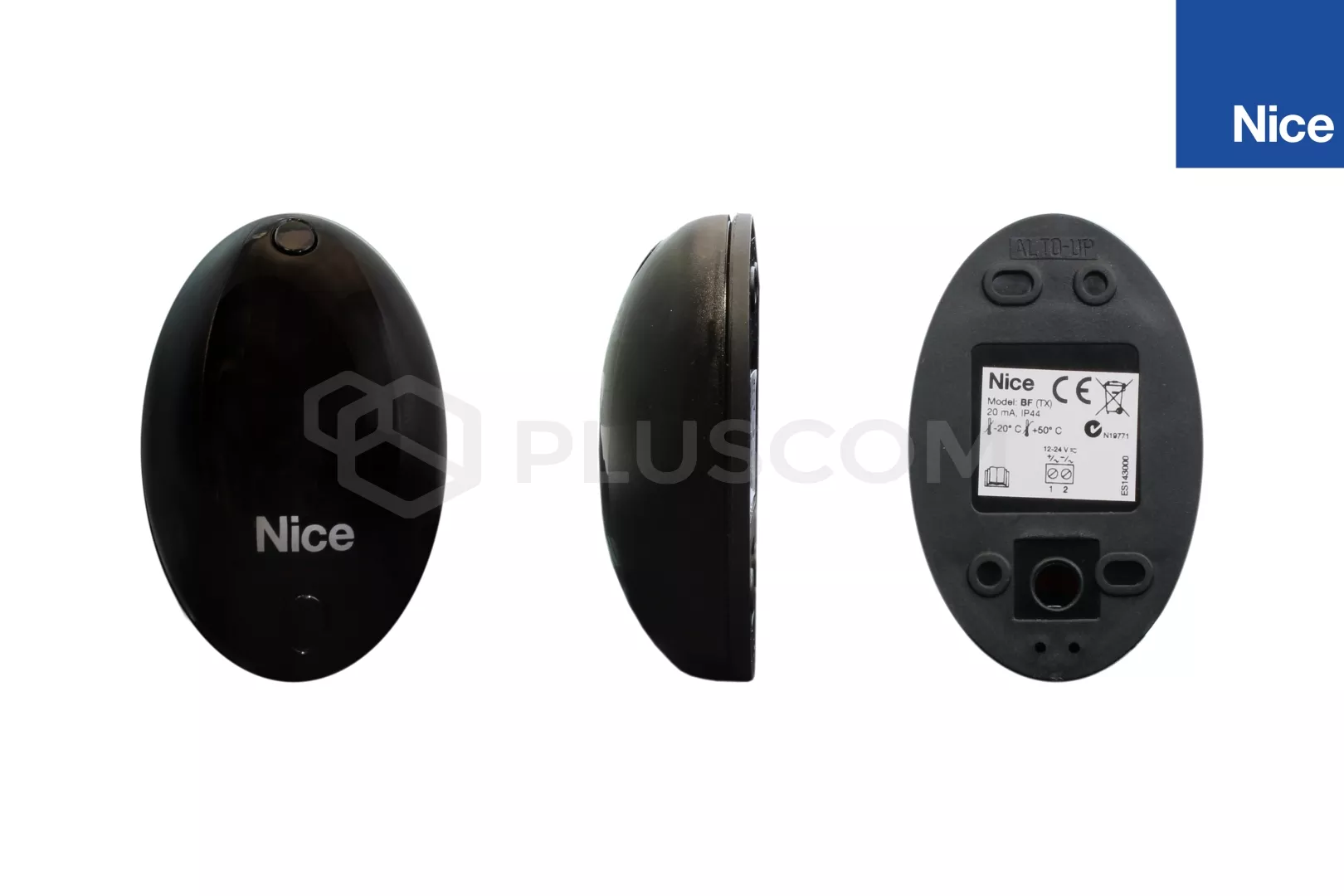

View: front, side, rear:

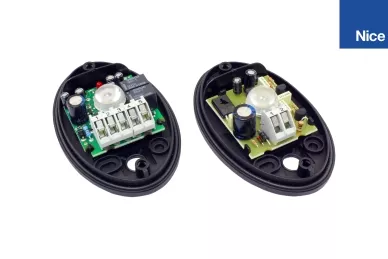

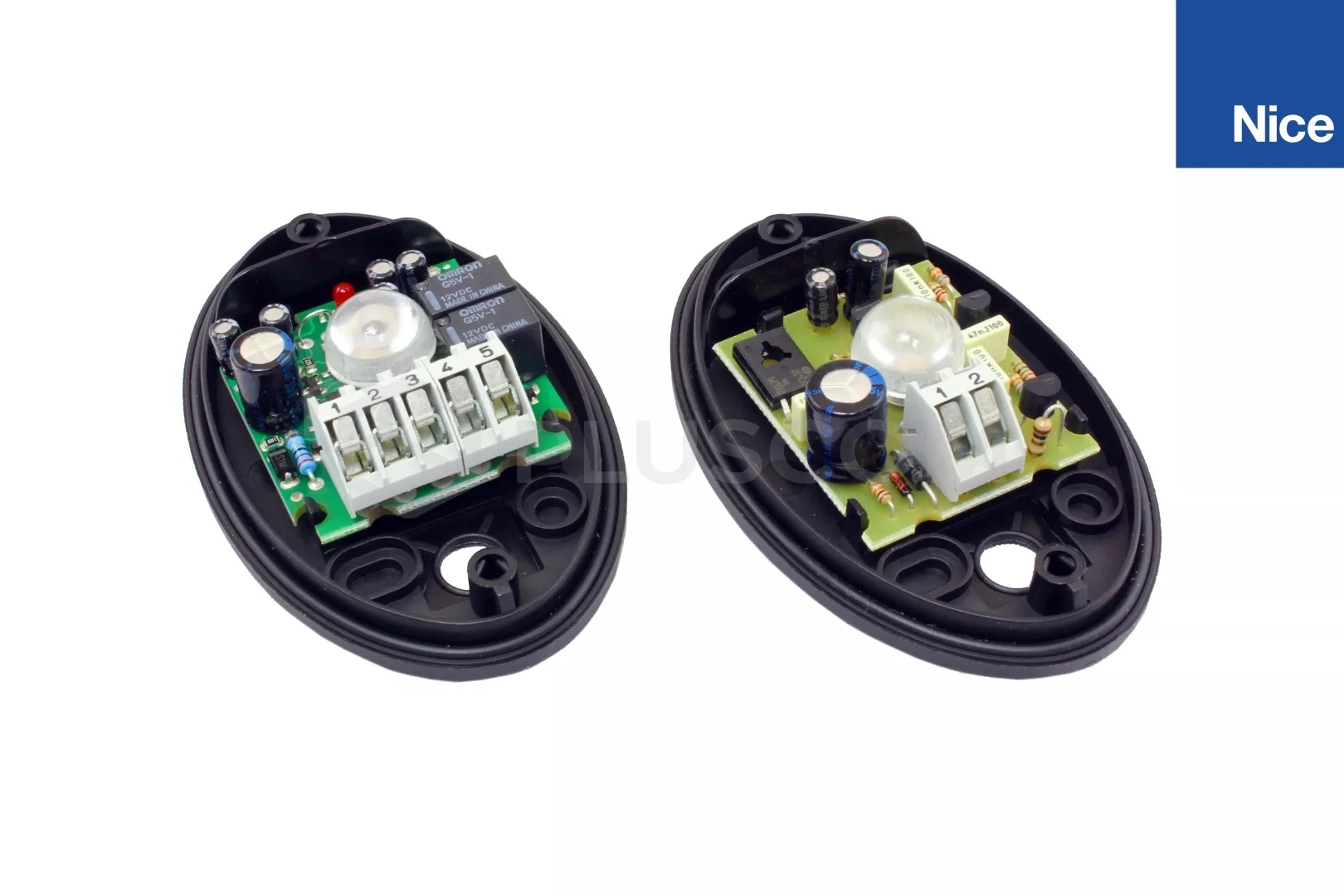

Interior:
RANGE AND INSTALLATION
The standard operating range of the devices is 15 m, it can be extended to 30 m
cutting the jumper B on the receiver board (RX). Please remember that this is unfavorable
environmental conditions such as rain, fog, smoke and pollution on
housing can significantly reduce the maximum range.
In the most common cases, photocells are mounted directly on the pole
For this purpose, expansion plugs are included in the set, allowing for installation on
brick post. The base can be used to mount the photocells
PORTOS or
COB aluminum column, e.g. for the second line
photocells. The PORTOS base and COB columns must be purchased separately.

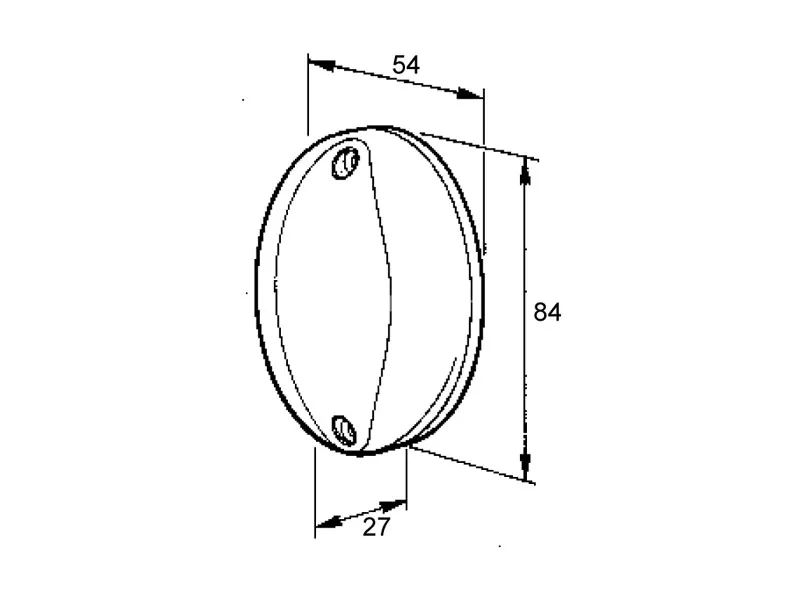

Nice BF Dimensions:

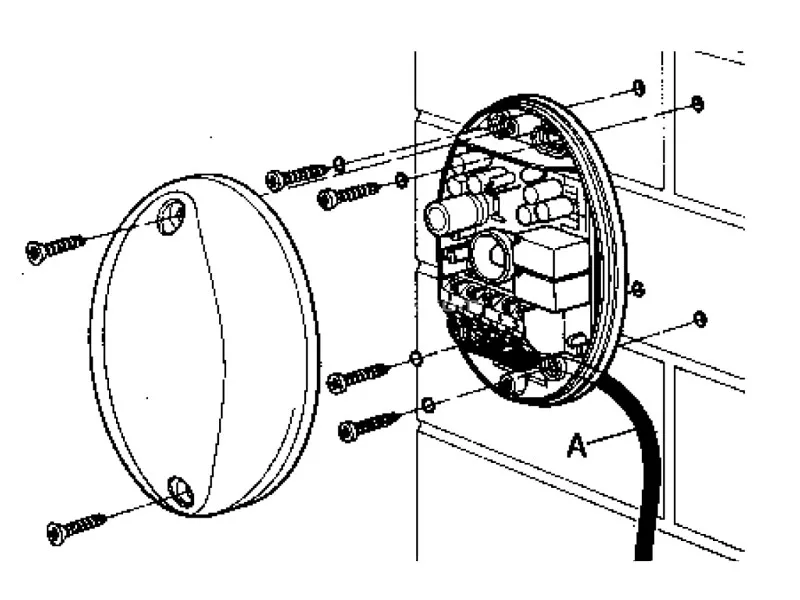

Nice BF Mounting:
