Nice ROBUS 600 set for sliding gates weighing 600
kg
SET CONTAINS
|

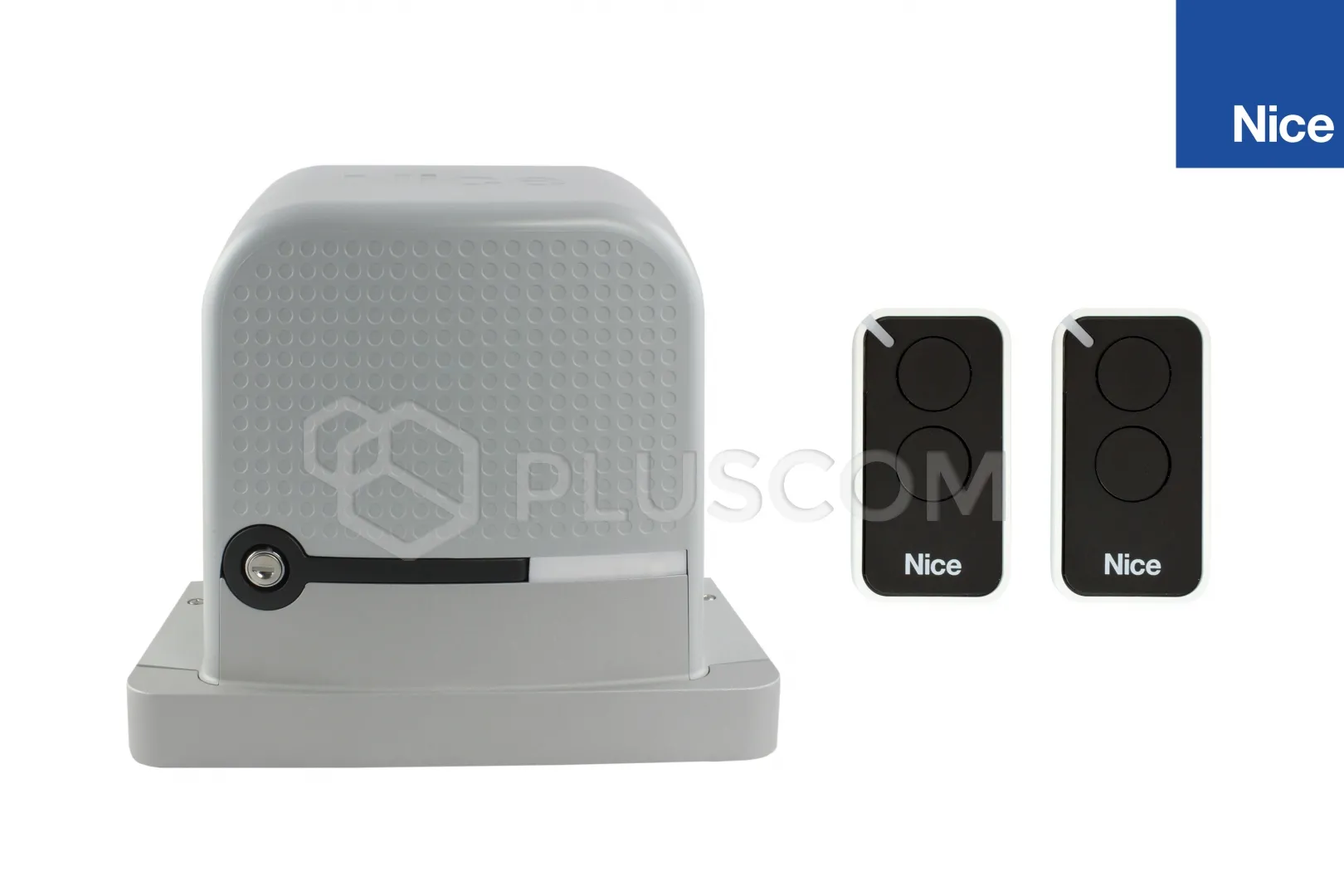

Nice Robo 600 Set
|
The Robo 600 is an actuator that combines a solid structure, high
efficiency and innovative design and installers will appreciate it for its ease
of installation and programming. Due to dimensional compatibility with current
models NICE actuators (applies to the spacing of the foundation anchors), the
assembly is extremely straight. The greater flexibility in the positioning of
the motor guarantees the protection devices against unwanted manipulation.
New 50% longer release lever for easier unlocking the gate provides a better
grip in the event of a power failure. The lever locks also a cover to the base,
providing not only protection to the automation, but it is also part of the new
anti-theft system.
Nice Robo600

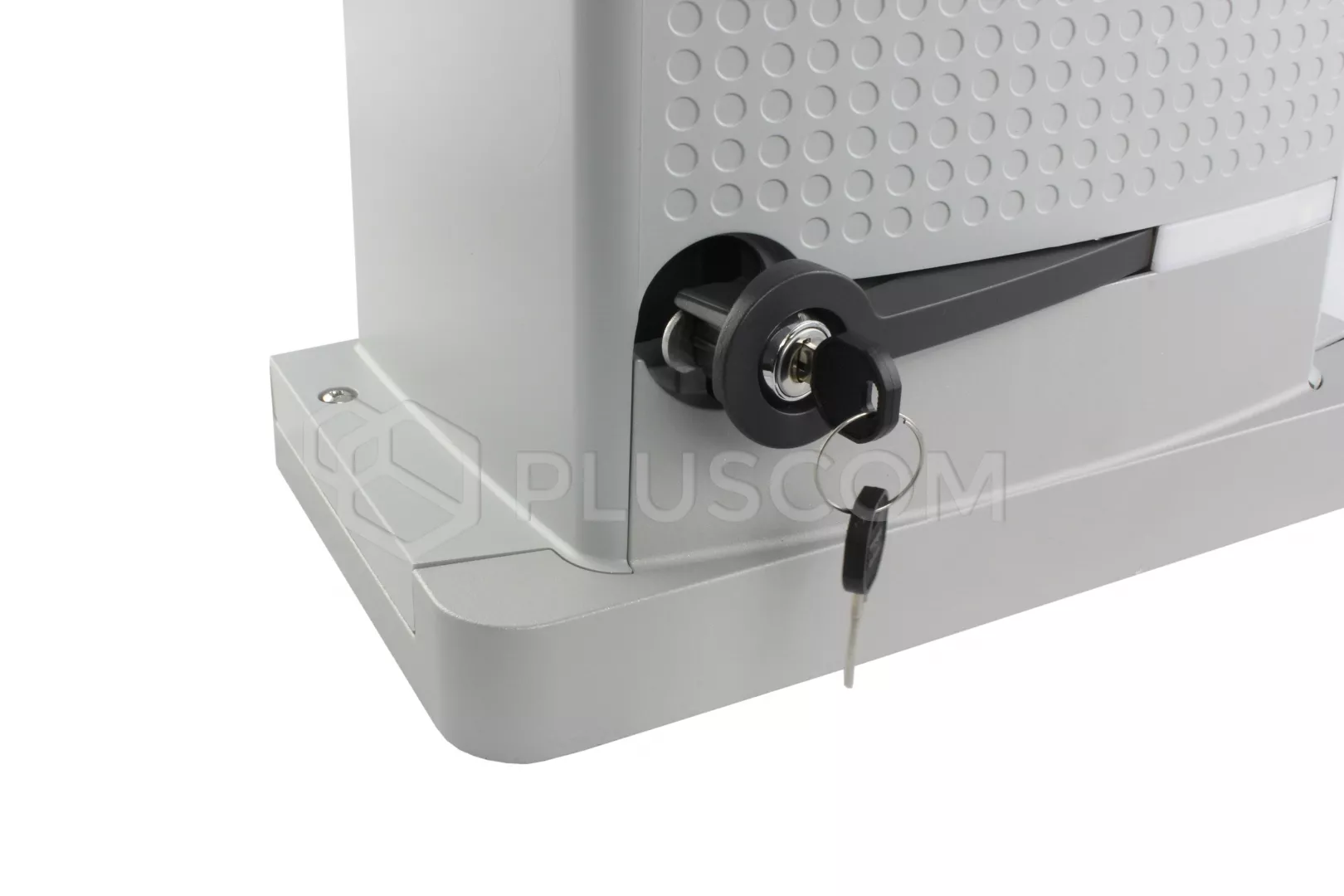

Relase lever:
The cover is made of 75% regenerated ABS (acrylonitrile butadiene
styrene), a thermoplastic polymer used for creating light and stiff elements.
The drive has a built-in radio receiver and is designed for automation gates
weighing up to 600 kg. At a speed of 0.18 m / s, it will open a four-meter gate
in just 22 seconds.
It is equipped with a BUS T4 port for connecting communication interfaces
BIDI-WIFI, BIDI-ZWAVE and IBT4N, which can be combined with smart systems home.
Remote maintenance has advantages for:
- installer , save time, which they gain thanks to quick
operation via the My Nice Pro
- application
- user who has full control and the ability to automate
via a WiFi or ZWave plug-in module. It can create different scenarios too
using Z-Wave, Nice BiDirectional radio protocol, or the Yubii control panel
Home
Reliability
The Robo600 is resistant to all weather conditions, from extremely cold and
windy to very hot. It is also not afraid of sand. Its durability owes a
redesigned gearbox, as well as the use of a new one synthetic lubricant.
Elements are also an important factor of resistance mechanical made of a new
special material.

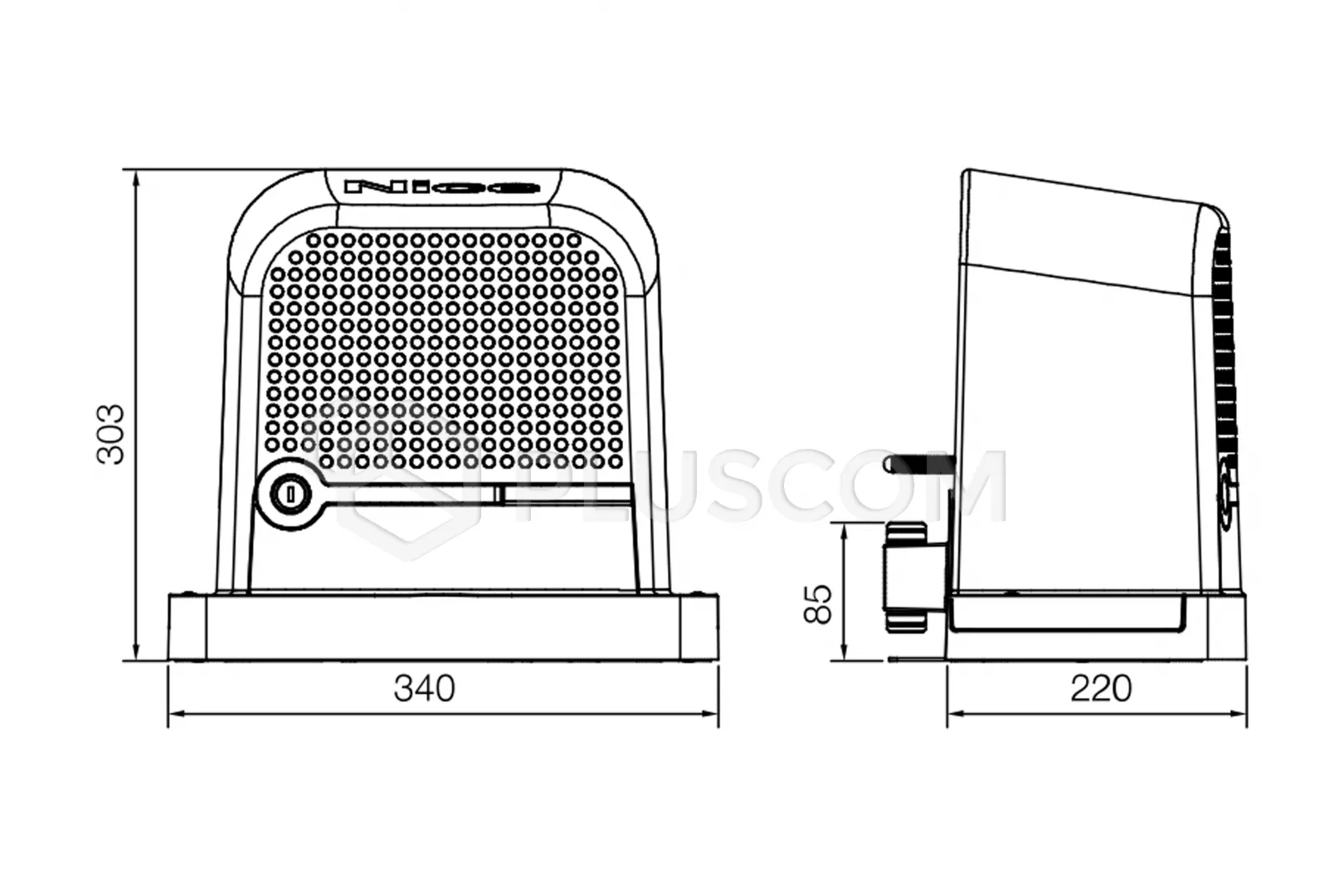

Dimensions:
TECHNICAL PARAMETERS:
Actuator
- power supply: 230V AC
- nominal power: 300W
- motor power supply: 230V AC
- maximum starting torque: 18 Nm
- nominal torque: 9 Nm
- force: 500N
- speed: 11m / min
- work intensity: 20 cycles per hour
- protection class: IP44
- working temperature: -20 ° C ... 55 ° C
- dimensions: 330 x 210 x 303mm
- weight: 11kg
Integrated radio receiver
- type: built-in 4-channel radio receiver
- frequency: 433.92MHz
- transmitter compatibility: O-CODE encoding
- transmitters learned: up to 100
- input impedance: 52Ω
- sensitivity: better than 0.5 µV
- range of transmitters: from 100 to 150 m
- operating temperature: -20 ° C ... + 55 ° C
