Nice TOO3000 R10 Base set

769,68 EUR including 19.00% VAT
In stock. Ships today!
Delivery time: 3 - 5 days
Product code: #19462
Manufacturer: Nice
  • maximum leaf width 3m
  • maximum leaf weight 300kg
  • 230V AC motors
  • Mechanical gate lock
  • control panel MC800
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Photocell Nice BF Nice ON3EBD 3-channel remote two-way Nice ELAC LED flashing signal light 230V Nice ON3ELR 3 channels pilot with LoRa technology Nice PPH3 aluminium post for EPM photocell, 50cm high Photocell Nice EPM ERA Medium Nice OVIEW/A R01 Display programmer +IBT4N interface Nice OXIBD 4-channels receiver two-way Nice PLA10 Electric lock vertical Nice OXILR radio receiver two-way

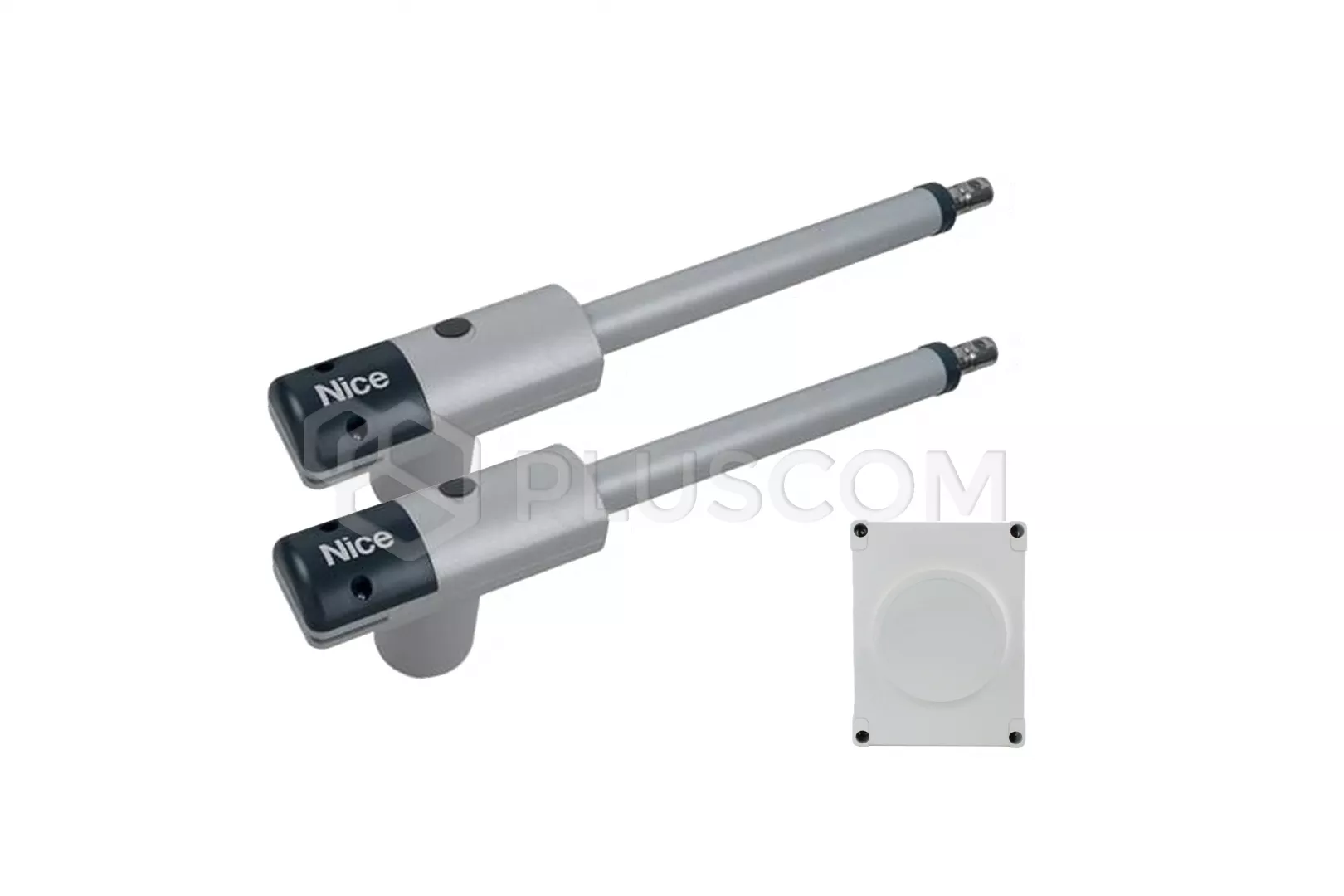

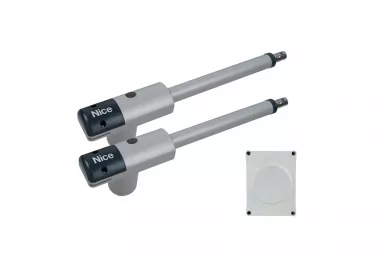

Nice TOO3000 R10 230V Electromechanical gear motors witch MC800 control panel


KIT CONTENTS:
Nice TOO3000R10 Electromechanical gear motor witch MC800 control panel

Nice TOO3000R10 Electromechanical gear motor witch MC800 control panel

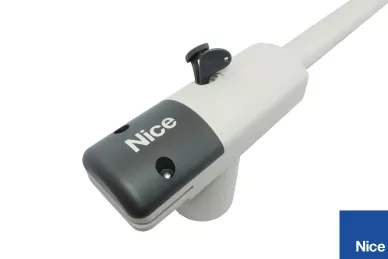

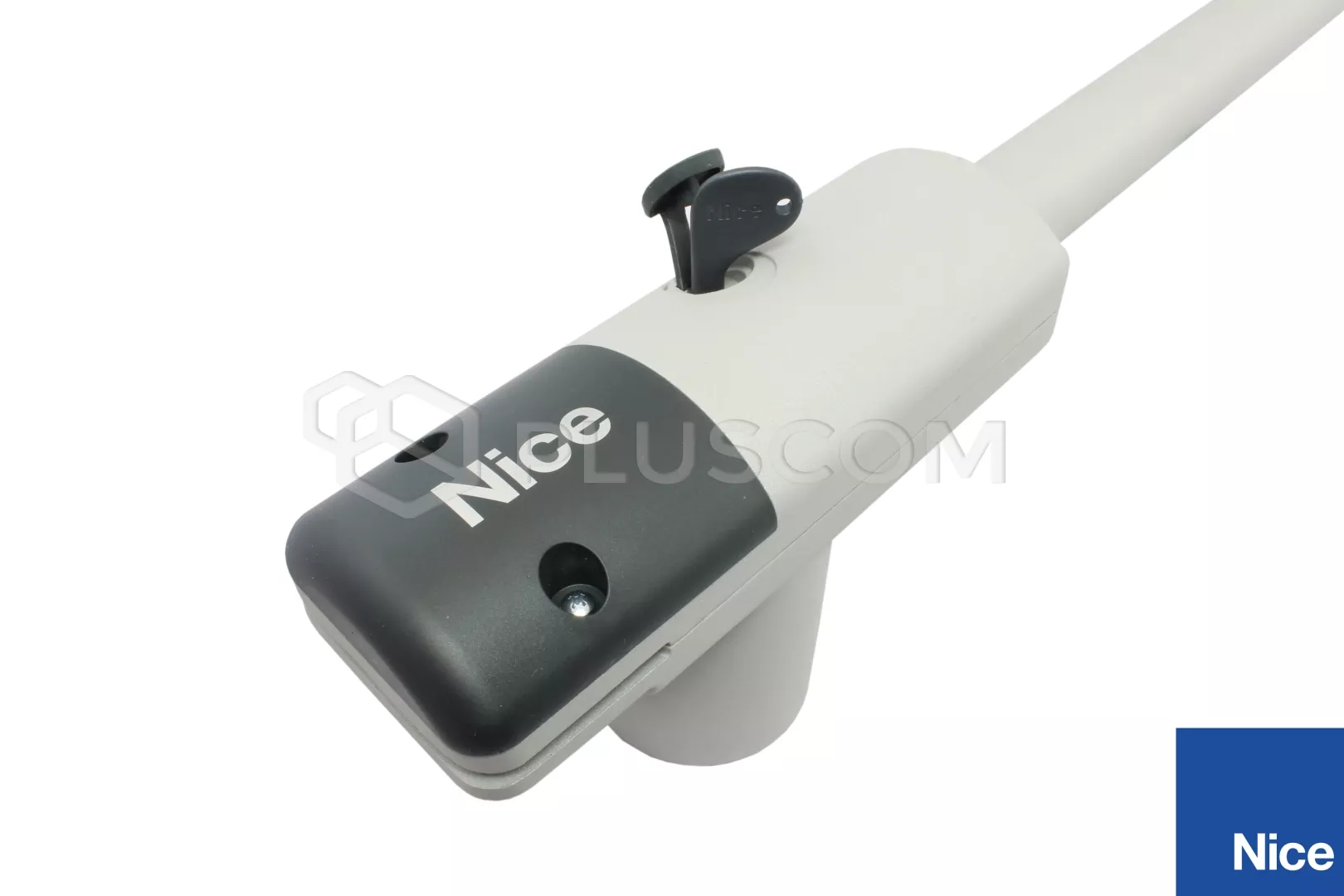

TOO3000 is a self-locking actuator after finishing work, the gate is locked and can not be opened manually, thus eliminating the need for additional locks. In the event of a power outage, the emergency unlocking key is provided with a Nice triangle key lock. Turning the key 90 ° clockwise, release the lock and it is possible to open the gate manually. By turning the key counter-clockwise, we also lock the drive.

The actuator is connected and controlled from the MC800 control panel, witch is
control panels works both with BLUEBUS (MOFB, EPMB itd.) and relay photocells (BF, FK, EPM itd.). Relay photocells should be connected to AUX1 - AUX3 inputs (PHOTO, PHOTO1 and PHOTO2). The control panel supports also PHOTOTEST function.

MC800 control unit features:
  • simple programming, works with Oview programmer
  • simple programming, a friendly two-level programming method of 8 first level functions (ON-OFF) and 8 parametric functions
  • gentle start and release at closing
  • function of partial opening of the gate - wicket
  • controlling the operation of two 230V actuators
  • semi-automatic, automatic operation
  • auto programming during the first programming the control panel automatically determines and memorises the end positions of the gate
  • service of an electric lock

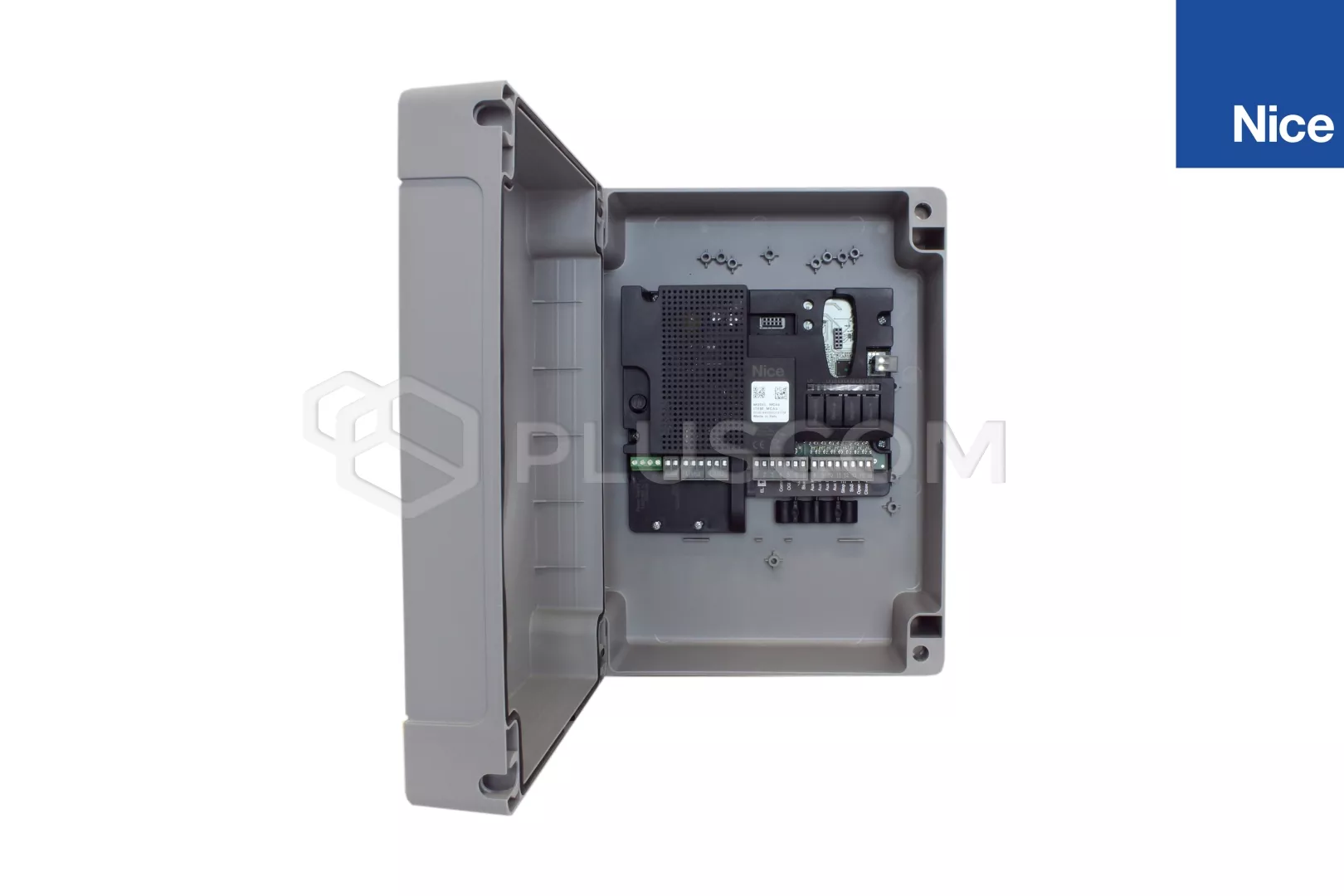

Interior control panel MC800:

Interior control panel MC800:

SPECIFICATIONS:
  • motor power supply: 230V
  • current load: max 1,5A
  • power consumption: 340W
  • built-in capacitor: 7uF
  • speed: 0,016m/s
  • strength: max 2000N
  • intensity work: 24 cycles/h
  • operating temperature: -20°C...+ 50°C
  • degree of protection: IP54
  • dimensiosn: 700x100x177mm
  • weight: 6kg
PATAMETERS OF THE CONTROL PANEL:
  • power supply of the control panel: 230V AC
  • rated power consumed from the 900W grid
  • flashing lamp output: 120 / 230V, 21W
  • degree of protection: IP54
  • working temperature -20 ° C ... + 50 ° C
  • dimensions: 310x232x122mm
  • Weight: 4.1 kg

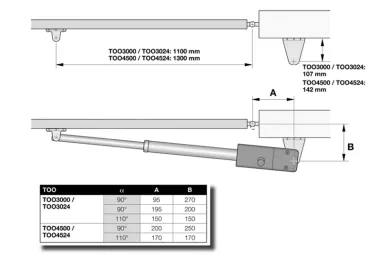

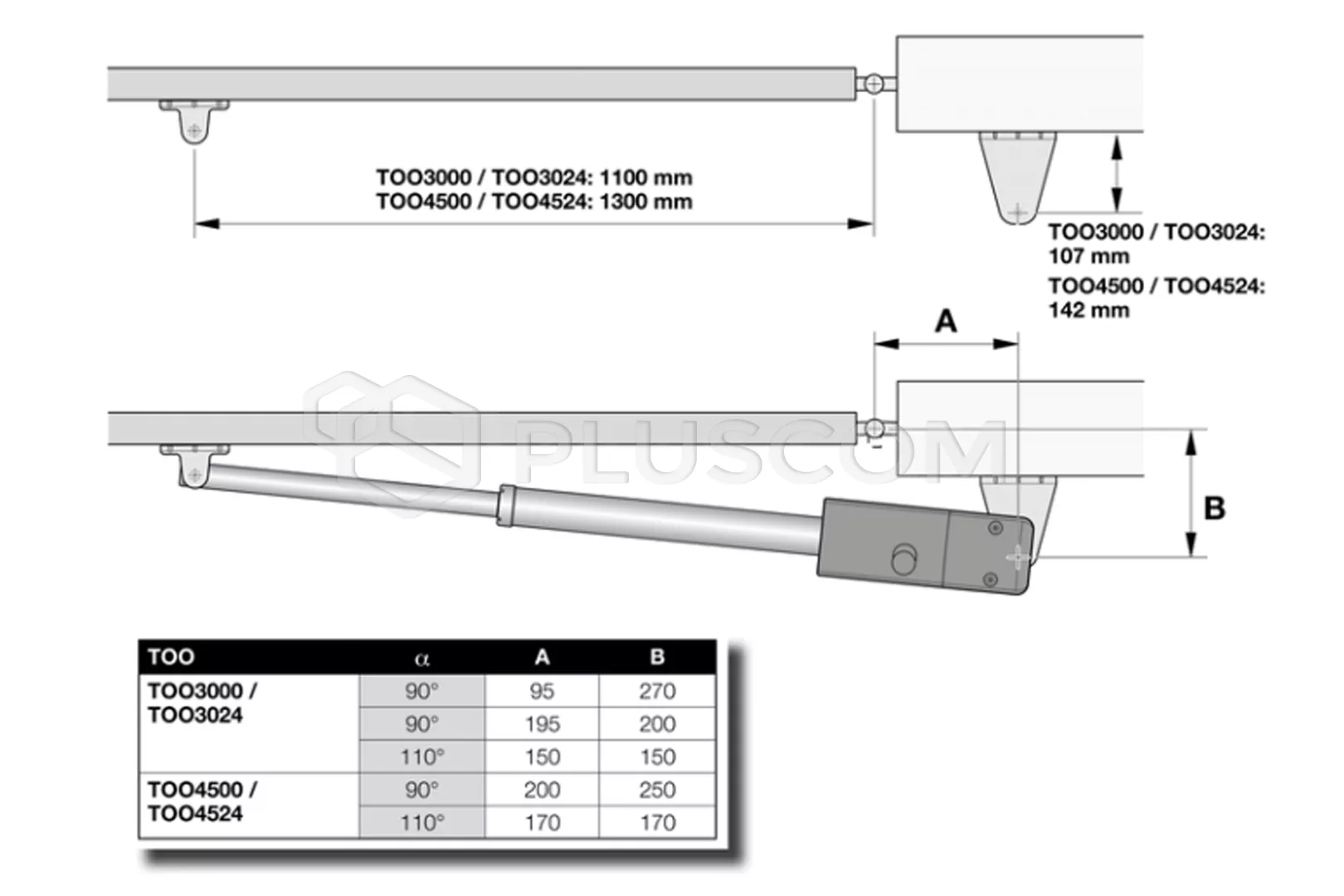

Determination of the position of fixing:

Determination of the position of fixing:


The actuators with the control panel are available in the complete set of Nice TOO3000R10 ERA FLOR

The item is available in the following sets:

Nice TOO3000 Set Nice TOO3000 Set
