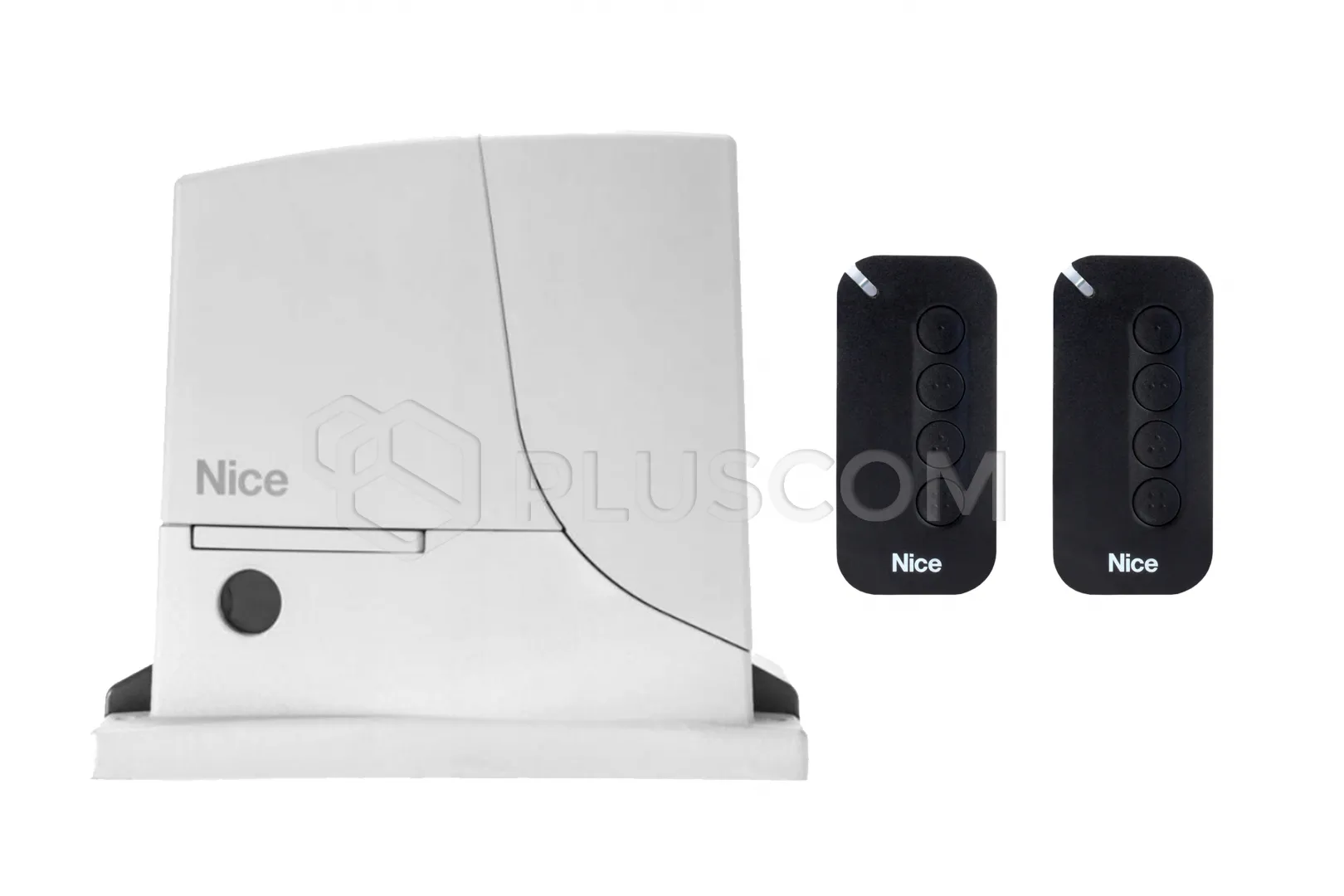

Nice ROX1000R10 Sliding Gate Kit for Gates up to 1000kg

Set NICE ROX 1000 R10 to sliding gates weighing up to 1000kg
with built-in control unit designed for private use.

It is distinguished by ease of installation, aesthetic design, excellent performance and reliability. Strong, durable aluminum body provides long-term use. Available in a kit that contains the necessary elements to guarantee comfort.

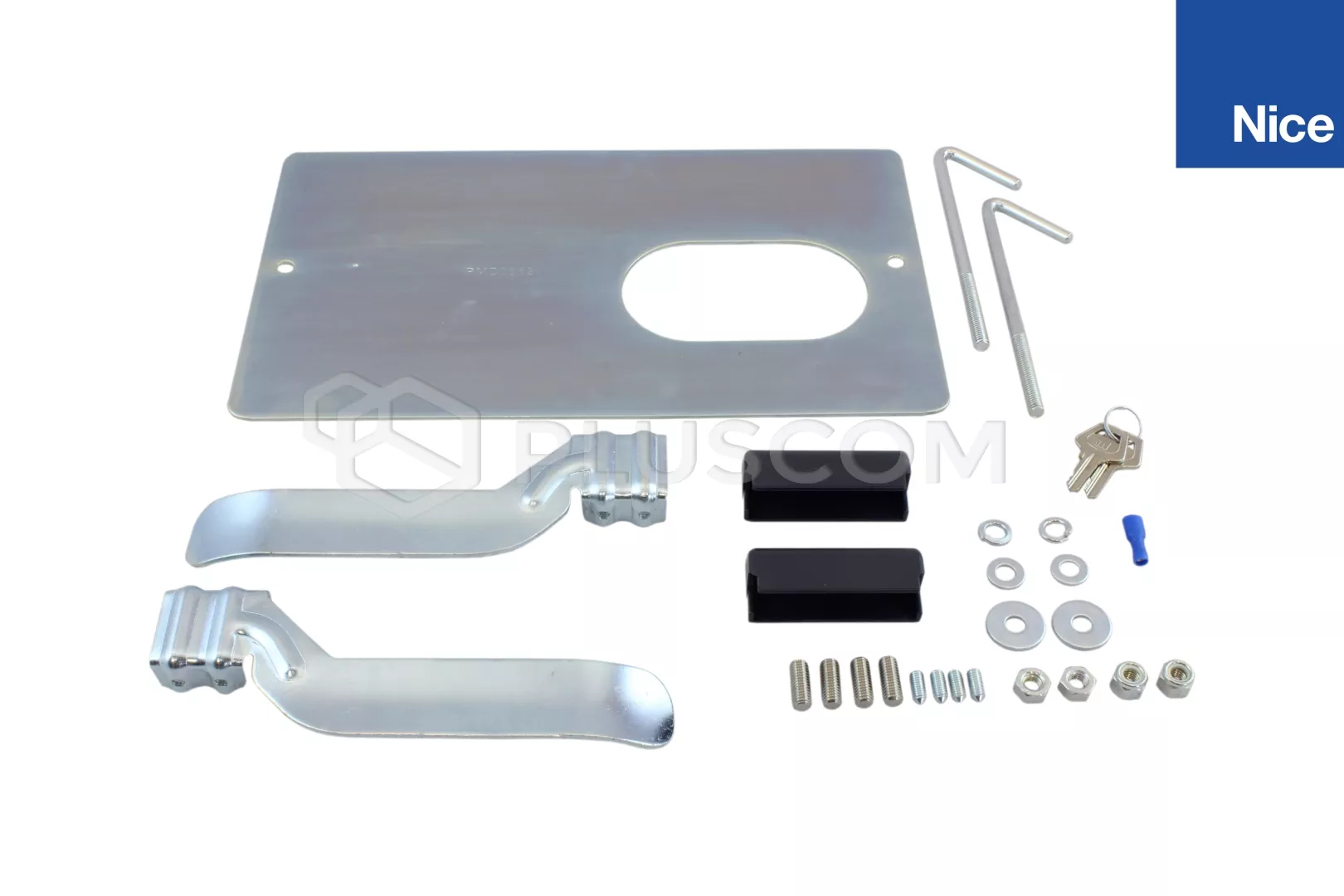

KIT INCLUDES: Nice ROX 1000 R10 gear motor with built-in control unit with built-in ROA40R10 control unit 433.92 MHz radio receiver integrated with the electronics board Nice Inti2 black 2-channel remote - 2 pcs a set of mounting accessories and a mounting plate two keys to unlock the drive detailed installation instructions Polish warranty card

Nice ROX1000R10 Sliding Gate Kit for Gates up to 1000kg

The most important features:

• self-locking actuator which means that the door locks mechanically when the engine is stopped, and it is not possible to open it manually, there is no need for additional mechanical locking gate with a lock

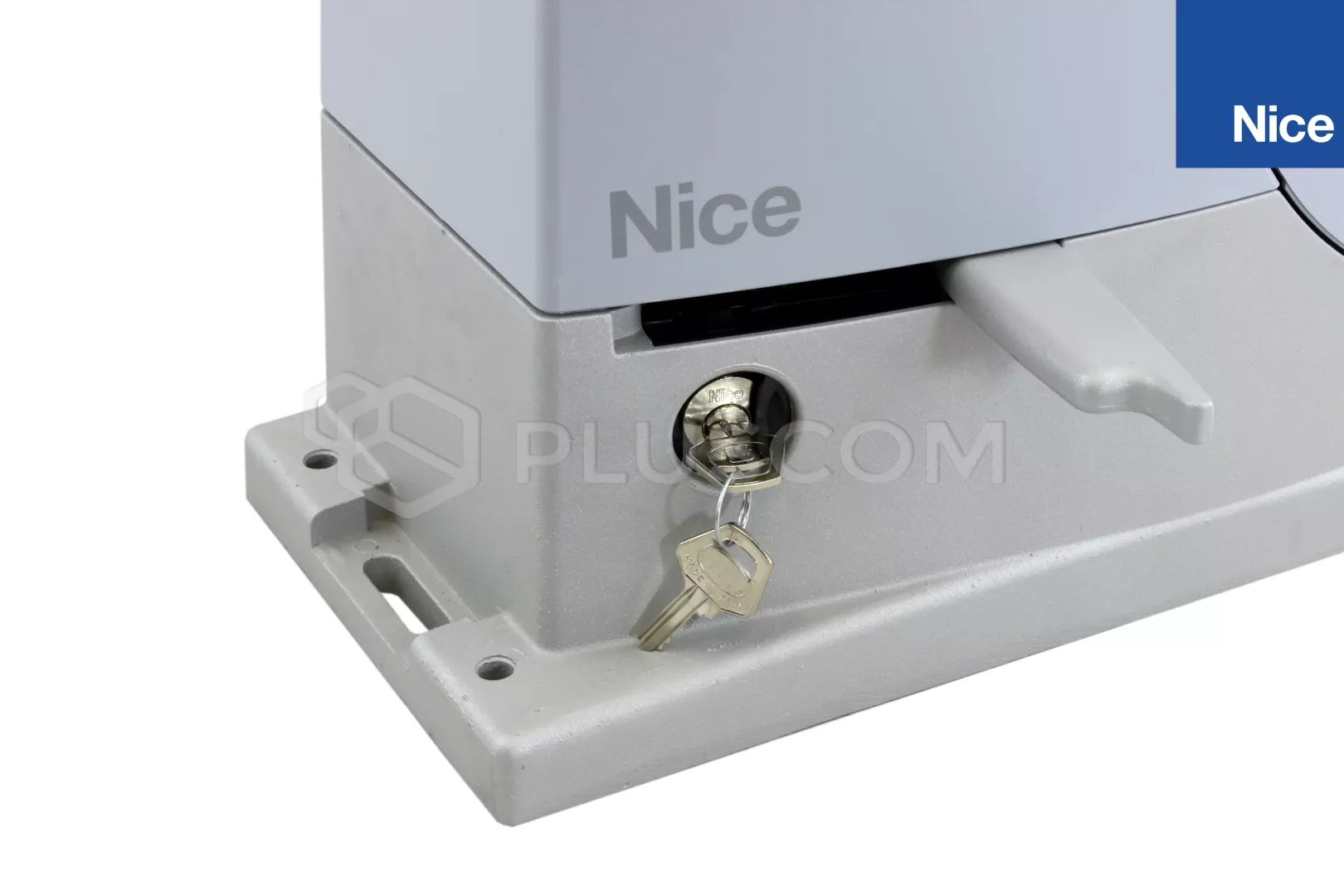

• convenient and easy way clutch with the key in case of power failure the actuator unlock
• integrated universal receiver 433,92MHz first uploaded the pilot determines the way in which the radio will operate radio (FLOR / ONE / NICEWAY / INTI / SMILO)

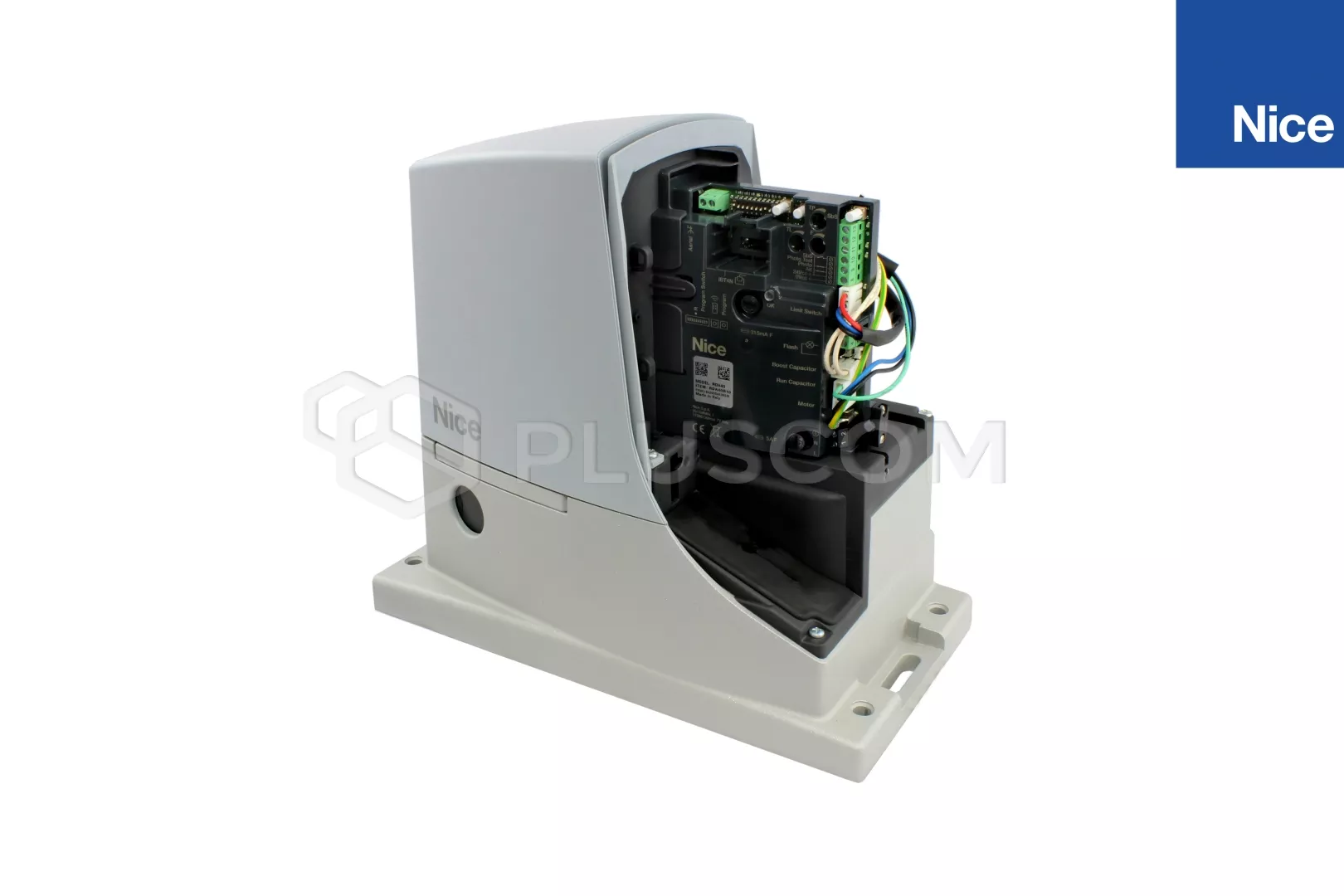

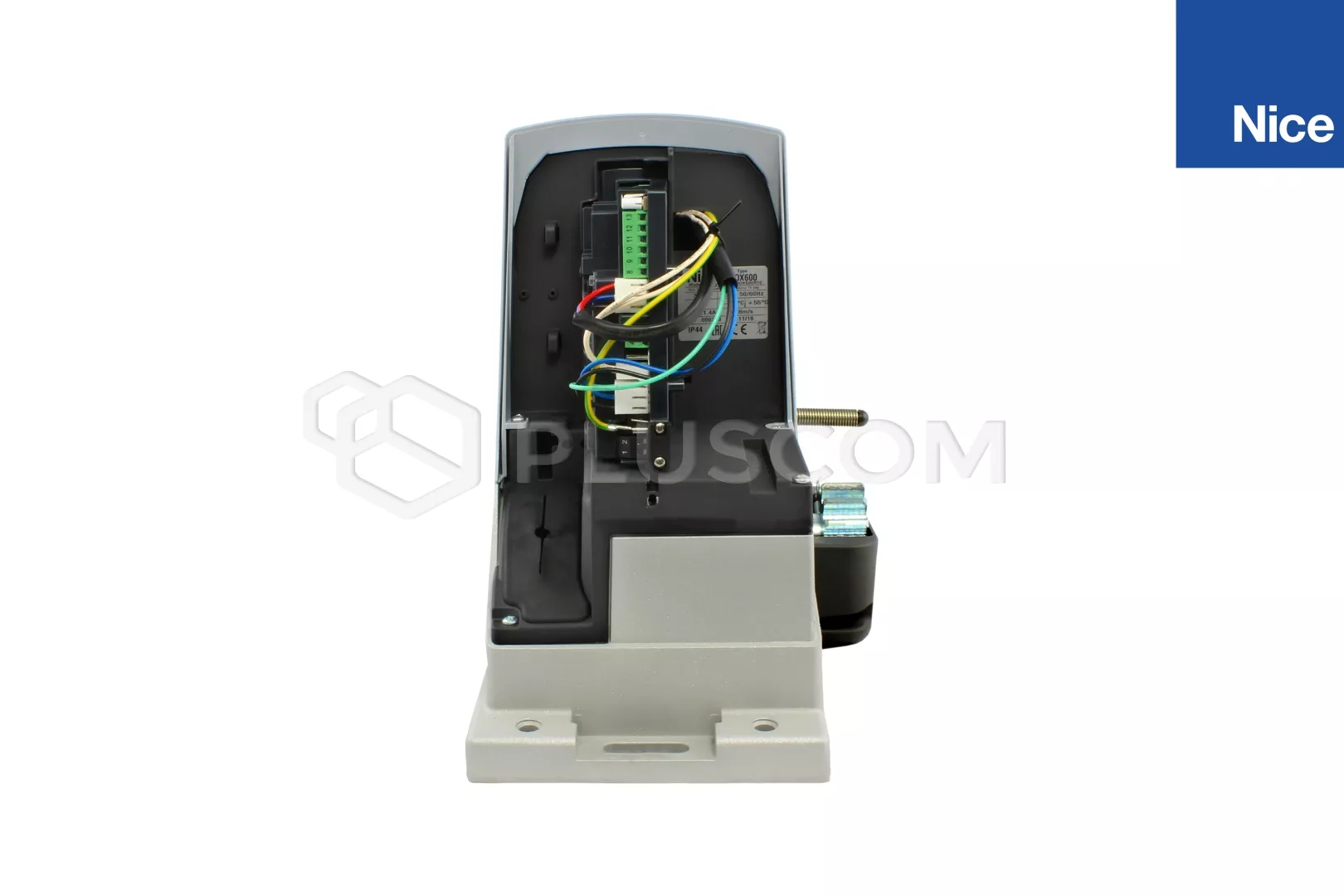

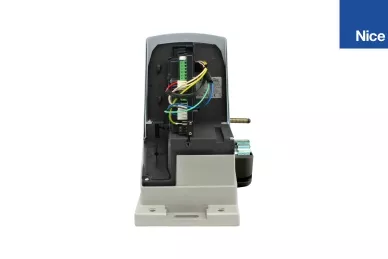

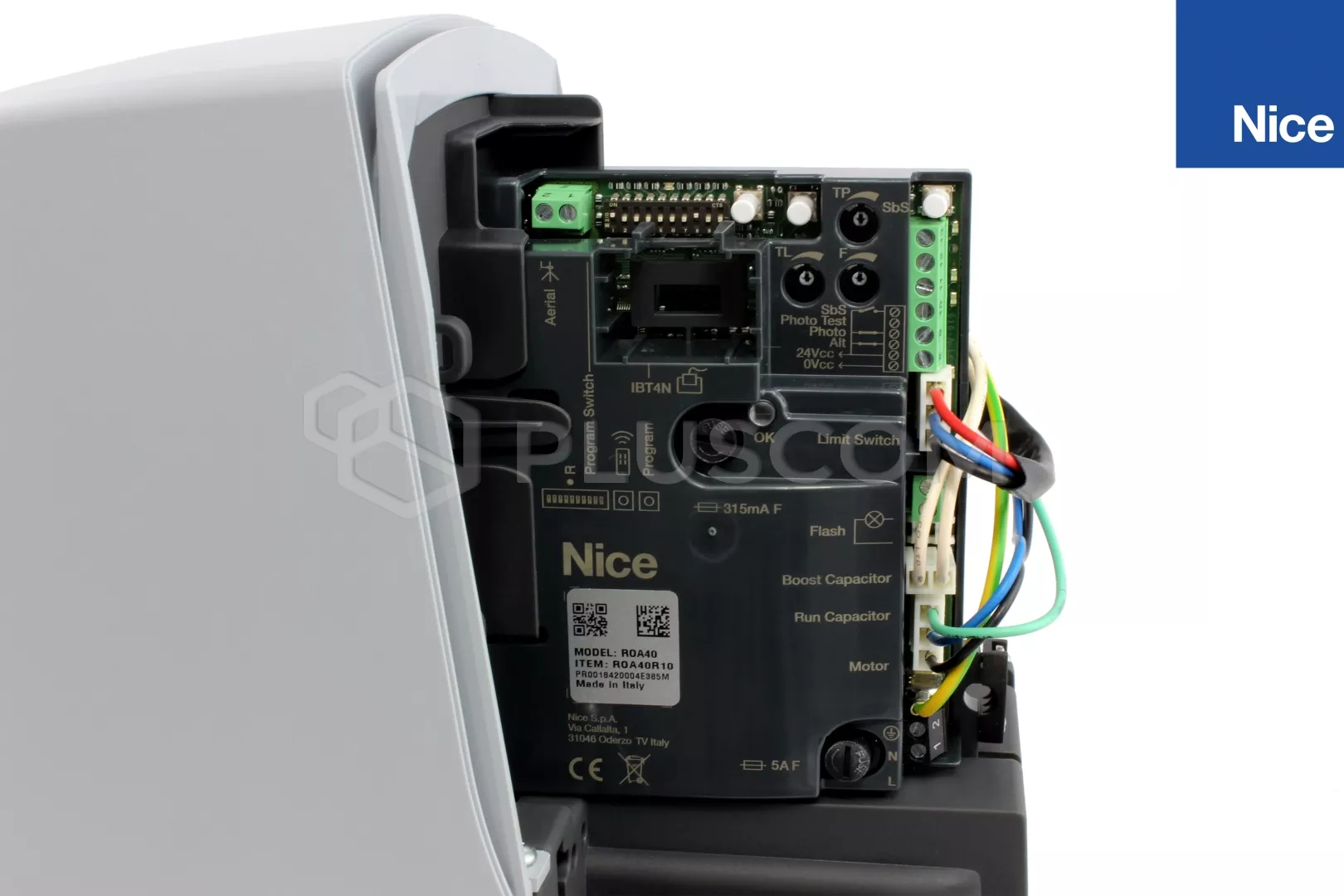

Nice ROA40R10 - Control panel
You control the actuator performs the electronic control unit. It was placed in a sealed (IP44) enclosure of the actuator. All inputs and outputs, switches are accurately and clearly described to minimize errors connections. In addition, for the duration of any maintenance module unit can be detached from the actuator.
It is possible to connect a stepper controller (SbS input and SbS button).
The panel performs the following functions:

• operation of manual, semi-automatic
• closing 5s after crossing the line PHOTO
• safety 'PHOTO' active also during the opening maneuver
• soft start (start gradually)
• release at the end of the maneuver


Remotes that can stay used with the drive:
Remotes (series Flor):
