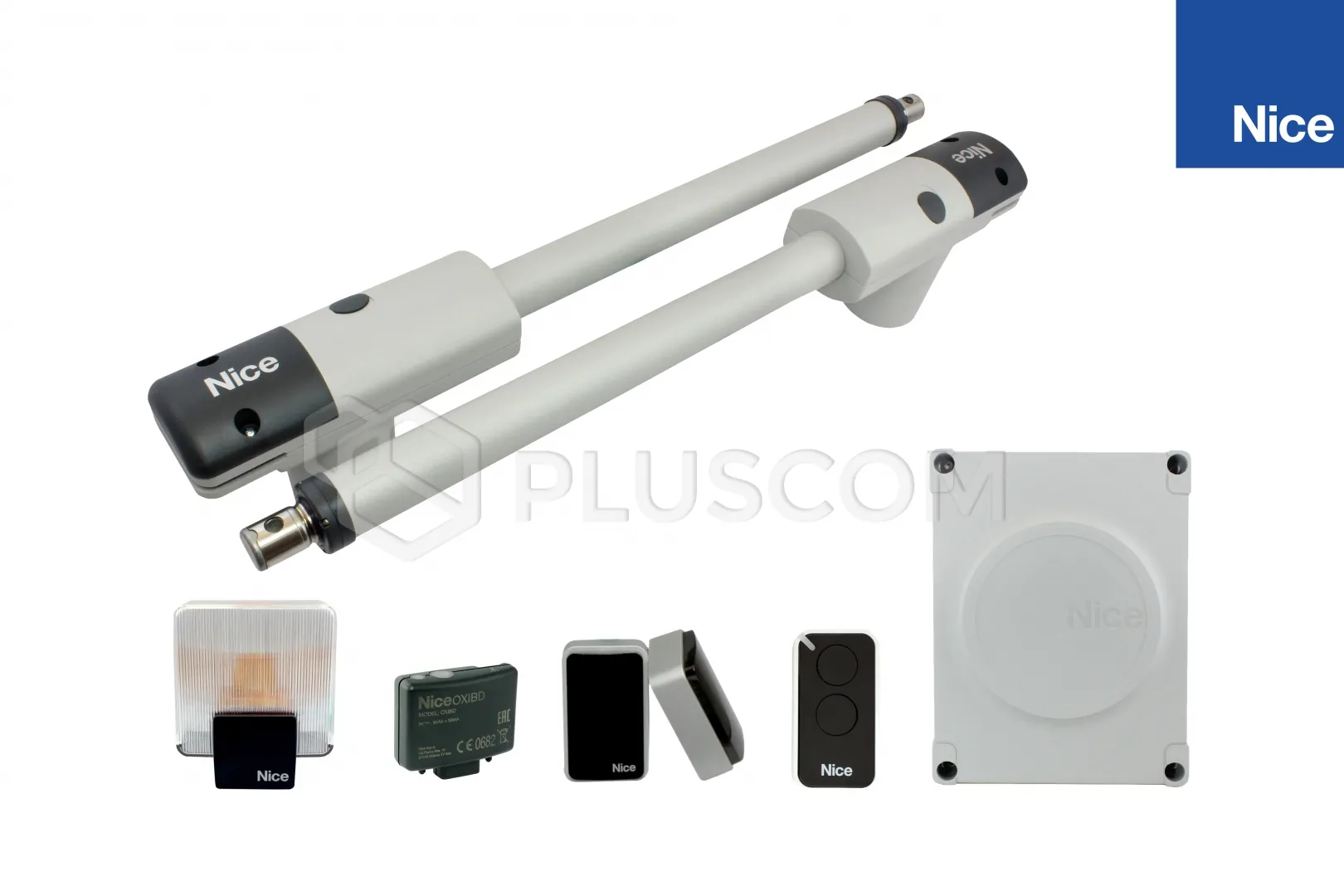

Nice TOO3000KCER30 TOO3000 INTI Kit for 3m Swing Gates
Nice TOO3000KCER30 TOO3000 INTI kit for swing gates 3m

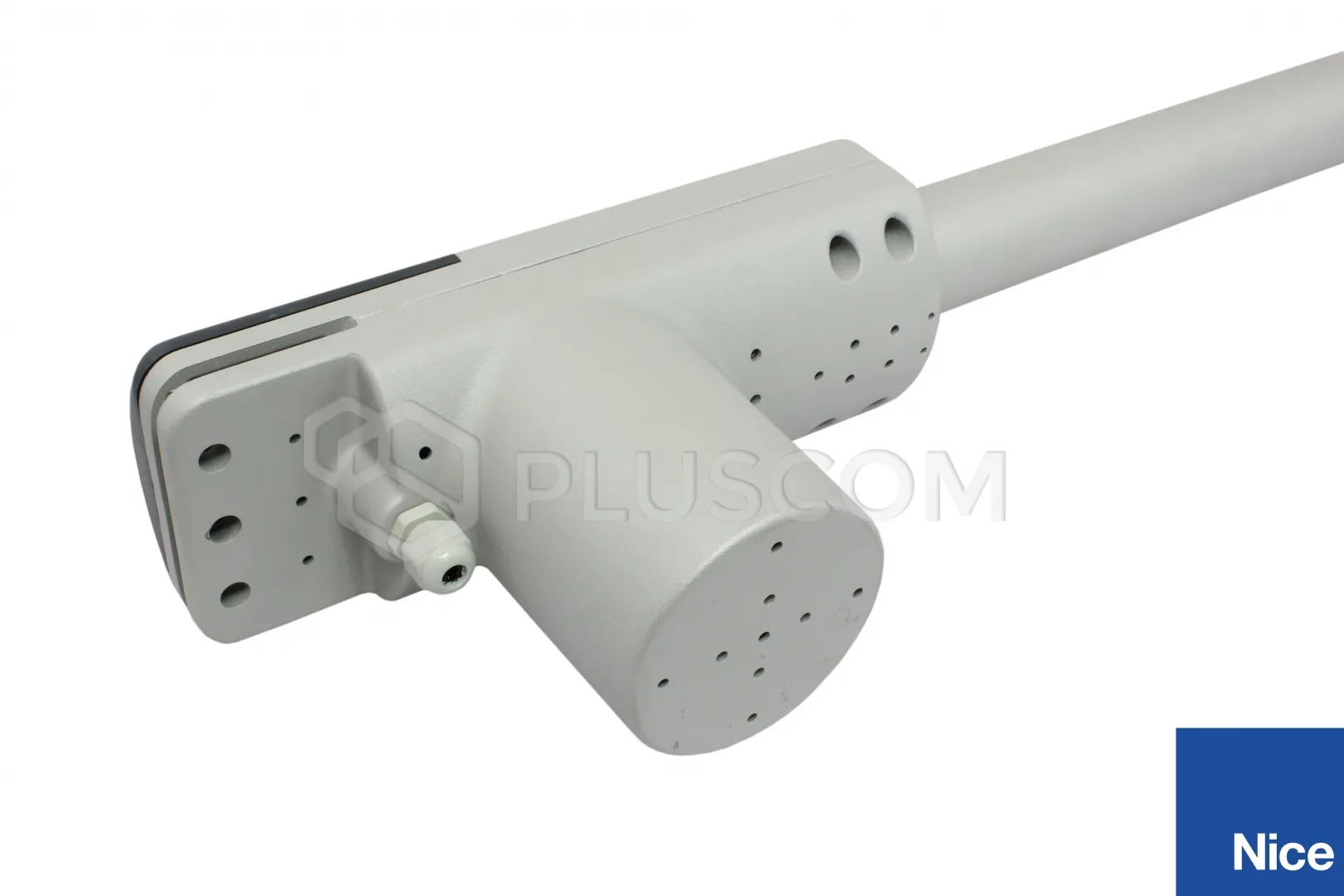

The TOO3000 is a self-locking actuator. After operation, the gate is
locked and cannot be opened manually, eliminating the need for additional

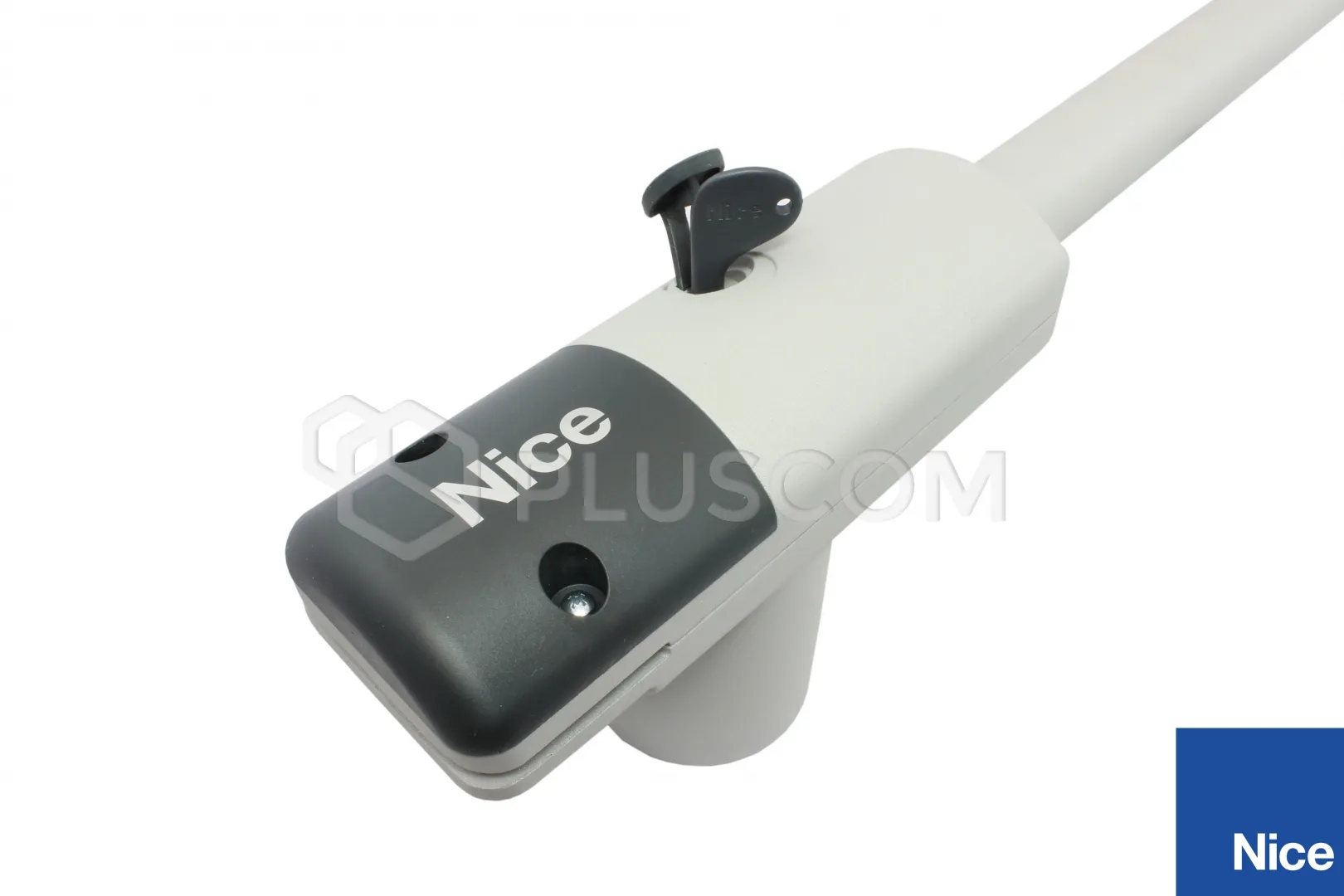

locks. In the event of a power outage, a Nice triangular key lock is used for
emergency release. Turning the key 90° clockwise releases the lock, allowing
manual opening of the gate. Turning the key counterclockwise further locks the
drive.
NICE MC800 CONTROL UNIT
The heart of the system is the proven and reliable MC800 control unit with the
latest specifications provided by the manufacturer for a given quarter
(firmware-optimized version), maintaining identical connection diagrams,
electrical parameters, and full functionality of the BlueBUS system and Yubii
device support.
It performs a number of useful functions:
- simple programming, works with Oview programmer
- simple programming, a friendly two-level programming method of 8 first
level functions (ON-OFF) and 8 parametric functions
- gentle start and release at closing
- function of partial opening of the gate - wicket
- controlling the operation of two 230V actuators
- semi-automatic, automatic operation
- auto programming during the first programming the control panel
automatically determines and memorises the end positions of the gate
- service of an electric lock
OXIBD bidirectional radio receiver for mounting directly
in the drive control unit.
The receiver can memorize up to 750
bidirectional transmitters or 1024 unidirectional transmitters.
The bidirectional radio protocol offers many advantages
(function
available only with ON3EBD remote controls):
- Extended radio range up to 500 m (max. 10 jumps)
- Confirmation of correct command reception by the automation
- Ability to check the automation status at any time
- High security thanks to encrypted communication
- Low power consumption in standby mode
compatible with
other Nice remotes, such as One and Flor, but is not compatible with the Smilo
system. Transmission security is ensured by a 72-bit dynamically changing code;
each transmission is different. Only the control unit into which the
transmitter has been programmed knows which code will be transmitted. A
practical and elegant remote control with an LED indicator on the remote that
signals signal transmission. A weak or absent LED signal indicates the need to
replace the batteries.
EPM photocells are made of polycarbonate material, ensuring
high product durability and a modern aesthetic appearance.
The classic, relay version, used for devices with a classic PHOTO/STOP input,
does not have an adjustable tilt angle. Therefore, it is important that they
are mounted on vertical and parallel walls.
The Nice ELAC warning light works with control units that supply 230V at the warning light output.
The light source is a super-bright LED emitting white light. An orange diffuser is installed above it to disperse the light. The LED is an energy-saving, reliable, and shock-resistant light source.
The housing, made of high-quality materials, is resistant to adverse weather conditions.
The light can be installed vertically or horizontally. A 433.92MHz antenna is integrated into the housing using a 50-ohm RG58 coaxial cable, which is connected to the control unit's antenna output, significantly increasing the range of the remote controls.
TECHNICAL DATA:
- Maximum leaf length: 3m
- Maximum leaf weight: 300kg
- Working cycles: 24 cycles/h

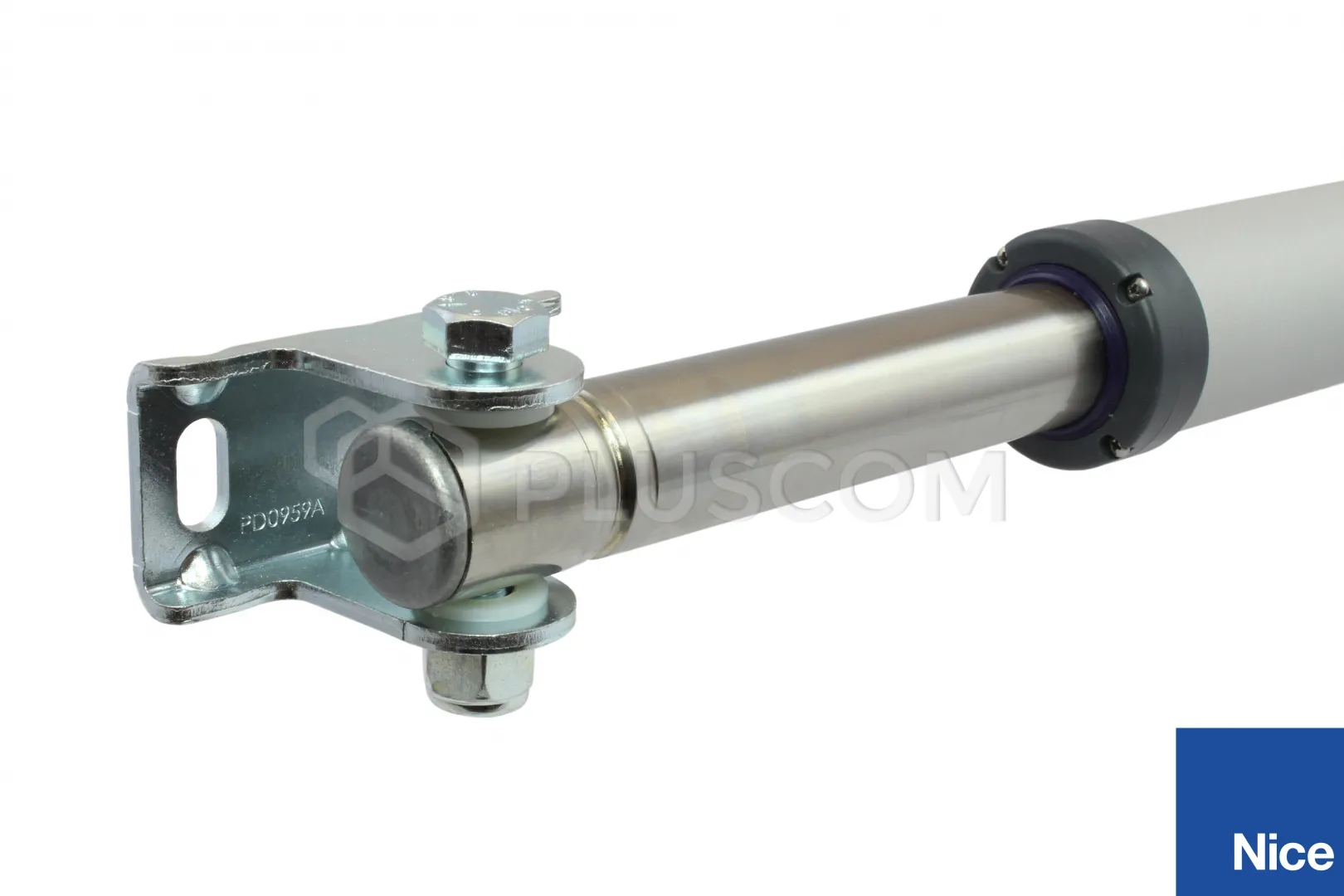

- Telescopic actuator stroke: 400mm
- Motor voltage: 230V
- Control unit voltage: 230V
- Nominal force: 300N, max 2000N
- Power consumption: 250W, max 340W
- Current consumption: 1.1A, max 1.5A
- Operating temperature: -20°C...50°C
- Dimensions: 700x100x177(h)mm
- Weight: 5.5kg
