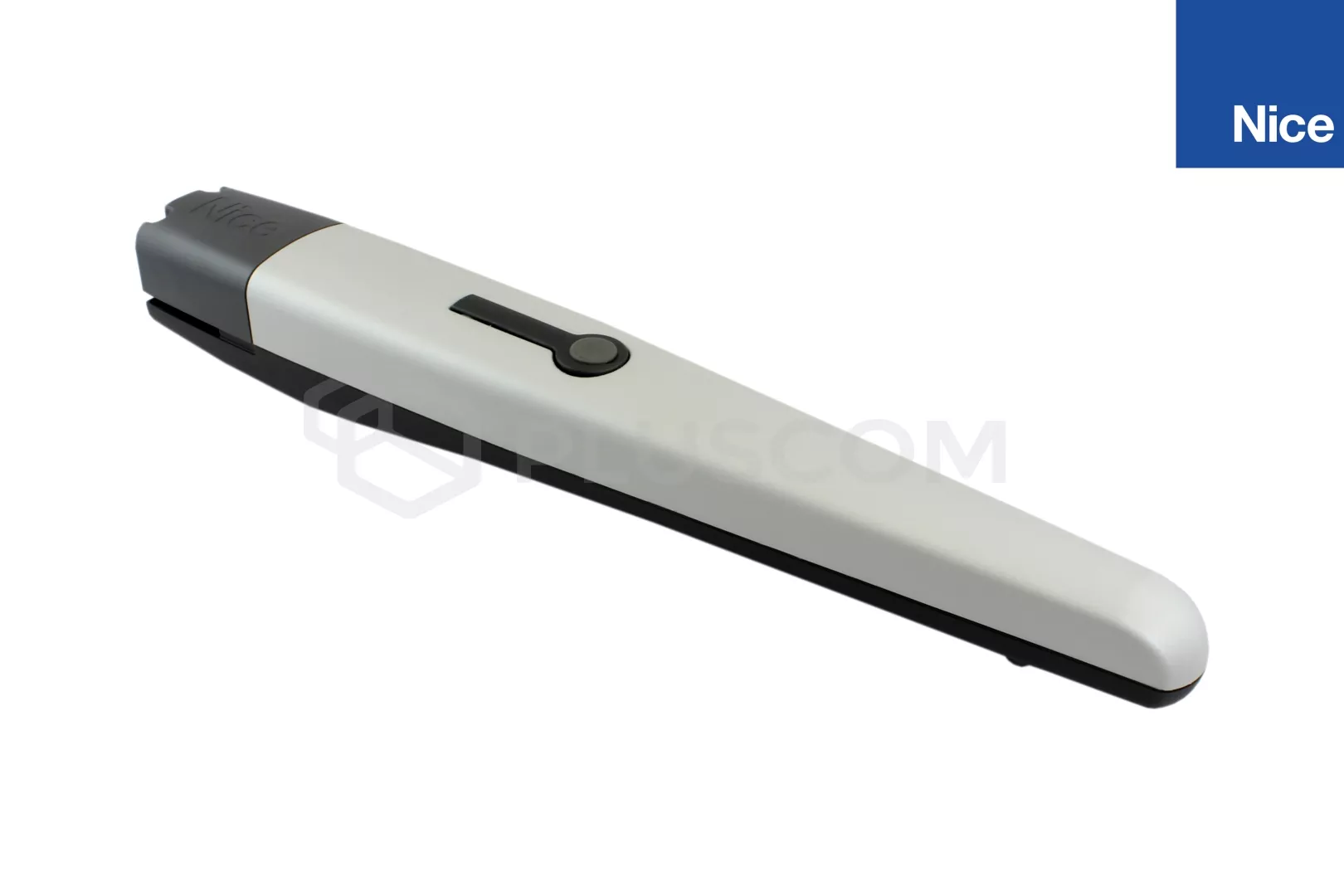

Nice TO4005 Self-locking gearmotor TOONA for swing
gates 3m / 300kg, motor 230V
APPLICATION:
Version with a 230V motor designed for home use. Where is the number of cycles
opening and closing does not exceed 50 a day. TOONA actuators stand out more
strength and a reinforced structure to cope with heavier and longer gate wings.
TOONA 4005 is especially recommended for gates with the following parameters:
- leaf length 3m
- weight 300kg
TOONA is designed for wide brick posts.
Embedding the hinge on the
post should not exceed 15cm . (dimension C in the drawing below)

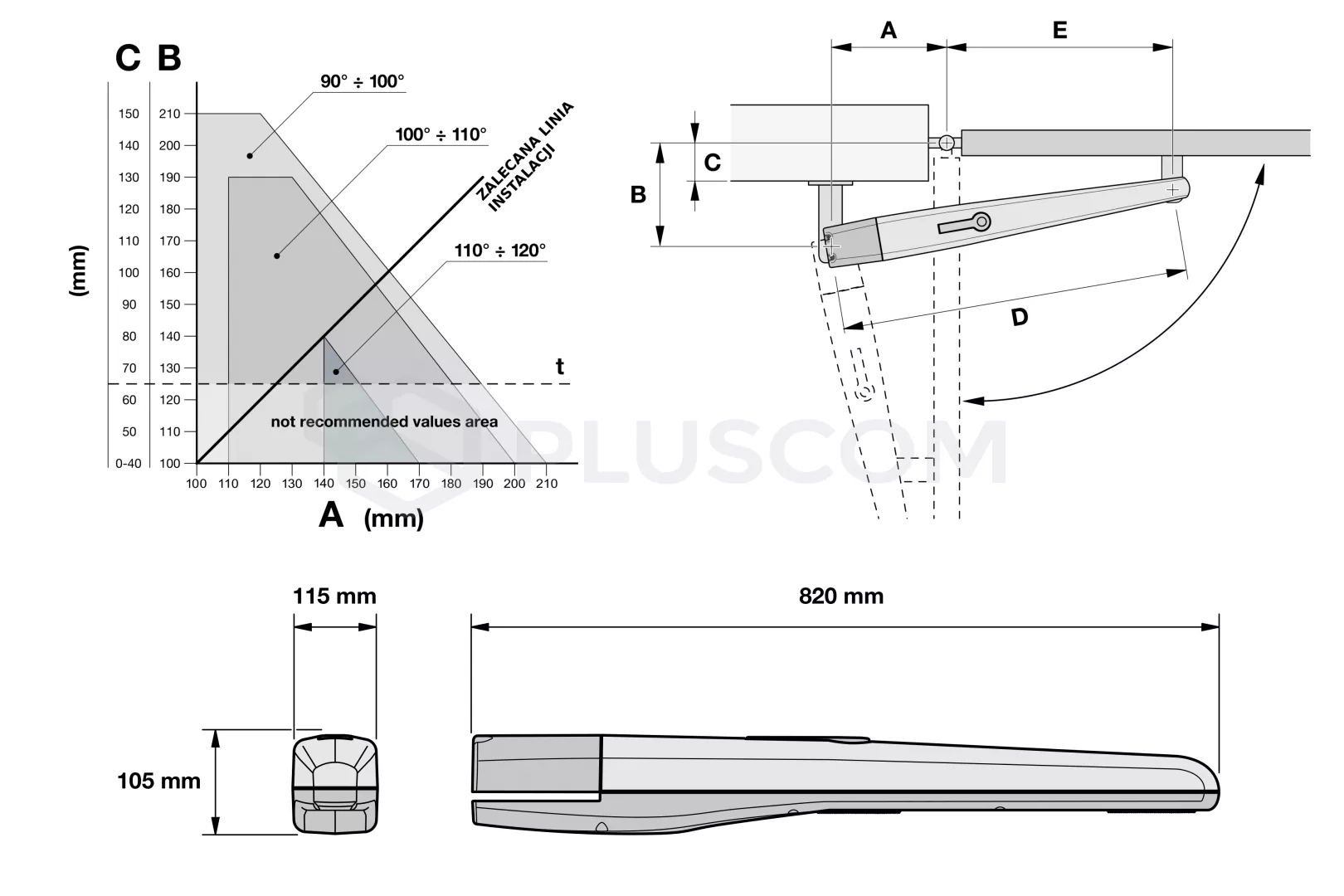

Mounting dimensions:
The current third generation cylinders are of high quality materials. The solid
housing with two aluminum covers is secured polyester varnish. Internal
elements are made of light steel alloys and techno-polymers.
The actuator is resistant to adverse weather conditions. It is reliable and
durable. Service is limited to one a year maintenance review. In return, he
will work for many years. The manufacturer confirms failure-free operation with
a long warranty period that may be extended up to 5 years
TOONA actuators can be installed in place of the older MOBY actuators (full
mounting compatibility).
To control the operation of TOONA 230V actuators, the MC800 control
unit is recommended, which implements a series useful functions:
- simple programming, works with Oview programmer
- simple programming, a friendly two-level programming method of 8 first
level functions (ON-OFF) and 8 parametric functions
- gentle start and release at closing
- function of partial opening of the gate - wicket
- controlling the operation of two 230V actuators
- semi-automatic, automatic operation
- auto programming during the first programming the control panel
automatically determines and memorises the end positions of the gate
- service of an electric lock
The actuator is equipped with an end stop in opening. To
for emergency disengagement of the drive, an aluminum lever is used. Together
with the actuator Included are handles for mounting the gearmotor on the post
and the gate leaf. The handles require welding.

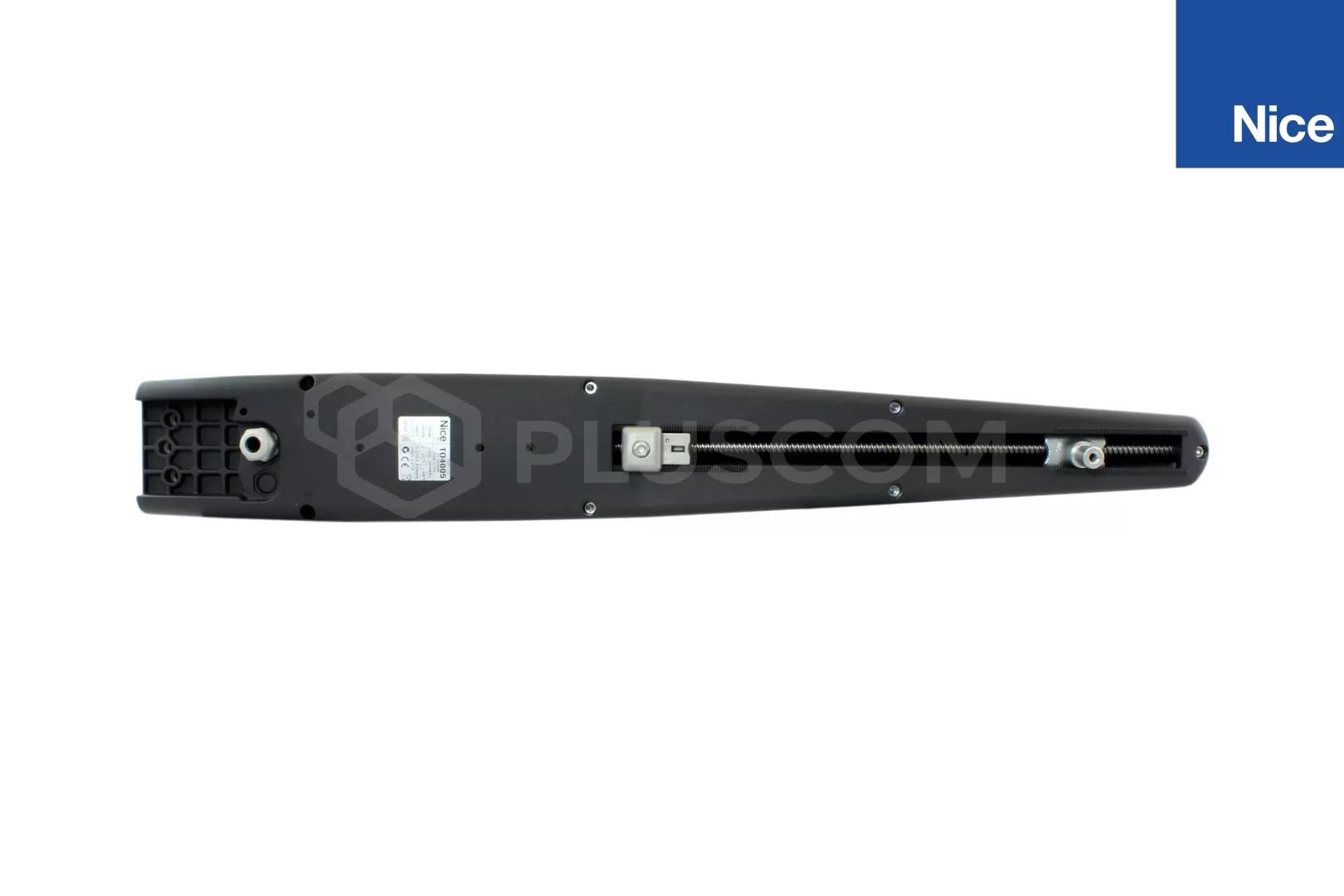

Bottom view, limit switch on opening:

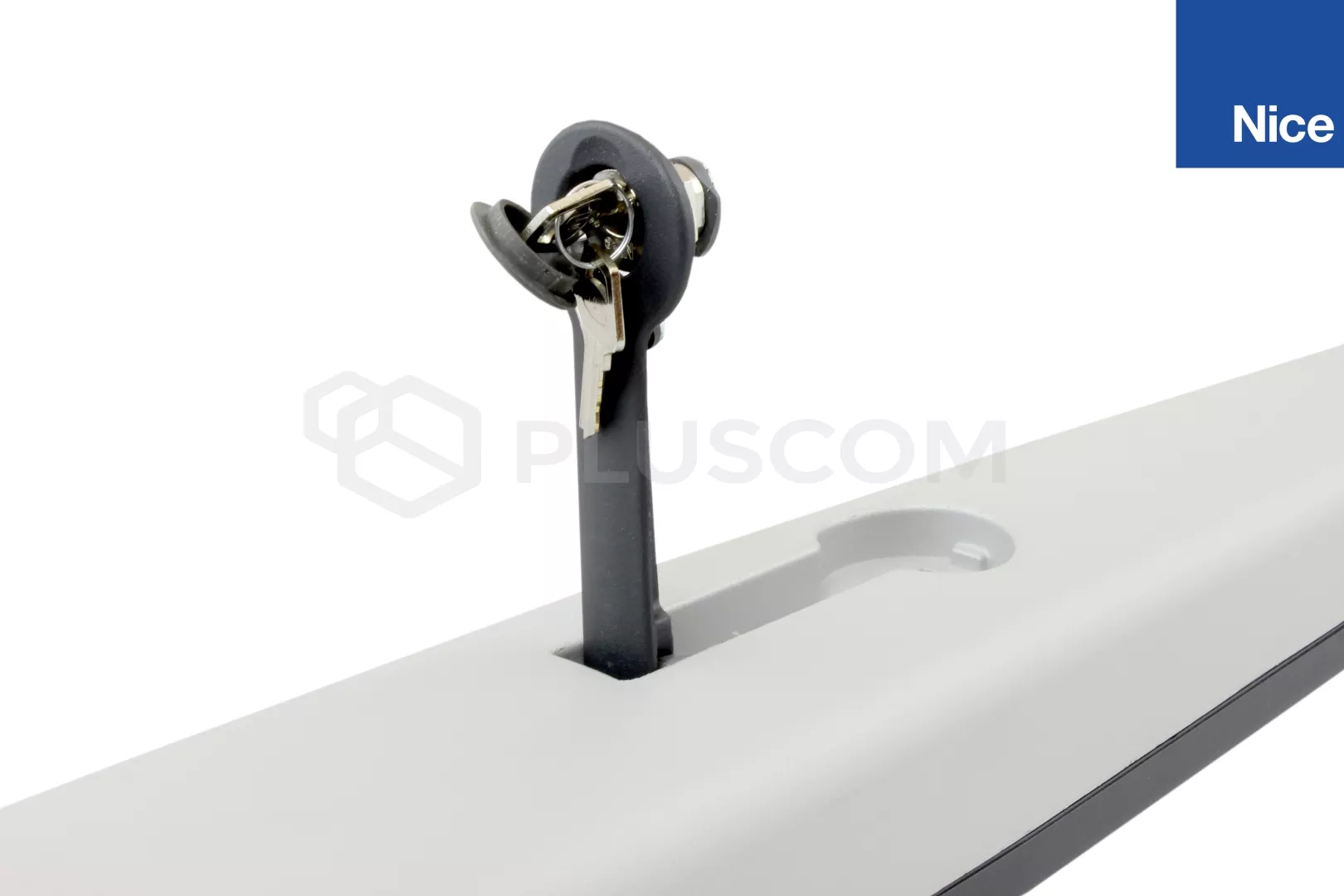

Release handle:

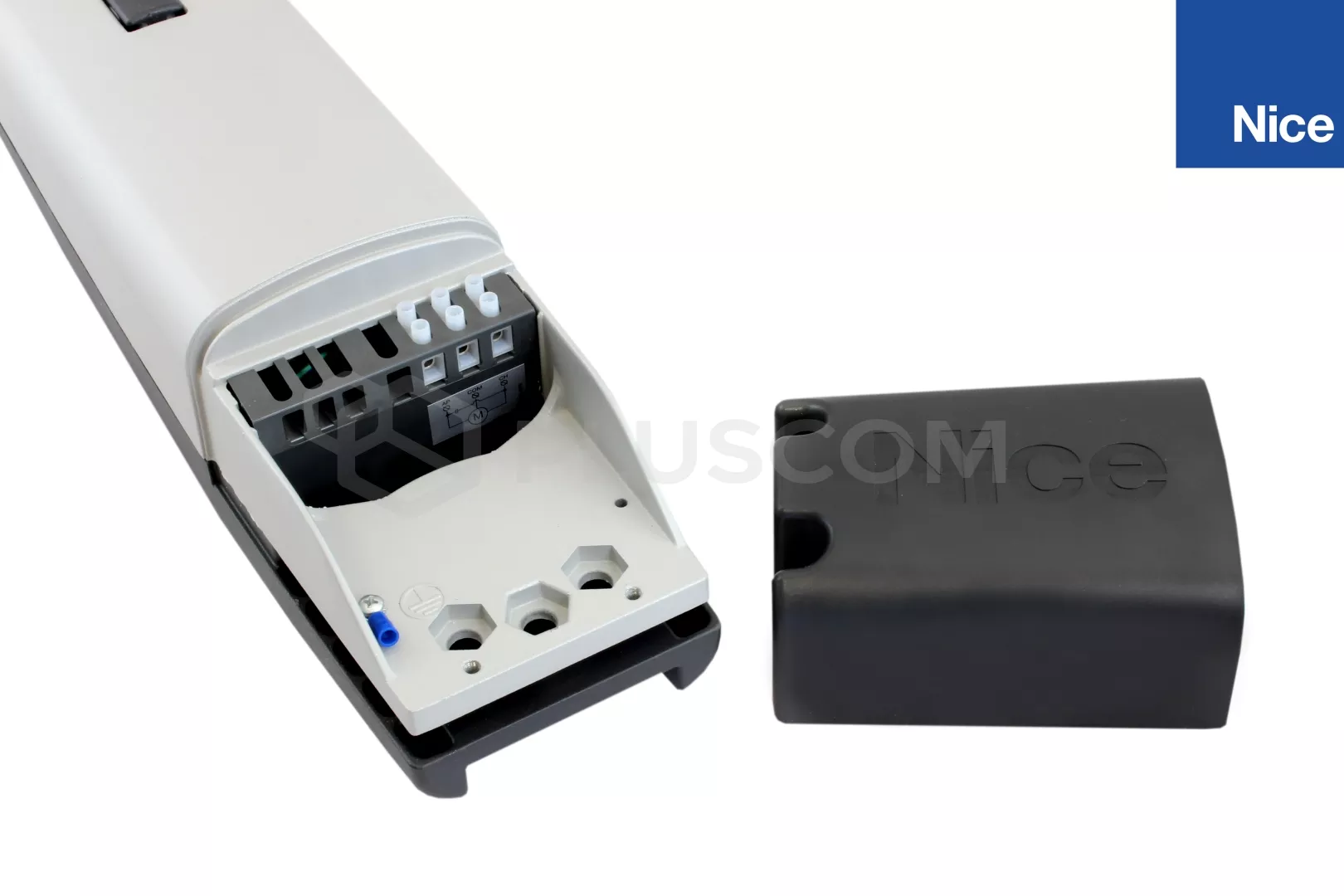

Easy access to internal parts:

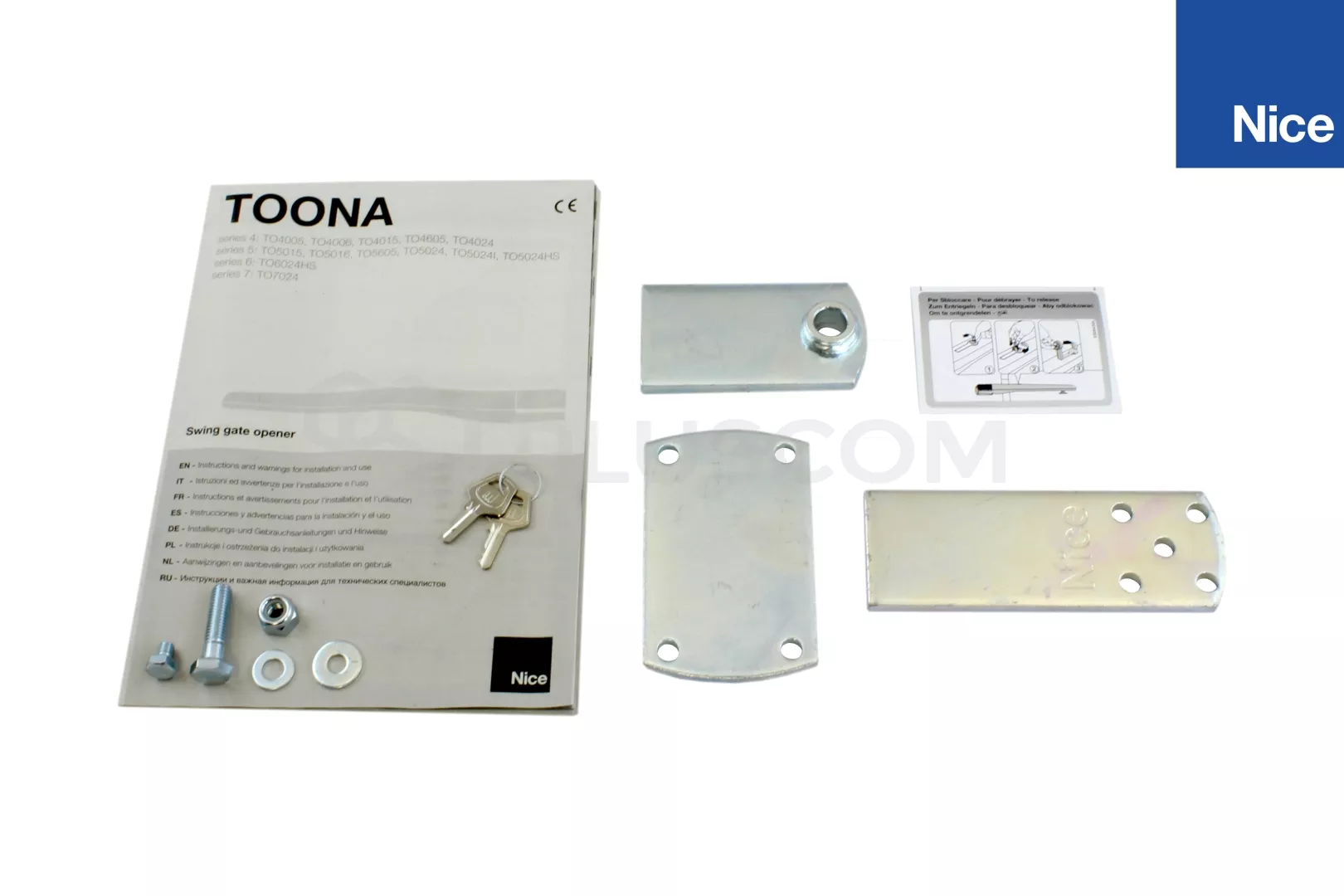

Accessories:
