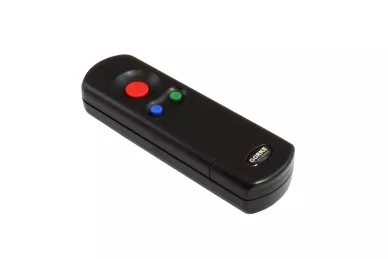

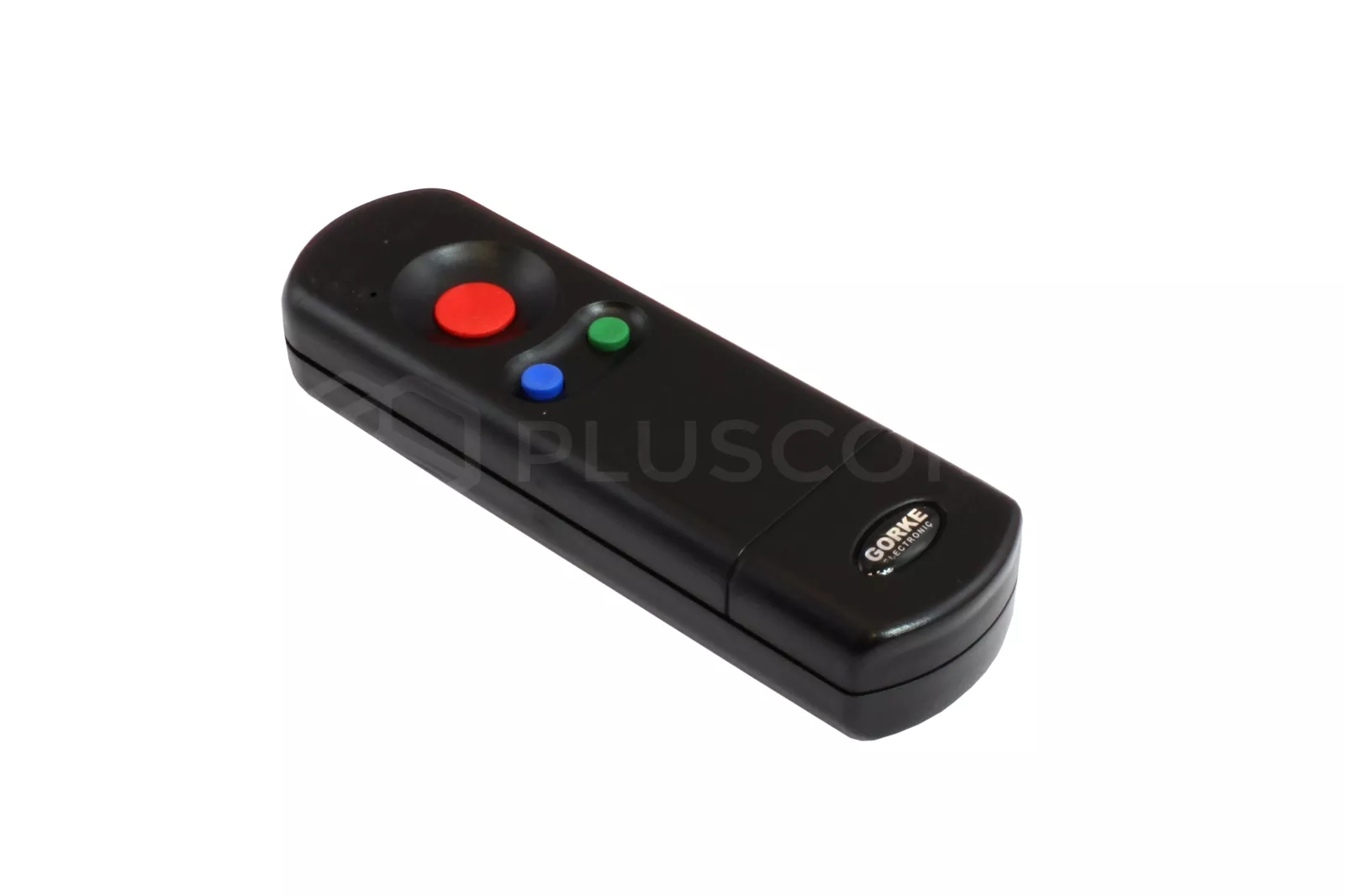

Gorke PUK-303 3-button remote control, panic

The pilot GORKE PUK-303 has three buttons which are located in the recesses. Distinctive "big" button can function as a panic. Other potential applications include remote control of the remote control

• the alarm system
• gate, barrier
• blind, shutter
• electromagnetic locks
• lighting, air conditioning


The transmission is based on a variable code which provides a high safety of use and resistance to radio signals from other sources.

The pilot does not have a low battery signal. No light when you press a key, or a significant reduction in the operating range of the remote control may need to replace the batteries.

Systems built with the remote control and receiver class superreakcyjnej (RSU) achieve a range of up to 300m. In contrast, the PUK 303 remote configuration of superheterodyne receiver class (eg. OPC) to 600 meters.

The reported ranges refer to the open space where the transmitter "sees" with the receiver.
If between the transmitter and the receiver are obstacles, there should be a reduction in the operating range according to:

• wood and plaster of 5-20%
• brick by 20-40%
• reinforced concrete by 40-80%


In particular, avoid metal obstacles.
