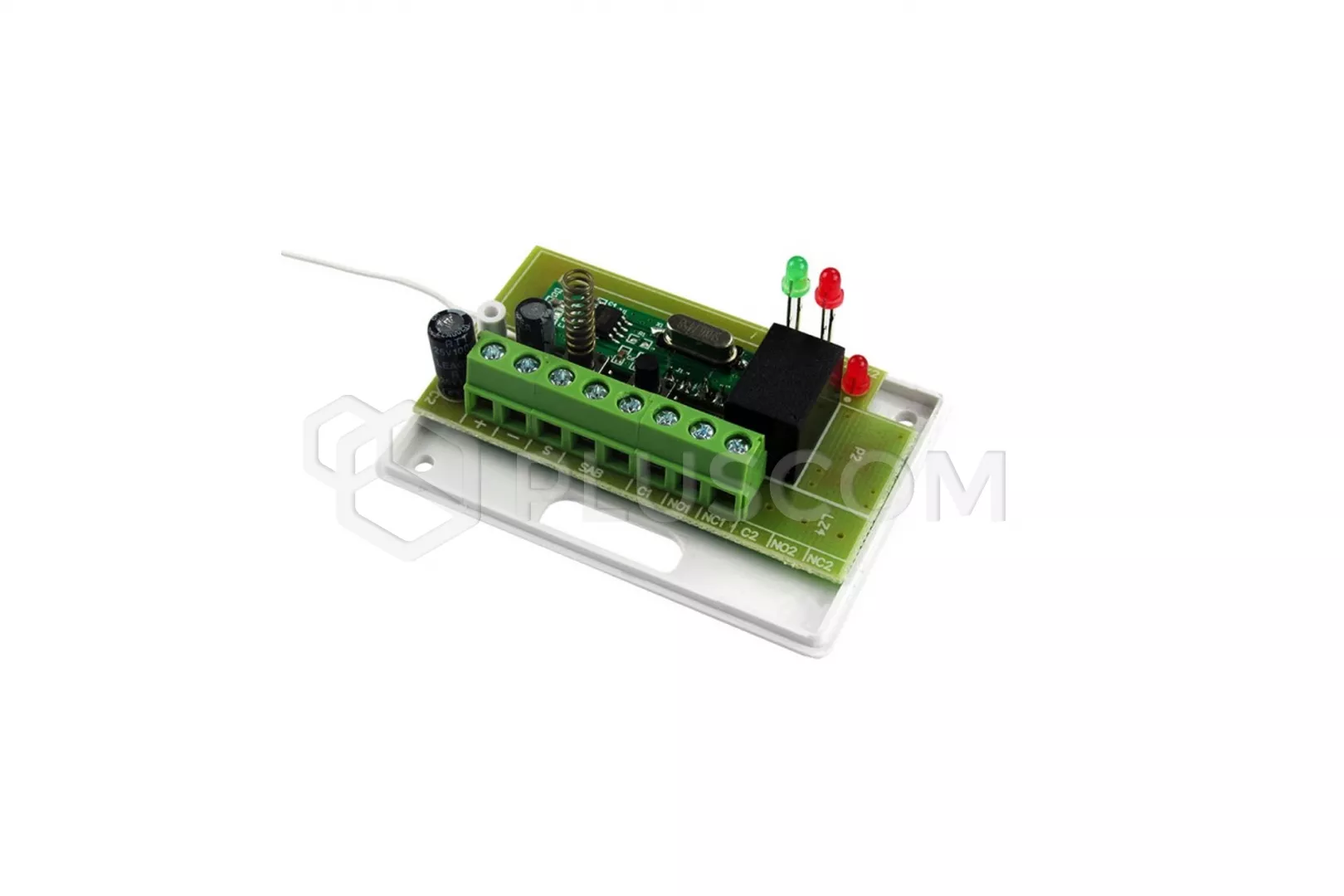

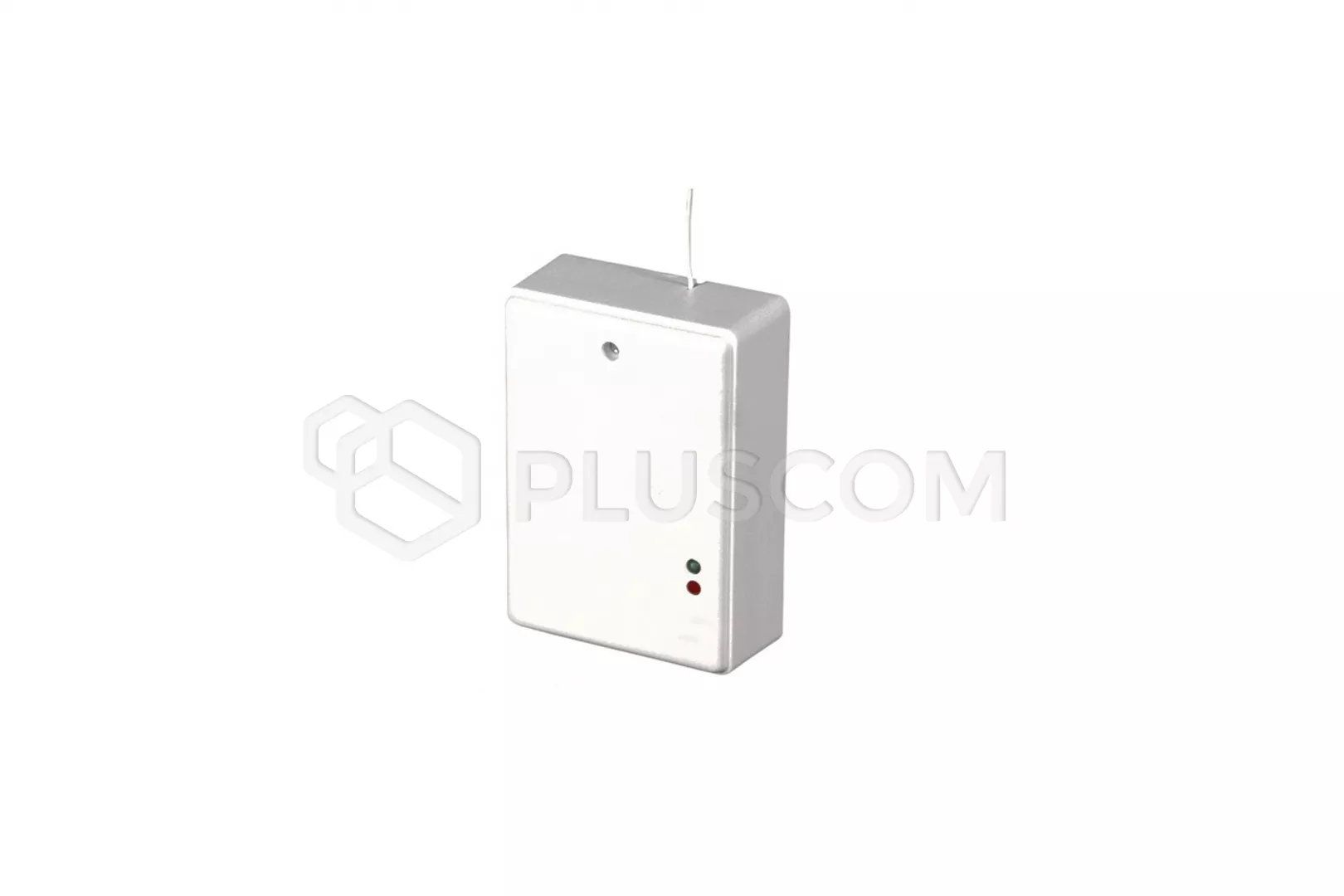

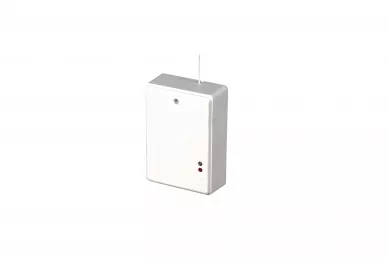

RSU-K01 is a radio, 1-channel relay receiver for indoor installation. Works with any sA series transmitter, operating ranges depend on the type of transmitter that is used with the receiver has been selected and can range from 100 to 500 meters (see compatibility and range table).
The receiver can operate in bistable mode (on-off) or monostable mode (relay is switched on for programmed time).

The transmission is based on a rolling code ensuring high security use and immunity to radio signals from other devices. Each transmitter has its own individual code. The receiver only responds to these transmissions that come from transmitters programmed into its memory.

Application:

• remote control of devices connected to the receiver outputs, e.g. entrance and garage gates, blinds, blinds, electromagnetic locks, lighting, pumps, air conditioning, etc.
• in alarm systems - as a panic button, zone control, etc.

TECHNICAL PARAMETERS:

• power supply: 12V DC (10-15V DC)
• idle current draw: 12mA
• maximum current consumption: 40mA
• relay output: 1A/ 30V DC
• signaling output: 0.5A/12V DC
• tamper output: 50mA/ 12V DC
• frequency: 433.92 MHz
• encoding: rolling code
• number of channels: 1
• heterodyne H1 receiving module (sensitivity -108 dBm)
• cooperation: sA series receivers
• operating temperature: -10 ÷ +55 ºC
• dimensions: 48x68×26mm
