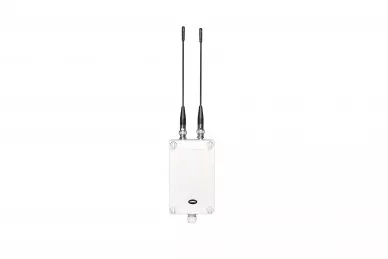

Gorke RTS-1000 Repeater with 1000 remote controls

Gorke RTS-1000 Repeater 1000 remote controls

The RTS-1000 repeater is an element that extends the functionality and operational reliability of radio systems. It allows you to increase the range of radio transmission of alarm and control signals. RTS-100 is a dedicated repeater and amplifies only the signals of transmitters programmed into its memory.

Supports all types of transmitters/remote controls manufactured by GORKE Electronic (including NRP102K). The reception range depends on the type of transmitter whose signal is to be amplified (see the range table). The amplification range is 1000 meters.

Application:

• increasing the operating range of radio devices
• cost reduction in multi-user installations with the need to send the signal over a significant distance (several hundred meters). And here, instead of using long-range remote controls, you can use cheaper remote controls, e.g. the PUK type
• as a radio relay station, transmitting information from a remote facility to several receivers

The radio transmission between the transmitter and the receiver is based on a variable code, which ensures high safety of use and resistance to radio signals from other devices. Each transmitter has its own individual code. The repeater responds (and amplifies) only those transmissions that come from transmitters programmed into its memory.

TECHNICAL DATA:

• frequency: 433.92 MHz
• encoding: variable code
• receiving module: heterodyne H2
• memory capacity: 1000 keys
• power supply: 12V DC(9-15V DC)
• power consumption:
• resting 26 mA (voltage 12V DC)
• maximum 45 mA
• operating modes: immediate or delayed
• operating temperature: -10÷ +55 °C
• humidity (max): 93±3%
• dimension: 130x80x35 mm
• cooperation: any GE transmitter
• housing tightness: IP 65
• antenna: 2x independent, receiving and transmitting rod, BNC connector 50 Ohm
