Gorke RSU-K04 4-channel receiver

34,26 EUR including 23.00% VAT
Product code: #25657
Manufacturer: Gorke
  • 4-channels receiver
  • Range: up to 500m
  • Rolling code
  • Memory: 40 keys
  • Operating modes: monostable, bistable, momentary and two-key
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Gorke PUK-303 3-button remote control, panic Gorke PUK-104 4-button remote control Gorke PUK-144 4-key remote control

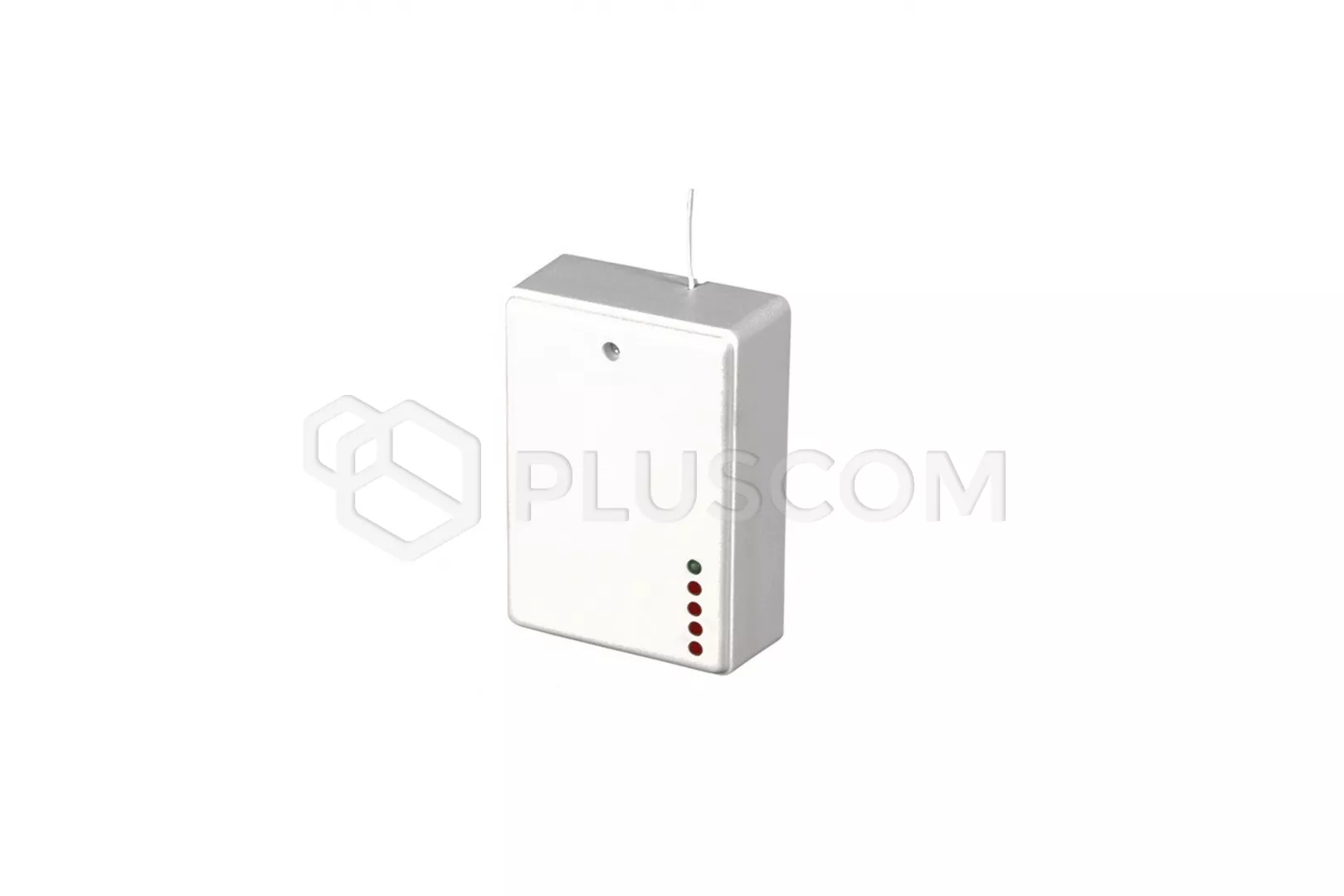

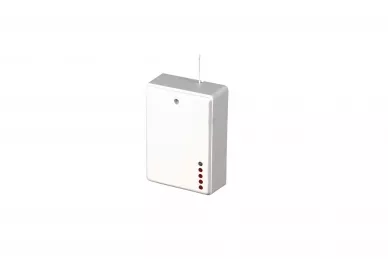

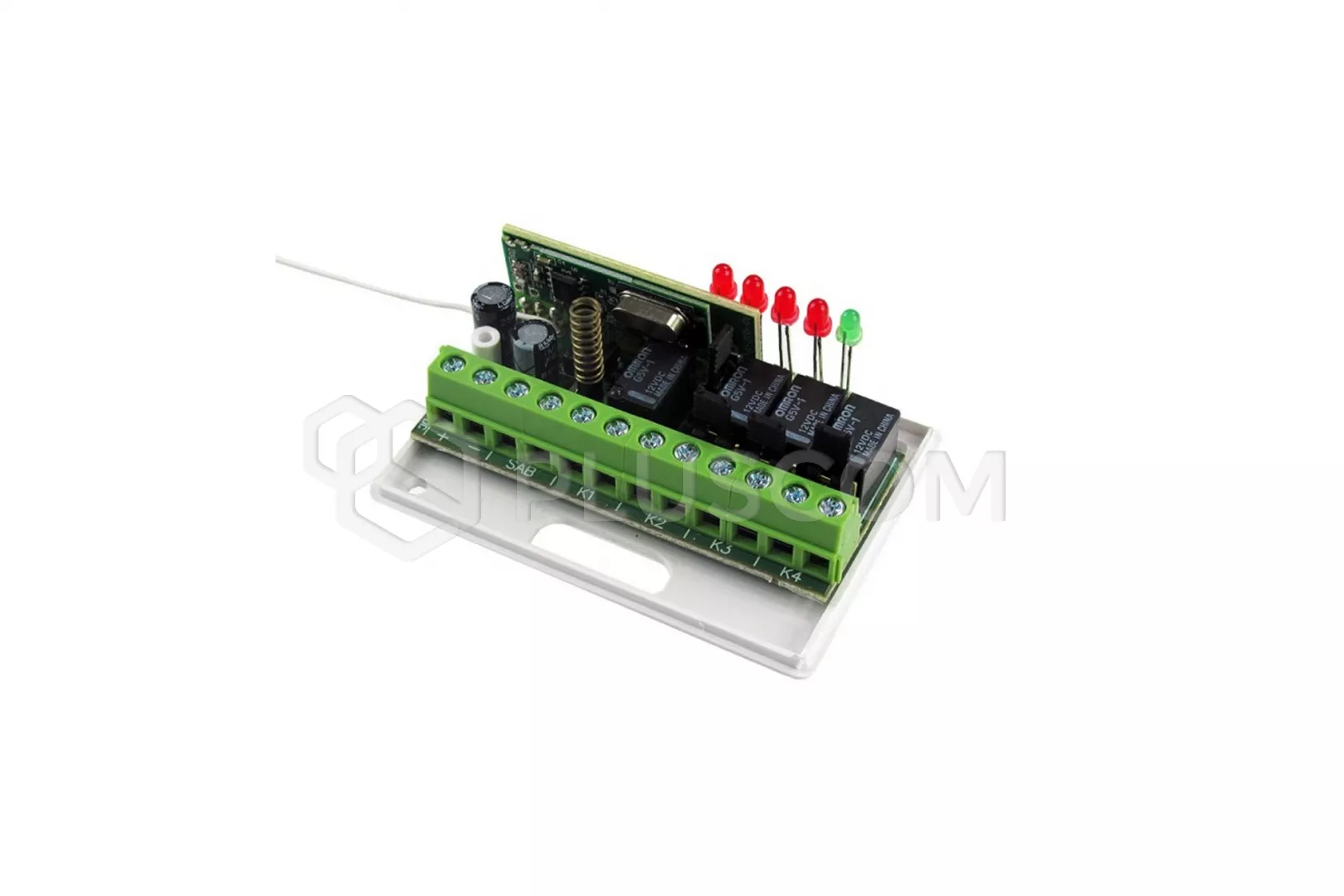

Gorke RSU-K04 4-channel receiver


RSU-K04 is a radio, 4-channel relay receiver for installation in indoors. Works with any sA series transmitter, operating ranges depend on the type of transmitter that was used to work with the receiver selected and can range from 100 to 500 meters (see compatibility table and ranges).
The receiver can work in bistable (on-off) and monostable mode (the relay is switched on for the programmed time) with the two-key (one key turns on, another turns off the relay) and momentary.
Each channel can operate in one of four operating modes.

The transmission is based on a rolling code ensuring high security use and immunity to radio signals from other devices. Each transmitter has its own individual code. The receiver only responds to these transmissions that come from transmitters programmed into its memory.

Application:
  • remote control of devices connected to the receiver outputs, e.g. entrance and garage gate, roller shutters, blinds, electromagnetic locks, lighting, pumps, air conditioning, etc.
  • in alarm systems - as a panic button, zone control etc.

TECHNICAL DATA:
  • power supply: 12V DC (10-15V DC)
  • idle current draw: 14mA
  • maximum current consumption: 80mA
  • relay output: 1A/ 30V DC
  • tamper output: 50mA/ 12V DC
  • frequency: 433.92 MHz
  • encoding: rolling code
  • number of channels: 4
  • memory: 40 keys
  • heterodyne H1 receiving module (sensitivity -108 dBm)
  • cooperation: sA series receivers
  • operating temperature: -10 ÷ +55 ºC
  • dimensions: 48x68×26mm
