Gorke OPC-K2/303 set

Gorke OPC-K2/303 set of 2-channel OPC-K02 receiver and remote control PUK-303

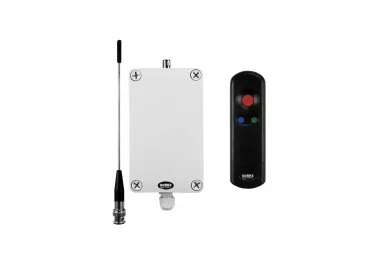

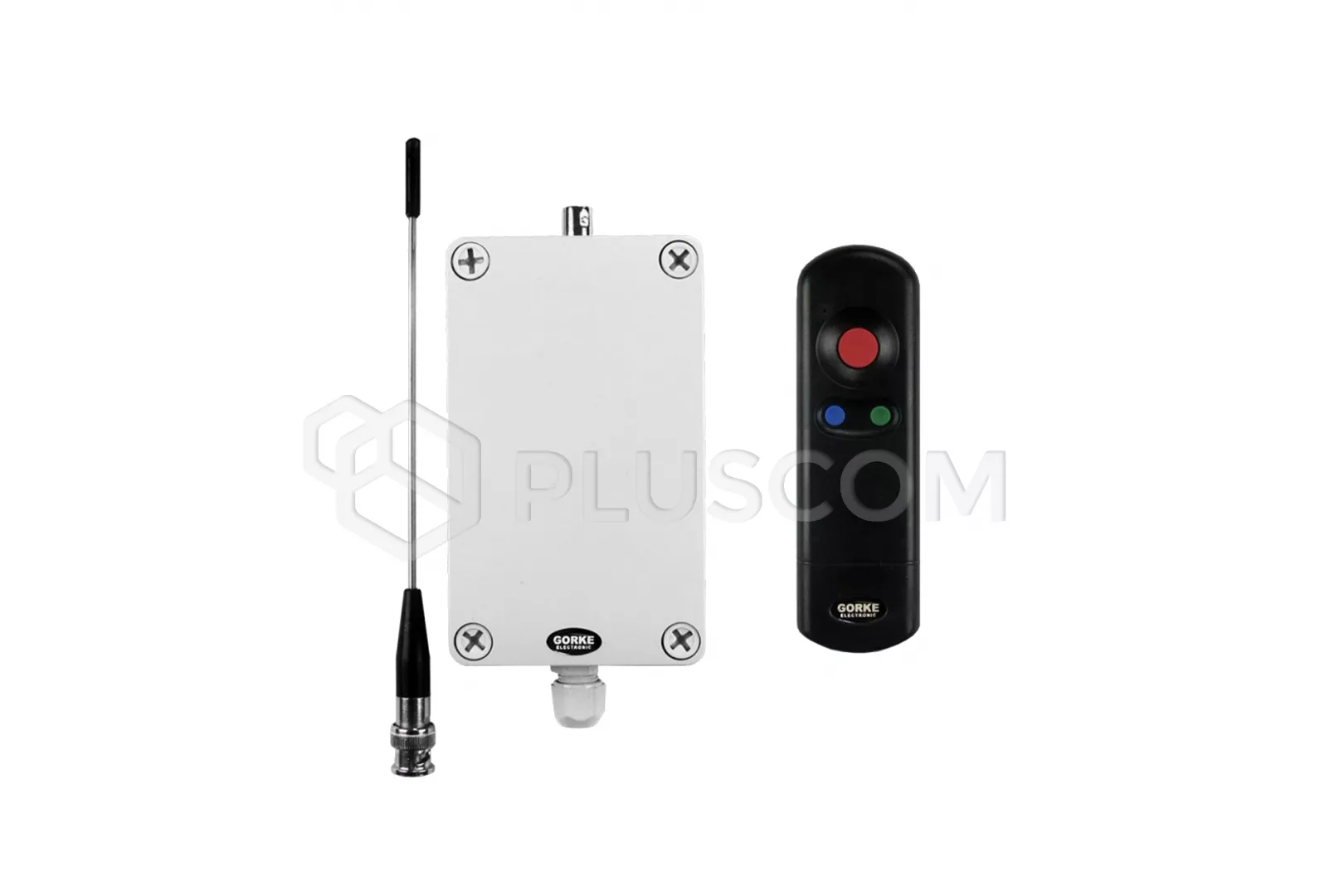

OPC-K2/303 is a ready-to-use set consisting of a 2-channel receiver OPC-K02 and PUK-303 remote control. The working range is up to 600 meters in space open.
The set is designed to remotely control the operation of devices connected to receiver outputs, e.g. entrance and garage gates, blinds, blinds, locks electromagnetic, lighting, pumps, air conditioning, etc. a in systems as a panic button, zone control, etc.

The transmission is based on a rolling code ensuring high security use and immunity to radio signals from other devices. Each transmitter has its own individual code. The receiver only responds to these transmissions that come from transmitters programmed into its memory.

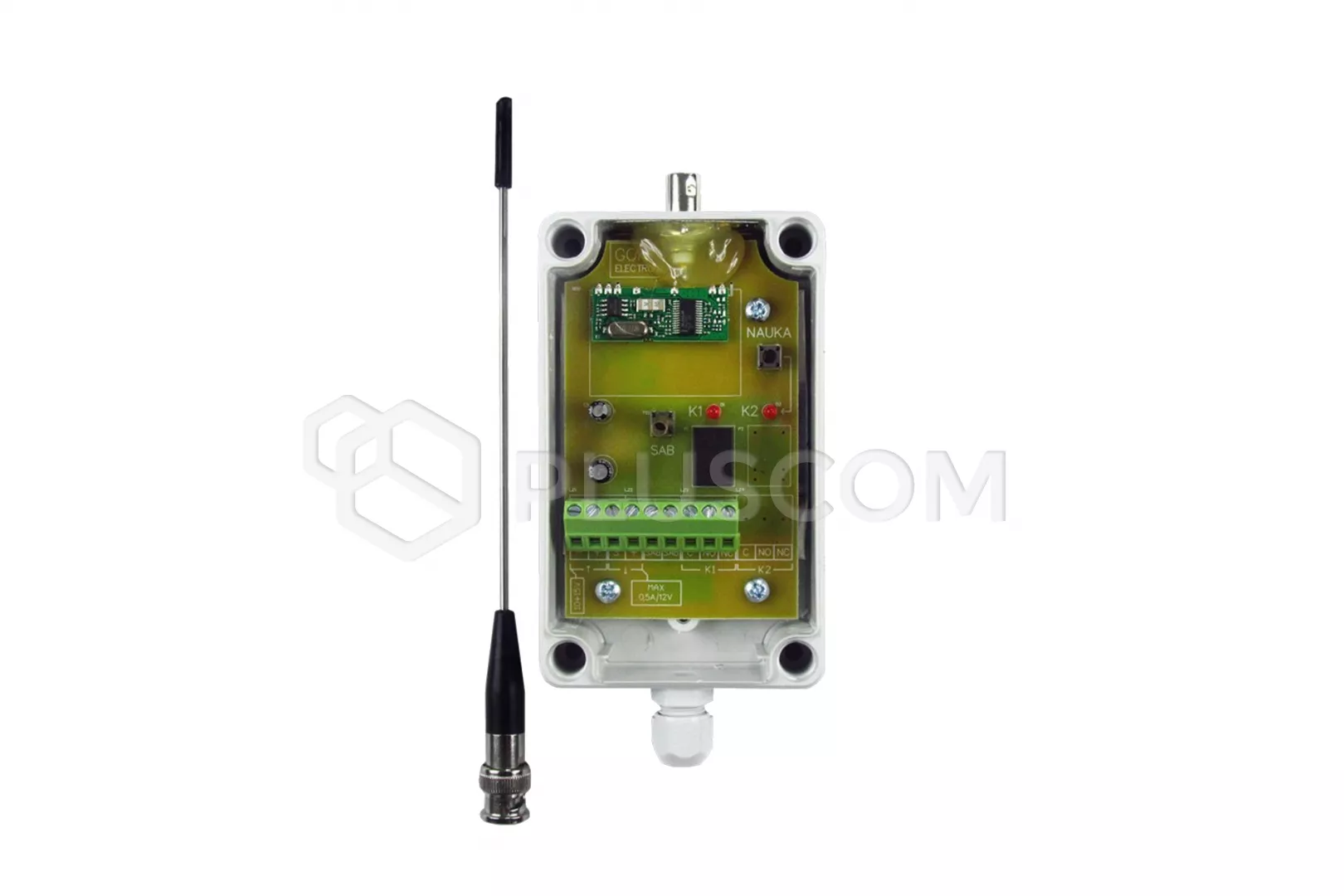

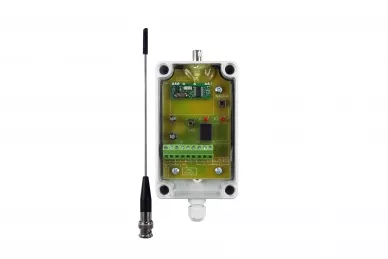

RECEIVER TECHNICAL PARAMETERS:

• power supply: 12V DC(10-15V DC)
• power consumption:
• • resting: 14mA
  • maximum: 75mA
• number of channels: 2
• frequency: 433.92 MHz
• encoding: rolling code
• cooperation: any sA series transmitter
• receiving module: heterodyne H2
• memory capacity: 113 transmitters
• relay operating modes: monostable, bistable
• monostable time range: ~1s - 256s (4min 16s)
• load capacity:
• • relay output: 1A/ 30V DC
  • sygnaling output: 0.5A/ 12V DC
  • tamper output: 50mA/ 12V DC
• antenna: rod, 50 Ohm BNC connector
• IP65
• operating temperature: -10÷ +55 °C
• dimensions: 130x80x35 mm

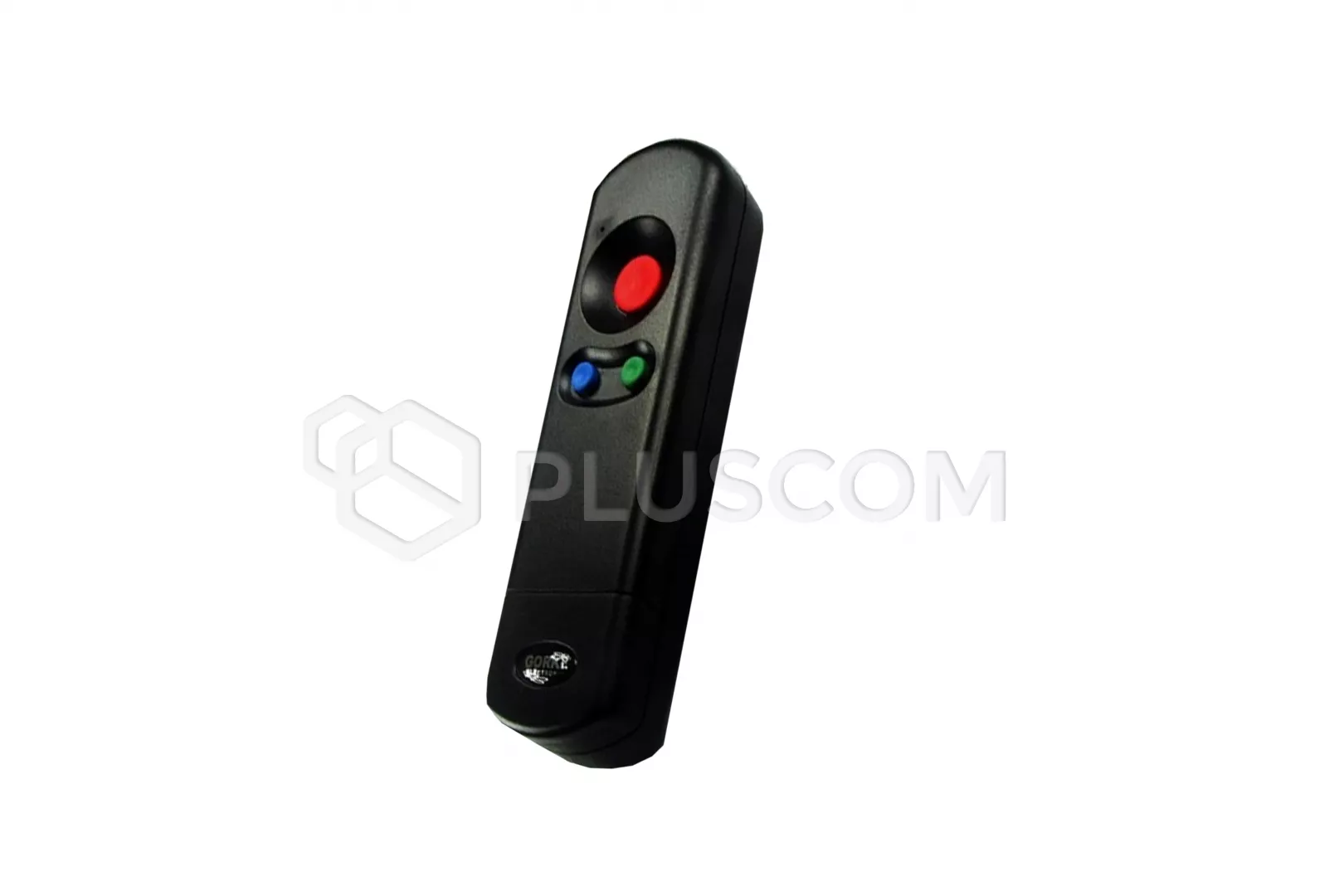

TECHNICAL PARAMETERS OF THE TRANSMITTER:

• power supply: 1 x 6F22 9V alkaline battery
• frequency: 433.92 MHz
• encoding: rolling code
• number of keys: 3
• transmission power: ≤+8 dBm
• work ranges:
• • receiver with H1 module (e.g. RSU) 300 m
  • receiver with H2 module (e.g. OPC) 600 m
• cooperation: sA series receivers
• operating temperature: -10 ÷ +55 ºC
• dimensions: 125×38×22mm
• Weight: 89g
