Gorke ANT-K01/1 Set

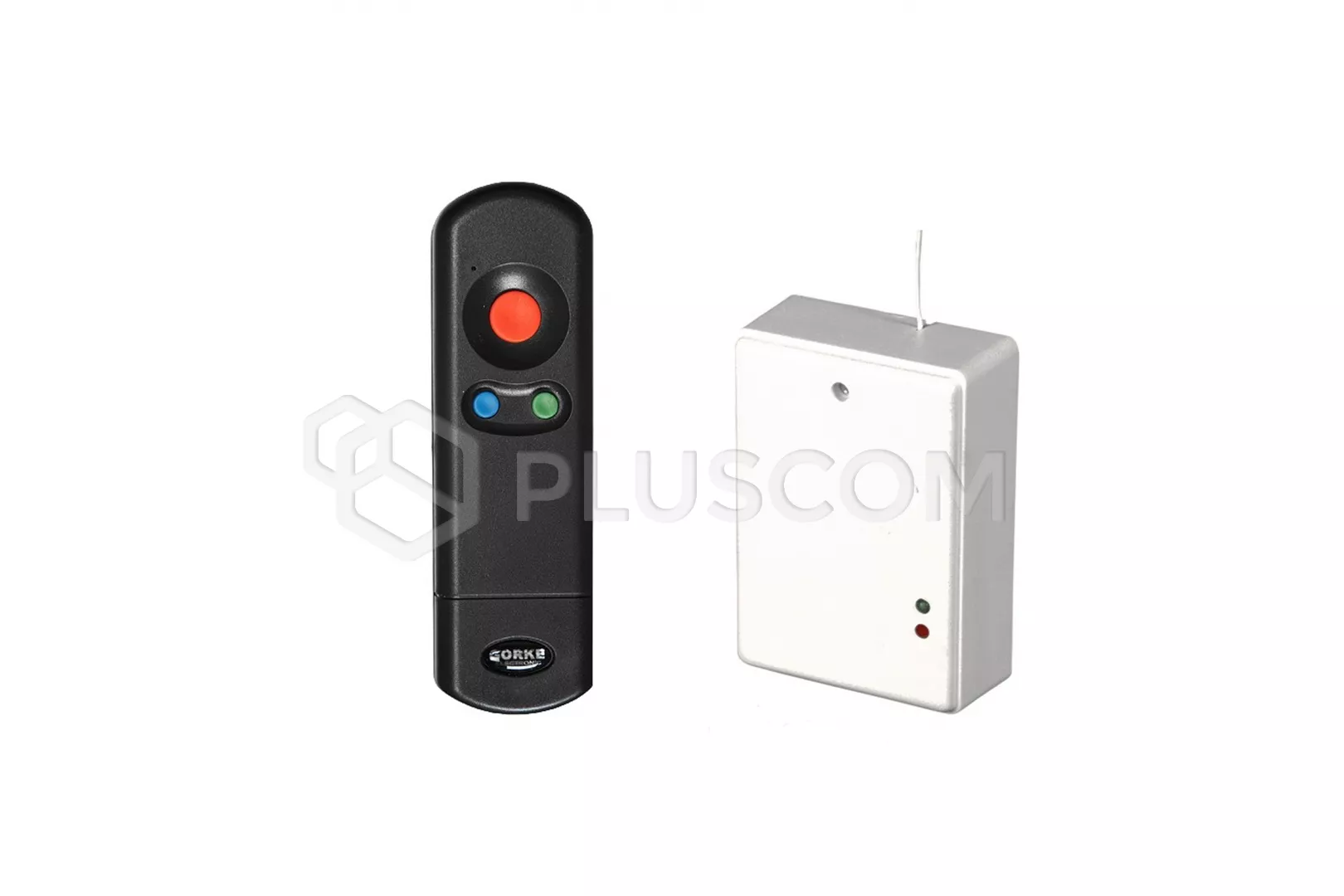

Gorke ANT-K01/1 set of 1-channel RSU-K01 receiver and remote control PUK-303

ANT-K01/1 is a ready-to-use set consisting of a 1-channel receiver RSU-K01 and PUK-303 remote control. The working range is approx. 300 meters in space open.
The set is designed to remotely control the operation of devices connected to receiver outputs, e.g. entrance and garage gates, blinds, blinds, locks electromagnetic, lighting, pumps, air conditioning, etc. a in systems as a panic button, zone control, etc.

The transmission is based on a rolling code ensuring high security use and immunity to radio signals from other devices. Each transmitter has its own individual code. The receiver only responds to these transmissions that come from transmitters programmed into its memory.

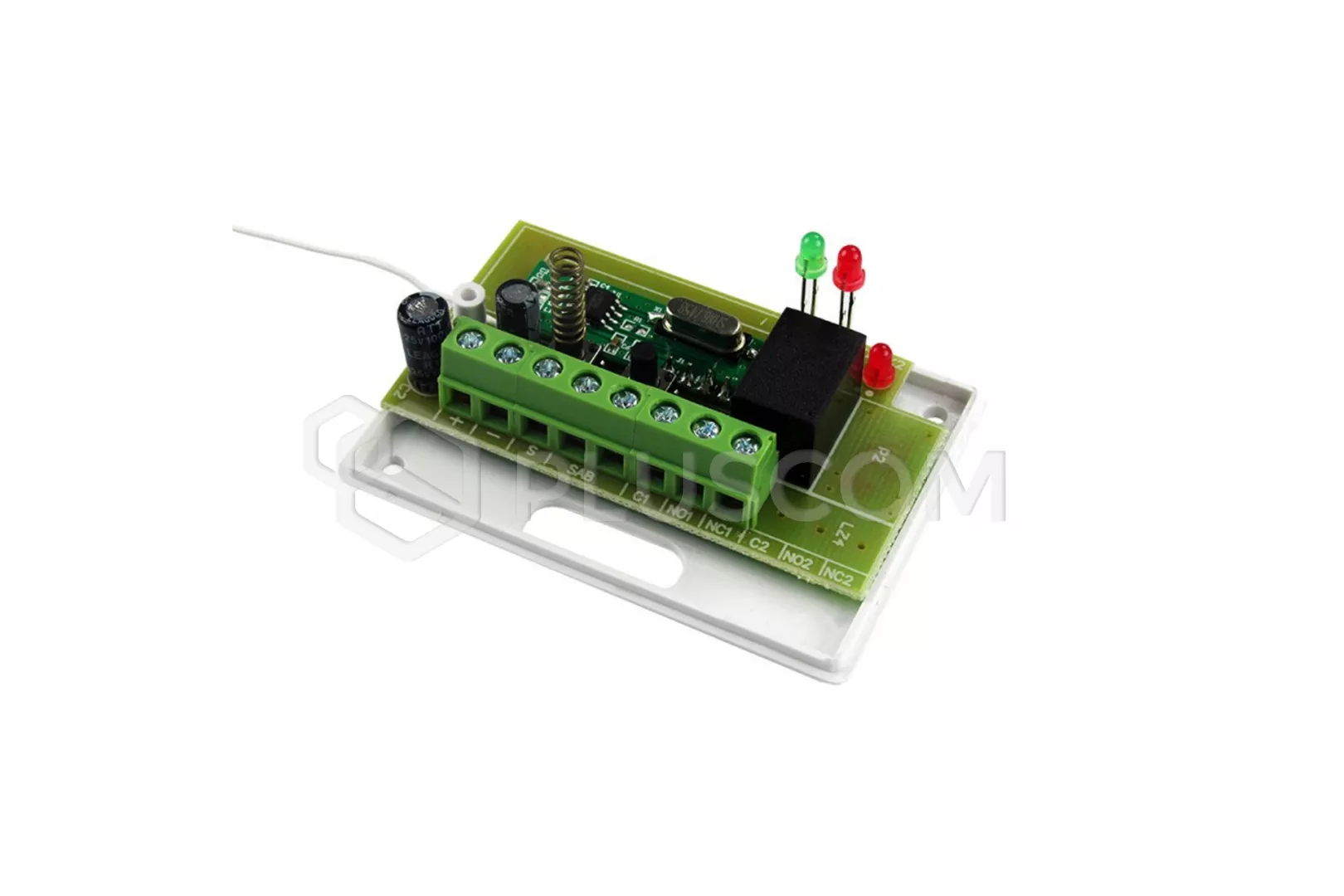

RECEIVER TECHNICAL PARAMETERS:

• power supply: 12V DC(10-15V DC)
• power consumption:
• • resting: 17mA
  • maximum: 40mA
• number of channels: 1
• frequency: 433.92 MHz
• encoding: rolling code
• cooperation: any sA series transmitter
• receiving module: heterodyne H1
• memory capacity: 113 transmitters
• relay operating modes: monostable, bistable
• monostable time range: ~1s-4min20s
• load capacity:
• • relay output: 1A/ 30V DC
  • transistor output: 0.5A/ 12V DC
  • tamper output: 50mA/ 12V DC
• operating temperature: -10÷ +55 °C
• dimensions: 68x48x26mm

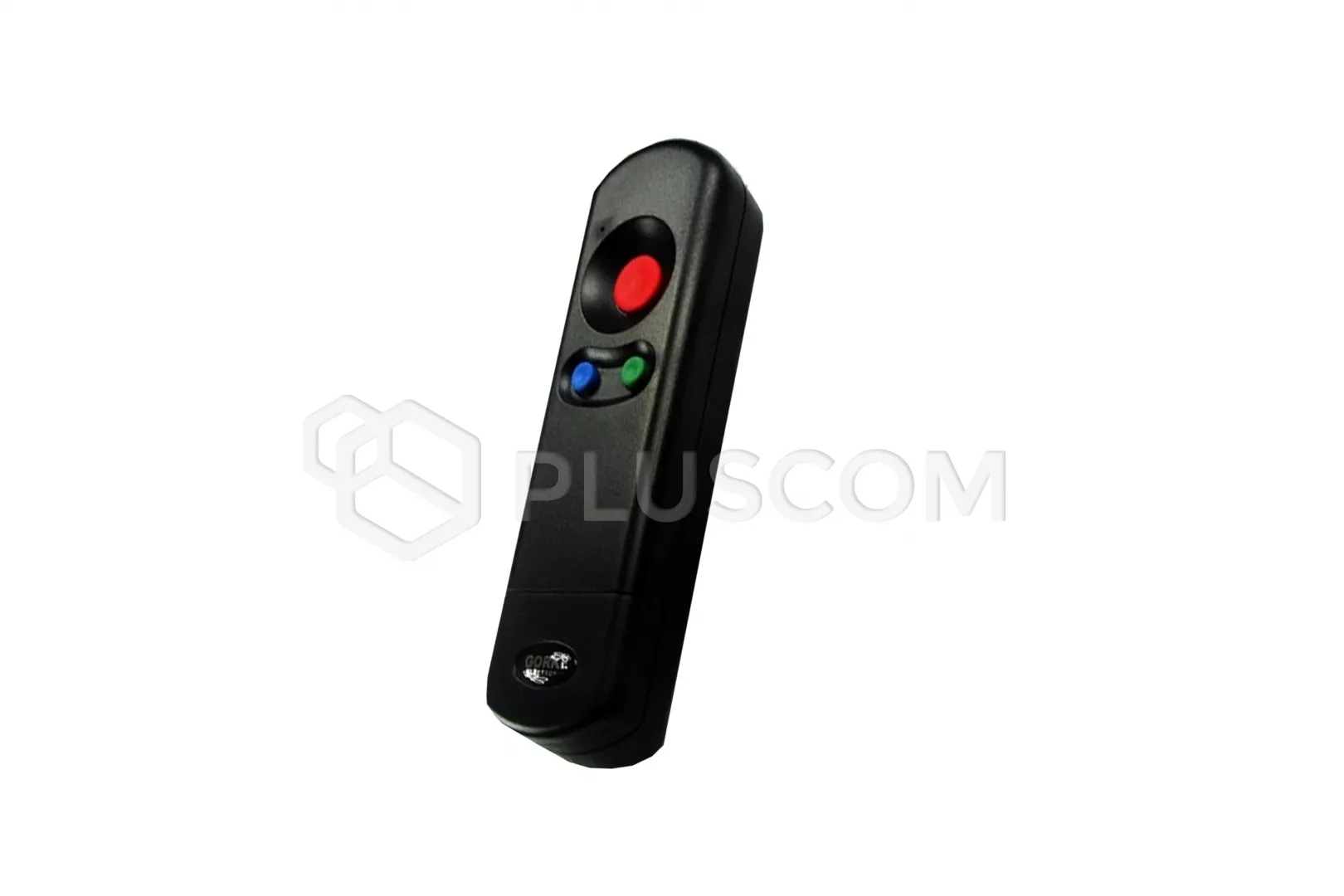

TECHNICAL PARAMETERS OF THE TRANSMITTER:

• power supply: 1 x 6F22 9V alkaline battery
• frequency: 433.92 MHz
• encoding: rolling code
• number of keys: 3
• transmission power: ≤+8 dBm
• work ranges:
• • receiver with H1 module (e.g. RSU) 300 m
  • receiver with H2 module (e.g. OPC) 600 m
• cooperation: sA series receivers
• operating temperature: -10 ÷ +55 ºC
• dimensions: 125×38×22mm
• Weight: 89g
