Gorke OPC-K02 2-channel receiver

GORKE OPC-K02 2-channel receiver

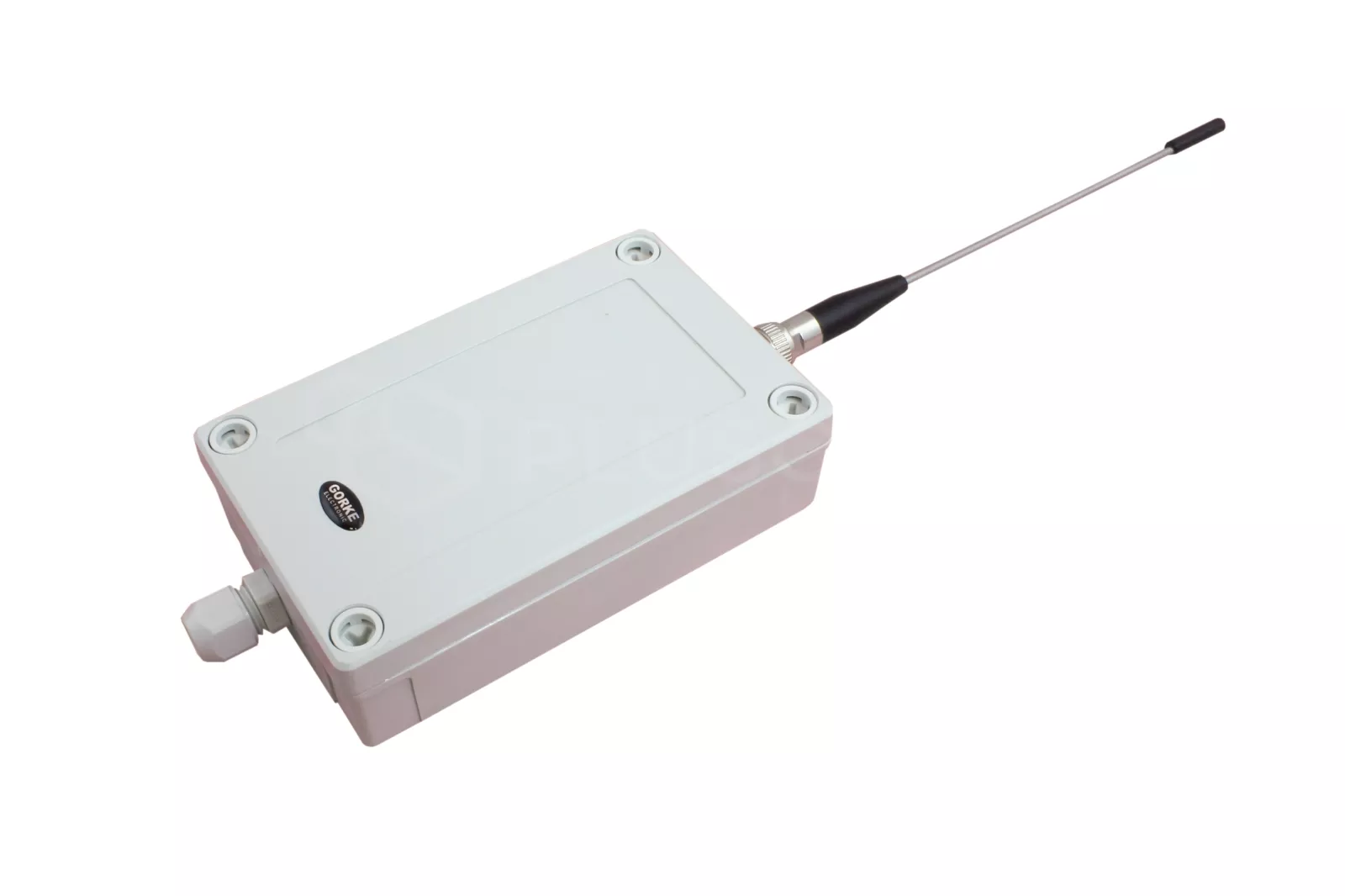

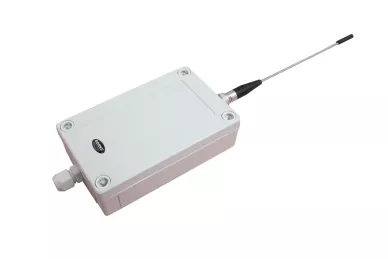

OPC-K02 receiver was placed in hermetyczenj housing with IP67 protection. It is resistant to moisture and low temperatures can be installed on the outside.

Superheterodyne module has a high resistance to electromagnetic interference. Wireless transmission takes place in the band 433.92 MHz using rolling code Keelog, it guarantees high safety.

The receiver can be operated in two modes:

• monostable mode (timer) after sending the transmission from the remote control receiver relay will switch on pre-programmed time (max 4min 20s)
• bistable mode (on/off) receiving the transmission from the remote control, the relay status to the opposite one.


Working range with receiver depends on the model used remote control and is as follows:

• 200m for pilots PUK 101, PUK 102, PUK 104, PUK 112-1, 112-2 PUK
• 400m for PNH 201 hermetic button
• 600m for remote control PUK 303
• 1000m for pilots RNB 101, RNB 101S, NRP 100 stationary transmitter


The reported above distances concerns the open space where the transmitter "sees" with the receiver.
If between the transmitter and the receiver are obstacles, there should be a reduction in the operating range according to:

• wood and plaster it would be 5-20%
• brick by 20-40%
• reinforced concrete by 40 - 80%


In particular, avoid metal obstacles.
