Gorke OPC-K01 1-channel receiver

Gorke OPC-K01 1-channel receiver

OPC-K01 is a 1-channel receiver with increased sensitivity, with a heterodyne H2 type receiving module - which in practice doubles the radio range.
Depending on the type of transmitter, the ranges of OPC-based sets range from 200 m (key fobs) to 1000 m (NRP and RNB).

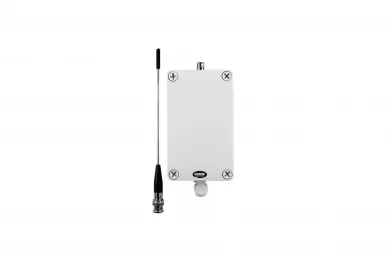

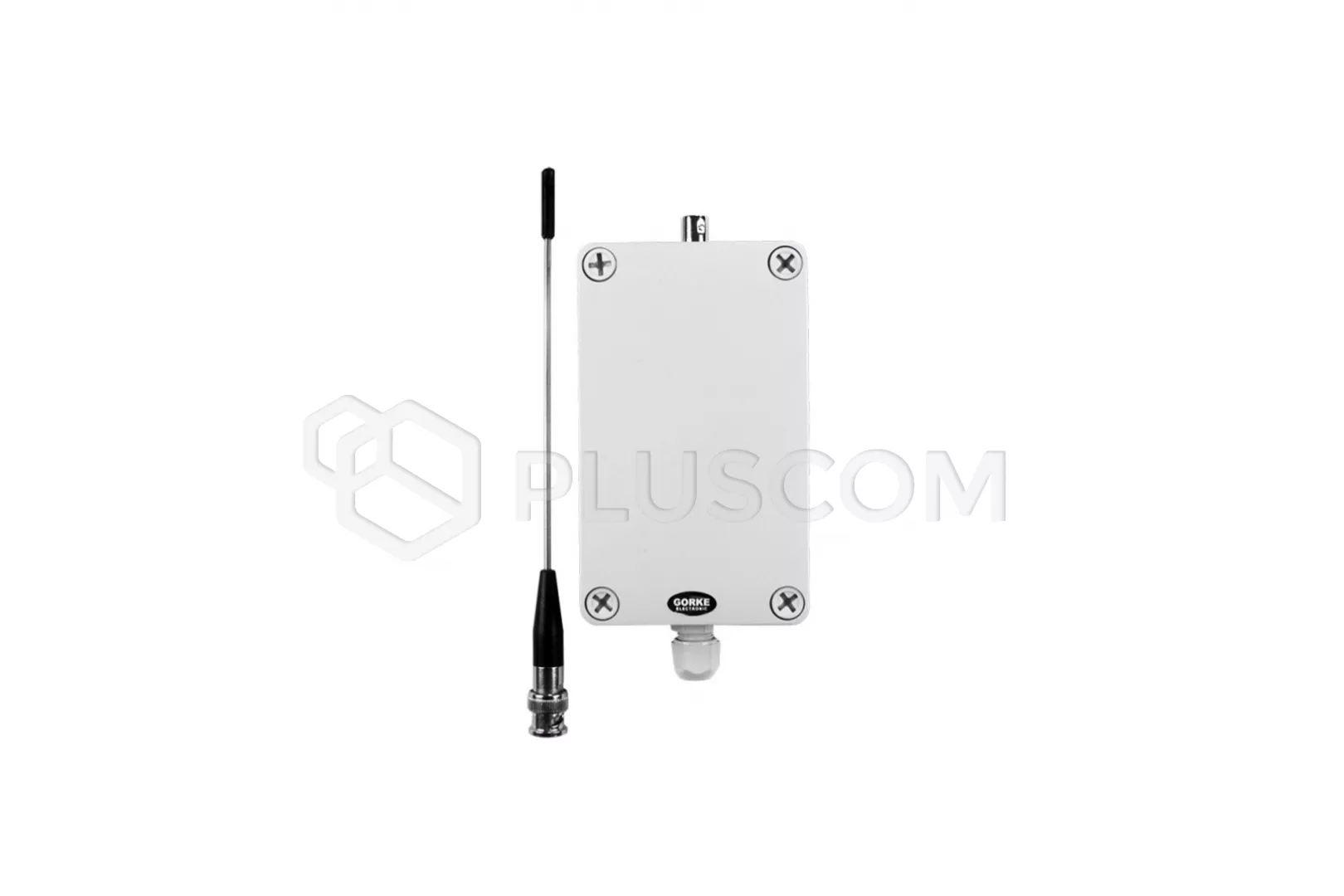

The industrial housing (IP65) allows you to install the receiver outdoors, in the most convenient places for receiving transmissions. A quarter-wave antenna adapted to the receiver's parameters guarantees optimal signal reception.

The transmission is based on a variable code, which ensures high safety of use and resistance to radio signals from other devices. Each transmitter has its own individual code. The receiver responds only to transmissions that come from transmitters programmed into its memory.

Application:

• remote control of devices connected to the receiver outputs (e.g. entrance and garage gates, roller shutters and blinds, electromagnetic locks, lighting, pumps, air conditioning, etc.)
• in alarm systems - introducing an anti-panic button into the system, zone control, etc.

TECHNICAL DATA:

• power supply: 12V DC(10-15V DC)
• power consumption:
• • quiescent: 14 mA
  • maximum: 45 mA
• number of channels: 1frequency: 433.92 MHz
• encoding: variable code

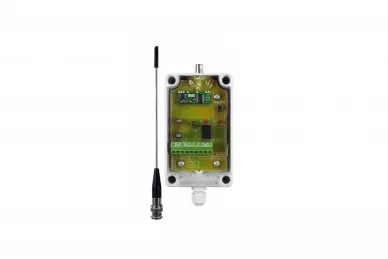

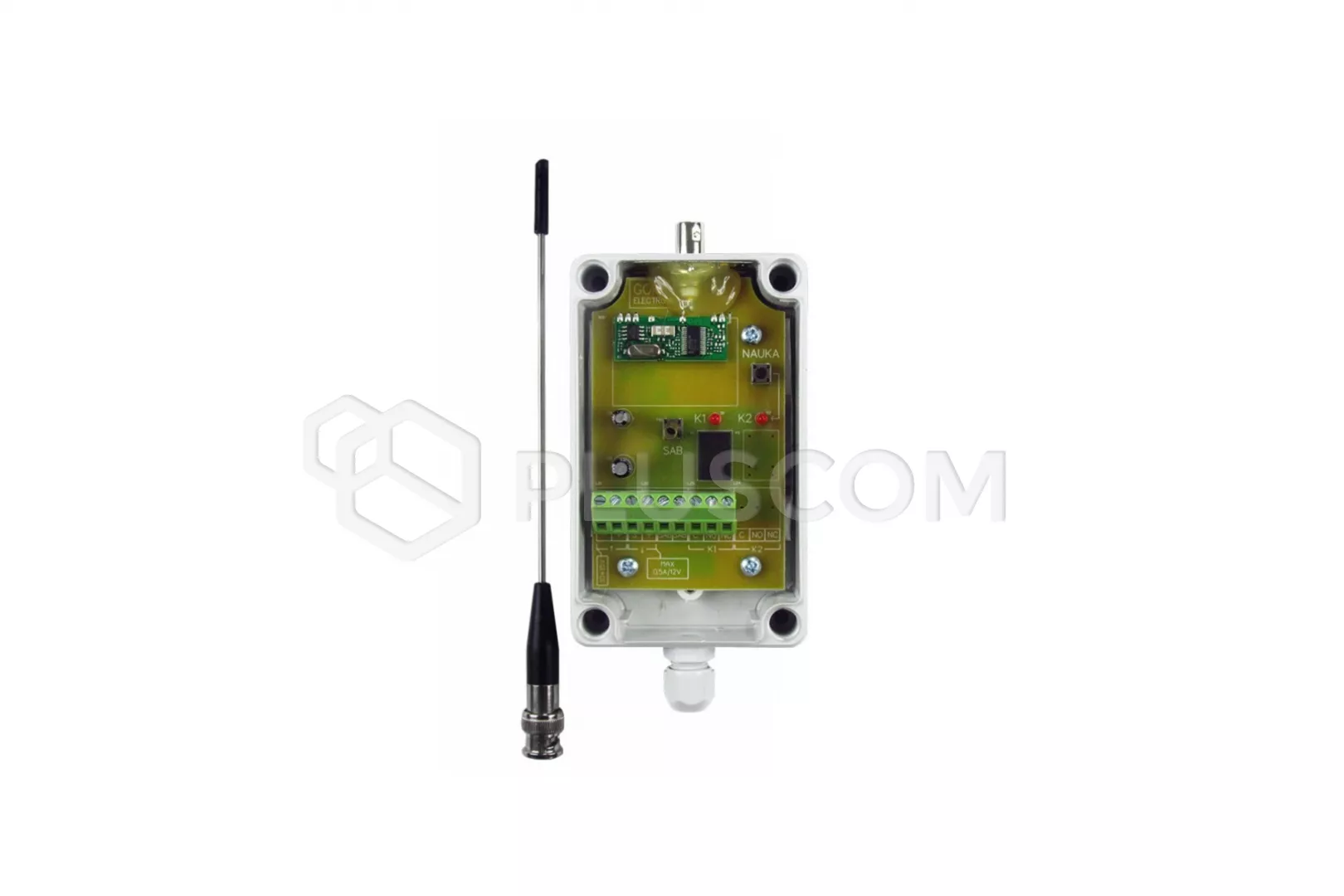

• receiving module: heterodyne H2
• memory capacity: 113 transmitters
• relay operating modes: monostable, bistable
• monostable mode time range: ~1s-4min20s
• load capacity:
• • relay output: 1A/ 30V DC
  • transistor output S: 0.5A/ 12V DC
  • tamper output: 50mA/ 12V DC
• cooperation: any sA series transmitter
• housing tightness: IP 65
• antenna: rod, BNC connector 50 Ohm
• operating temperature: -10÷ +55 °C
• humidity (max): 93±3%
• dimension: 130x80x35 mm
