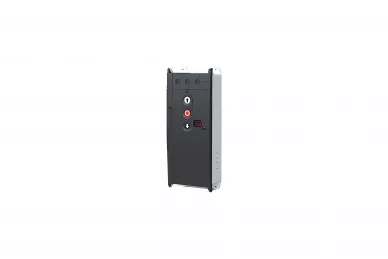

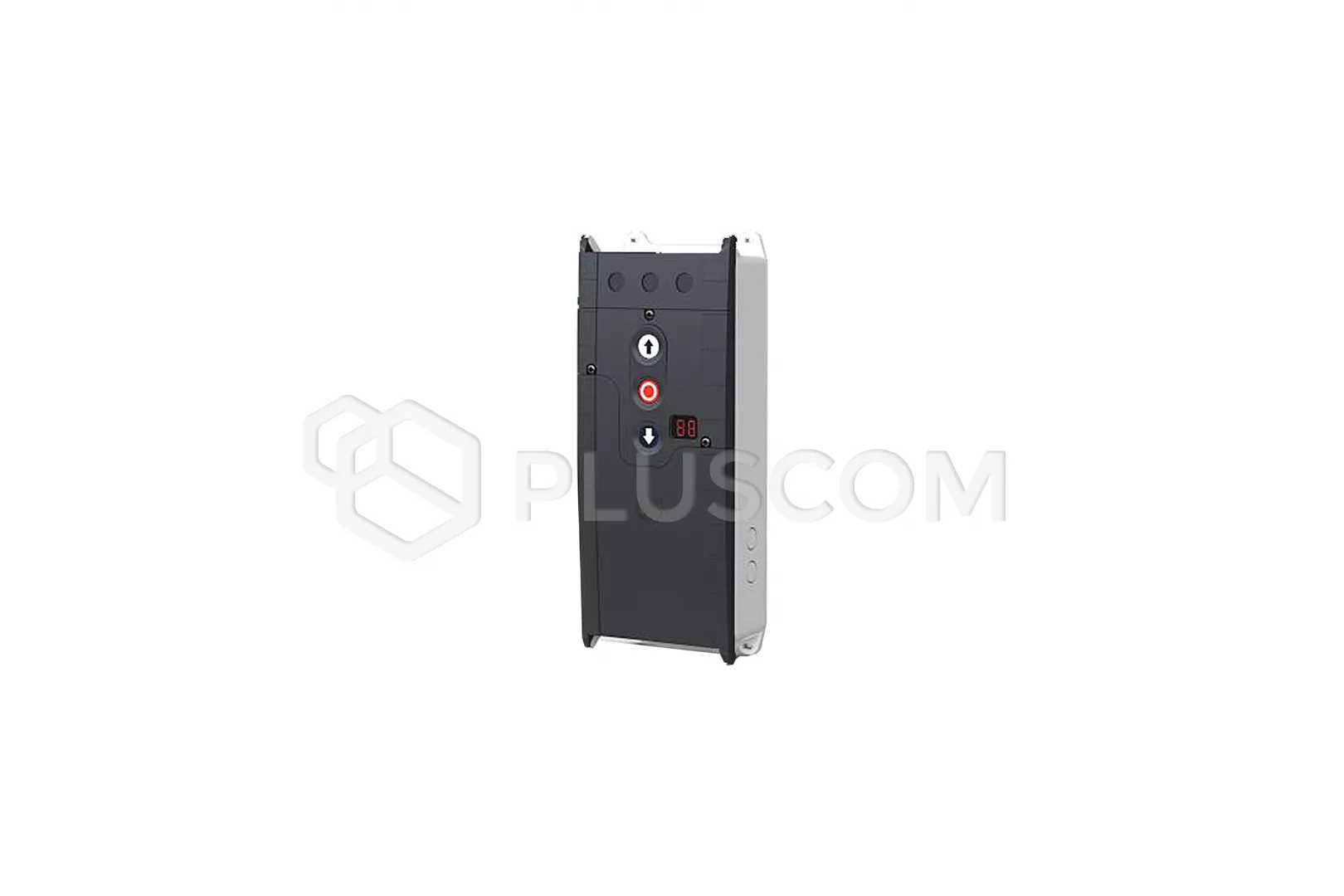

Came PL0168 TS970 control panel

CAME PL0168 TS970 control panel

Control panels are one of the most important elements of the automation system. Apart from the unique design They have many useful functions that allow you to adjust the automation functions to your own needs.
TS970 is intended for gates with motor drive (NES/DES system GfA limit switches) and fully replaces the old type TS956, TS958, TS961, TS970 control panels.

PLUS FUNCTIONS

• Changing the direction of rotation using the keyboard
• Quick setting of end positions and all functions from the operator level
• Possibility to select the operating mode:
• • CLOSE/OPEN deadman mode
  • Dead man mode CLOSE/self-holding OPEN
  • Dead man mode with active contact strip
  • Self-holding CLOSE/OPEN
• Automatic recognition of the type of closing edges and analysis layout:
• • Optical contact strip
  • 8K2 NO contact principle
  • 1K2 break contact principle with testing
• Automatic closing time adjustable in the range of 1 - 240 seconds (can be turned on/off):
• • The gate closes automatically after reaching the upper end position or an intermediate position after the set time has elapsed
  • Possibility to select the time countdown again after the photocell is activated
• Adjustable intermediate position with individual programming options
• Setting the permissible number of contact strip operations during automatic timed closing (1-10)
• Possibility to set the reversal time when the contact strips are activated

TECHNICAL DATA:

• Operating voltage (+/- 10%):
• • 1N~220V, PE
  • 3N~220-400V, PE
  • 3~220-400V, PE
• Output power for the drive: max. 3 kW
• Operating frequency: 50/60 Hz
• Network protection per phase, on site: 10-16 A
• External supply voltage (internal electronic protection): 24 V DC, 0.18 A
• External supply voltage: X1/L, X1/N (mains protection via device fuse F1): 1 N~230 V, 1.6 A slow-blow
• Control inputs:
• • 24V DC
  • type. 10 mA
• Relay contact type max. current at 230VAC 1A, at 24VDC 0.4A] (recommended use of LED lamps): potential-free changeover contact
• Relay contact load, resistive / inductive: 230 V AC, 1 A
• Power consumption by the controller: 10 VA
• Operating temperature range: -10°C .. +50°C
• Air humidity: up to 93% without condensation
• Case protection level: IP54
• Installation: vertical
• Compatible GfA limit switches: NES, DES
• Dimensions: 155 x 386 x 90 mm
