Came PL0126 SE 14 STRONG Set

1265,22 EUR including 19.00% VAT
Product code: #26469
Manufacturer: CAME
  • Actuator 140 Nm, 400 V (DES)
  • TS970 control, without cover
  • Gate weight 600kg
  • Motor power: 450W

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came PL0207 OSE set 6.5m Came PL0193 Chain connector T16/4 Came PL0142 DES connecting cables 7m Came PL0141 DES connecting cables 5m Came PL0440 OSE connection unit with spiral cable Came PL0168 TS970 control panel Came PL0143 DES connecting cables 13m Came PL0140 DES connecting cables 11m CAMEPL0139 DES connecting cables 9m

CAME PL0126 SE 14 STRONG Set for industrial gates 600kg


SET INCLUDES
  • Actuator 140 Nm, 400 V
  • TS970 control, without cover
  • TS-B CEE connection set 3N~400 V (5-pole) with plug-in mains cable, length 0.7 m
  • TS-B1 black cover set for TS970 (small + large)
  • DES connecting cable: 7 m
  • Console for mounting the actuator with screws
  • Cable extending the handles of the device for manual emergency unlocking (red-green)
  • Wedge complete for Ø 25.4 mm (B 6.35 x 9.525 x 130)
  • D-BAL for TS970 control panel
CAME PL0126 SE 14 STRONG Set

CAME PL0126 SE 14 STRONG Set

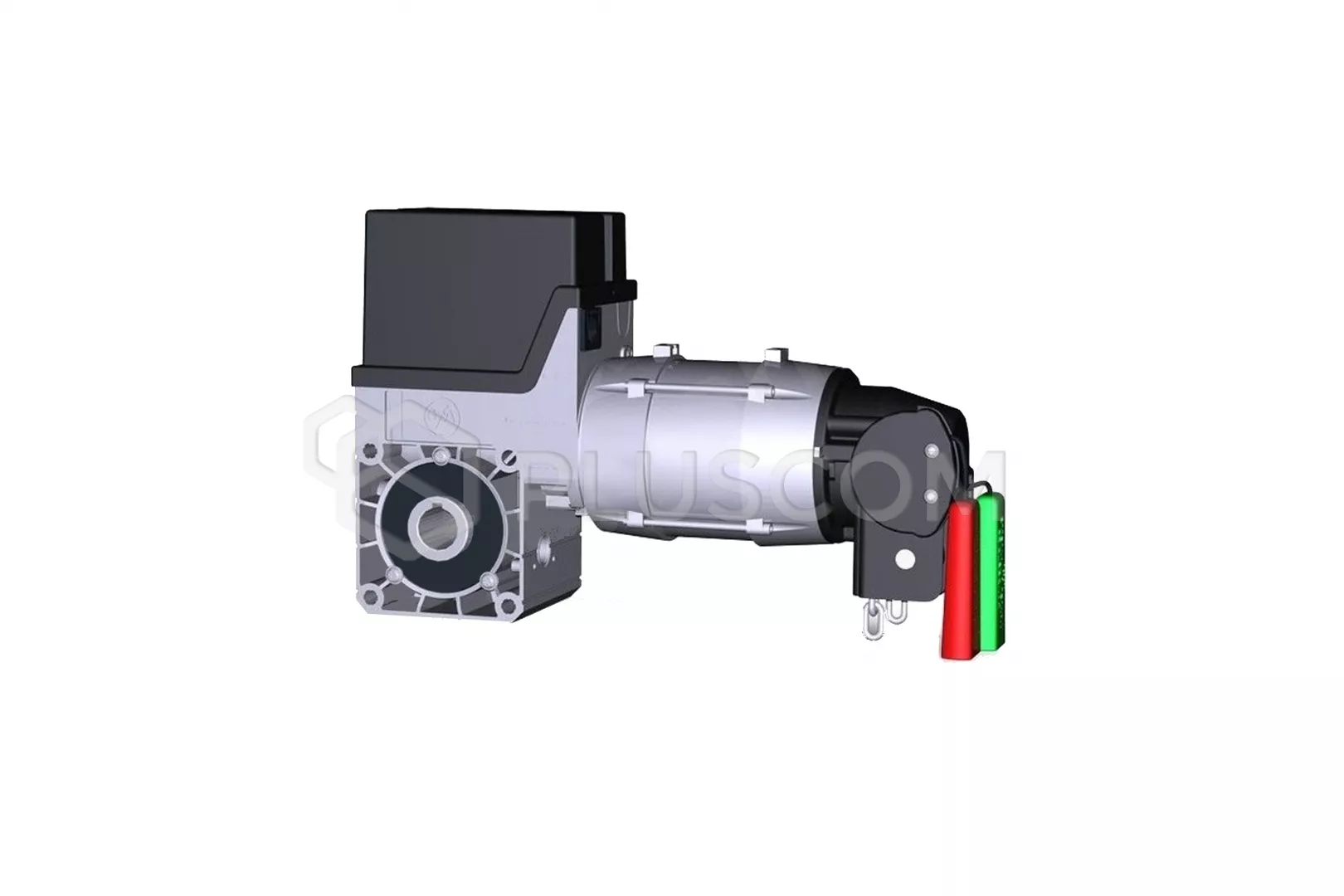

The SE 14 actuator is well designed and refined for sectional gates industrial loads up to 600 kg with mass balancing.
The actuator can be mounted directly on the drive shaft of the sectional door (for shafts with a diameter of 25.4 mm) and has all the functions of the proper one operation in accordance with the product standard DIN EN 13241.
CAME PL0126 SE 14 STRONG Set

CAME PL0126 SE 14 STRONG Set

TECHNICAL DATA

  • power supply: 400V
  • engine power: 450 W
  • operating current: 2.6 A
  • resisting torque: 600 Nm
  • maximum gate weight: 6000 N
  • Output shaft Ø 25.4 mm
  • maximum number of switches per hour: 16
