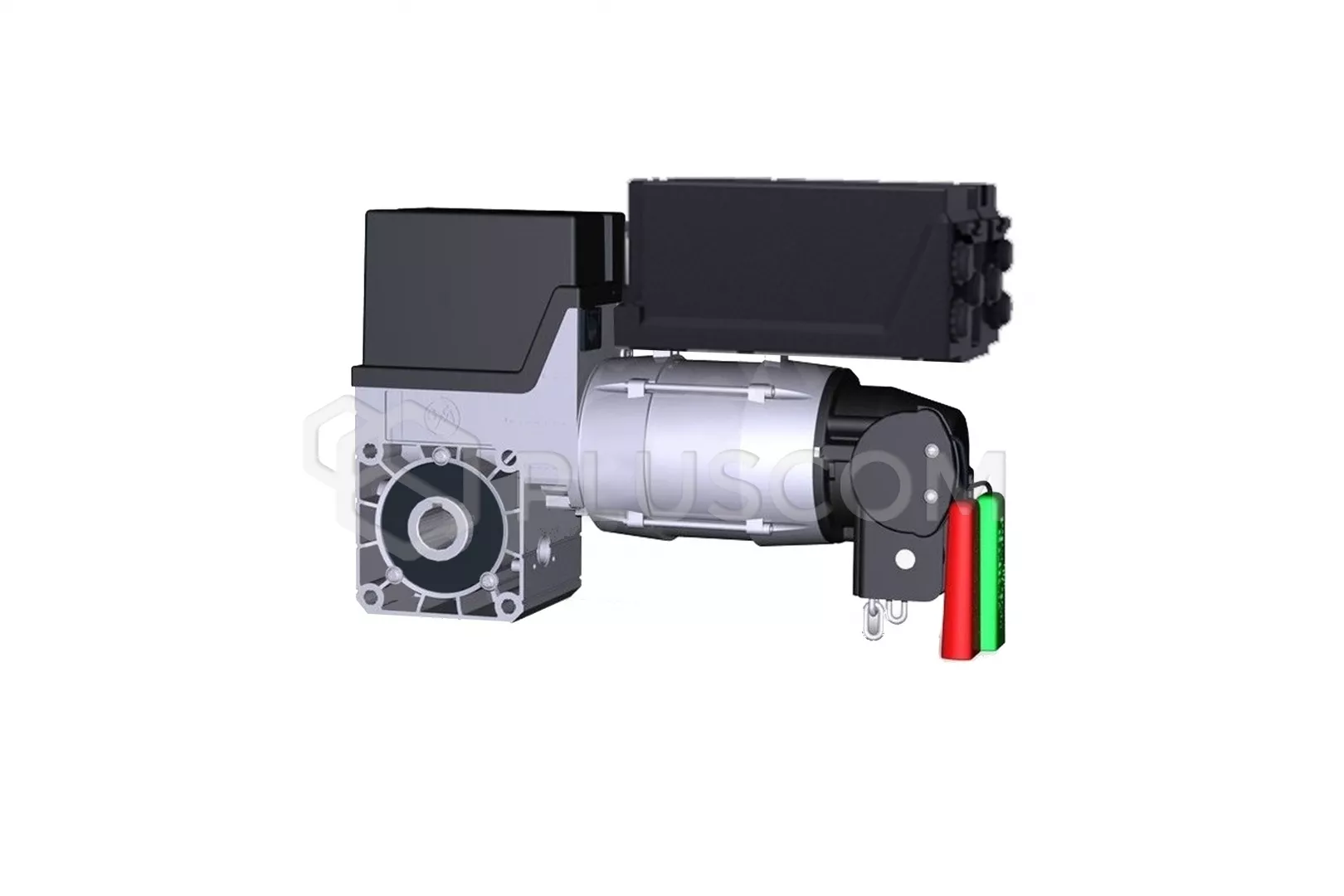

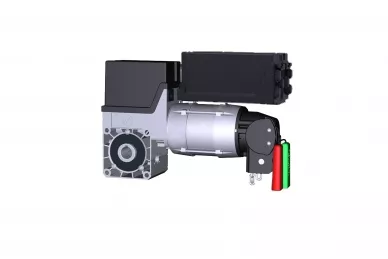

Came PL0125 SE 9 BASIC Set

840,71 EUR including 23.00% VAT
Product code: #26464
Manufacturer: CAME
  • Actuator 90 Nm, 400 V
  • Control pendant
  • Gate weight 400kg
  • Motor power: 370W
  • Deadman mode

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came PL0207 OSE set 6.5m Came PL0193 Chain connector T16/4 Came PL0142 DES connecting cables 7m Came PL0141 DES connecting cables 5m Came PL0440 OSE connection unit with spiral cable Came PL0168 TS970 control panel Came PL0143 DES connecting cables 13m Came PL0140 DES connecting cables 11m CAMEPL0139 DES connecting cables 9m

CAME PL0125 SE 9 BASIC Set for industrial gates 400kg


SET INCLUDES
  • Actuator 90 Nm
  • Control box, plastic housing, IP65 protection level
  • Console for mounting the actuator with screws
  • Cable extending the handles (red-green) of the manual emergency release device
  • Wedge complete for Ø 25.4 mm (B 6.35 x 9.525 x 130)
  • Cable for control keyboard
CAME PL0125 SE 9 BASIC Set

CAME PL0125 SE 9 BASIC Set


The SE 9 actuator is well designed and refined for sectional gates industrial loads up to 400 kg with mass balancing.
The actuator can be mounted directly on the drive shaft of the sectional door (for shafts with a diameter of 25.4 mm) and has all the functions of the proper one operation in accordance with the product standard DIN EN 13241.

BASIC MAIN FUNCTIONS

  • CLOSE/OPEN deadman mode
  • Dead man mode CLOSE/self-holding OPEN
  • Connection for emergency stop
  • Connection for radio receiver/pull switch
CAME PL0125 SE 9 BASIC Set

CAME PL0125 SE 9 BASIC Set

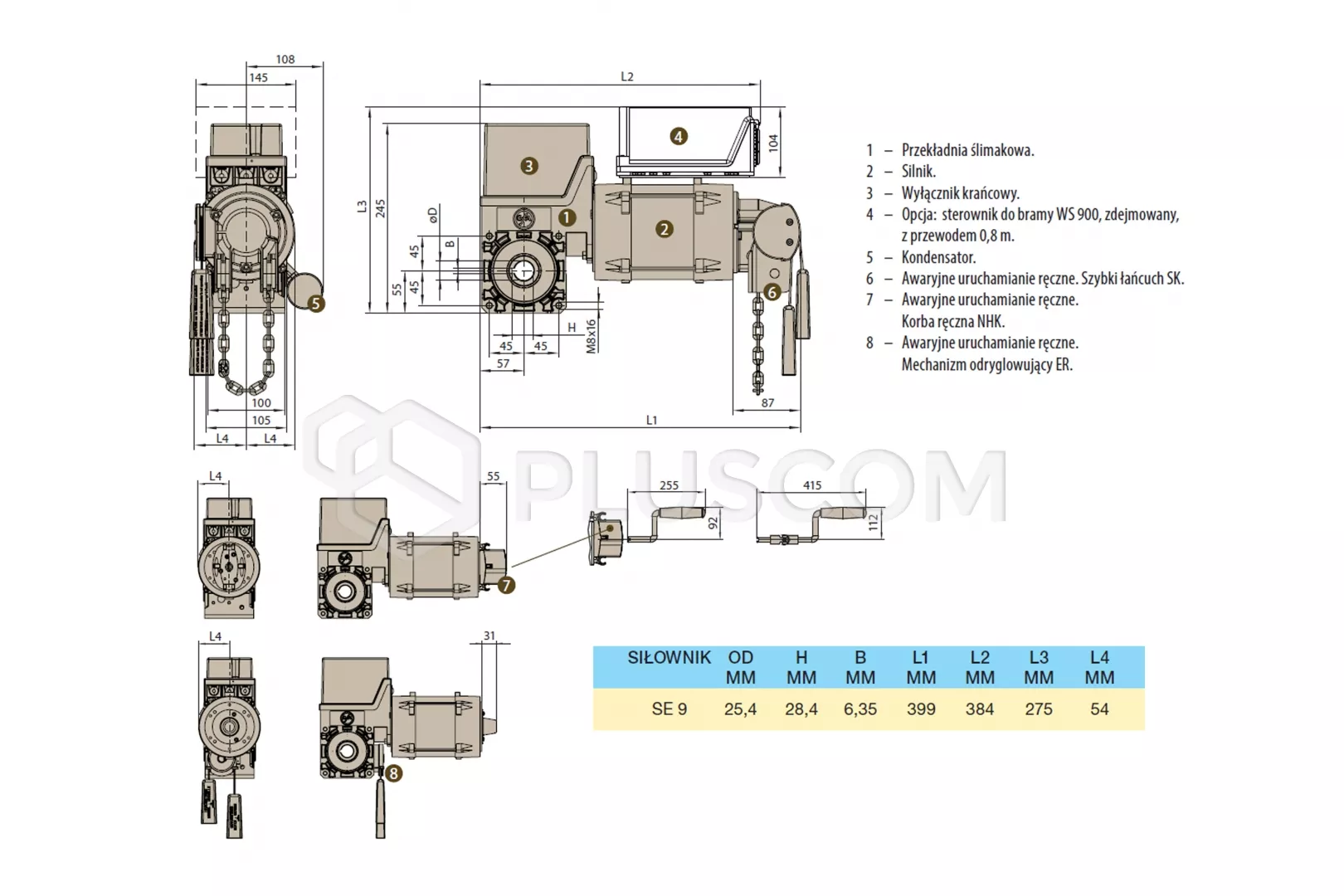

TECHNICAL DATA

  • power supply: 400V
  • engine power: 370 W
  • operating/maximum current 1.2 A/2.1 A
  • resisting torque: 450 Nm
  • maximum gate weight: 4000 N
  • Output shaft Ø 25.4 mm
  • maximum number of switches per hour: 20
  • drive weight: 15 kg
