Came PL0135 SE 9 EURO (WITHOUT SKS-OSE) Set

948,92 EUR including 19.00% VAT
Product code: #26462
Manufacturer: CAME
  • Actuator 90 Nm, 230 V
  • MO720 control
  • Gate weight 400kg
  • Motor power: 370W
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came PL0142 DES connecting cables 7m Came PL0141 DES connecting cables 5m Came PL0440 OSE connection unit with spiral cable Came PL0168 TS970 control panel Came PL0143 DES connecting cables 13m Came PL0140 DES connecting cables 11m CAMEPL0139 DES connecting cables 9m Came PL0207 OSE set 6.5m Came PL0193 Chain connector T16/4

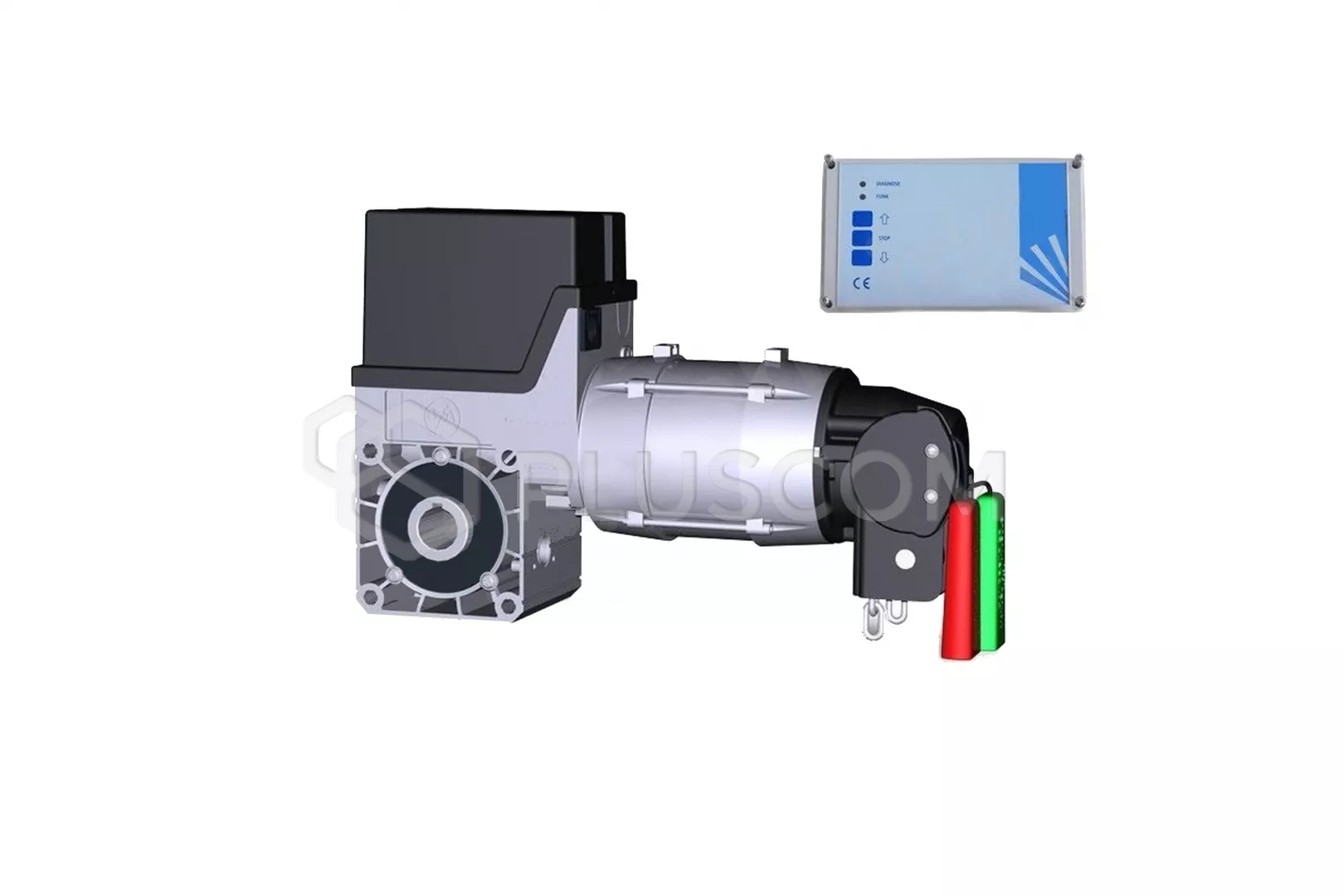

CAME PL0135 SE 9 EURO (WITHOUT SKS-OSE) Set for industrial gates for 400kg


SET INCLUDES
  • Actuator 90 Nm, 230 V
  • MO720 control
  • Cable 7 x 0.75 / 4860 1
  • Cable extending the handles of the device for manual emergency unlocking (red-green)
  • Console for mounting the actuator with screws
  • Complete wedge for Ø 25.4 mm (B 6.35 x 9.525 x 130)
CAME PL0135 SE 9 EURO (WITHOUT SKS-OSE) Set

CAME PL0135 SE 9 EURO (WITHOUT SKS-OSE) Set


The SE 9 actuator is well designed and refined for sectional gates industrial loads up to 400 kg with mass balancing.
The actuator can be mounted directly on the drive shaft of the sectional door (for shafts with a diameter of 25.4 mm) and has all the functions of the proper one operation in accordance with the product standard DIN EN 13241.
CAME PL0135 SE 9 EURO (WITHOUT SKS-OSE) Set

CAME PL0135 SE 9 EURO (WITHOUT SKS-OSE) Set

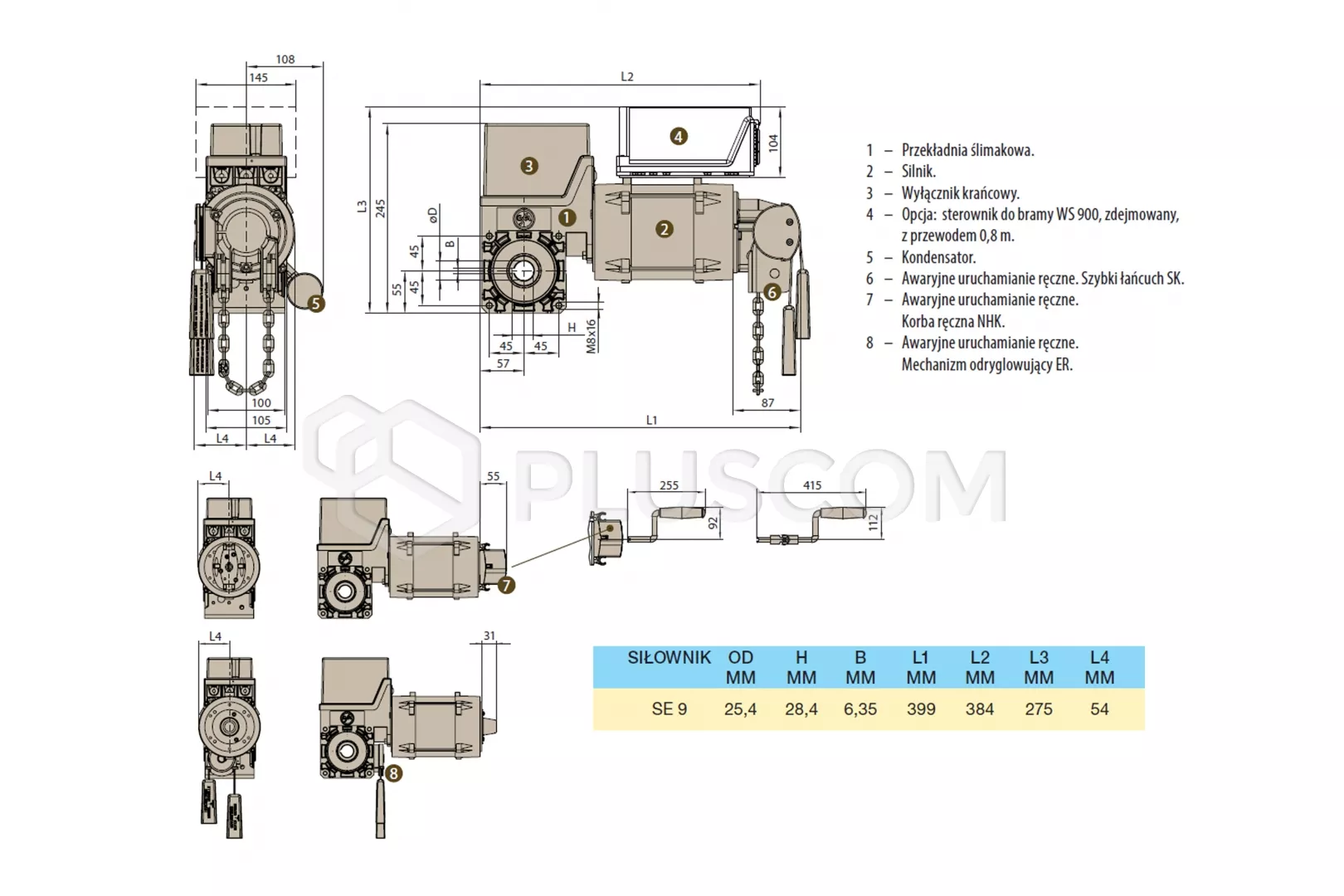

TECHNICAL DATA

  • power supply: 230V
  • engine power: 370 W
  • operating/maximum current 1.2 A/2.1 A
  • resisting torque: 450 Nm
  • maximum gate weight: 4000 N
  • Output shaft Ø 25.4 mm
  • maximum number of switches per hour: 20
  • drive weight: 15 kg
