Came PL0133 SE 5 BASIC Set

802,98 EUR including 22.00% VAT
Product code: #26463
Manufacturer: CAME
  • Siłownik 50 Nm, 400V
  • Speed: 42/30 rev/min
  • Gate weight: 250kg
  • IP 65 control box
  • Deadman mode
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came PL0207 OSE set 6.5m Came PL0193 Chain connector T16/4 Came PL0142 DES connecting cables 7m Came PL0141 DES connecting cables 5m Came PL0440 OSE connection unit with spiral cable Came PL0168 TS970 control panel Came PL0143 DES connecting cables 13m Came PL0140 DES connecting cables 11m CAMEPL0139 DES connecting cables 9m

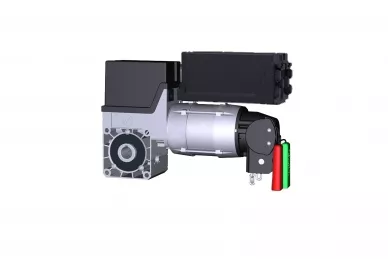

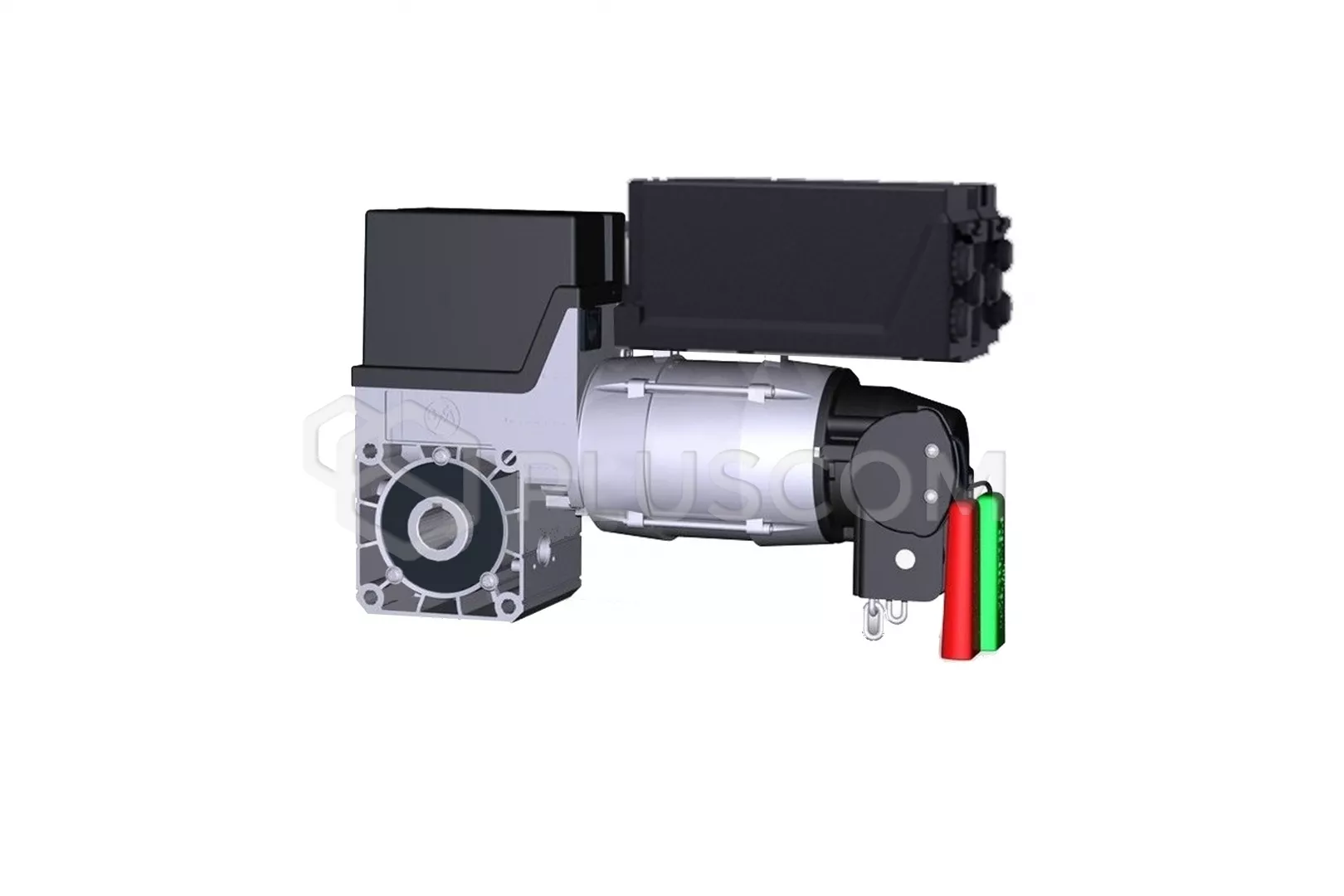

CAME PL0133 SE 5 BASIC Set for industrial gates up to 250kg with cassette control


SET INCLUDES
  • Actuator 50 Nm, 400 V
  • Control cassette, plastic housing, IP65 protection level
  • Console for mounting the actuator with screws
  • Cable extending the handles (red-green) of the device for manual use emergency unlock
  • Complete wedge for Ø 25.4 mm (B 6.35 x 9.525 x 130)
  • Cable for control keyboard
CAME PL0133 SE 5 BASIC Set

CAME PL0133 SE 5 BASIC Set

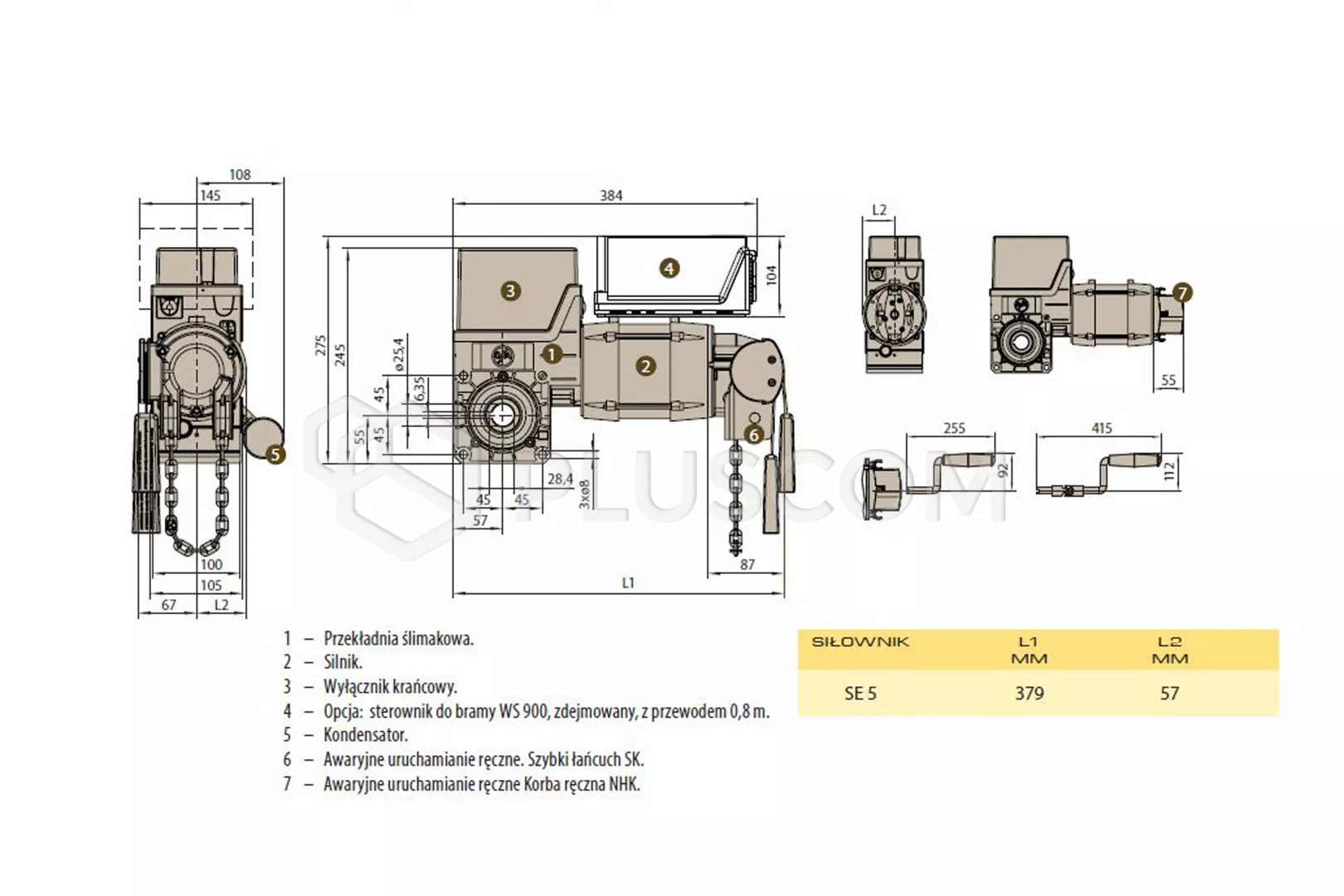

The SE 5 actuator is well designed and refined for sectional gates industrial loads up to 250 kg with mass balancing.
The actuator can be mounted directly on the drive shaft of the sectional door (for shafts with a diameter of 25.4 mm) and has all the functions of the proper one operation in accordance with the product standard DIN EN 13241.

BASIC MAIN FUNCTIONS

  • Close/open deadman mode
  • Dead man mode CLOSE/self-holding OPEN
  • Connection for emergency stop
  • Connection for radio receiver/pull switch
CAME PL0133 SE 5 BASIC Set

CAME PL0133 SE 5 BASIC Set

TECHNICAL DATA

  • power supply: 400V
  • motor power: 300 W
  • operating/maximum current 1.1 A/1.9 A
  • output torque: 50 Nm
  • output speed: 24 rpm
  • resisting torque: 200 Nm
  • maximum gate weight: 2500 N
  • Output shaft Ø 25.4 mm
  • maximum number of switches per hour: 12
  • drive weight: 15 kg
